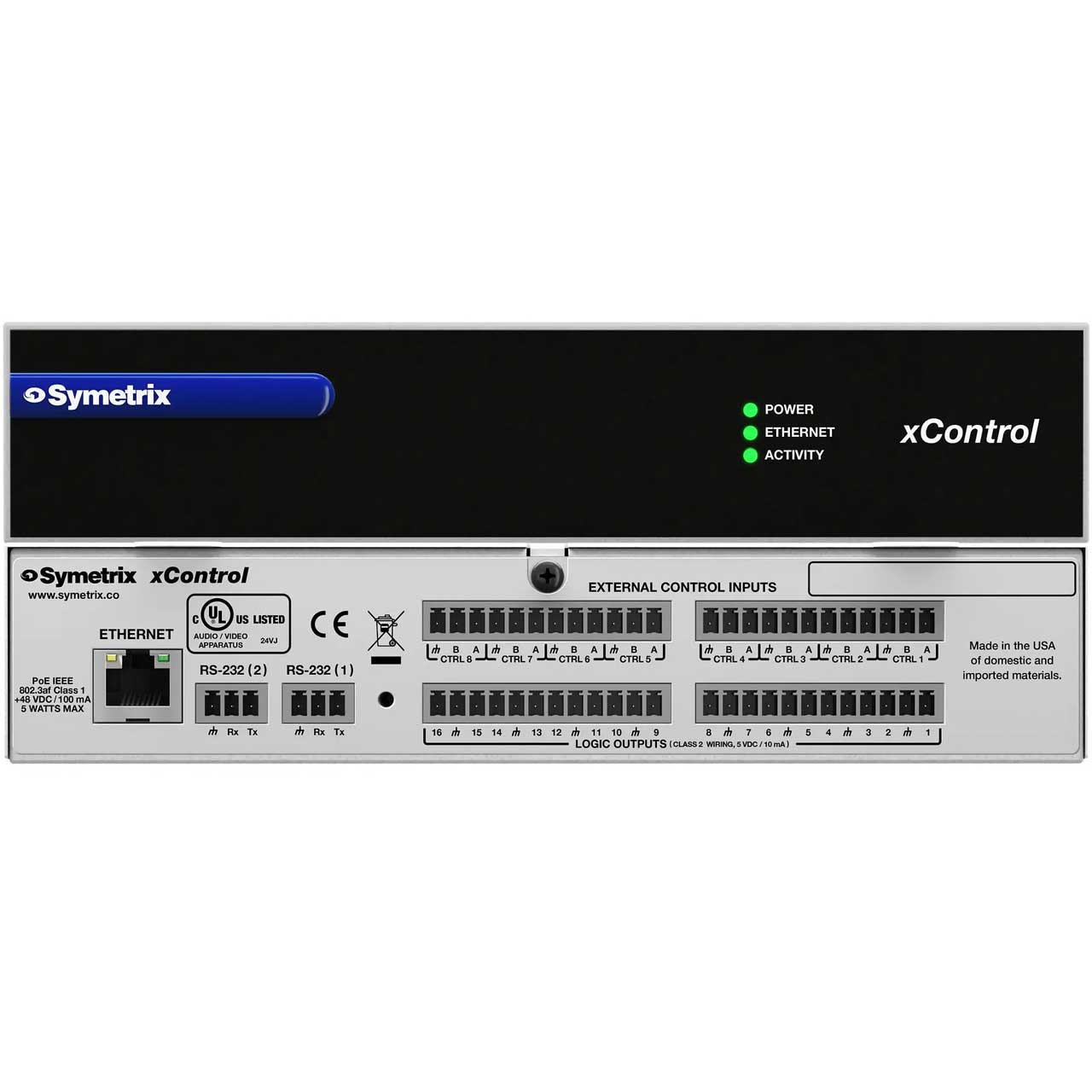

Symetrix xControl 1/2RU External Control Expander w/ 8 GP Inputs / 16x GP Outputs / 2x RS232 / PoE

80-0089 - Overview

• Features:

  • Analog / Logic Control Inputs / Logic Outputs / RS-232.
  • Flexible 1/2 Rack Form Factor.
  • Powered Via PoE (Switch or Injector).
  • Each of the 8 flexible analog control inputs may be configured for 1 potentiometer or 2 switches.
  • The 16 logic outputs may be used to drive LEDs, external relays, or control contact closure ports.
  • Either of the 2 RS-232 ports may be configured to receive commands from, or issue commands to, third-party control systems.
  • Applications include adding push-to-talk capability and LED activity indication
  • in conferencing and paging applications and.
  • RS-232 projector, camera, and lighting control.
  • Multiple xControls may be combined.
  • Straight forward set-up and management using Composer open-architecture software.
  • Versatile half-rack design for mounting in optional 1U rack tray
  • or surface mount with optional bracket.


• Specifications:

  • External Control Inputs
  • Number of External Control Inputs: 8 to 16 total; each configurable to accommodate 1 potentiometer or 2 closures for a maximum of 8 potentiometers or 16 closures
  • Connectors: 3.81 mm terminal blocks
  • Reference Voltage: 3.3 VDC
  • Recommended Potentiometer: 10k Ohms linear taper

    Logic Outputs
  • Number of Logic Outputs: 16; each capable of driving an LED directly, triggering an external relay or sinking external voltage/current. Low (0 VDC) when active, pulled high (5 VDC) when inactive
  • Connectors: 3.81 mm terminal blocks
  • Maximum Output Voltage: 5 VDC
  • Maximum Output Current: 10 mA
  • Maximum External Power Supply Voltage: 24 VDC
  • Maximum External Power Supply Current Sinking: 50 mA

    RS-232 Ports
  • Number of RS-232 Ports: 2
  • Connectors: 3.81 mm terminal blocks
  • RS-232 Port Parameter: 57.6 kbaud (default), 8 data bits, 1 stop bit, no parity, no flow control wired straight-through, only pins 2, 3, and 5 required

    System

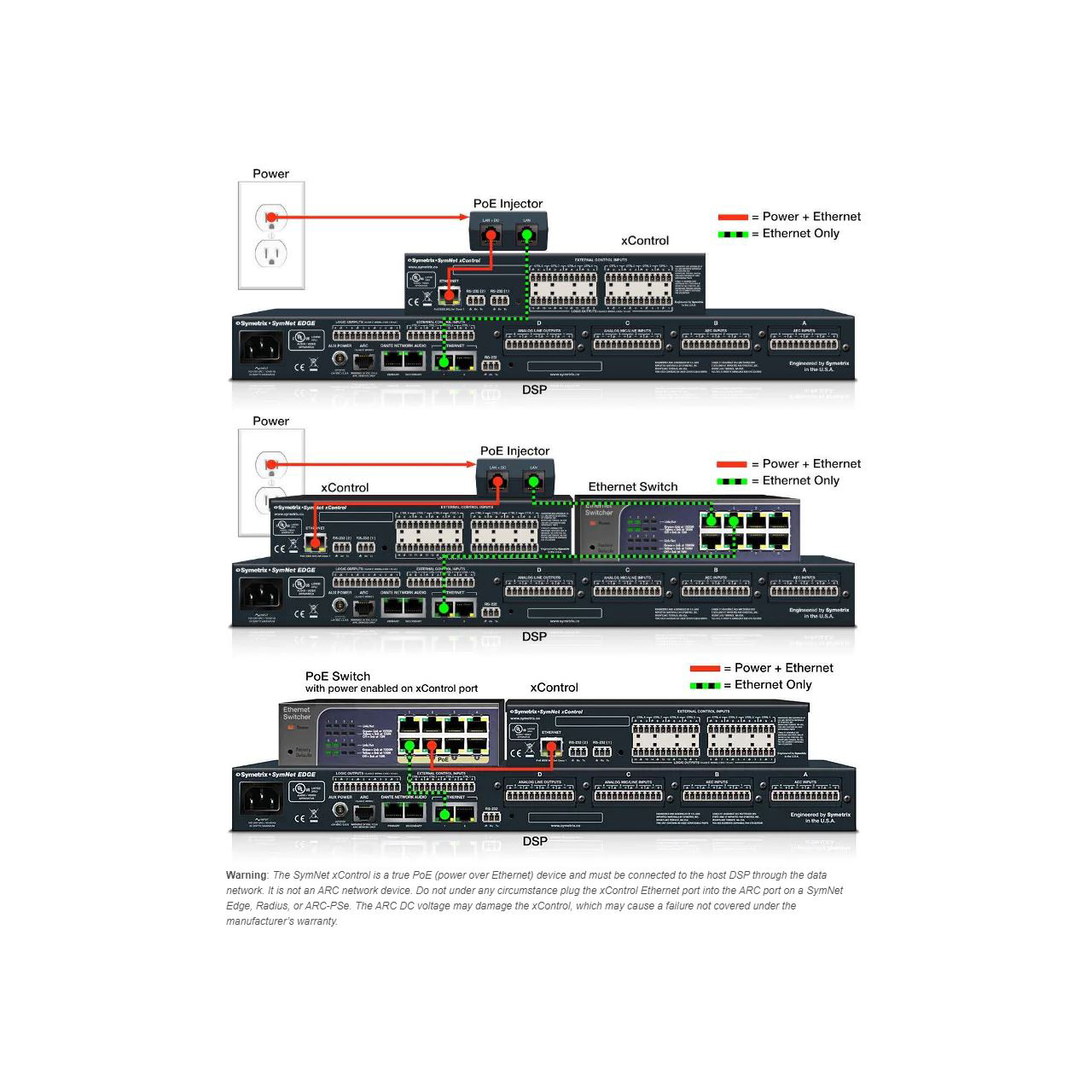

  • Ethernet Cable: Standard CAT5/6, maximum device-to-device length = 100 meters


• Item Includes:

  • 1x xControl hardware device.
  • 1x North American (NEMA) and Euro IEC power cable. You may need to substitute a cable appropriate for your locale.
  • 1x 15 Watt, 100-250 VAC input, 48 VDC output, PoE injector.
  • 18x detachable 3.81 mm terminal block connectors.
  • 1x 3' shielded CAT5e RJ45 cable.
  • 1x Quick Start Guide


• Warranty:

  • 5 years
