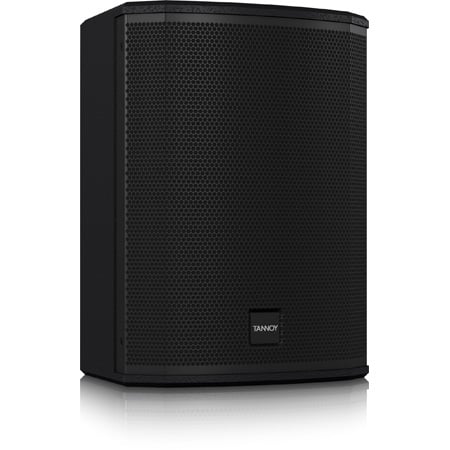

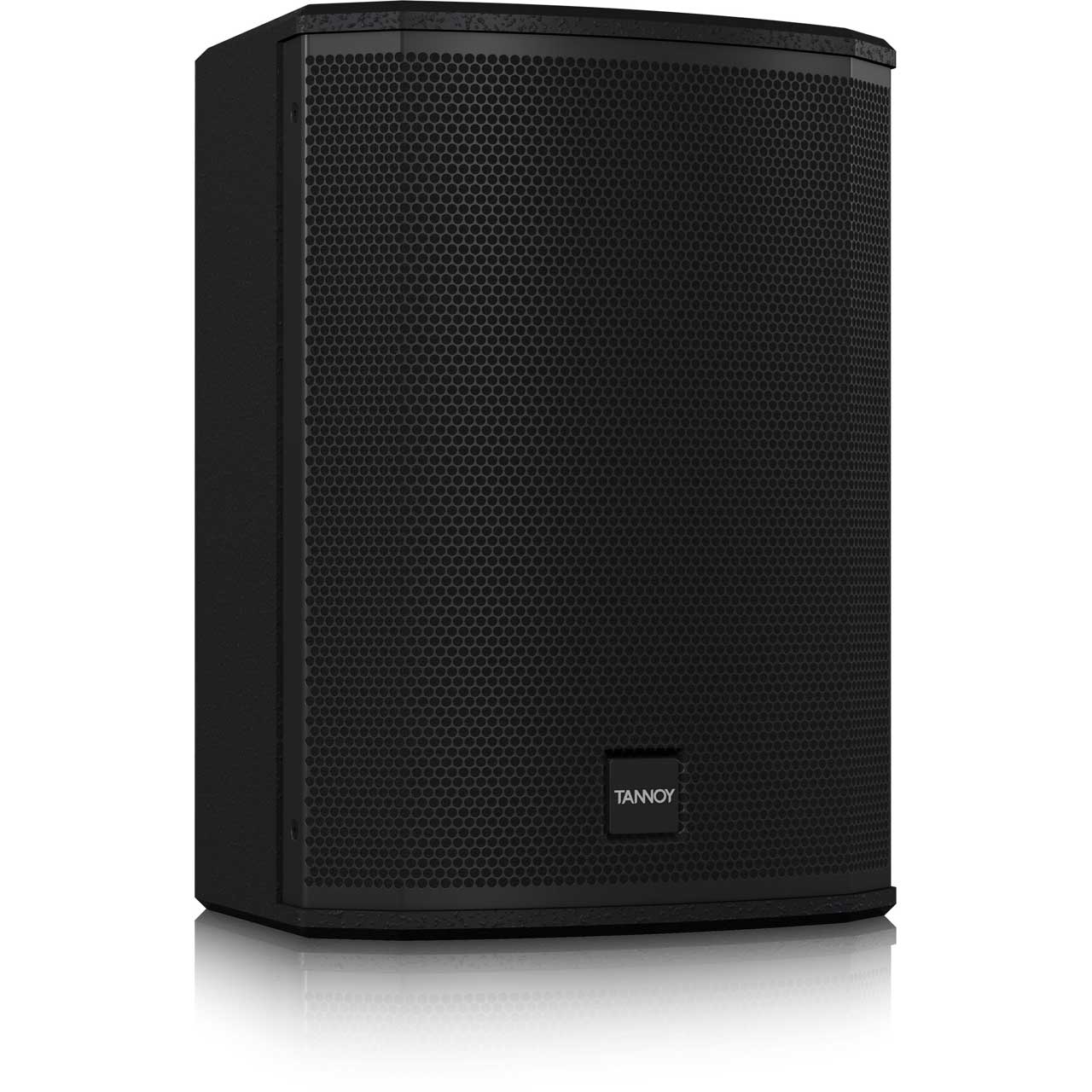

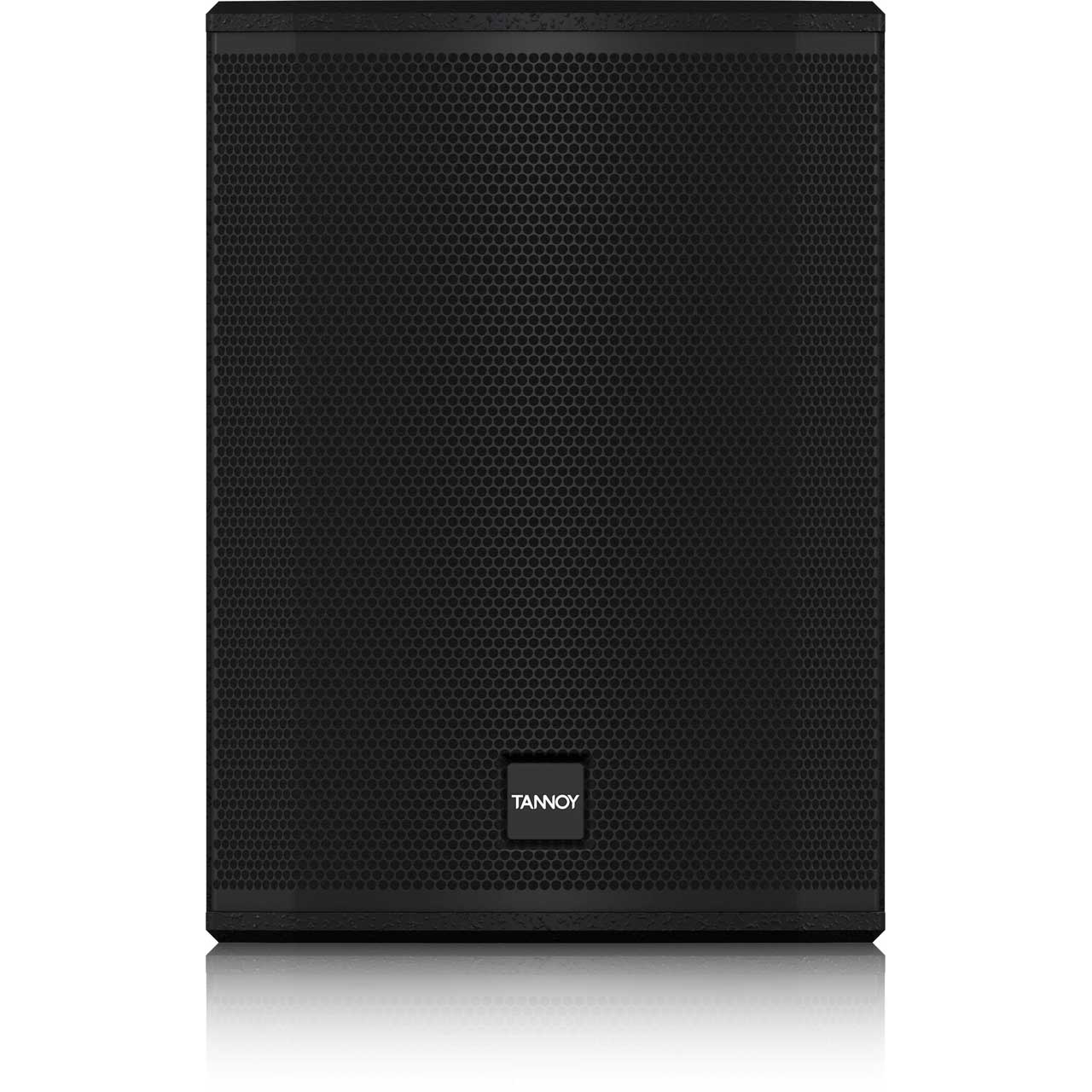

Tannoy VXP8 Self-Powered Loudspeaker - Black

ITEM #: TAN-VXP8-BK MFG #: VXP8 BLACK

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
Tannoy Ltd.
Free Shipping with $49 Minimum Order
We are an authorized dealer for this series; however, the manufacturer does not permit online sales. Please contact a sales engineer at 1-800-522-2025 to complete your purchase.
Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
  • Special Order Item: non-cancelable, non-returnable, non-refundable.
Report Lower PriceLarge Quantity Quote

VXP8 BLACK - Overview

VXP Series is a self-powered line of sound reinforcement loudspeakers based on the passive VX Series products, and featuring the brand new IDEEAT power module from Lab.gruppen. The product of tour-honed design experience, the world renowned manufacturer's ultra-reliable amplifier platforms perfectly complement the acoustic excellence of Tannoy's VX loudspeaker designs. The result is the all-new VXP Series: audible superiority in a self-powered box.
Applications
Auditoria / Lecture Theatres
Bars & Restaurants
Conference rooms
Corporate AV
Fitness Centres & Leisure Facilities
Hotels
Houses Of Worship
Live Music / Performance Venues
Museums & Galleries
Night Club
Portable PA
Theme Parks
Retail Spaces & Malls
Performing Arts Spaces

  • Features:

    • 9 self-powered models to suit every potential application
    • Integrated Lab.gruppen IntelliDrive Energy Efficient Amplifier IDEEA electronics providing ultra-reliable Class D amplification
    • High efficiency and low distortion
    • Integrip carrying points for portability
    • Engineered and built in UK
    • Five year loudspeaker warranty


  • Specifications:

    • PERFORMANCE
    • Frequency Response (-3 dB) (1)
    • Full Range Mode 88 Hz - 35 kHz
    • Frequency Range (-10 dB) (1)
    • Full Range Mode 67 Hz - 45 kHz
    • Frequency Response (-3 dB) (1)
    • Hi-Pass mode 120 Hz - 35 kHz
    • Frequency Range (-10 dB) (1)
    • Hi-Pass mode 100 Hz - 45 kHz
    • Dispersion (-6dB)
    • 90 degrees conical
    • Driver Complement 1 x 200 mm (8.00") constant directivity Dual ConcentricT
    • Crossover Passive 1.7 kHz with dynamic HF protection
    • Directivity Factor (Q) 6.8 averaged 1 kHz to 10 kHz
    • Directivity Index (DI) 7.9 averaged 1 kHz to 10 kHz
    • Rated Maximum SPL (2) Average: 114 dB
    • Peak: 120 dB
    • Distortion
    • 10% Full Power (10.2 V)
    • 250 Hz
    • 1 kHz
    • 10 kHz
    • 2nd Harmonic 3rd Harmonic
    • 0.12% 0.15%
    • 0.23% 0.84%
    • 1.35% 0.16%
    • Distortion
    • 1% Full Power (3.2 V)
    • 250 Hz
    • 1 kHz
    • 10 kHz
    • 2nd Harmonic 3rd Harmonic
    • 0.16% 0.14%
    • 0.09% 0.53%
    • 0.53% 0.17%
    • CONSTRUCTION
    • Enclosure 16.3 litre, 15mm (0.62") birch plywood, vented and internally braced.
    • Finish Textured black or white paint, with custom colours on request.
    • Powder coated perforated steel grille, Airnet cloth behind

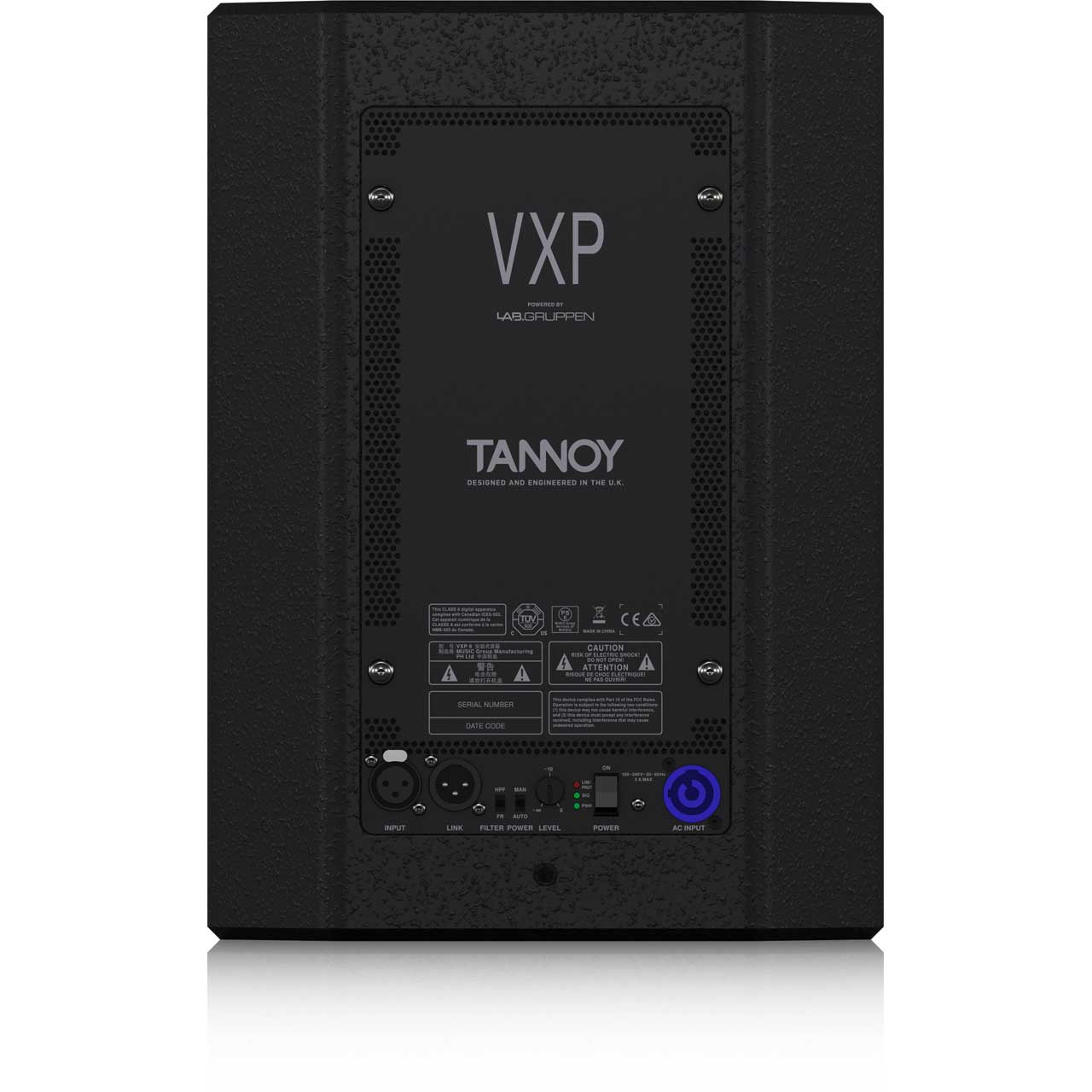

    • Connectors
    • 1 x female XLR (input), 1 male XLR (link), 1 x Neutrik Powercon
    • Controls & Indicators
    • Level Control
    • Power LED (Blue)
    • Signal LED (Green)
    • Limit/Protect LED (Red)
    • Full Range / HighPass Switch (110Hz)
    • Power Mode Switch
    • Power Switch
    • Fittings 4 x M10 Flying inserts, 2 x M10 yoke bracket inserts
    • Blanking plate for optional VTH pole mount
    • Dimensions (H x W x D) 388 x 280 x 275 mm (HxWxD)
    • (15.3 x 11.0 x 10.8" )
    • Net Weight 10.0 kg (22 lbs)


  • GTIN:

    5035866181704
