Turtle AV TAV-CHAZY-CTL CHAZY Control Dante Enabled Advanced Control and Central Management Box - TAA Compliant

ITEM #: TAV-CHAZYCTL MFG #: TAVCHAZYCTL

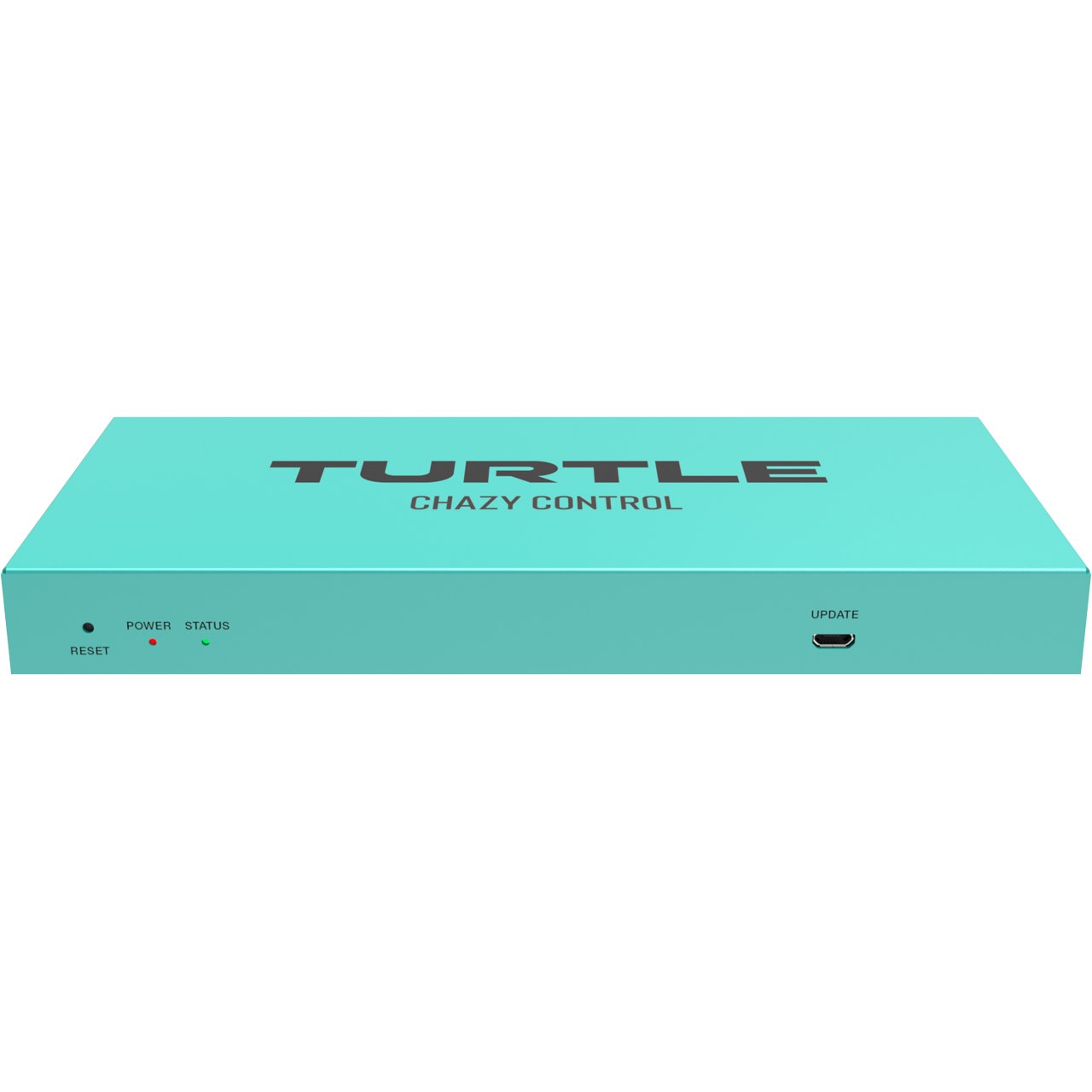

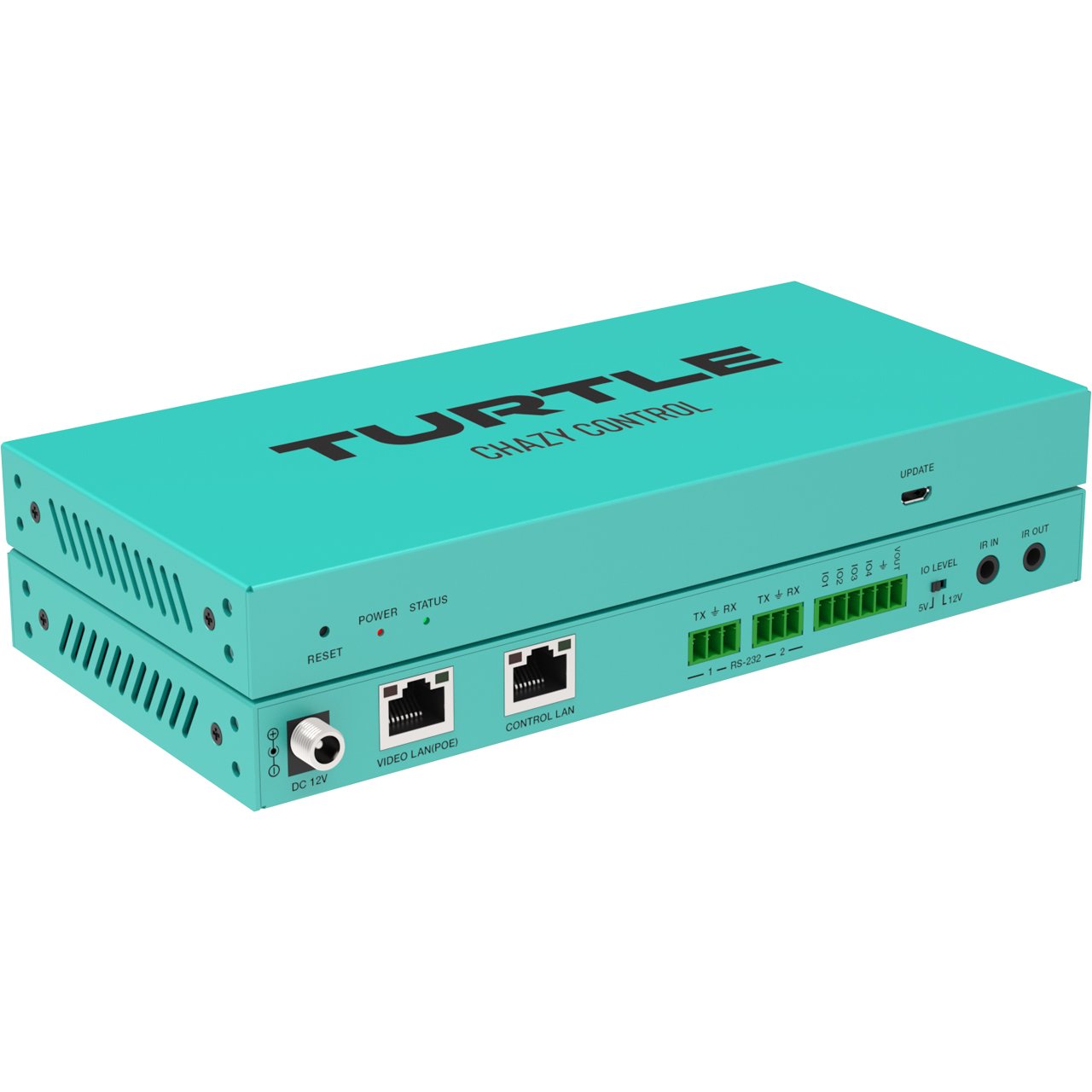

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
Free Shipping with $49 Minimum Order

Our Price:

$699.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


TAVCHAZYCTL - Overview

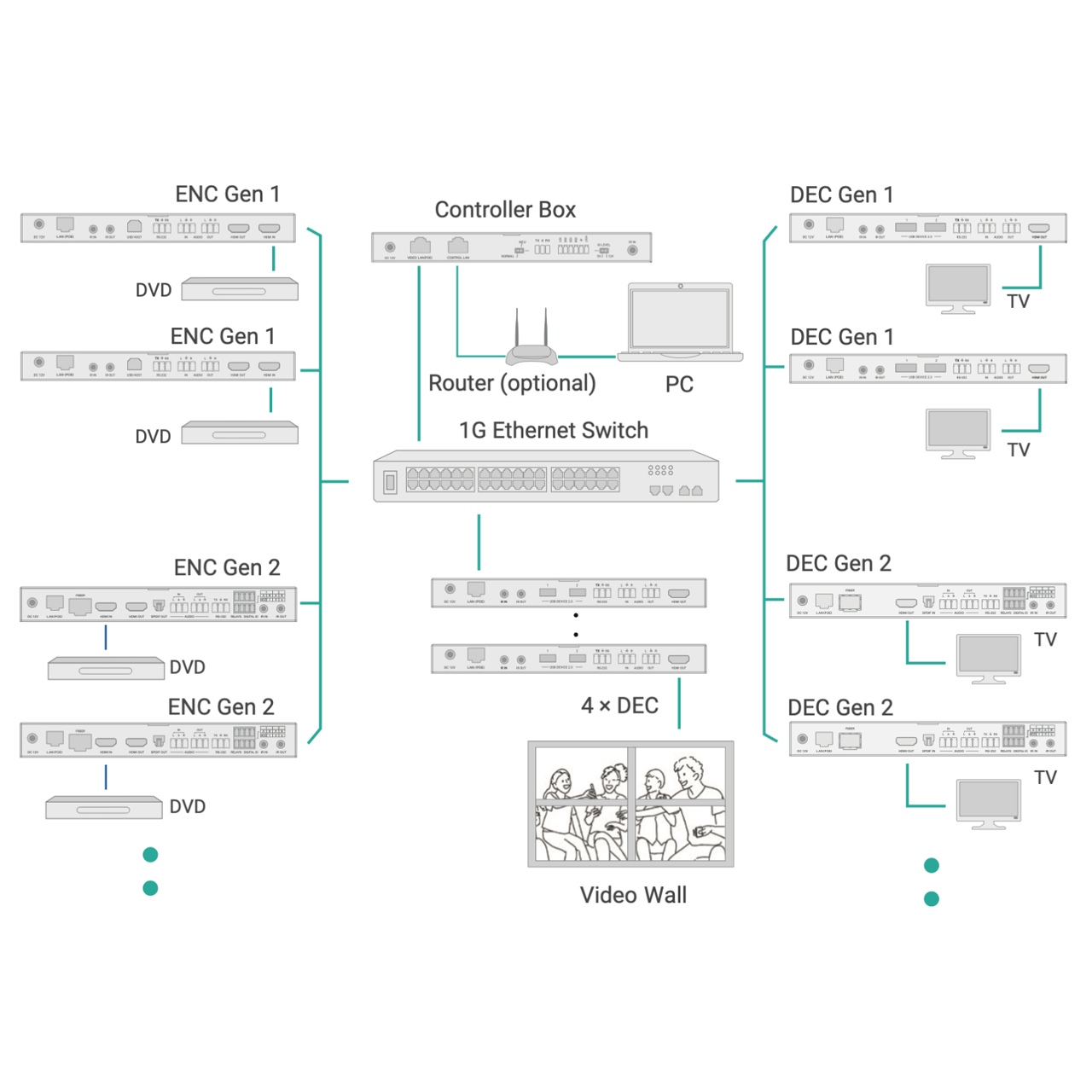

The Turtle AV Chazy Control box unlocks the full potential of the Chazy 4K Family, embedding Dante Controller directly in hardware for seamless routing and management via any web browser. Featuring an compliant, true multicast support, and advanced features like video wall configurations up to 9x9, KVM, and API integration for systems like Q-SYS and Crestron, Chazy Control makes managing your networked AV system effortless. With dual network ports to keep AV and control separate, Chazy Control also has robust security features including HTTPS and SSH, and AES256-bit encryption. TAA compliant, Chazy Control comes with a 5-year warranty.

  • Features:

    • Robust security features including HTTPS and SSH, and AES256-bit encryption
    • Video Wall configurations up to 9x9
    • TAA Compliant

  • Specifications:

    • Technical
    • Network Bandwidth: 1Gbps/100Mbps

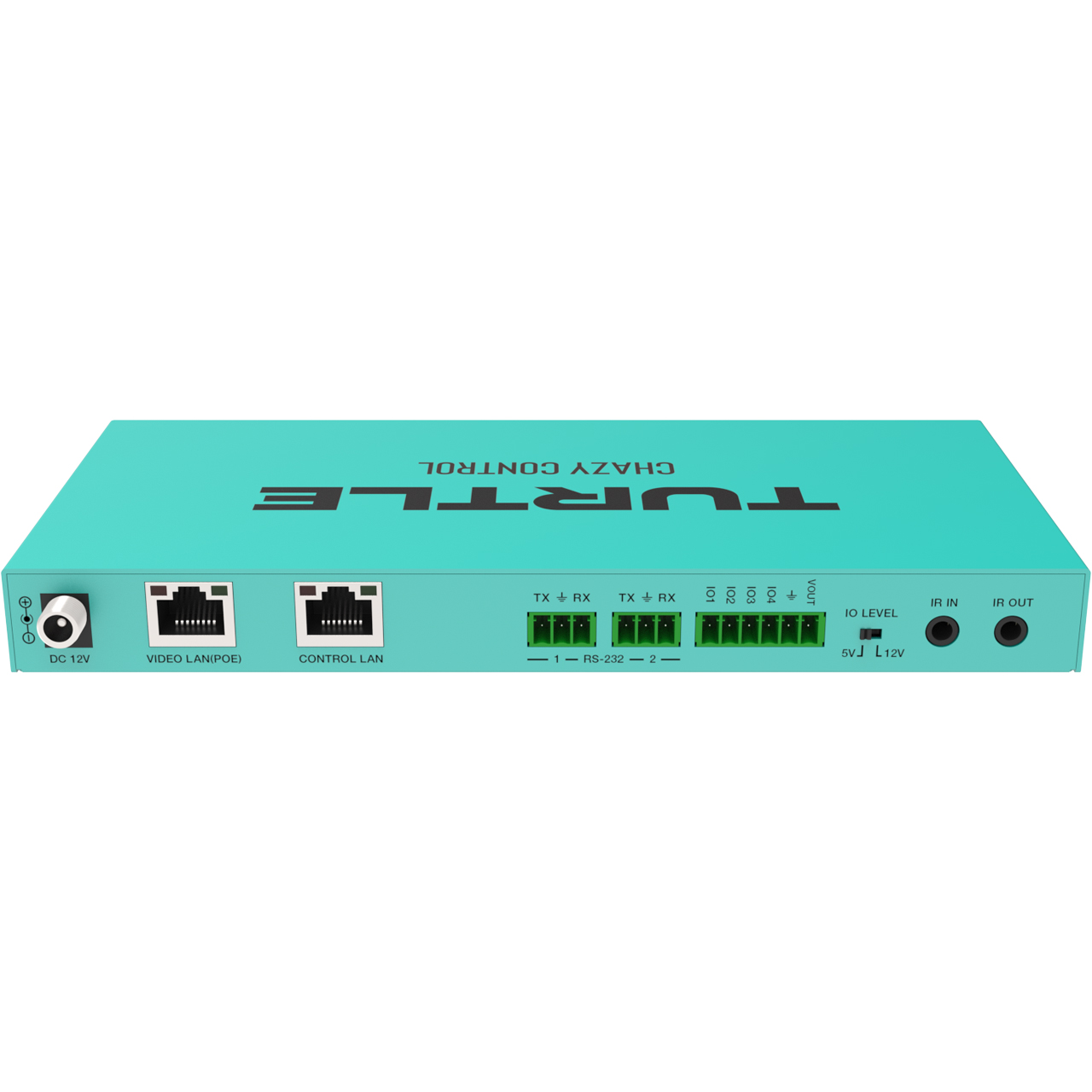

    • Control Ports:
      - 2x 1G LAN [RJ45 connector][VIDEO LAN support POE]
      - 1x IR IN [3.5mm audio jack, 12V level]
      - 1x IR OUT [3.5mm audio jack]
      - 1x DIGITAL I/O [6-pin 3.81mm phoenix connector]
      - 2x RS-232 [3-pin 3.81mm phoenix connector]
      - 1x UPDATE [Micro USB, 5-pin female]
    • ESD Protection: IEC 61000-4-2 ±8kV (air-gap discharge) & ±4kV (contact discharge)

      Mechanical
    • Housing: Metal Enclosure
    • Color: Turtle Aqua
    • Dimensions (WxDxH): 8.03" x 3.87" x 0.84" (204mm x 98.5mm x 21.5mm)
    • Weight: 1.11lbs (508g)
    • Power Supply:
      - Input: AC100-240V 50/60Hz
      - Output: DC 12V/2.5A
      - PoE IEEE 802.3af
    • Power Consumption: 2W
    • Operating Temperature: 32°F - 104°F (-20°C - 60°C)
    • Relative Humidity: 20% - 90% RH (no condensing)

  • Item Includes:

    • 1x Turtle AV TAV-CHAZY-CTL CHAZY Control Dante Enabled Advanced Control and Central Management Box
    • 1x Power Supply

  • Warranty:

    • 5 Year Limited Warranty
