Turtle TAV-D2LDE-PRO Dante Pro Dual Channel Analog Line Output Adapter with Gain Controls - TAA Compliant

ITEM #: TAV-D2LDEPRO MFG #: TAVD2LDEPRO

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
Free Shipping with $49 Minimum Order

Our Price:

$199.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


TAVD2LDEPRO - Overview

Unlock the power of pristine digital audio with the Turtle AV Dante Pro 2CH Line Output Adapter. Built on the cutting-edge Dante Ultimo 2x2 solution, this adapter converts crystal-clear Dante digital audio into two-channel balanced or unbalanced analog audio.

Built Tough with All Metal Chassis
Dante Pro Dual Line Output is housed in an all-metal chassis for maximum ruggedness. And yes, we painted it Turtle Aqua so you know it looks cool even if mounted under a table where no one can see it.

Dante Ultimo
In networked audio, precision is essential, and Dante by Audinate delivers with unmatched synchronization and ultra-low latency performance. Leveraging advanced Precision Time Protocol (PTP), Dante ensures every audio packet arrives at exactly the right moment, maintaining audio quality and eliminating jitter, even in complex networks. Turtle AV adapters, powered by the genuine Dante Ultimo chipset, provide seamless compatibility and full interoperability with any Dante-compatible device, ensuring flawless, professional-grade sound for all installations, from live performances to intricate broadcast environments.

Easy Control
Take command with Dante Controller. Our adapters are fully controllable through this intuitive platform, allowing you to easily manage and adjust settings. With true plug-and-play functionality, your installation is up and running in no time, with no hassle.

100% Dante Software Compatible
Turtle AV Dante Adapters are fully compatible with Dante Controller, Dante Domain Manager, and all Dante software applications.

Audio Conversion
This adapter converts Dante 2CH digital audio into two-channel analog audio, supporting both balanced and unbalanced analog outputs. It offers a versatile Dante audio sampling rate of 44.1, 48, 88.2, and 96KHz at 24-bit, ensuring high-quality sound. The configurable Dante audio delay can be set to 1, 2, or 5 milliseconds, while the analog audio output features 3 levels of sensitivity adjustment, +18dBu, 0dBu, and -10dBV.

AES67 Lives Here Too
Dante Pro Adapters support AES67 and Dante. Toggle between Dante and AES67 within Dante Controller.

  • Features:

    • Dante 2CH digital audio to two-channel analog audio
    • Balanced/unbalanced analog audio output
    • Dante audio sampling rate supports 24bit 44.1/48/88.2/96KHz
    • Configurable Dante audio delay with support for 1, 2, or 5 milliseconds
    • Supports AES67 RTP audio transmission
    • Analog audio output with support for 3-level gain adjustment: +18dBu, 0dBu (default), and -10dBV
    • PoE and 12V DC power via phoenix connector
    • Dante Ultimo Chipset
    • TAA compliant
    • Metal case for maximum ruggedness

  • Specifications:

      Technical
    • Input: Dante 2CH digital audio
    • Output: Two-channel balanced/unbalanced analog audio
    • Control: Dante Controller
    • Network Bandwidth: 100M
    • Audio Latency: Configurable Dante device latency (Supports 1, 2 or 5ms configurable using Dante Controller)
    • Audio Formats:
      - DANTE IN [Digital audio input, PCM 2CH 44.1K-96KHz 16/24bit]
      - LINE OUT [Analog audio output, Balanced/unbalanced 2CH, Max output level +18dBu]
    • Audio Parameters:
      - Output Impedance: 600 Ohm balanced, 300 Ohm unbalanced
      - Line Output Level (Maximum): +18dBu (6.15Vrms) @balanced audio, +12dBu (3.08Vrms) @unbalanced audio
      - Frequency Response: 20Hz to 20kHz (-/+0.5dB)
      - Dynamic Range: >100dB@0dBu, 1kHzA-weighted
      - Audio S/N Ratio: >100dB@0dBu, 1kHzA-weighted
      - Audio THD+N: < 0.01% at +4dBu, 1KHz
      - Audio Output Sync Delay: <10ms
    • ESD Protection: IEC 61000-4-2: ±8kV (Air-gap discharge) & ±4kV (Contact discharge)

      Connections

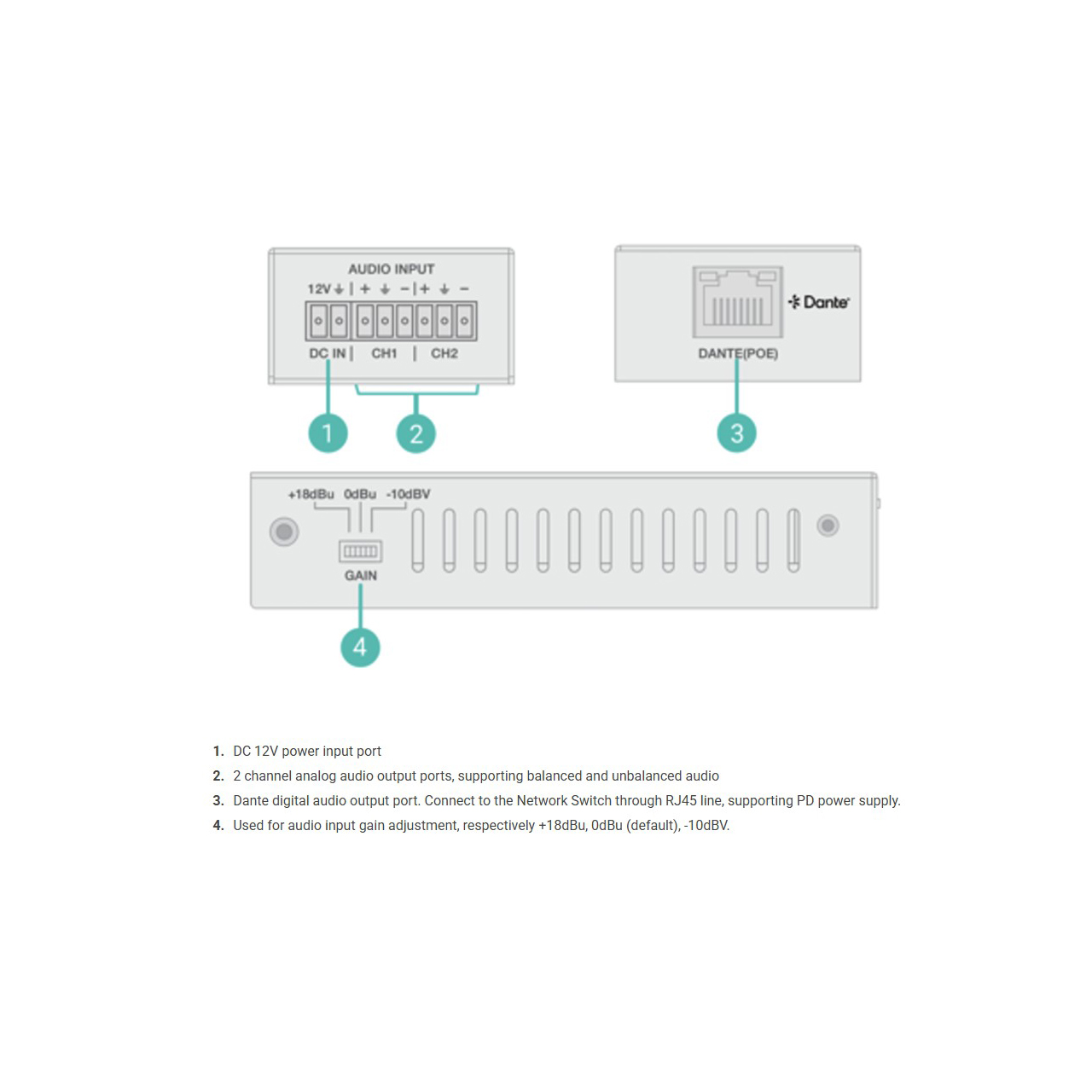

    • Input:

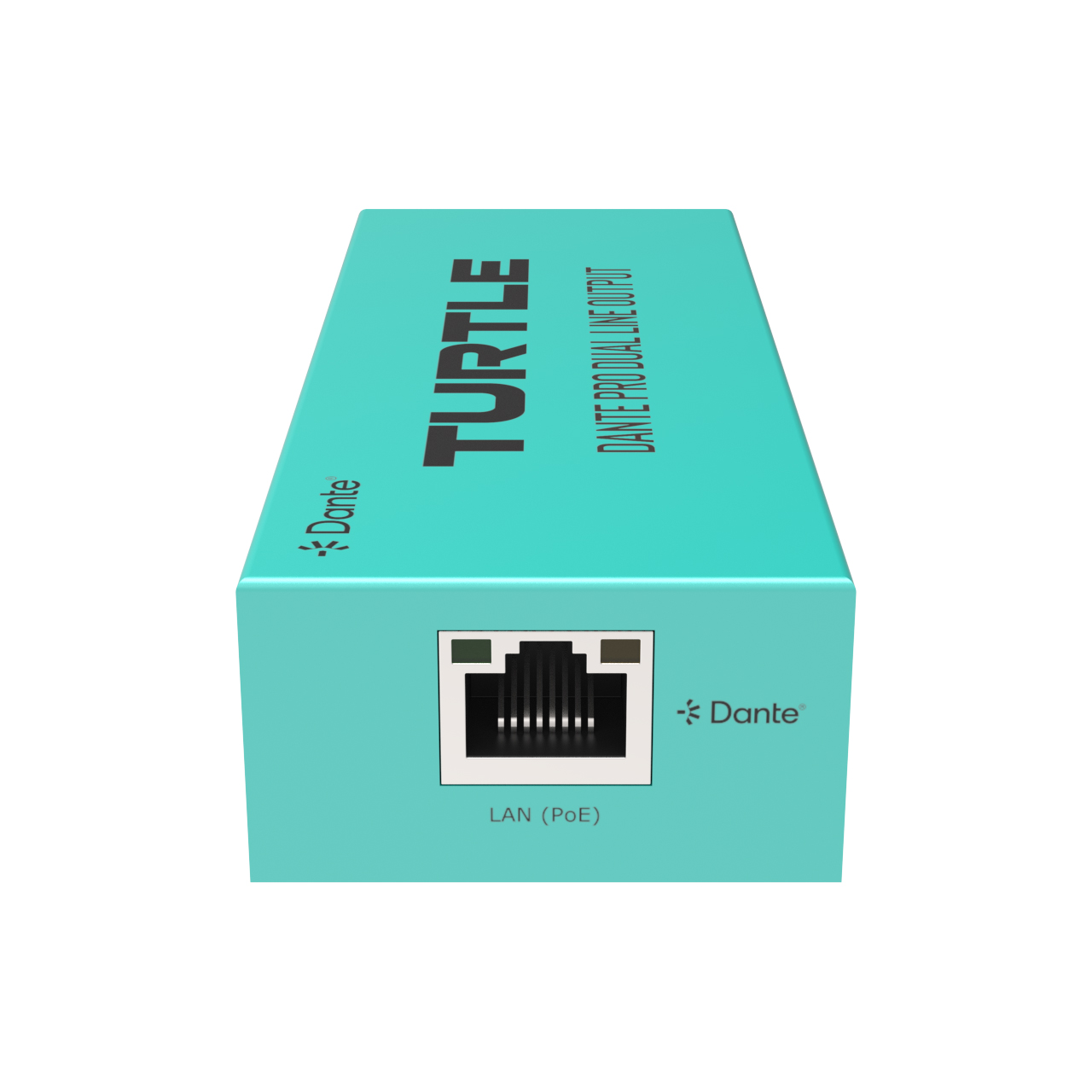

      - 1x DANTE [RJ45 LAN, PoE]
      - 1x POWER [2-pin phoenix, 3.81mm]

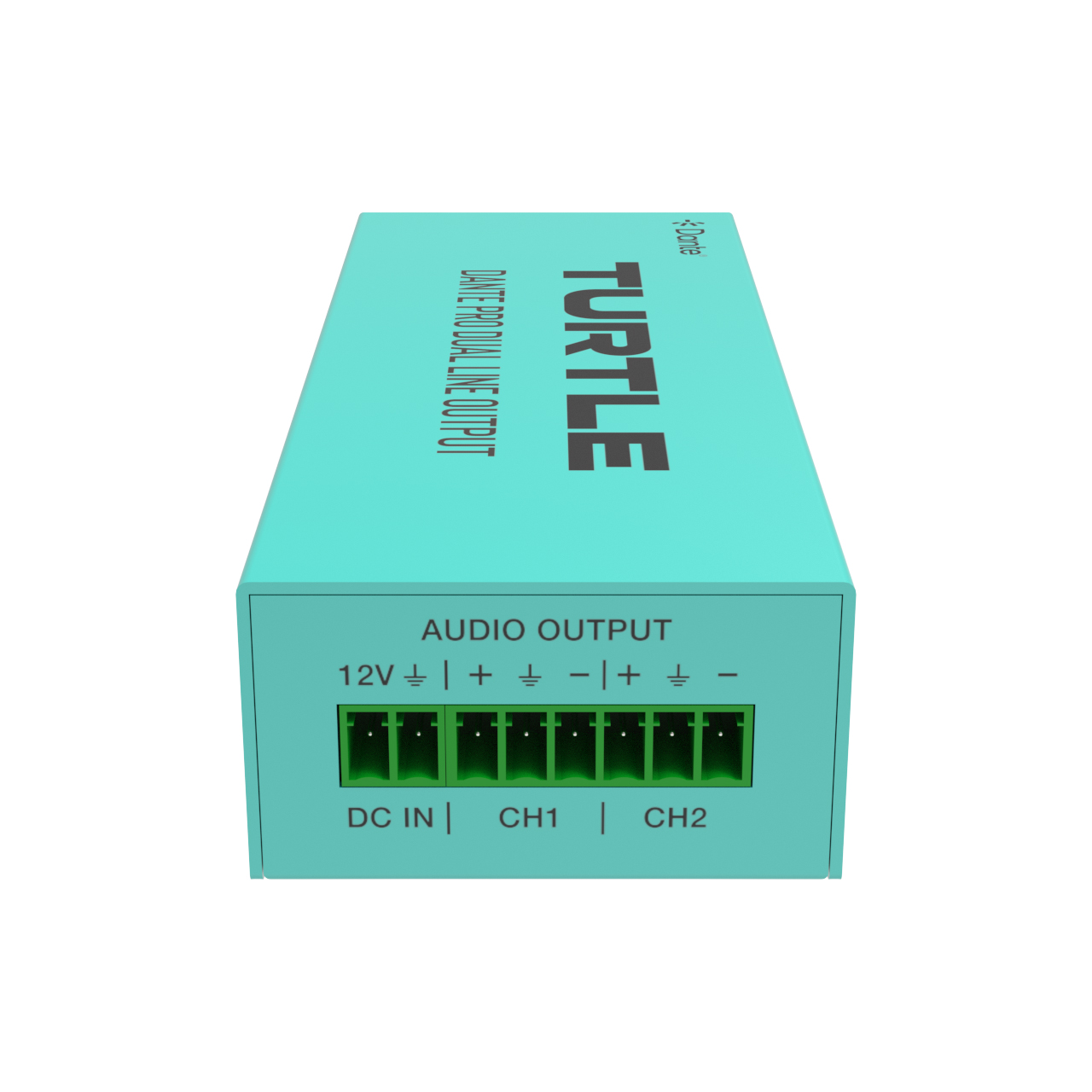

    • Output: 1x CH1/CH2 LINE OUT [6 pin-3.5mm phoenix connector]

      Mechanical
    • Housing: Metal Enclosure
    • Color: Turtle Aqua
    • Dimensions: 4.72" x 1.85" x 1.02" (120mm x 47mm x 26mm)
    • Weight: 0.2lbs (94g)
    • Power Supply:
      - PoE: PoE IEEE802.3af Class 0
      - USB: 5V/500mA
    • Power Consumption: 2W (MAX)
    • Operating Temperature: 32°F - 104°F (-20°C - 60°C)
    • Relative Humidity: 20% - 90% RH (no condensing)

  • Item Includes:

    • 1x Turtle TAV-D2LDE-PRO Dante Pro Dual Channel Analog Line Output Adapter with Gain Controls

  • Warranty:

    • 3 Year Limited Warranty
