Turtle TAV-D2LEN-PRO Dante Pro Dual Channel Analog Line Input Adapter with Gain Control - TAA Compliant

ITEM #: TAV-D2LENPRO MFG #: TAVD2LENPRO

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
Free Shipping with $49 Minimum Order

Our Price:

$199.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


TAVD2LENPRO - Overview

Unlock the power of pristine digital audio with the Turtle AV Dante Pro 2CH Line Input Adapter. Built on the cutting-edge Dante Ultimo 2x2 solution, this adapter converts two-channel balanced or unbalanced analog audio into crystal-clear Dante digital audio.

With 3-level sensitivity adjustment for analog outputs, you can tailor your sound with ease. The Dante Pro Dual Line INput is in a rugged metal chassis and can be powered PoE or 12V DC using the phoenix connectors.

Built Tough with All Metal Chassis
Dante Pro Dual Line Output is housed in an all-metal chassis for maximum ruggedness. And yes, we painted it Turtle Aqua so you know it looks cool even if mounted under a table where no one can see it.

Dante Ultimo
In networked audio, precision is essential, and Dante by Audinate delivers with unmatched synchronization and ultra-low latency performance. Leveraging advanced Precision Time Protocol (PTP), Dante ensures every audio packet arrives at exactly the right moment, maintaining audio quality and eliminating jitter, even in complex networks. Turtle AV adapters, powered by the genuine Dante Ultimo chipset, provide seamless compatibility and full interoperability with any Dante-compatible device, ensuring flawless, professional-grade sound for all installations, from live performances to intricate broadcast environments.

Easy Control
Take command with Dante Controller. Our adapters are fully controllable through this intuitive platform, allowing you to easily manage and adjust settings. With true plug-and-play functionality, your installation is up and running in no time, with no hassle.

100% Dante Software Compatible
Turtle AV Dante Adapters are fully compatible with Dante Controller, Dante Domain Manager, and all Dante software applications.

Audio Conversion
This adapter converts Dante 2CH digital audio into two-channel analog audio, supporting both balanced and unbalanced analog outputs. It offers a versatile Dante audio sampling rate of 44.1, 48, 88.2, and 96KHz at 24-bit, ensuring high-quality sound. The configurable Dante audio delay can be set to 1, 2, or 5 milliseconds, while the analog audio output features 3 levels of sensitivity adjustment, +18dBu, 0dBu, and -10dBV.

  • Features:

    • Two-channel analog audio to Dante 2CH digital audio
    • Balanced/unbalanced analog audio input
    • Dante audio sampling rate supports 24bit 44.1/48/88.2/96KHz
    • Configurable Dante audio delay with support for 1, 2, or 5 milliseconds
    • Supports AES67 RTP audio transmission
    • Analog audio output with support for 3-level gain adjustment: +18dBu, 0dBu (default), and -10dBV
    • PoE and 12V DC power via phoenix connector
    • Dante Ultimo Chipset
    • TAA compliant
    • Metal case for maximum ruggedness

  • Specifications:

      Technical
    • Input: Two-channel balanced/unbalanced analog audio
    • Output: Dante 2CH digital audio
    • Control: Dante Controller
    • Network Bandwidth: 100M
    • Audio Latency: Configurable Dante device latency (Supports 1, 2 or 5ms configurable using Dante Controller)
    • Audio Formats:
      - LINE IN [Analog audio input, Balanced/unbalanced 2CH, Max input level +24dBu]
      - DANTE OUT [Digital audio output, PCM 2CH 44.1K-96KHz 16/24bit]
    • Audio Parameters:
      - Input Impedance: 20k Ohm balanced, 10k Ohm unbalanced
      - Line Input Level (Maximum): +24dBu (12.28Vrms) @balanced audio, +18dBu (6.15Vrms) @unbalanced audio
      - Frequency Response: 20Hz to 20kHz (-/+0.5dB)
      - Dynamic Range: >100dB@0dBu, 1kHzA-weighted
      - Audio S/N Ratio: >100dB@0dBu, 1kHzA-weighted
      - Audio THD+N: < 0.01% at +4dBu, 1KHz
      - Audio Output Sync Delay: <10ms
    • ESD Protection: IEC 61000-4-2: ±8kV (Air-gap discharge) & ±4kV (Contact discharge)

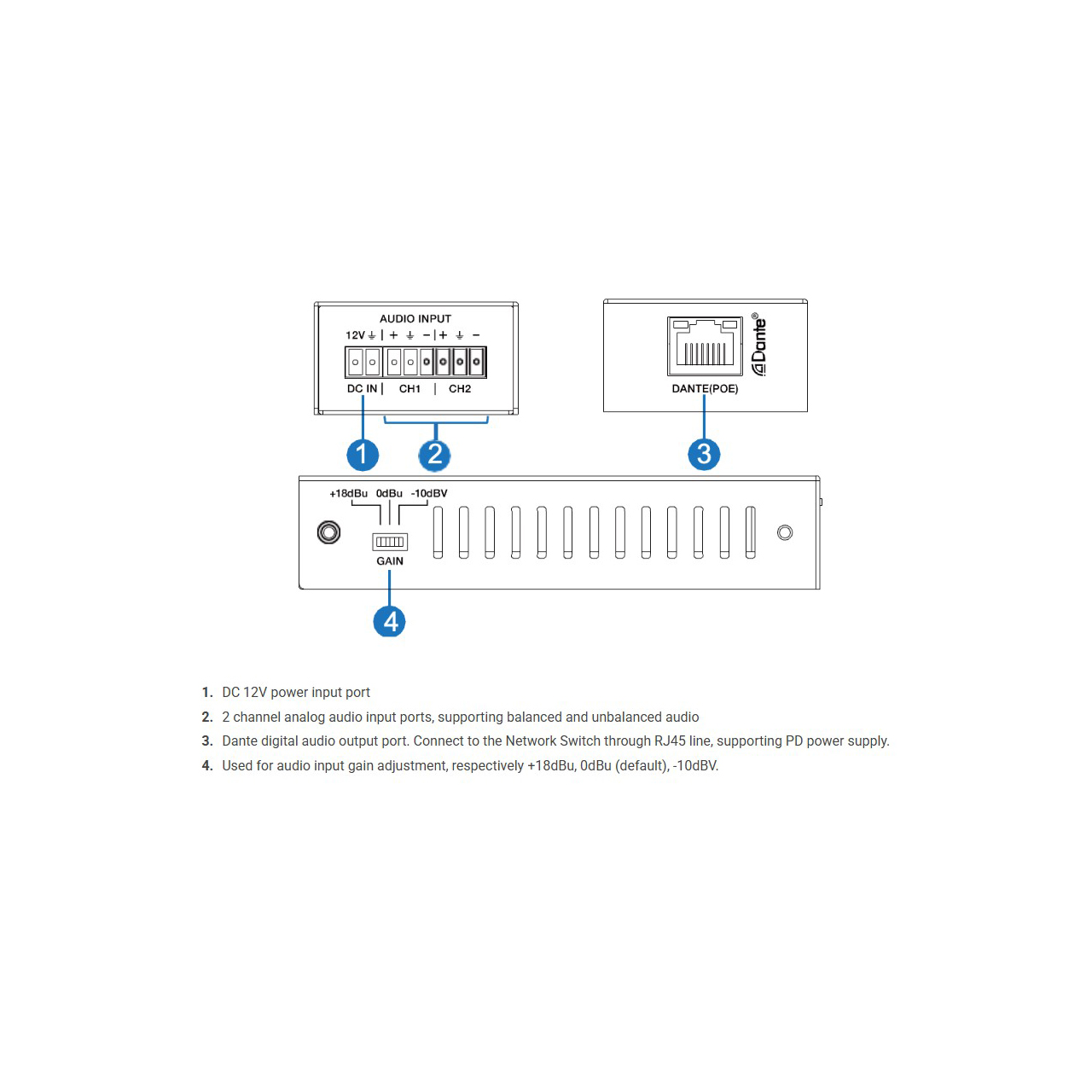

      Connections
    • Input:

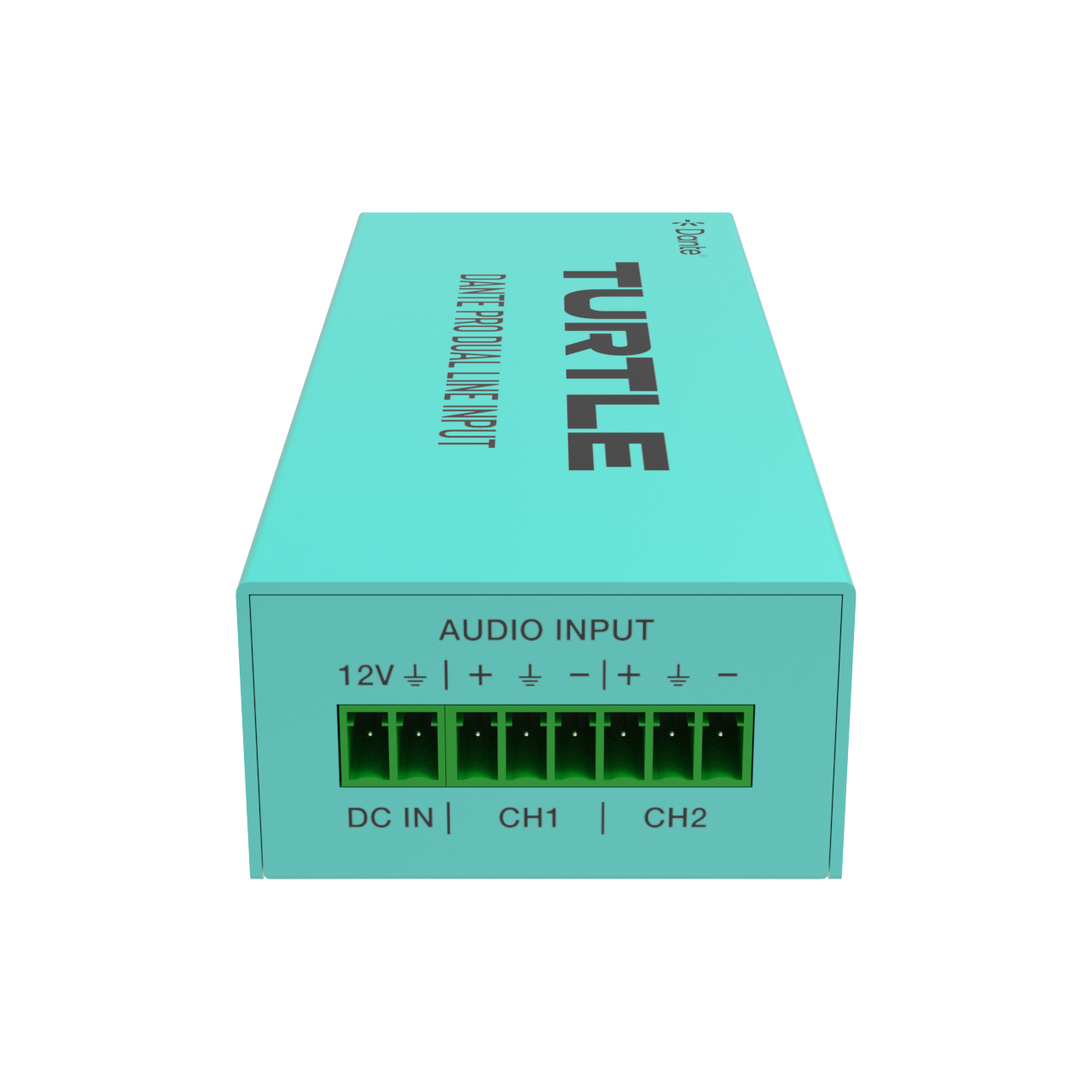

      - 1x CH1/CH2 LINE IN [6pin-3.5mm phoenix connector]
      - 1x POWER [2-pin phoenix, 3.81mm]
    • Output: 1x DANTE [RJ45 LAN, PoE]

      Mechanical
    • Housing: Metal enclosure
    • Color: Turtle Aqua
    • Dimensions: 4.72" x 1.85" x 1.02" (120mm x 47mm x 26mm)
    • Weight: 0.41lbs (186g)
    • Power Supply:
      - PoE: PoE IEEE802.3af Class 0
      - USB: 5V/500mA
    • Power Consumption: 2W (MAX)
    • Operating Temperature: 32°F - 104°F (-20°C - 60°C)
    • Relative Humidity: 20% - 90% RH (no condensing)

  • Item Includes:

    • 1x Turtle TAV-D2LEN-PRO Dante Pro Dual Channel Analog Line Input Adapter with Gain Control

  • Warranty:

    • 3 Year Limited Warranty
