Turtle TAV-DARWINHD-RX DARWIN HD H.265 1080p 60Hz HDMI AV-over-IP Receiver - TAA Compliant

ITEM #: TAV-DARWINHDRX MFG #: TAVDARWINHDRX

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
Free Shipping with $49 Minimum Order

Our Price:

$299.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


TAVDARWINHDRX - Overview

The Turtle AV Darwin HD Rx receives stunning 1080p 60Hz 4:4:4 video with H.265 hardware acceleration, ensuring exceptional image quality at reduced bitrates. Equipped with PoE for simplified installation, it supports one-to-one and one-to-many multicast or unicast configurations, making it ideal for scalable AV environments. Advanced features include EDID management with scaling, HDCP 1.4, Phoenix analog audio breakout, and video wall support up to 9x9. Darwin HD Rx is fully TAA compliant and comes with a 5-year warranty.

1080 60Hz in 4:4:4
The Darwin HD delivers pristine 1080 resolution at 60Hz with 4:4:4 chroma subsampling, ensuring true-to-life color and exceptional detail.

H.265. Hardware Accelerated Encoding.
The Darwin HD leverages H.265 hardware acceleration for ultra-efficient video compression, delivering stunning HD quality at reduced bitrates.

Networking and Security
Advanced security features include AES256 encryption, HTTPS, and SSH login. These features ensure your data and controls remain safe, and your network is protected from unauthorized access.

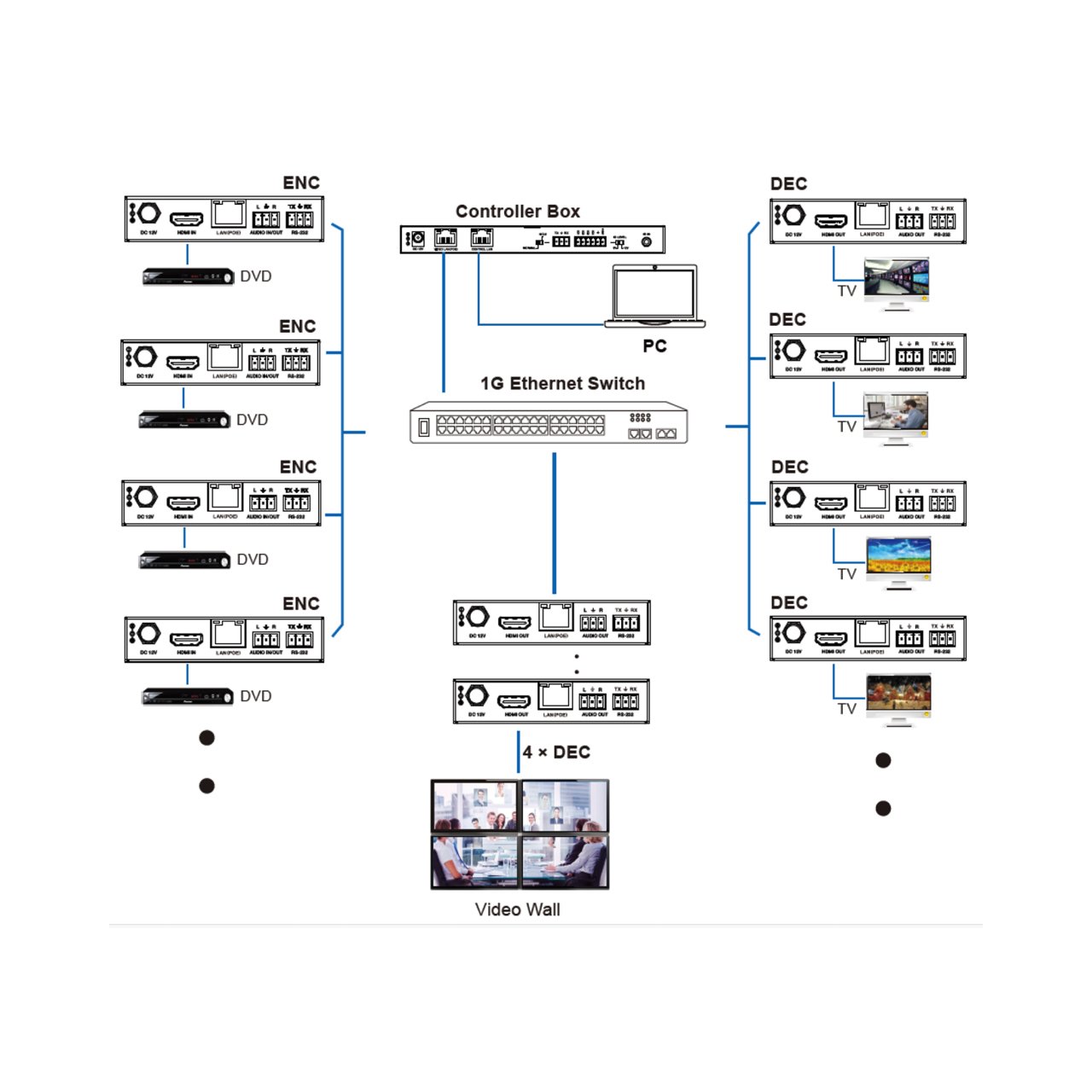

Videowall. Up to 9x9.
DARWIN HD supports videowall configurations up to 9x9, enabling a massive 81 displays to be configured as a single display. We get it. Sometimes you just have that burning desire to build a football field sized Videowall (please send photos if you do).

Built Tough with All Metal Chassis
DARWIN HD are all housed in an all-metal chassis for maximum ruggedness. And yes, we painted them Turtle Aqua so you know it looks cool even if mounted under a table or in a rack room where no one will ever see them.

  • Features:

    • 1080 60Hz in 4:4:4
    • H.265. Hardware accelerated encoding
    • PoE
    • Left & Right analog breakout over Phoenix
    • Advanced EDID Management with Scaling
    • Multicast/Unicast
    • Video Wall up to 9x9
    • TAA Compliant

  • Specifications:

      Technical
    • HDMI: 1.3 compliant
    • HDCP: 1.4 compliant
    • Video Bandwidth: 4.95Gbps
    • Compression Codec: H.265/HEVC
    • Network Bandwidth: 1Gbps
    • Color Depth:
      - Input: 8/10/12-bit
      - Output: 8-bit
    • Color Space: RGB 4:4:4, YCbCr 4:4:4 / 4:2:2 / 4:2:0
    • HDMI Audio Formats: LPCM 2.0
    • ESD Protection: IEC 61000-4-2 ±8kV (air-gap discharge) & ±4kV (contact discharge)

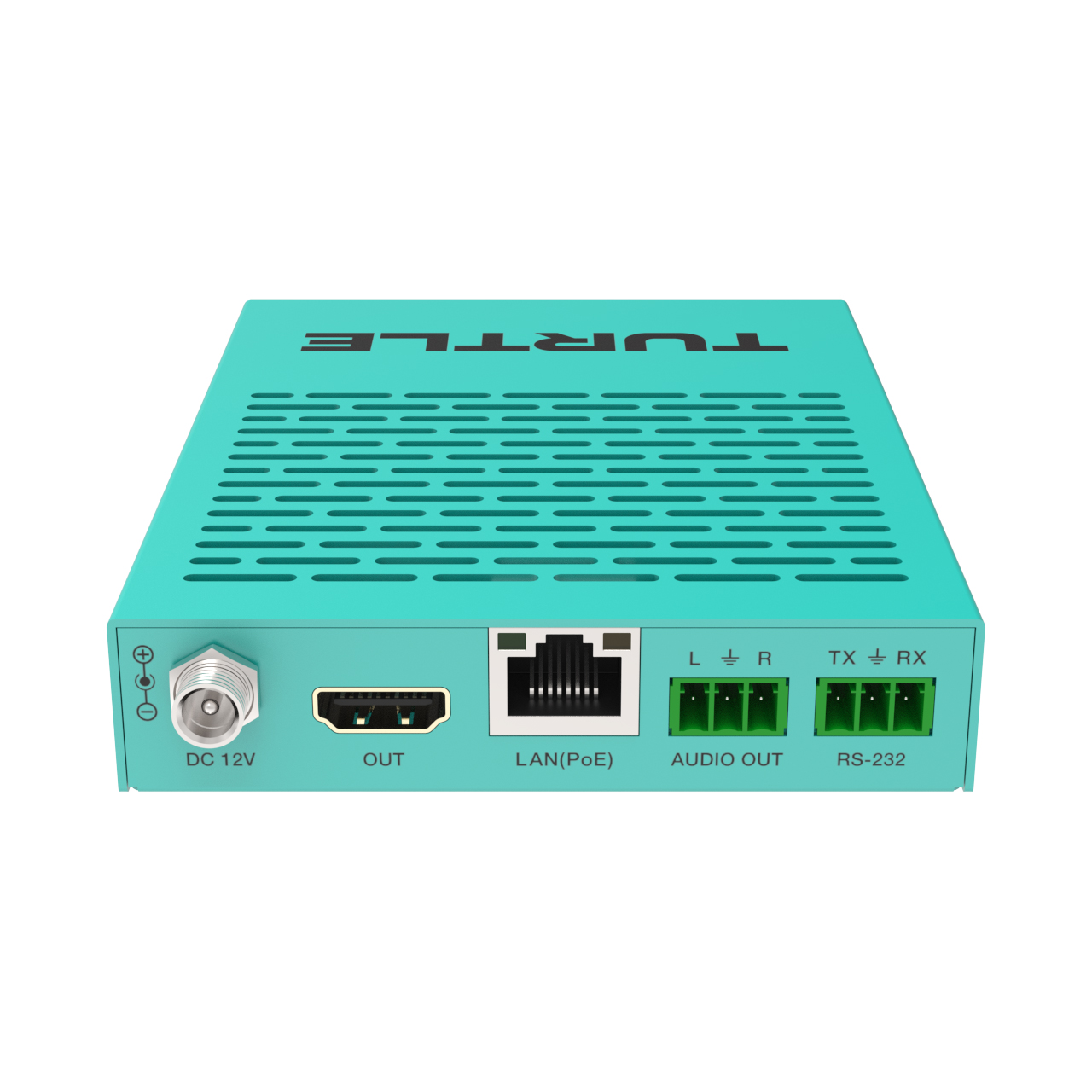

      Connections
    • Output:
      - 1x HDMI (Type A, 19-pin female)
      - 1x L/R Audio (3-pin 3.81mm Phoenix connector)
    • Control:
      - 1x LAN (PoE IEEE 802.3af) RJ45 jack
      - 1x RS-232 (3-pin 3.81mm Phoenix connector)

      Mechanical
    • Housing: Metal Enclosure
    • Color: Turtle Aqua
    • Dimensions: 4.72" x 3.74" x 0.84" (120mm x 95mm x 21.5mm)
    • Weight: 0.65lbs (295g)
    • Power Supply:
      - Input: AC 100V - 240V 50/60Hz
      - Output: DC 12V/2.5A
      - PoE IEEE 802.3af
    • Power Consumption: 2.88W
    • Operating Temperature: 32°F - 104°F (-20°C - 60°C)
    • Relative Humidity: 20% - 90% RH (no condensing)

  • Item Includes:

    • 1x Turtle TAV-DARWINHD-RX DARWIN HD H.265 Rx
    • 1x Power Supply

  • Warranty:

    • 5 Year Limited Warranty
