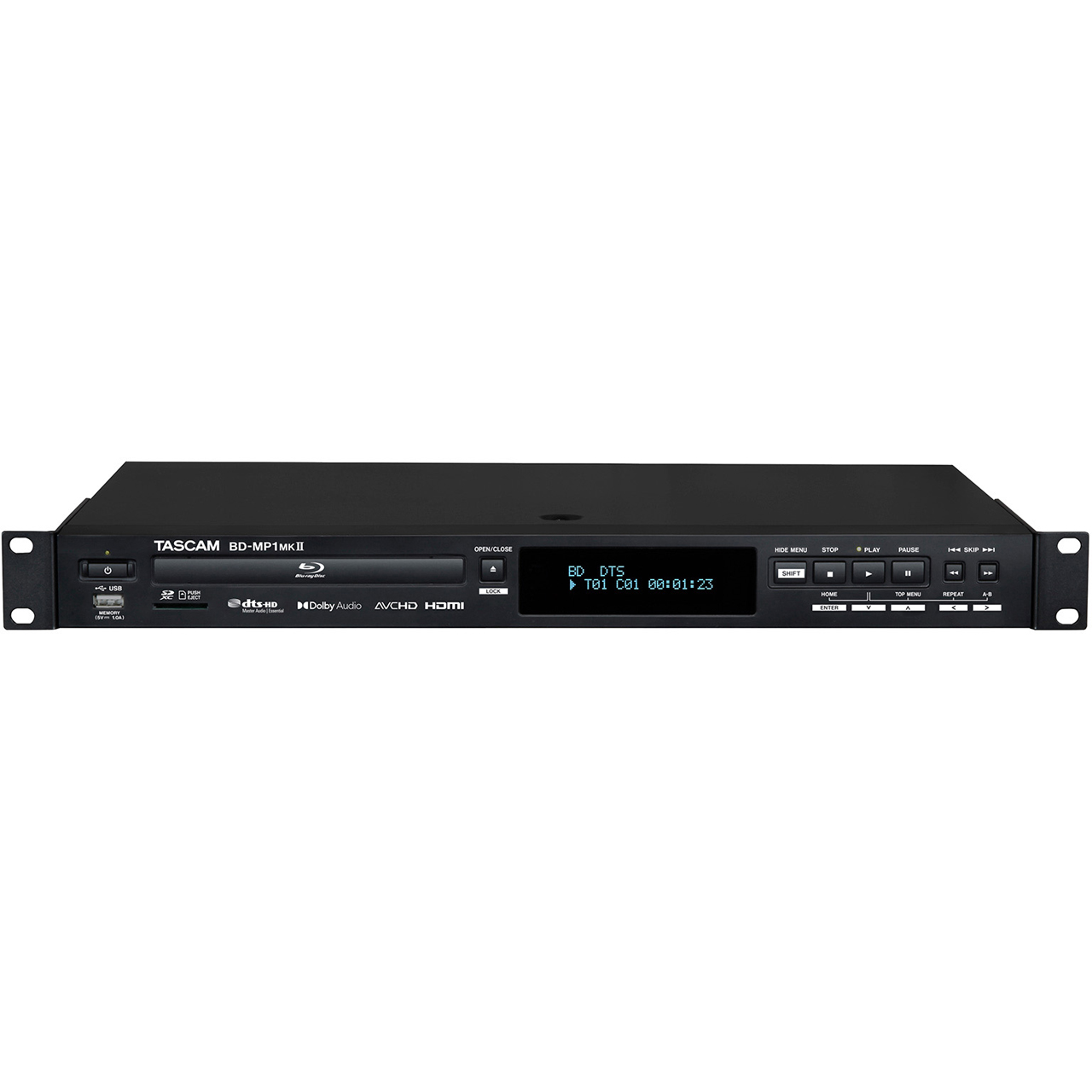

Tascam BD-MP1MKII Professional-Grade Multi-format Blu-Ray Player with SD and USB Playback - HDMI Out with Audio

BD-MP1MKII - Overview

A compact, multi-format professional Blu-ray offering DVD/CD, SD card and USB flash memory playback, perfect for Digital Signage!

• Features:

  • HDMI Output for Connecting Displays
  • Pass through audio formats such as Dolby Atmos and DTS-HD
  • Power-on Play and Repeat Mode
  • Panel Lock for Secure Operation
  • Hide Menu Function for Elegant Power Up Display Sequence
  • Dual USB Memory Ports
  • Dual XLR balanced and RCA unbalanced outputs
  • Coaxial and Digital Audio Output Connection
  • 7.1 Surround Sound System
  • IP and RS-232C Ports for External Remote Control
  • Fully Accessible Front Panel Control
  • Compact 1U Rack Size


• Specifications:

  • Supported media
  • Disc media
  • Blu-ray: BD25, BD50, BD-ROM, BD-R(SL, DL), BD-RE(SL, DL)
  • DVD: DVD-ROM, DVD-R(SL,DL), DVD-RW, DVD+R(SL,DL), DVD+RW
  • CD: CD-DA, CD-R, CD-RW
  • SL indicates single-layer discs and DL indicates double-layer discs
  • This unit can play only BD and DVD-VIDEO that has the same region code as shown on the label on its chassis. It can also play DVD-VIDEO that is ALL.

    Disc formats
  • Blu-ray: BDMV, BDAV
  • DVD: DVD-Video, DVD-VR, AVCHD
  • Blu-ray 3D supported

    Supported file formats*
  • Video: ASF, MPG, AVI, 3GP, DAT, MKV, MOV, M2TS, OGM, TP, TS, MP4, WMV
  • Audio: WAV, MP3, WMA, AAC, FLAC, APE
  • Picture: JPEG, GIF, PNG
  • Supported subtitle file formats: SUB, ASS, IDX+SUB(IDX+SUB)
  • * USB flash drive and SD card formats must use FAT16, FAT32, exFAT or NTFS file systems.

    Audio:
  • BD/DVD/USB/SD
  • Sampling frequency: 44.1 k/48 k/64 k/88.2 k/96 k/176.4 k/192 kHz
  • Bit length: 16/24 bit

    CD
  • Sampling frequency: 44.1 kHz/48 kHz
  • Bit length: 16/24 bit

    MP3/WMA
  • Sampling frequency: 32 k/44.1 k/48 kHz
  • Bitrate: MP3 - 112 kbps - 320 kbps
  • WMA: 48 kbps - 192 kbps

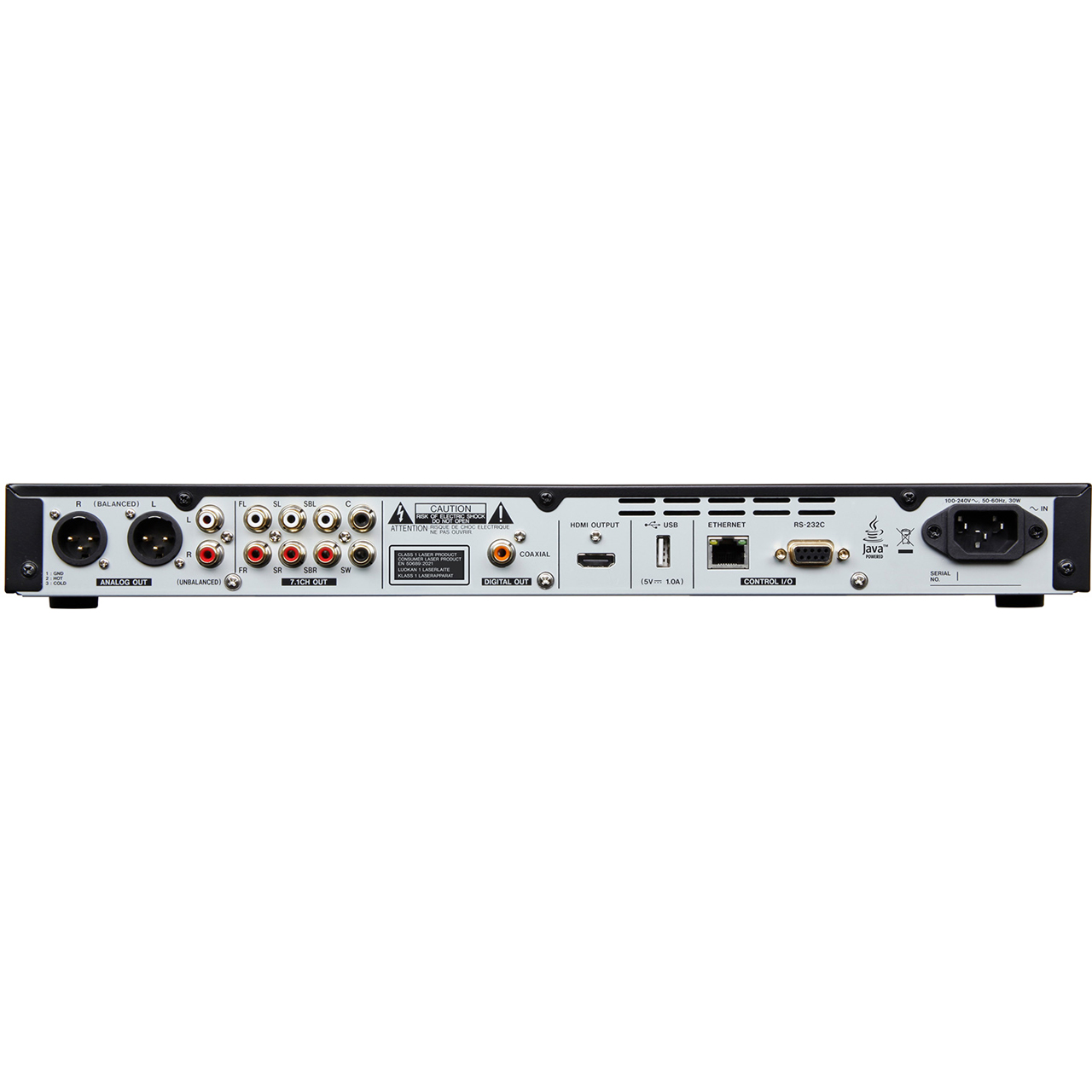

    Outputs
  • HDMI output
  • Connector: HDMI 19pin Type A
  • Resolution: 480i/576i/480p/576p/720p/1080p
  • Aspect ratio: 16:9 Full, 16:9 Normal, 4:3 Pan & Scan, 4:3 Letterbox
  • Video format: NTSC, PAL, Multi
  • HDMI signal system: RGB PC level, RGB Video level, YCbCr(4:4:4), YCbCr (4:2:2)

    Digital Audio output
  • COAXIAL
  • Connectors: RCA pin jacks
  • Format: IEC60958-3(S/PDIF)
  • Output impedance: 75 O or lower

    Analog audio outputs
  • Balanced
  • Connectors: XLR-3-32 (1: GND, 2: HOT, 3: COLD) x2 (Stereo)
  • Nominal output level: +4 dBu (1.23 Vrms)
  • Maximum output level: +20 dBu (7.75 Vrms)
  • Output impedance: 200 O or lower

    Unbalanced
  • Connectors: RCA pin jack x 1 pair
  • Nominal output level: -10 dBV (0.316 Vrms)
  • Nominal output level: +6 dBV (2.0 Vrms)
  • Output impedance: 210 O or less

    7.1ch Audio outputs
  • Connectors: RCA x8 (FL/FR/SL/SR/SBL/SBR/C/SW)
  • Connector Color: FL, SL, SBL-White - FR, SR, SBR-Red C, SW-Black
  • Nominal output level: -10 dBV (0.316 Vrms)
  • Maximum output level: +6 dBV (2.0 Vrms)
  • Output impedance: 210 O or less
  • 0dBu = 0.775 Vrms
  • 0dBV = 1 Vrms

    Control input/output
  • RS-232C connector
  • Connector: D-sub 9 pin
  • Format: RS-232C compliant

    Ethernet connector
  • Connectors: RJ-45
  • Protocol: 10 BASE-T/100 BASE-TX
  • Cable: Category 5e or faster

    USB port
  • Connectors: USB type-A x2 (front x1, back x1)
  • Protocol: USB 2.0 compliant
  • Rated supply voltage: DC 5 V, 1 A
  • Mass storage class: Less than 2 TB
  • Supported file formats: FAT16/FAT32/exFAT/NTFS
  • USB device class: Mass storage class

    SD slot
  • Supported media: SD (512 MB-2 GB), SDHC (4 GB-32 GB) , SDXC (64GB - 512GB)
  • Supported file formats: FAT16/FAT32/exFAT/NTFS

    Audio performance
  • Frequency response: 20 Hz - 20 kHz +/-0.5 dB (Fs=44.1 kHz/48 kHz, JEITA)
  • S/N ratio: 96 dB or higher (during playback, JEITA)
  • THD (Total Harmonic Distortion): 0.03% or less 1 kHz (JEITA)
  • Dynamic range: 96 dB or higher (JEITA)
  • Channel separation: 89 dB or higher (JEITA)
  • JEITA: indicates compliance with JEITA CP-2150


• Item Includes:

  • 1x BD-MP1MKII
  • 1x Power cord

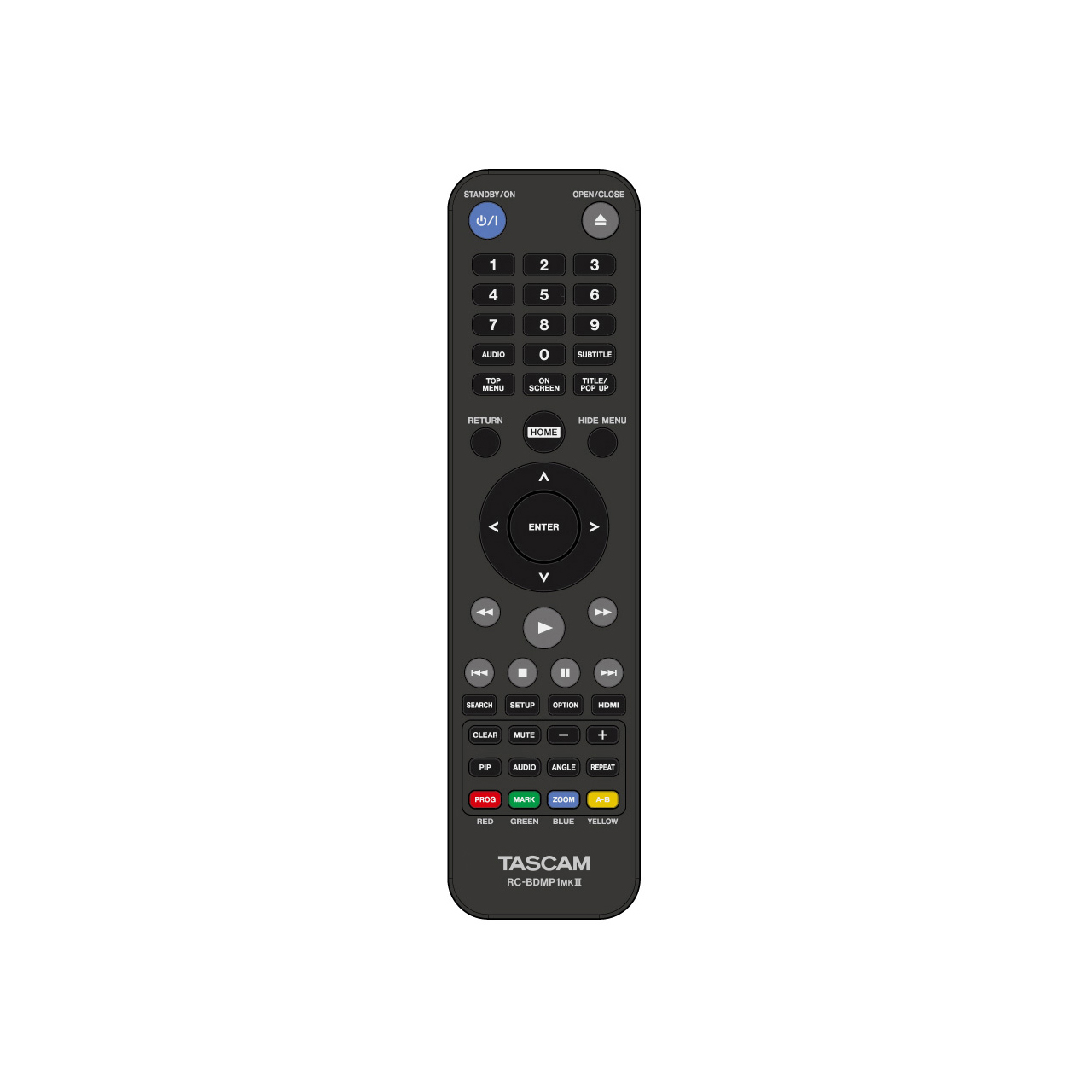

  • 1x Wireless remote control (TASCAM RC-BDMP1MKII)
  • 2x AAA batteries
  • 1x Rackmount screw kit
  • 2x Rackmount ears (left and right)
  • 6x Screws for ear attachment
  • 4x Screws for attachment to rack
  • 4x Washers (for rack)
  • 1x Owner's manual (including warranty)


• Warranty:

  • One (1) year including parts and labor from the date of original purchase
