Tascam MM-4D/IN-X 4-Channel Mic/Line Input Dante Converter with Built-in DSP Mixer and XLR

ITEM #: TCM-MM-4D-IN-X MFG #: MM-4D/IN-X

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
Tascam
Free Shipping with $49 Minimum Order

List Price:

$949.00

Our Price:

$799.00

Add to Wish ListLeasing Options
Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
Report Lower PriceLarge Quantity Quote

MM-4D/IN-X - Overview

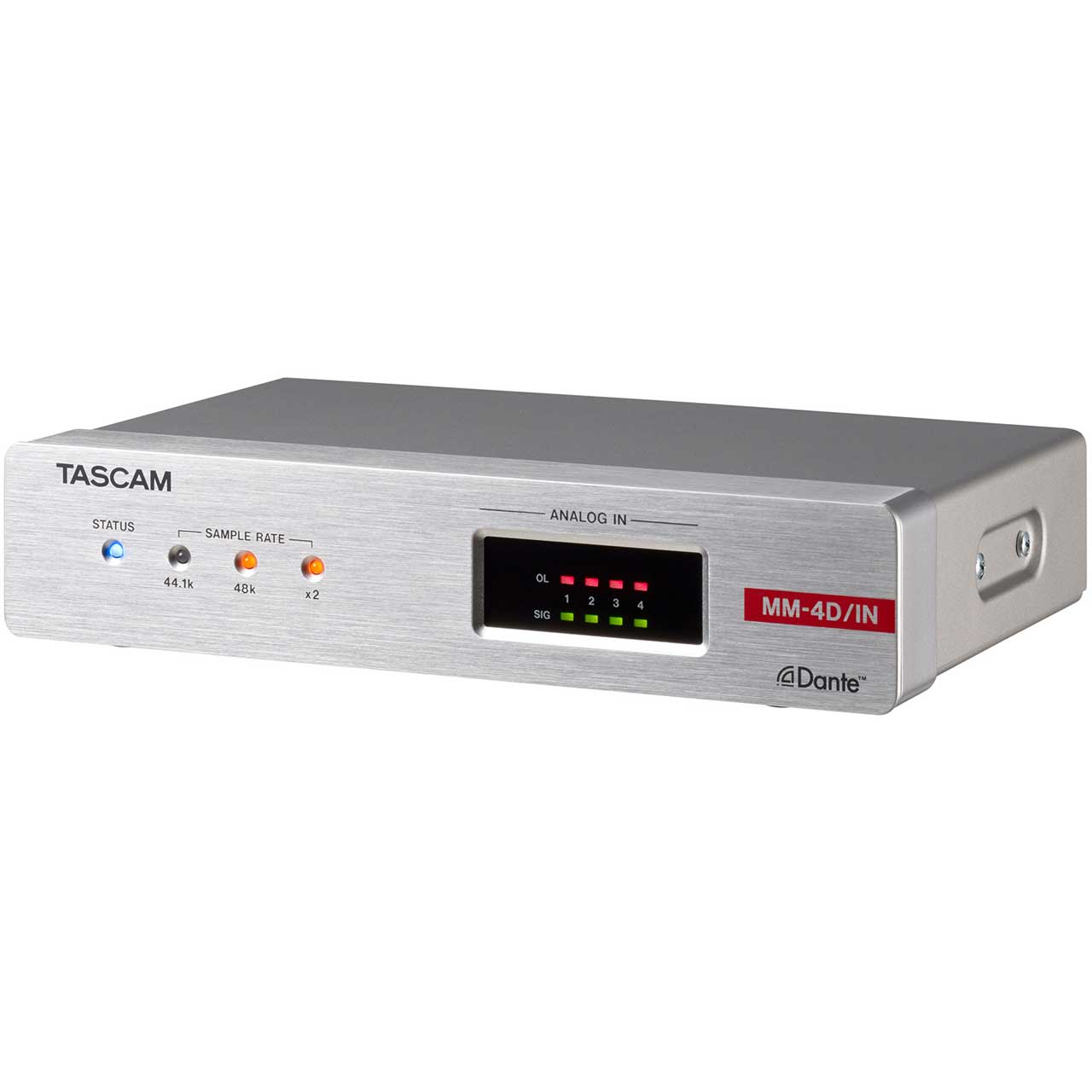

The Tascam MM-4D/IN-X is a compact converter that converts 4-channel mic/line input signals into Dante signals. With half the size of a standard 1U rack, the MM-4D/IN-X is suitable for different Dante systems as an exquisite analog output unit. The built-in DSP mixer enables small scale systems to fully perform with a variety of input/output models the TASCAM Dante Compact Processor Series offers. MM-4D/IN-X supports up to 96kHz/24bit and uses XLR connectors for analog mic/line input.

4 mic / line input, 4 Dante input / output
The MM-4D/IN-X converts 4-channel mic/line input signals into 4-channel Dante output signals. It also supports 4-channel Dante input/output making it possible to use audio sources within an established Dante network.

The Dante Compact Processor Series has a line-up of models with different input/output specifications:

  • MM-4D/IN, 4-channel mic/line input
  • ML-4D/OUT, 4-channel line output
  • MM-2D, 2-channel mic/line input/output
  • AE-4D, AES/EBU 4-channel input/output

    • For analog input/output models, the branch extends with units equipped with Euroblock or XLR connectors that users can choose depending on their usage. By combining multiple different units all at once, it is possible to match and introduce them into various systems.

    Optimal input/output unit for different Dante systems
    The Dante Compact Processor Series provide easy additional mic/line or AES/EBU input/output to several situations and places such as public facilities, broadcasting stations, recording studios, etc. where Dante systems are being used. They are the optimal input/output unit for small scale environments.

    Structuring small scale systems with the DSP function

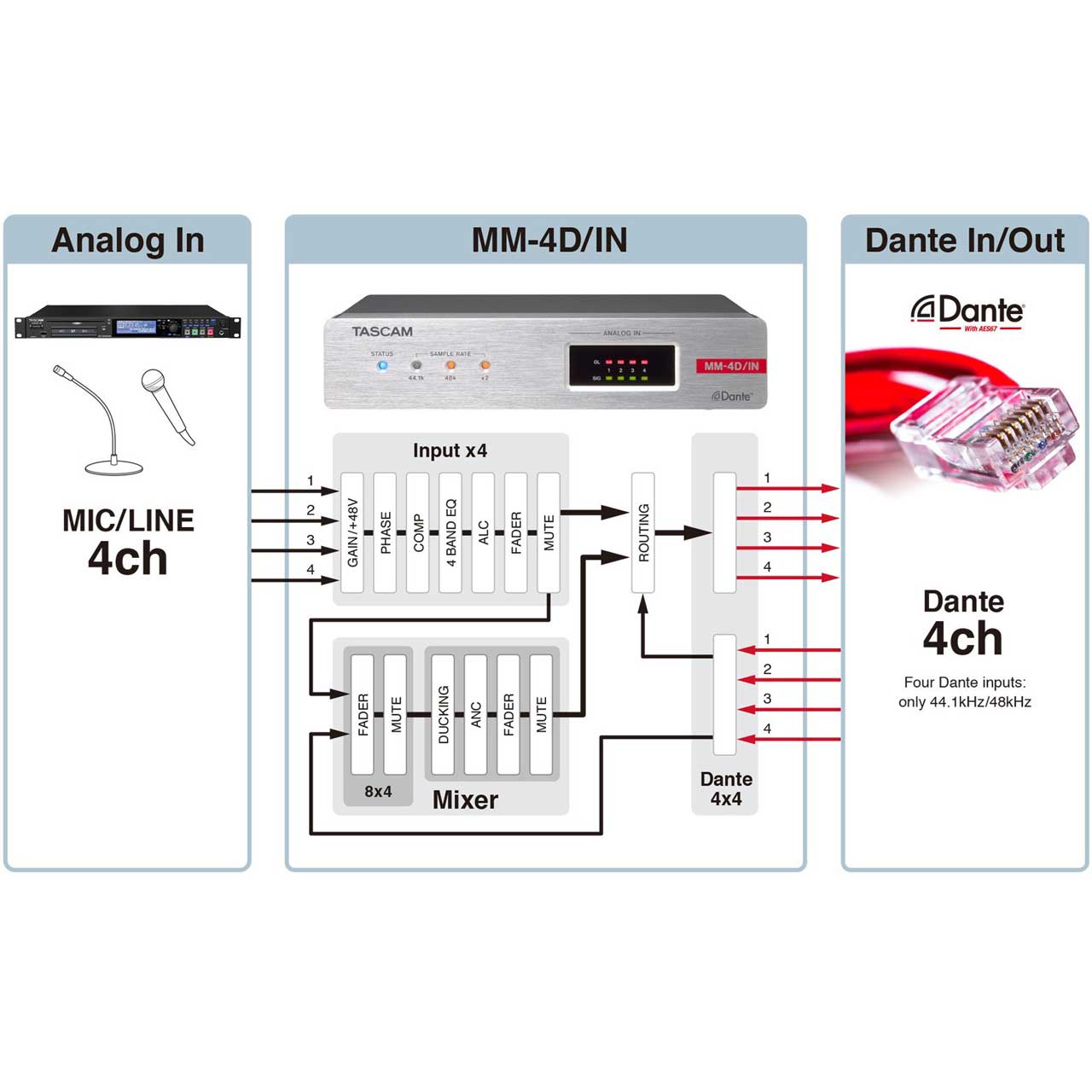

    The Dante Compact Processor Series are equipped with a matrix mixer that includes a DSP feature with compressors, parametric EQs, limiter, delay, etc. functions. From the input of microphone signals to the output of powered speakers; also applicable with recording/playback systems, the Dante Compact Processor Series can build up a complete small system on their own.

    Flexible routing
    Routing to each Dante device is easy via Dante controller. Input/output units can be added flexibly to new or already established Dante systems.

    • Features:

      • 4-channel mic/line input with phantom power (+48v) support
      • Supports remote mic gain control
      • 4 Dante input/output
      • Supports PoE (Power over Ethernet)
      • Up to 24bit/96kHz
      • Includes a variety of DSP functions for optimal use in different scenes/environments (Output effects, 8 in/4 out matrix mixer)
      • Supports Dante daisy chain; this allows two Dante Compact Processor models to be connected without a network switch
      • Compatible with Dante Domain Manager and Dante AES67 Mode
      • Flexible scene preset function allows to work in different area situations (Up to 50 presets)
      • Timer event function allows to automatically switch scenes at a specified time (planned to be compatible on a future version update)
      • Remote control via Dante
      • Half-rack mountable size

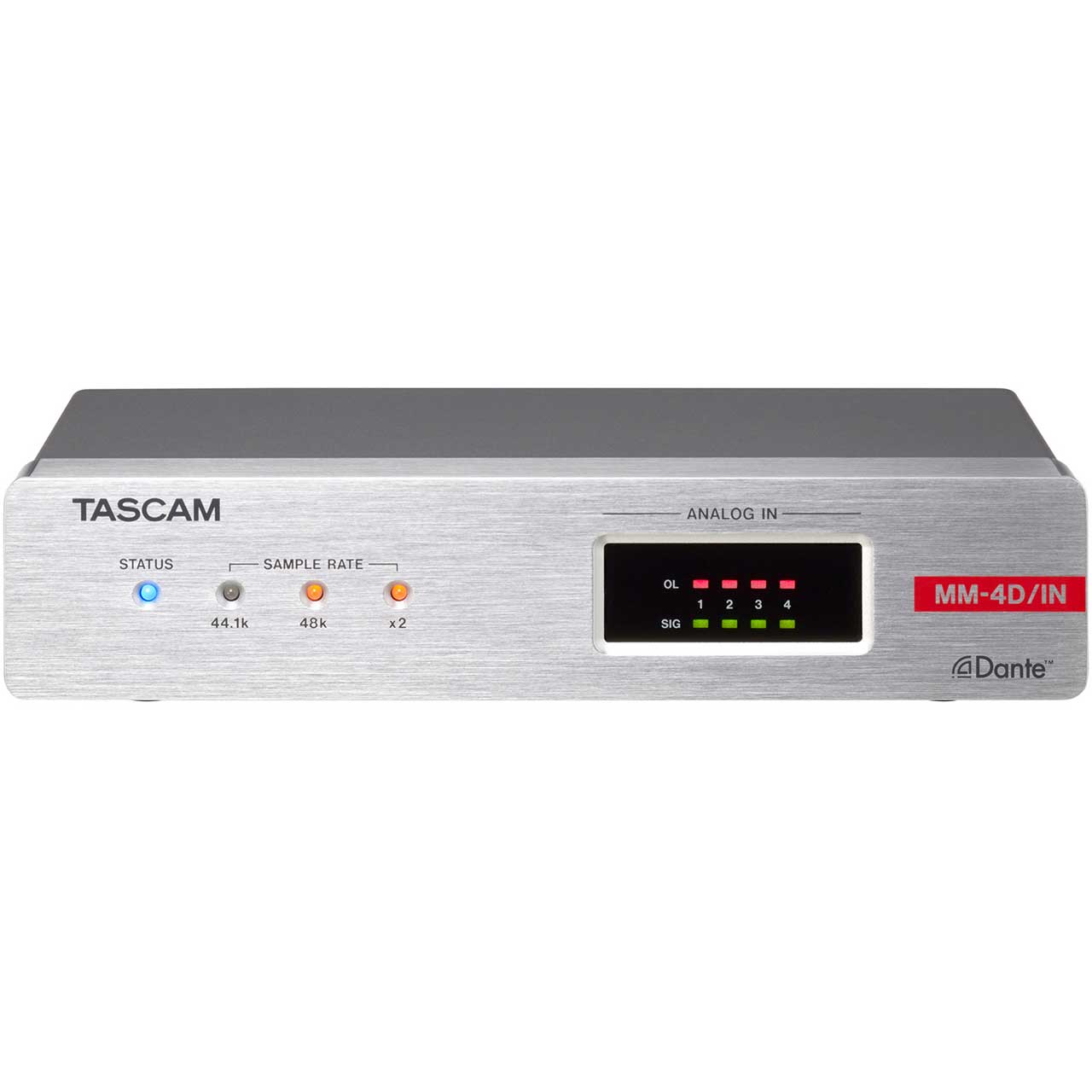

      • Equipped with indicators that show LAN/Dante connection status and sample rate
      • Equipped with signal indicators that monitor line input signals
      • Configurable reference level (via remote control only)
      • Surface rack mountable angles for installation under desks included


    • Specifications:

      • Formats And Channels
      • 44.1/48/88.2/96kHz
      • 16/24-bit
      • 4 channels

        DATA/DATA+PoE Connectors
      • Connector: RJ-45
      • Transmission Protocol: Dante
      • Gigabit Ethernet Standard: 1000BASE-T (IEEE 802.3ab)
      • Cables: Category 5e or faster STP cables

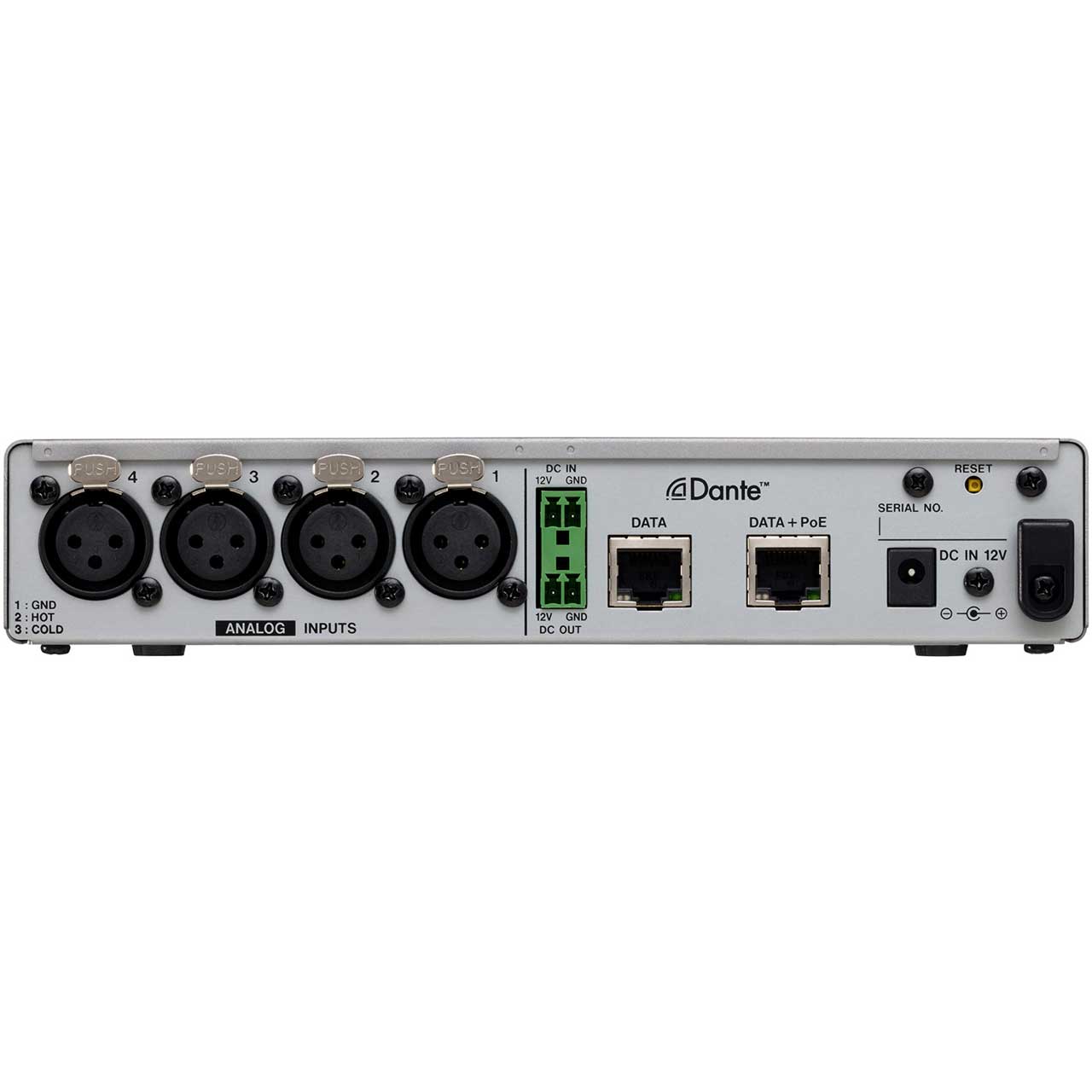

        Analog IN Connectors
      • Connector: XLR-3-31 (1: GND, 2: HOT, 3: COLD)
      • Minimun Input Level: -70 dBu
      • Maximum Input Level: +26 dBu
      • Input Impedance: 2.0 kΩ or higher

        Other
      • Power: PoE class 0, TASCAM PS-P1220E AC adapter (sold separately)
      • Power Consumption: 7.5W
      • Dimensions: 8.42 inch x 1.75 inch x 5.35 inch (214 x 44.45 x 136.1 mm) (W x H x D, including protrusions)
      • Weight: 1.95lb (885 g)
      • Operating Temperature Range: 0°C-40°C

        MIC IN - Dante OUT
      • Mic amp EIN (equivalent input noise): -125 dBu (150Ω, 22kHz LPF+A, JEITA)
      • Frequency Response:
        +/-0.5 dB: 20 Hz - 20 kHz(44.1/48kHz sampling frequency, JEITA)
        +/-0.5 dB: 20 Hz - 40 kHz(88.2/96kHz sampling frequency, JEITA)
      • Distortion (THD+N): 0.003 %(when -1 dBFS input, 44.1/48/88.2/96kHz sampling frequency, JEITA)
      • S/N Ratio: 108 dB (44.1/48/88.2/96kHz sampling frequency, JEITA)
      • Crosstalk: 100 dB (44.1/48/88.2/96kHz sampling frequency, JEITA)
      • Dynamic Range: 108 dB (44.1/48/88.2/96kHz sampling frequency, JEITA)


    • Item Includes:

      • 1 MM-4D/IN unit
      • 2 Installation brackets
      • 1 Owner's Manual including warranty


    • GTIN:

      0043774033881
