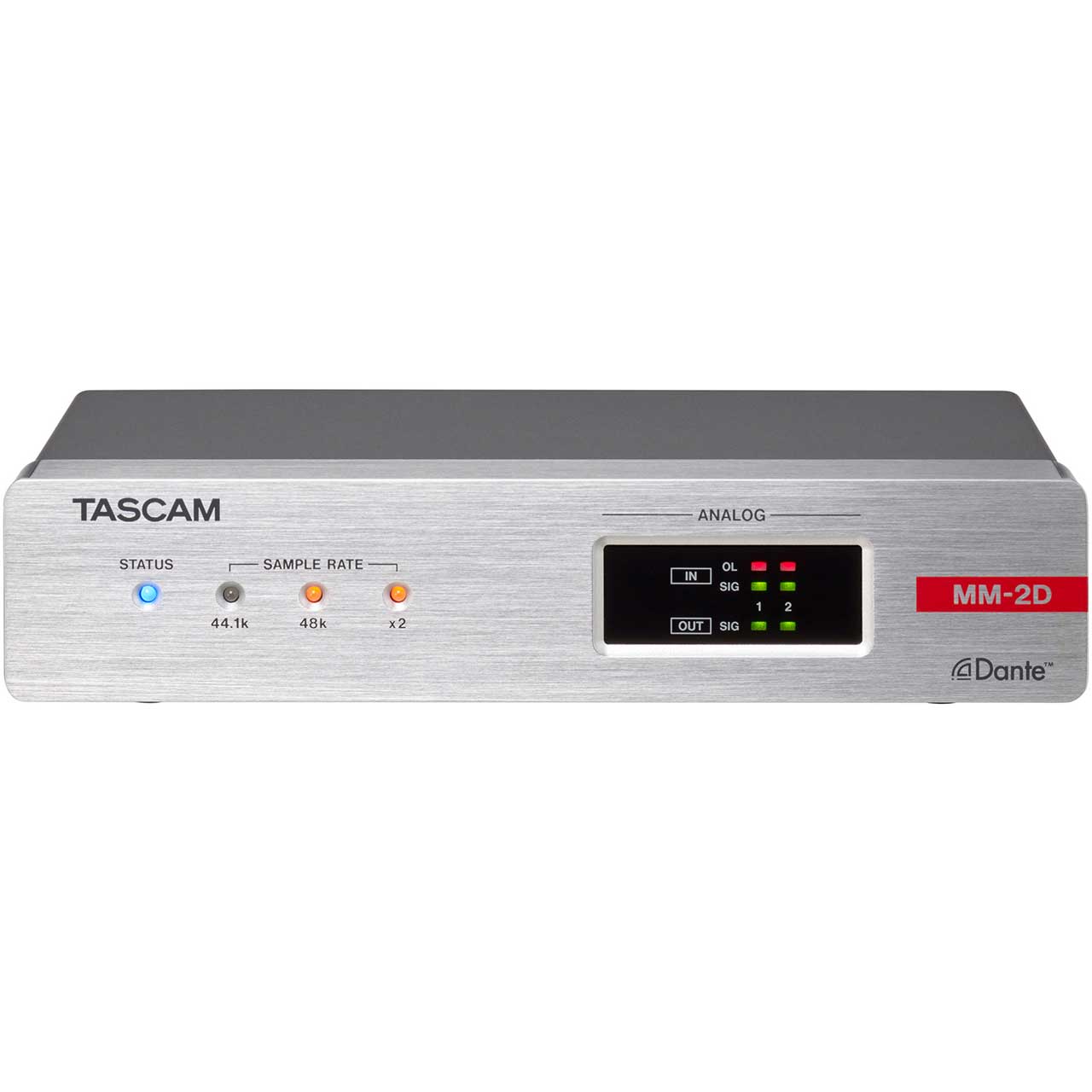

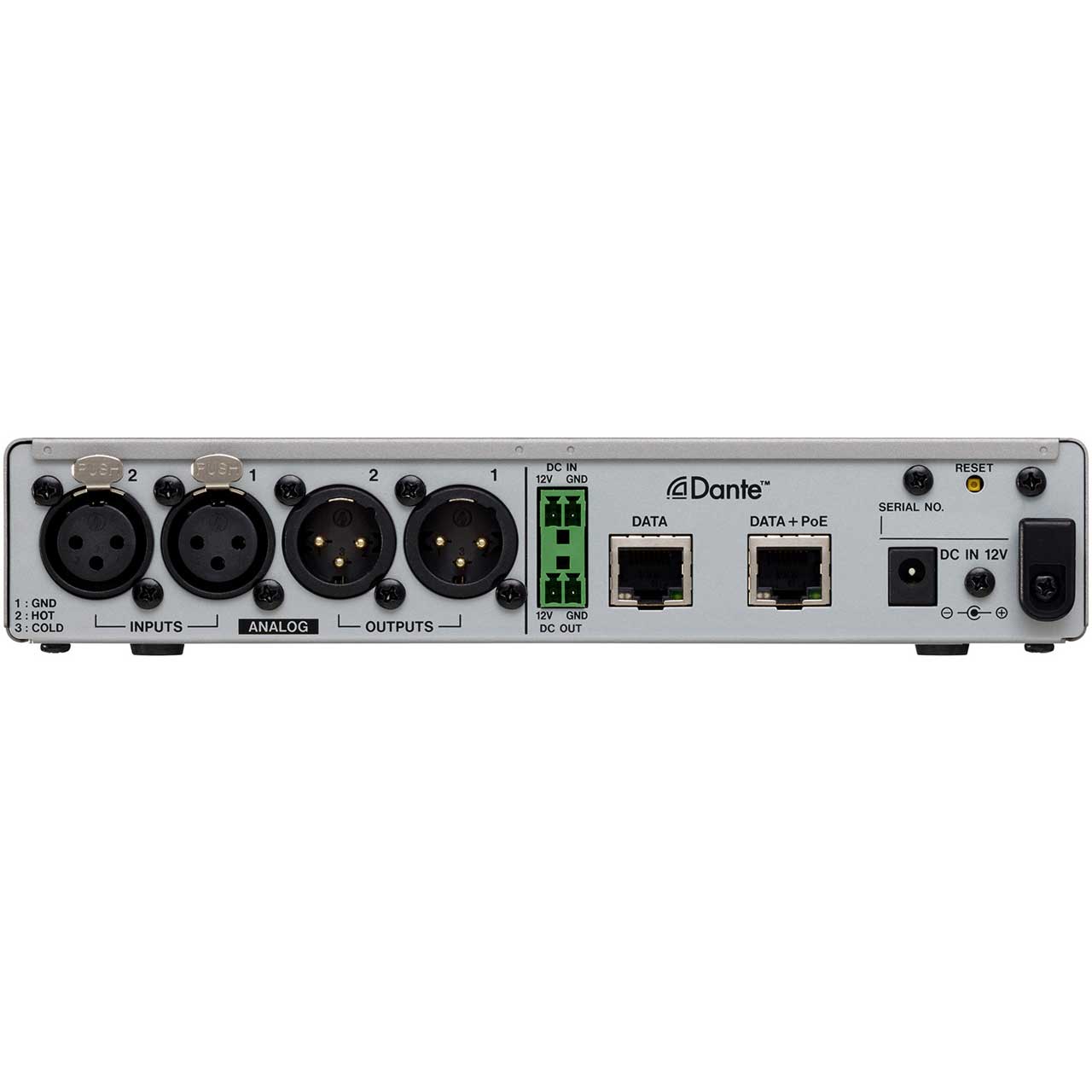

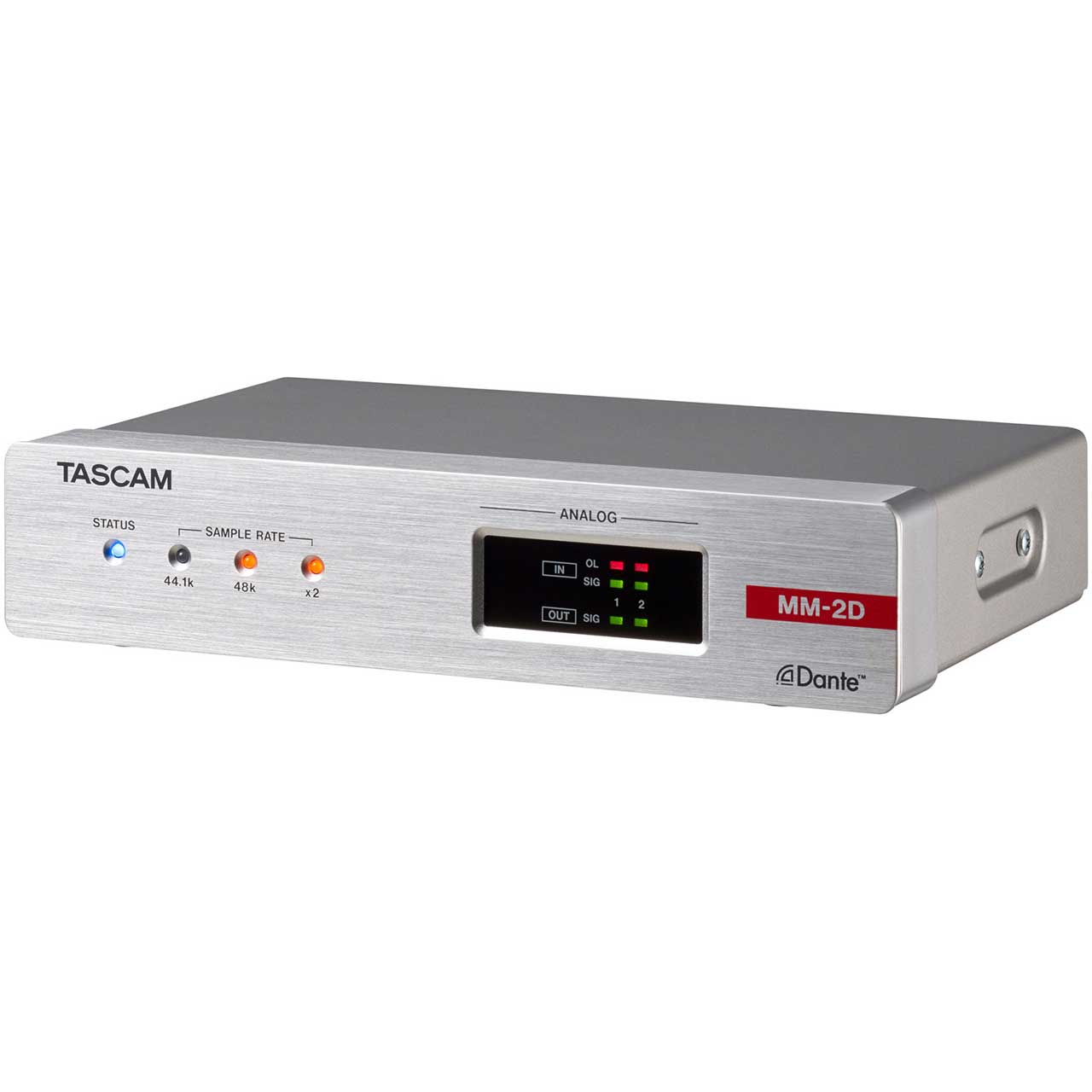

The Tascam MM-2D-X is a compact converter that converts 2-channel mic/line input/output signals into Dante signals. With half the size of a standard 1U rack, the MM-2D-X is suitable for different Dante systems as an exquisite analog output unit. The built-in DSP mixer enables small scale systems to fully perform with a variety of input/output models the TASCAM Dante Compact Processor Series offers. MM-2D-X supports up to 96kHz/24bit and uses XLR connectors for analog mic/line input/output.
2 mic/line input/output, 4 Dante input/output
The MM-2D-X can either convert 2-channel mic/line input signals into 2 Dante output signals, or 2 Dante input signals into 2-channel line output signals. In addition, it also supports 4-channel Dante input/output as well, making it possible to use audio sources within an established Dante network.
The Dante Compact Processor Series has a line-up of models with different input/output specifications:
MM-4D/IN, 4-channel mic/line inputML-4D/OUT, 4-channel line outputMM-2D, 2-channel mic/line input/outputAE-4D, AES/EBU 4-channel input/outputFor analog input/output models, the branch extends with units equipped with Euroblock or XLR connectors that users can choose depending on their usage. By combining multiple different units all at once, it is possible to match and introduce them into various systems.
Structuring small scale systems with the DSP function
The Dante Compact Processor Series are equipped with a matrix mixer that includes a DSP feature with compressors, parametric EQs, limiter, delay, etc. functions. From the input of microphone signals to the output of powered speakers; also applicable with recording/playback systems, the Dante Compact Processor Series can build up a complete small system on their own.
Flexible routing
Routing to each Dante device is easy via Dante controller. Input/output units can be added flexibly to new or already established Dante systems.
