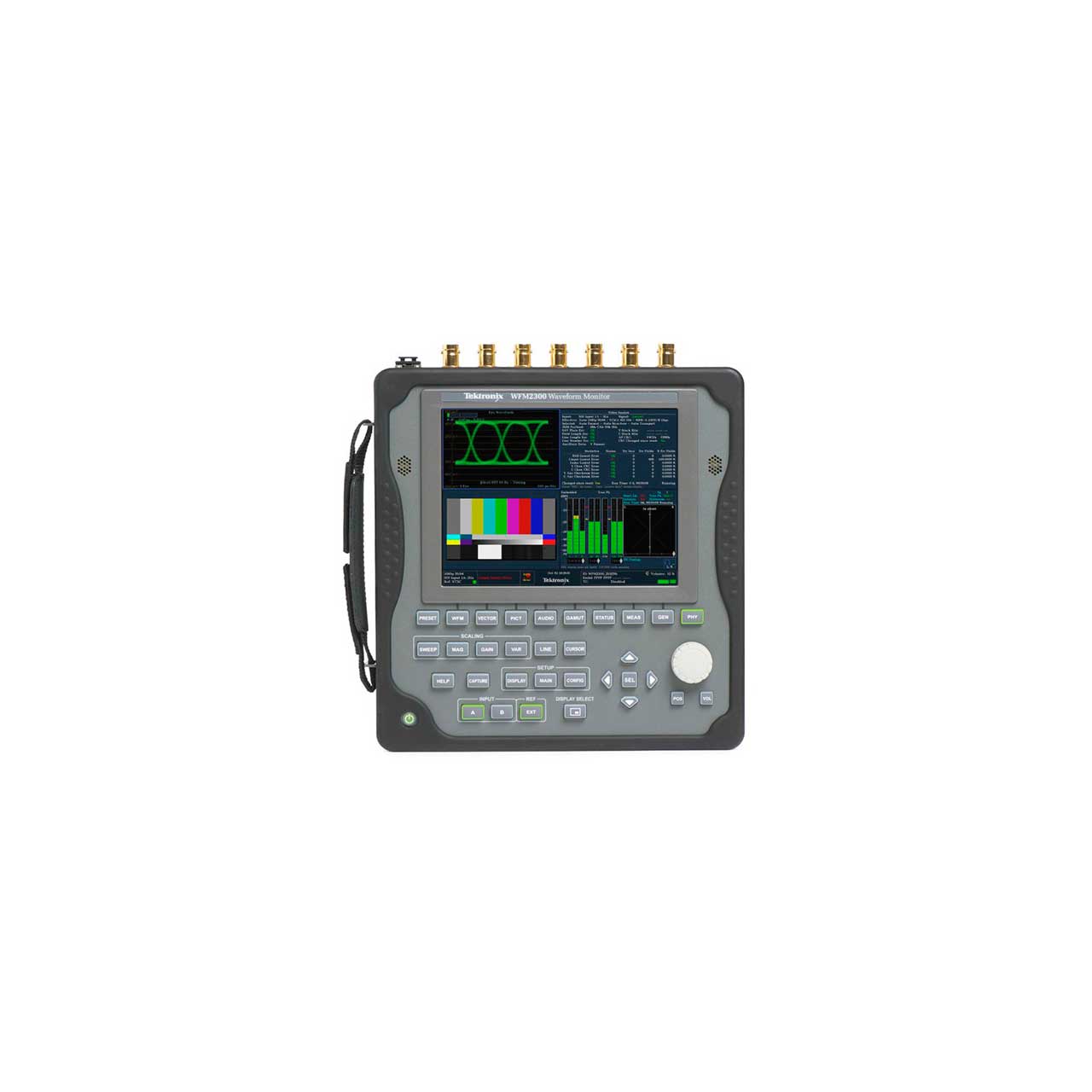

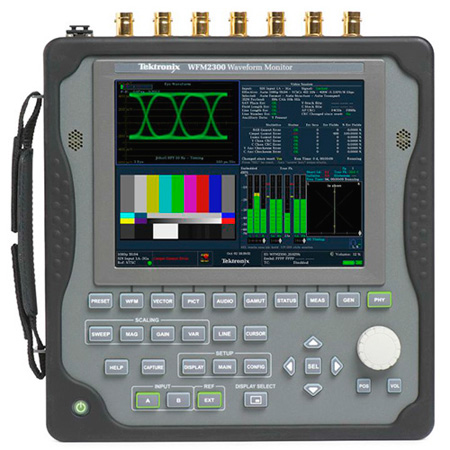

Telestream WFM2300 3G/DL/HD/SD-SDI Multistandard Portable Waveform Monitor

WFM2300 - Overview

• Features:

  • Portable Instrument that is Ideal for Field Production Setup and Troubleshooting
  • Coax SDI Eye pattern measurement including eye amplitude, rise/fall time and overshoot measurements as well as Tektronix jitter waveform display
  • Operates with Internal, Rechargeable, and Replaceable Battery Unit; External Recharger Kit and a Battery Unit for Replacement is available as an option
  • Optical SDI Input and Output compliant to SMPTE297 (Option SFP)
  • Coaxial Cable simulation / margin test loop for secure system installation
  • One SDI Input and one MULTI Input with Multiformat, Multistandard Support The MULTI input can be configured as SDI, AES or LTC input
  • Dual Link SDI format support is a standard feature
  • Upgradeable to include 3G-SDI (Level A and Level B) format support (Option 3G)
  • 3G/HD/SD Color Bar and Pathological Signal Generator with Genlockand Moving Picture / Circle for Troubleshooting Signal Paths and Equipment (Note: Option 3G is required for 3G-SDI signal generation) through Coax cable and Optical interface (Option SFP)
  • Comprehensive Audio Monitoring tool
  • Up to 16 channel Embedded AES/EBU Audio
  • Multichannel Surround Sound 1 Display and Flexible Lissajous Display
  • Audio Loudness meter (Option LOUD)
  • Dolby metadata decode and peak level metering (Option DBE)
  • AES Audio Test Tone Generator for Embedded and AES Output
  • Ability to Display Waveform of External Reference Signal and LTCSignal for Quick Diagnosis of the Potential Issues in Sync and Time Distribution System
  • Tektronix-patented Diamond and Arrowhead Displays for Color Gamut Compliance Monitoring
  • Comprehensive Data Monitoring helps to Quickly Resolve Difficult Content Quality and Reliability Issues (Option DATA)
  • Simultaneous CEA708/608 Closed Caption monitoring; Teletext and OP47 subtitle monitoring
  • Detect and decode ANC data including AFD, WSS, Video Index,TSID, V-Chip, Broadcast Flag/CGMS-A, VITC, LTC, and ANC TC
  • ARIB STD-B35/B37/B39, TR-B22, and TR-B23 support
  • ANC Data Inspector and SDI Data Analysis display helps troubleshoot ANC data and SDI data problems
  • Variety of Monitoring Displays
  • Tektronix-patented Timing and Lightning displays makes facility and interchannel timing easy
  • Waveform display of external reference (Black Burst or Tri-Level Sync)
  • Extensive alarms, status reporting, and error logging for 10,000 events simplifies error correction tasks
  • Voltage and Timing Cursor for precise measurement
  • User-definable Safe Area Graticules and AFD Graticule facilitate editing and format conversion tasks
  • Unmatched Display Versatility
  • Flexible Quad Tile display tailored to various application needs to increase productivity
  • Full Screen mode that maximizes display size for precise adjustments
  • Thumbnail Picture for content verification
  • Unmatched Usability
  • 32 presets for quick recall of instrument settings
  • USB port enables easy transfer of presets, screenshots, and error log
  • Internal speaker and headphone port for easy monitoring of audio channels
  • Intuitive menu structure and context-sensitive help
  • High-brightness display with crisp, high-resolution LED backlight, ideal for indoor and outdoor usage
  • SNMP capability facilitates centralized monitoring and control
  • Super lightweight and low power consumption design for portable, battery-powered applications


• Item Includes:

  • 1 - Installation and Safety Instructions (071-3205-xx)
  • 1 - WFM200BA Li-Ion Rechargeable Battery Pack
  • 1 - AC Power Adapter (119-7910-xx)
  • 1 - Power Plug
