The Leader LV7600W is a 'True-Hybrid' rasterizer compatible with 4K/HD/SD-SDI signals and UHDTV/HD/SD IP signals. The LV7600W offers the same functions as the LV5600W in a 1RU, full-rack enclosure and supports a variety of SDI signals up to 12G-SDI as well as video over IP. The waveform, vector, picture, audio, and eye pattern displays enable simple yet comprehensive measurements and quality control of the widest range of audio and video formats. The status display allows you to assess errors and system stability with both event logs and long-term charts.
For audio, these instruments support digitally embedded audio in SDI or IP streams as well as discreet digital and analog audio connections. Multi-channel audio levels, Lissajous, status, and loudness displays are available.
Finally, a fully customizable screen layout allows the LV7600W to easily solve complex measurement and monitoring tasks. Designed with the future in mind, the LV7600W addresses your current and evolving video and audio testing needs.

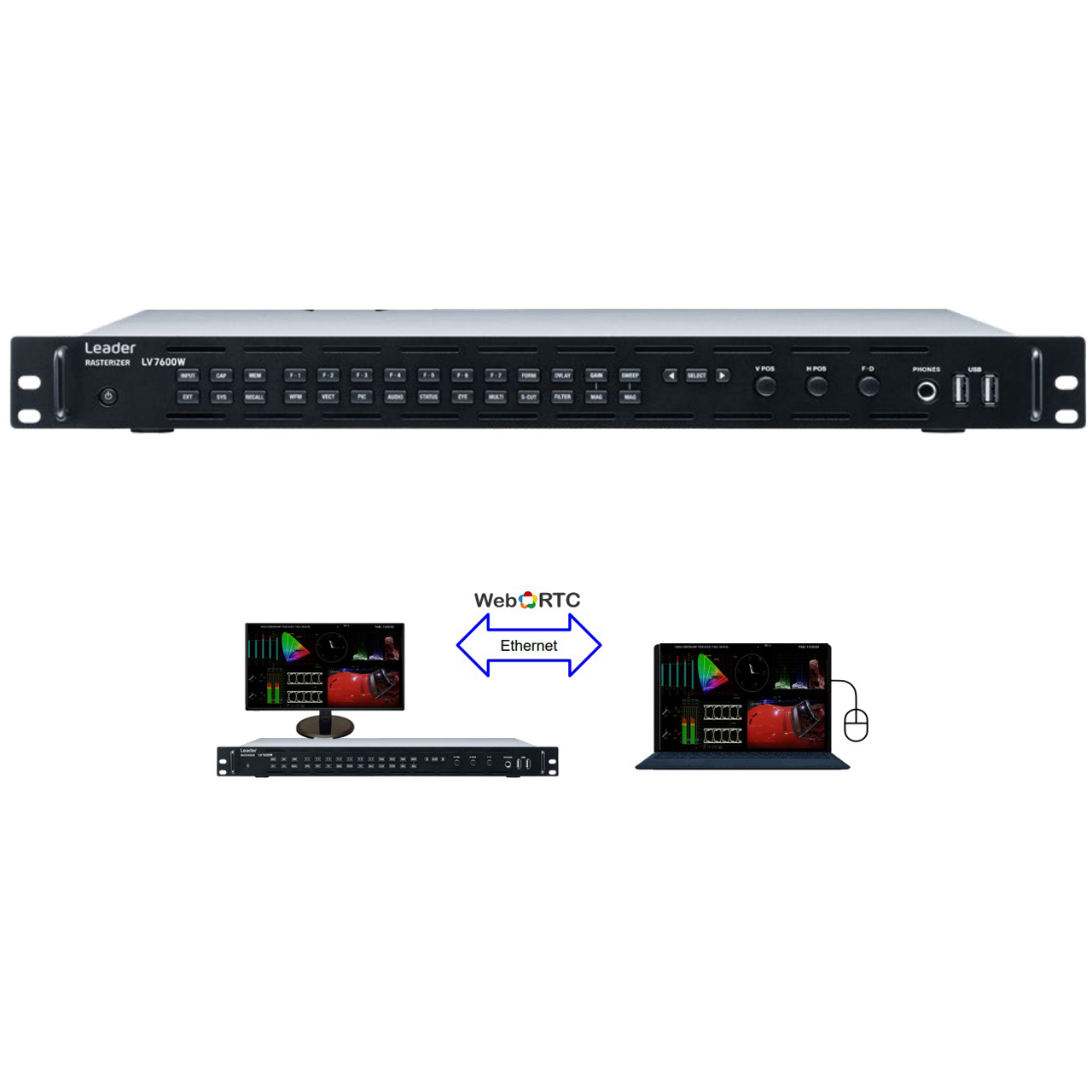

WebRTC Enabled
The LV7600W supports the Web Real-Time Communication interface. WebRTC allows secure remote control and monitoring from a web-connected desktop or laptop computer.
Supports 'True-Hybrid' SDI/IP Workflows

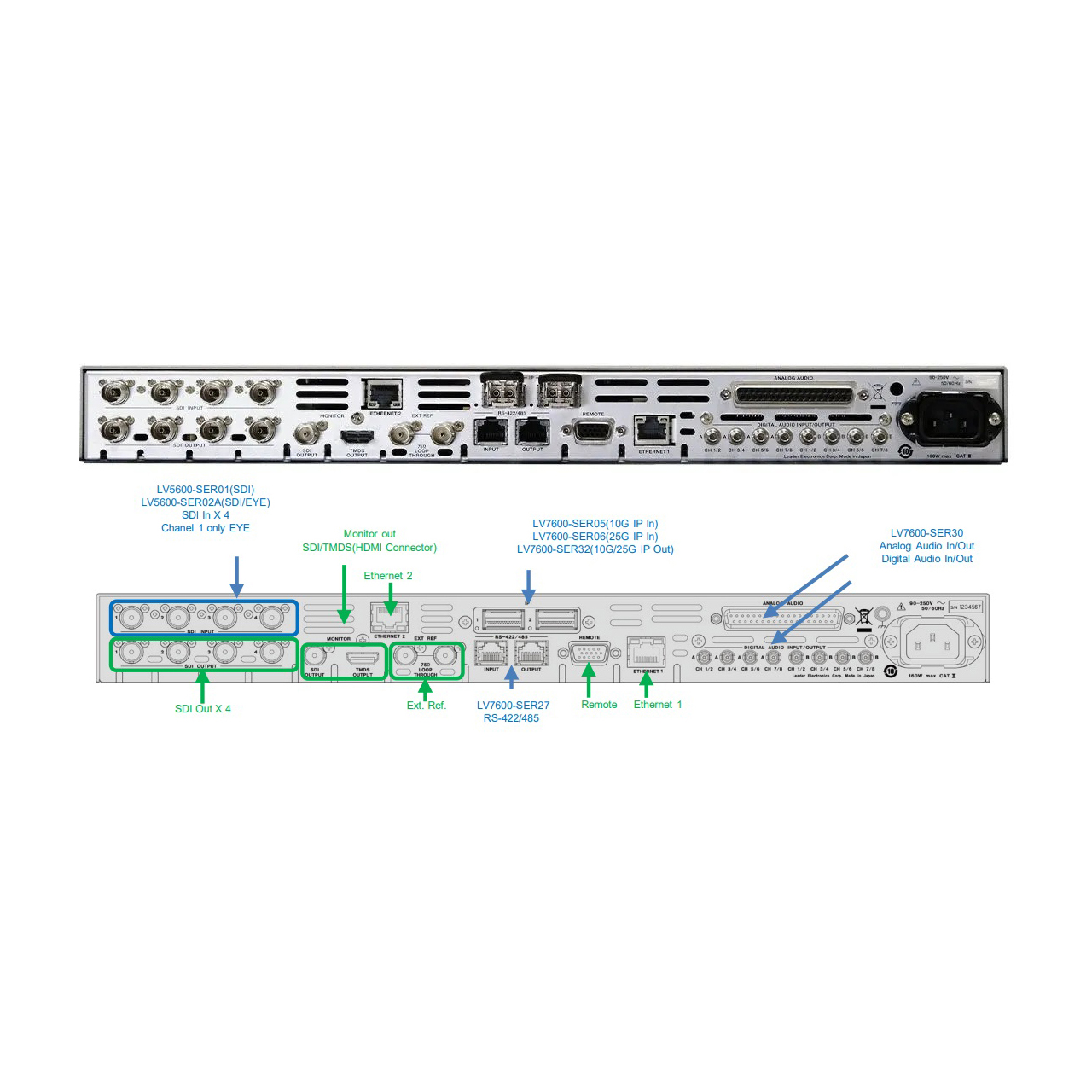

The LV7600W can monitor SDI signals up to 12G-SDI as well as IP (video over IP). Audio support can include SDI embedded Audio, Audio multiplexed to IP, external input AES/EBU, and analog Audio. In addition, the LV5600W or LV7600W can be configured to simultaneously monitor SDI and IP feeds - 'True Hybrid' monitoring for complex networks.
4x IP Multistream
Packet Jitter, Path Delay, Timing Comparison and Pack Buffer can all be viewed simultaneously.
Customisable Layout
Various items such as video signal waveforms, vector waveforms, and pictures of input signals can be laid out in any position with your favorite size.

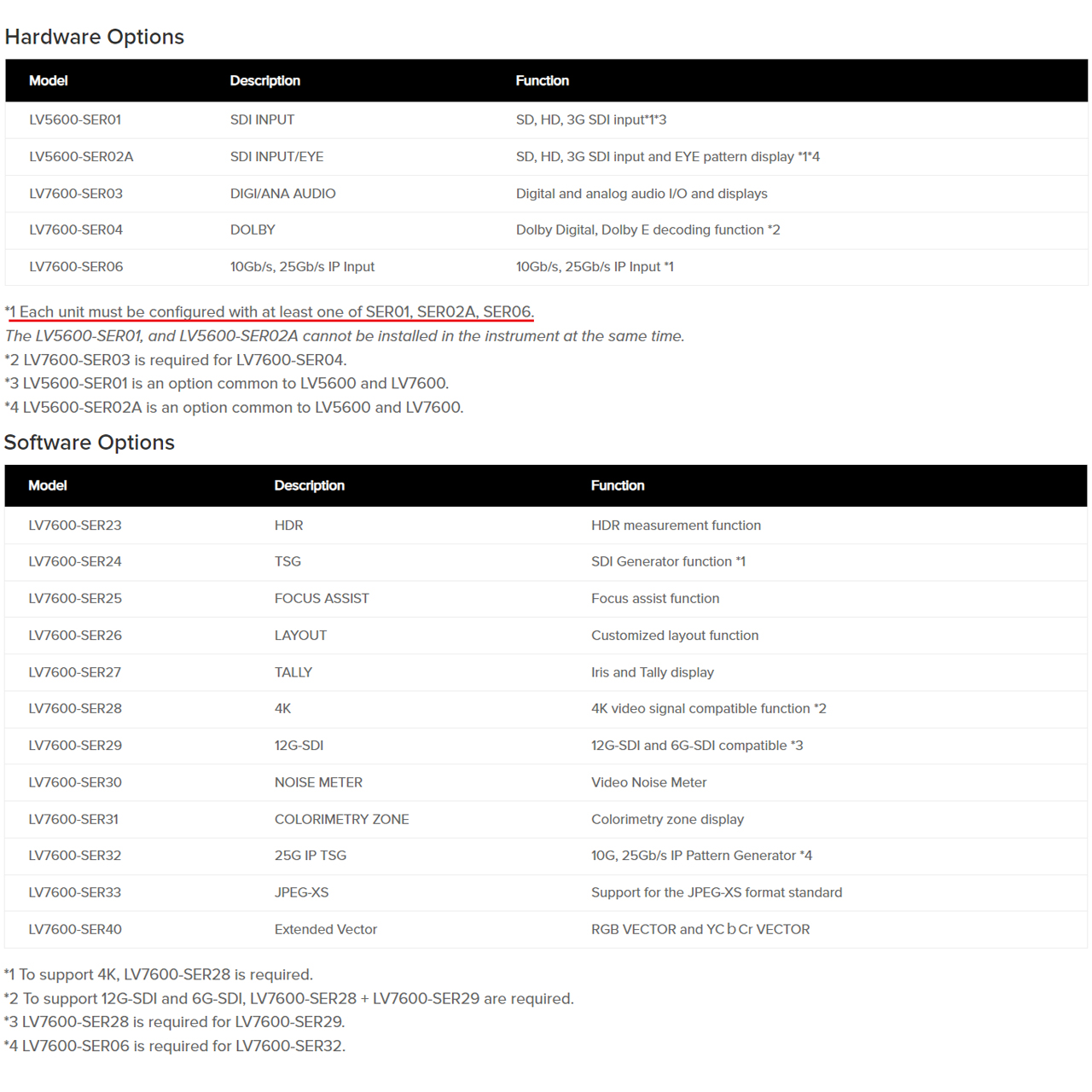

Toolsets
- Standard Functionality: WFM/Vectorscope/Picture/Audio/Status/Capture Function/Frame Capture View/Touch Panel Operation
- Optional Functionality: SDI IN/OUT/HDR/4K/Ext. Vect./Eye Display/SDI TSG/Noise Meter/Audio/Focus/Colorimetry/Dolby/Layout/IP TSG/IP/TALLY/JPEG XS
Please Note! Each unit must be configured with at least one of SER01, SER02A, SER06. The LV5600-SER01, and LV5600-SER02A cannot be installed in the instrument at the same time. LV7600-SER03 is required for LV7600-SER04. LV5600-SER01 is an option common to LV5600 and LV7600. LV5600-SER02A is an option common to LV5600 and LV7600.
