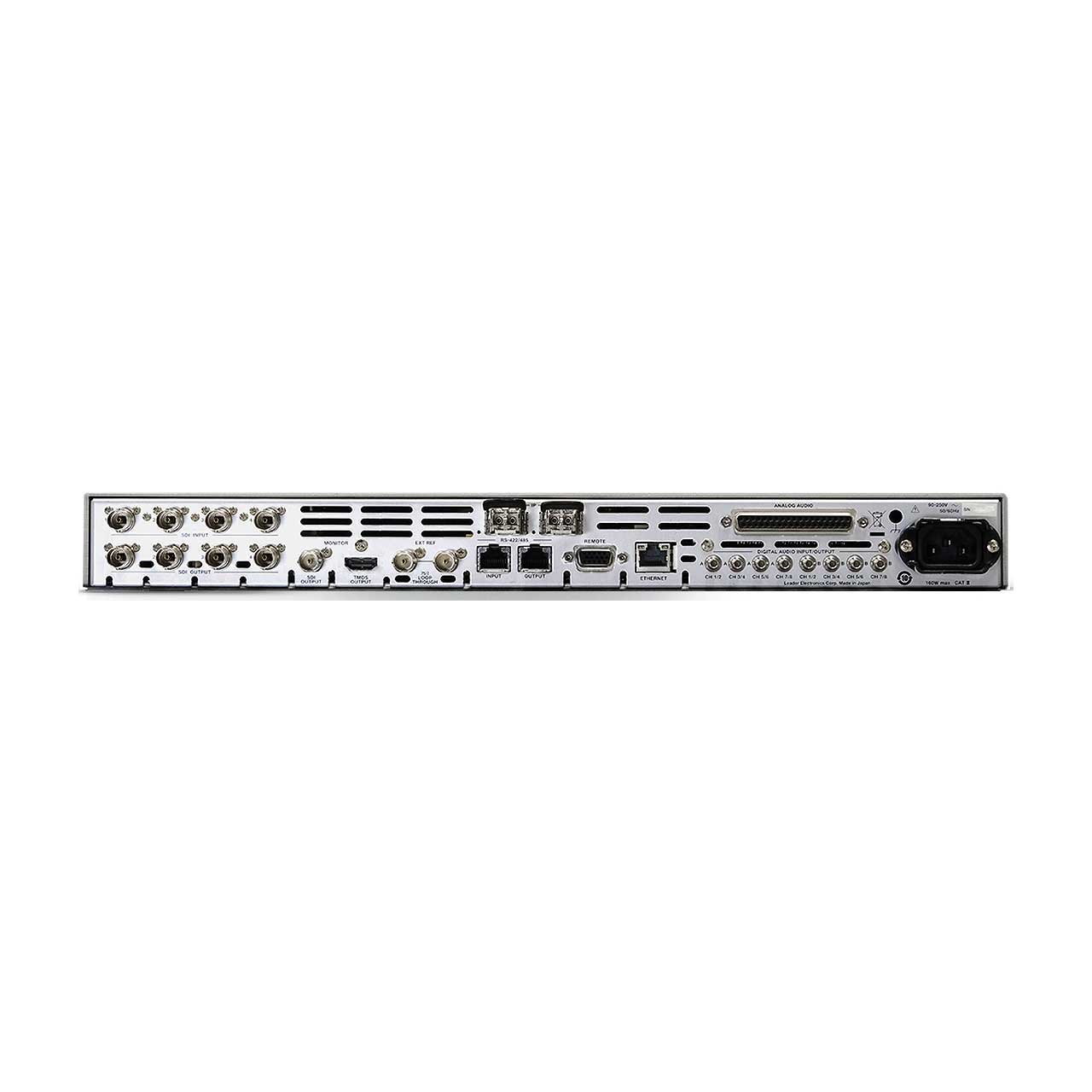

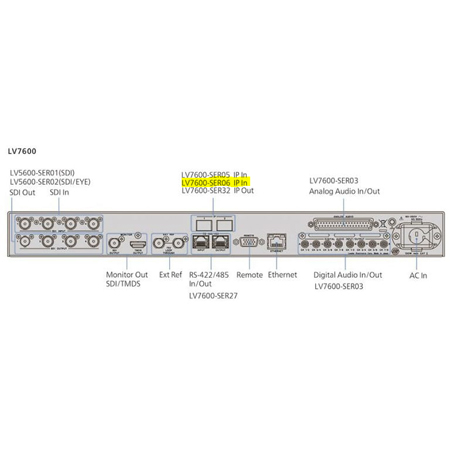

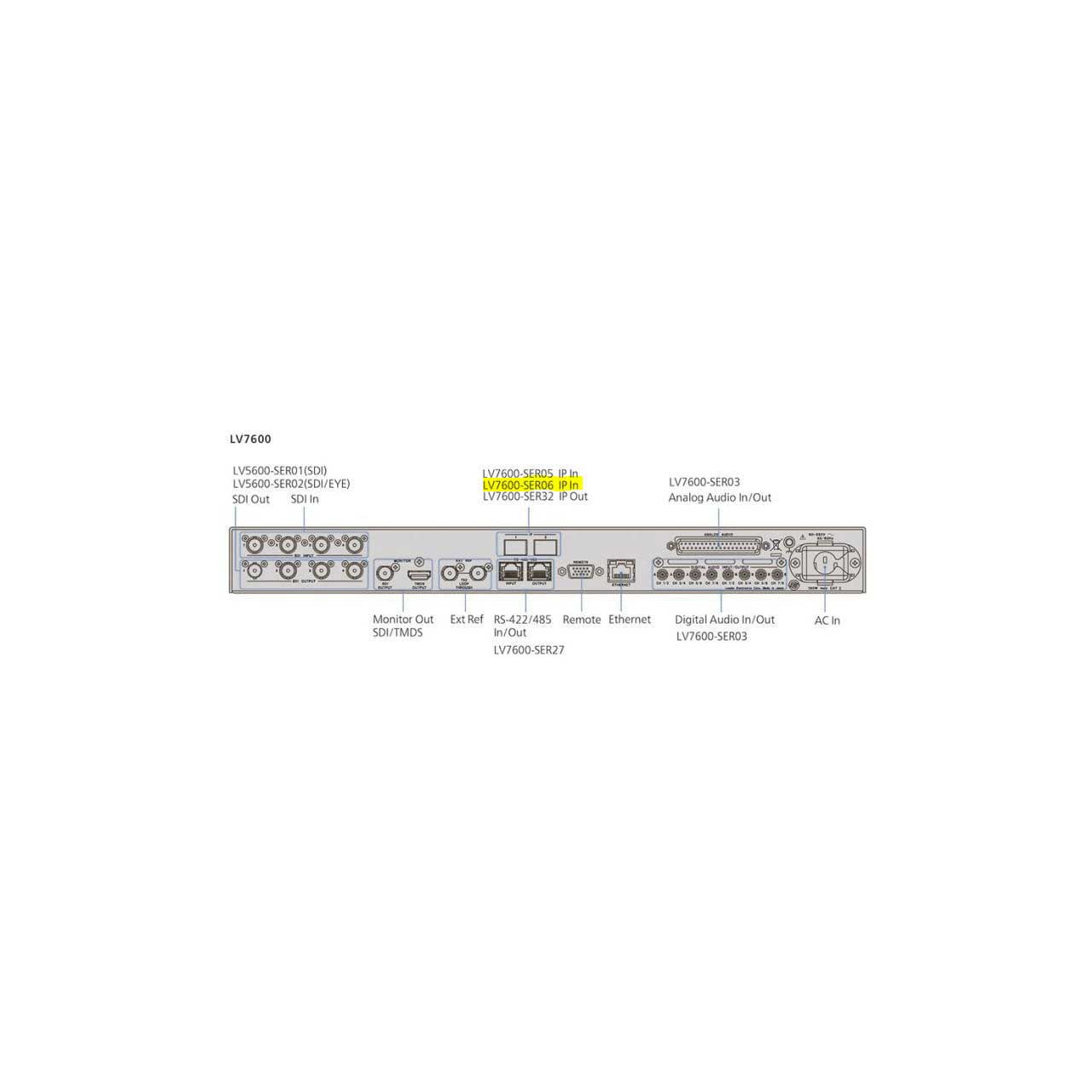

Leader LV7600-SER06 is a one IP input hardware option for use with LV7600 Rasterizer. It adds IP INPUT, a 25G IP Input and IP Analysis. It requires 2 SFP+ Transceivers. (Sold Separately)
About the LV7600 (Sold Separately)

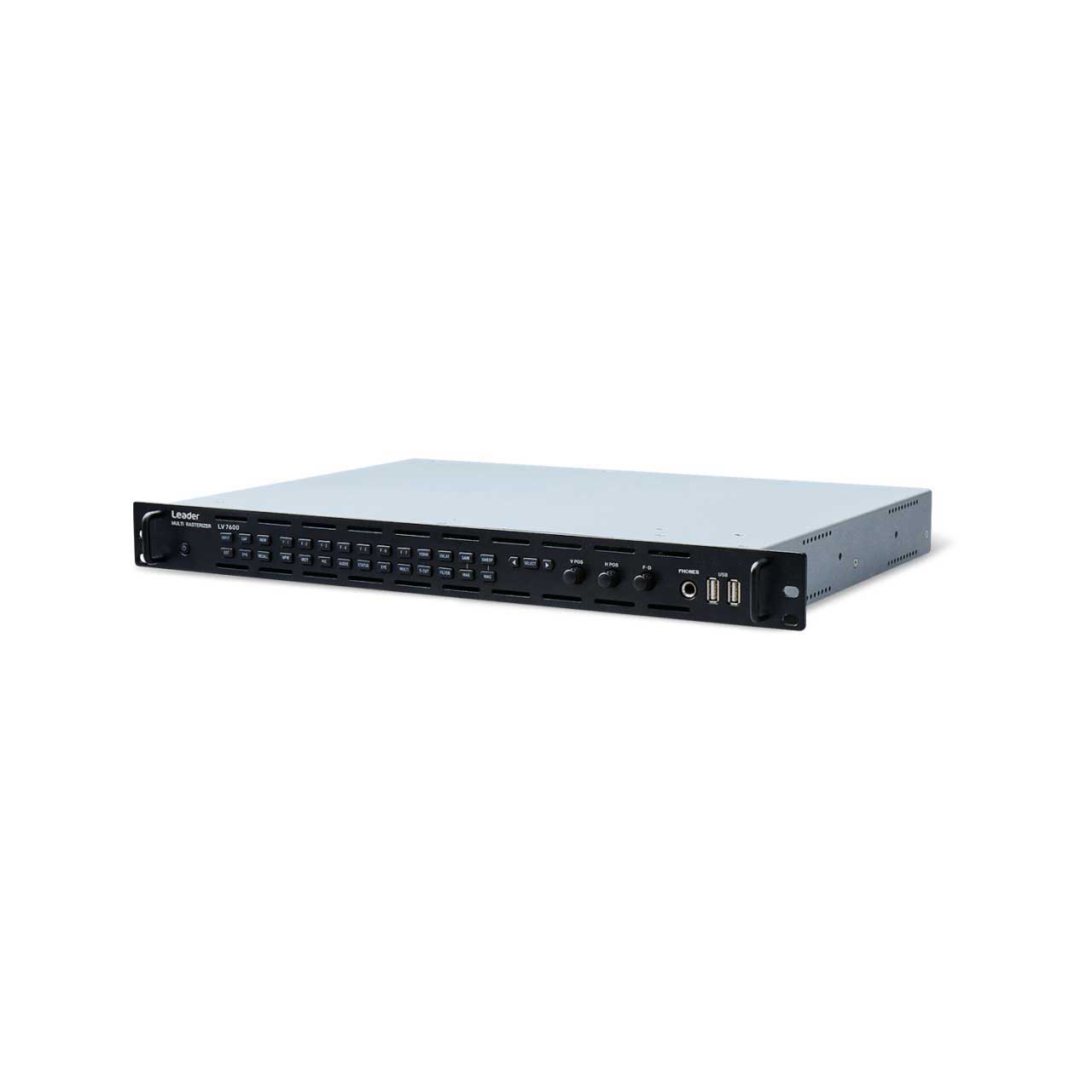

The Leader LV7600 is a hybrid-type waveform monitor and rasterizer compatible with 4K/HD/SD-SDI signal and HD/SD IP signal. The LV7600 is a rasterizer with the same function as the LV5600 in a 1U full rack enclosure. Selection of necessary input signals and functions from various options, and customization to the specification that fits your purpose are possible.
SDI signals up to 12G-SDI and IP (video over IP) signals can be observed/monitored. Audio signals can correspond to SDI embedded Audio, Audio multiplexed to IP, external input AES/EBU, analog Audio.
The IP signal corresponds to the video signal of the 2K video format at SMPTE ST 2022-6 (non-compression) and SMPTE 2110-20 (non-compression). In 2K video format, up to 2 channels can be received with one 10 Gbit Ethernet cable.
With the front panel equipped with key buttons and knobs that follow the operability of conventional models, operation with a USB mouse is also possible. In addition, the LV5600 adopts a 7-inch full HD panel with a touch panel function, and the LV7600 can be operated and set intuitively by touch operation by connecting an external LCD adopted touch panel with a USB cable. * It does not guarantee the operation with the external LCD monitor adopted by all touch panels.
Various video signals include video signal waveform display, vector display, picture display 5 BAR display, CIE chromaticity diagram display, etc.In addition to the various displays, freeze error, Black error, gamut error detection Functions etc. Quality control (QoE) of video signals Features are equipped.
