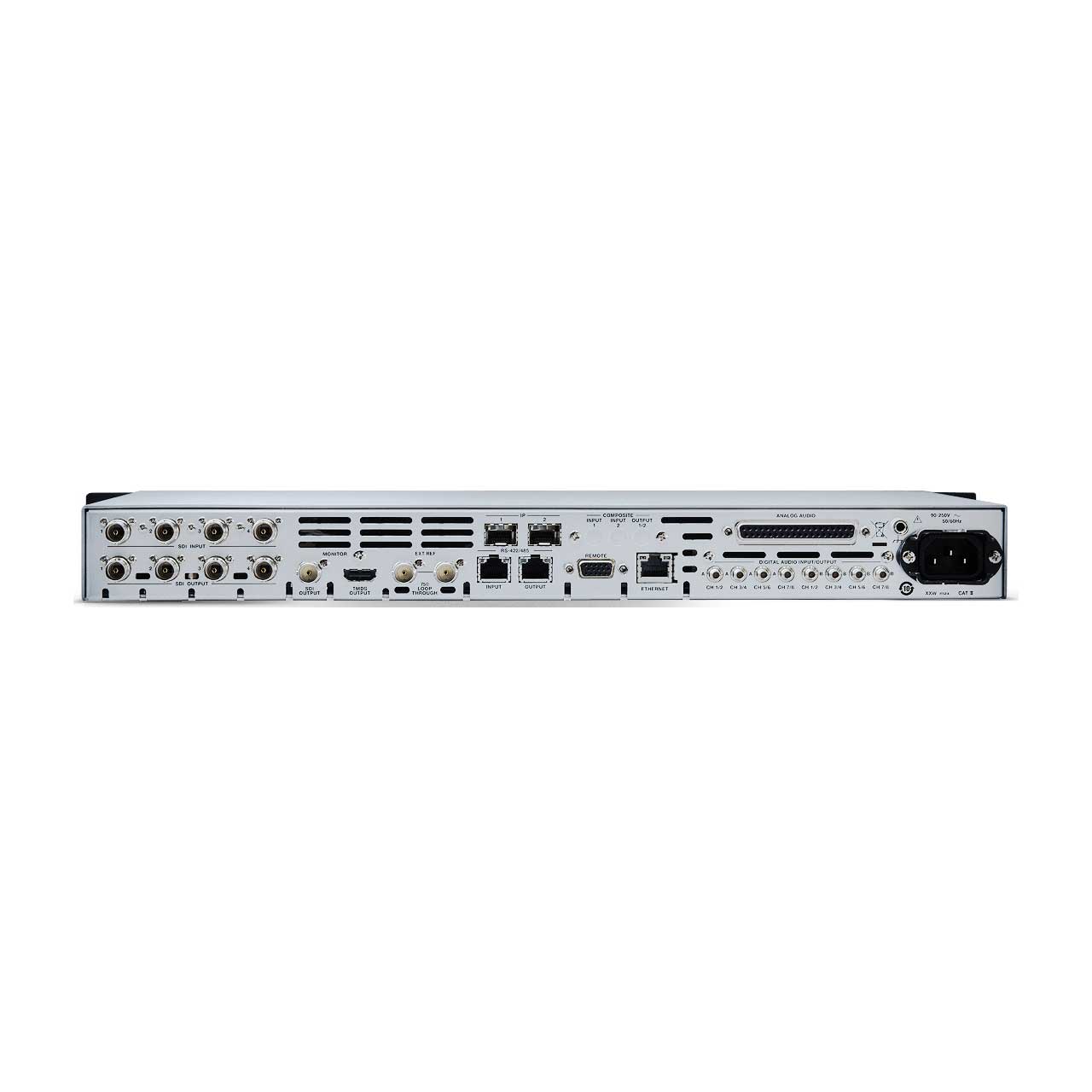

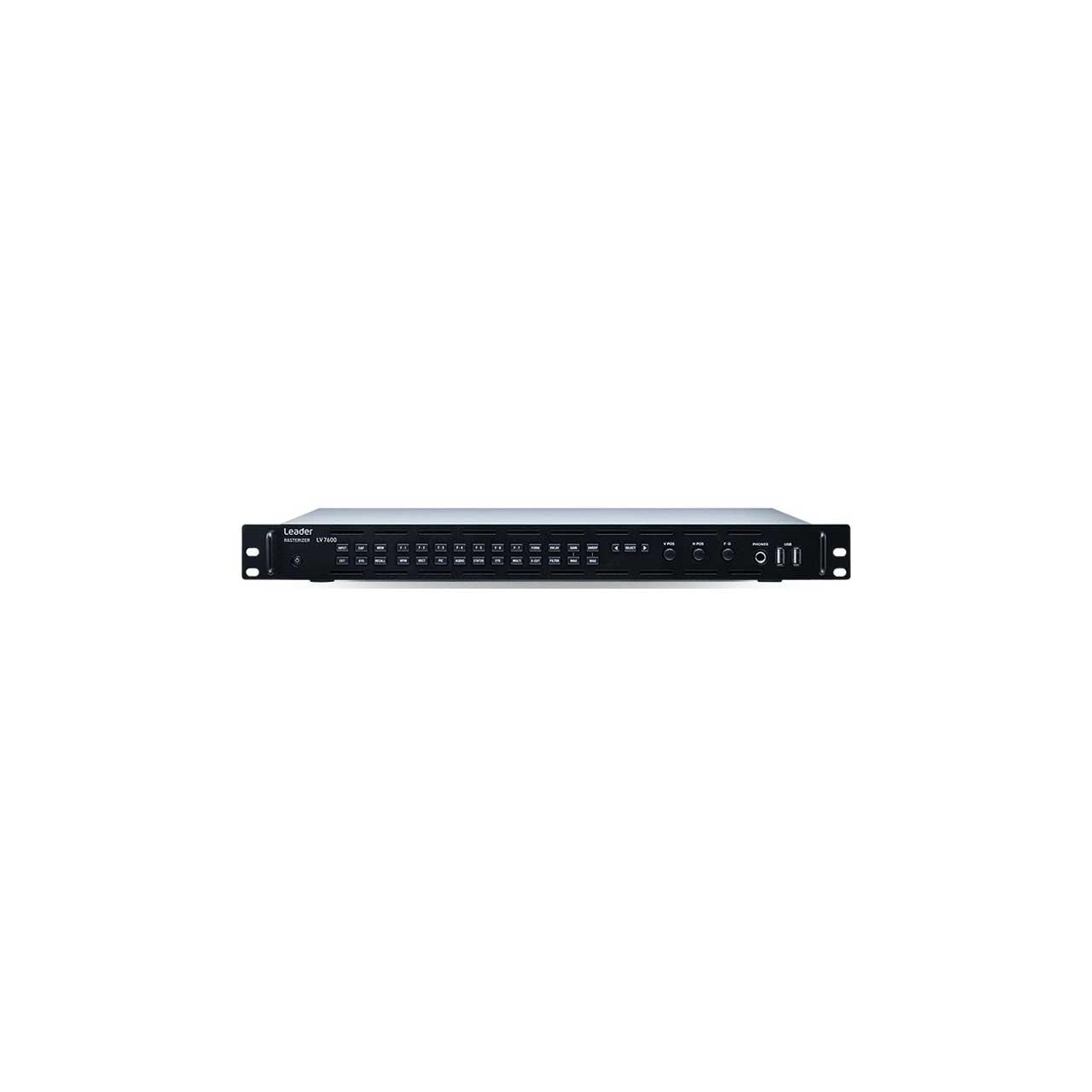

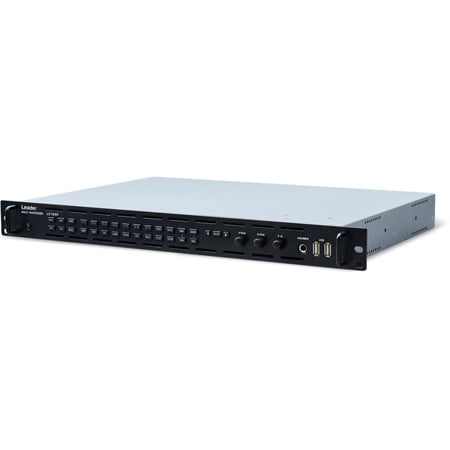

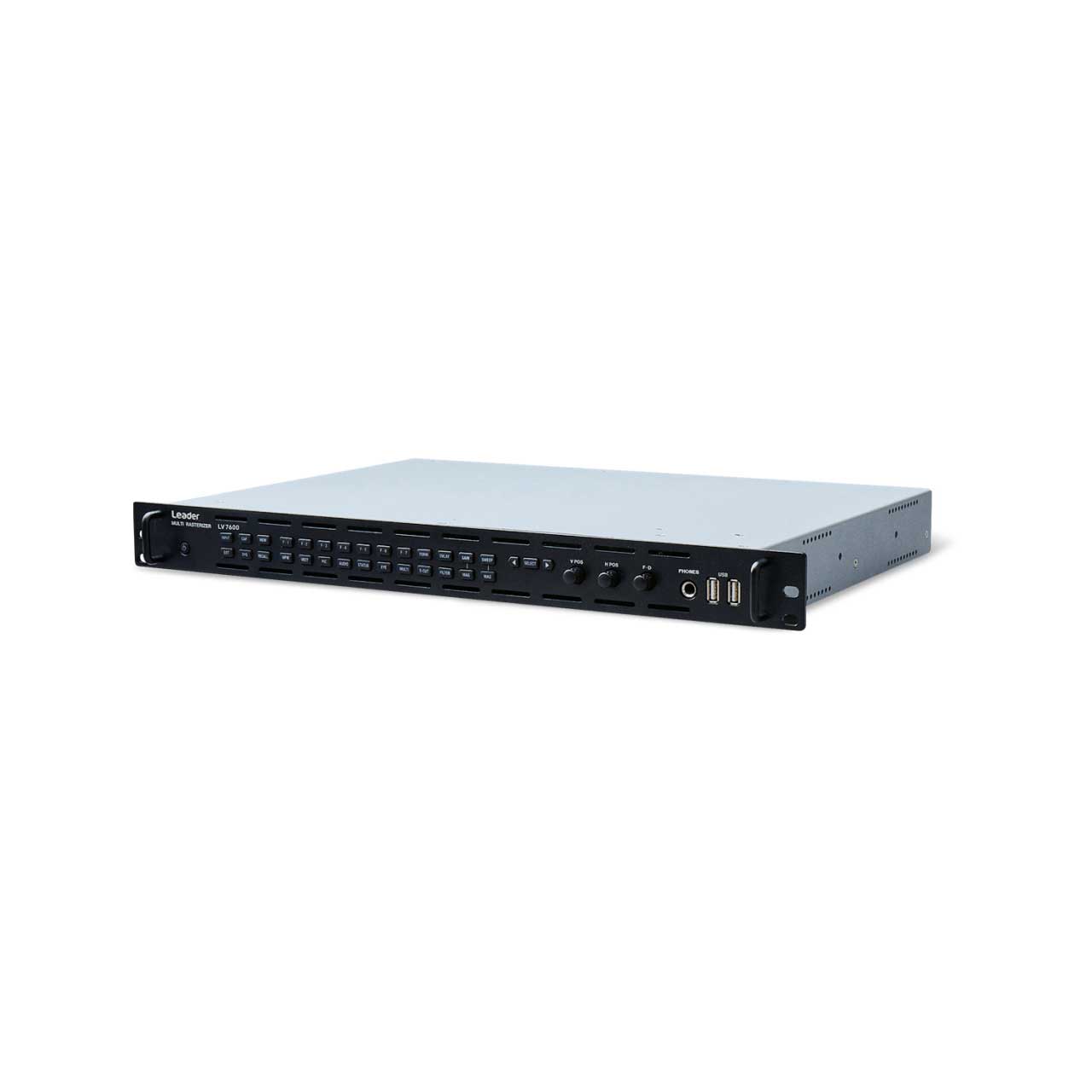

Leader LV7600 Rasterizer - Mainframe Only

ITEM #: LR-LV7600 MFG #: LV7600

Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3
Leader
Free Shipping with $49 Minimum Order
This item is custom made. Ordering this product requires written authorization. Please contact a sales engineer at 1-800-522-2025 for details.
Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
  • Special Order Item: non-cancelable, non-returnable, non-refundable.
Report Lower PriceLarge Quantity Quote

LV7600 - Overview

The Leader LV7600 is a hybrid-type waveform monitor and rasterizer compatible with 4K/HD/SD-SDI signal and HD/SD IP signal. The LV7600 is a rasterizer with the same function as the LV5600 in a 1U full rack enclosure. Selection of necessary input signals and functions from various options, and customization to the specification that fits your purpose are possible.

SDI signals up to 12G-SDI and IP (video over IP) signals can be observed/monitored. Audio signals can correspond to SDI embedded Audio, Audio multiplexed to IP, external input AES/EBU, analog Audio.

The IP signal corresponds to the video signal of the 2K video format at SMPTE ST 2022-6 (non-compression) and SMPTE 2110-20 (non-compression). In 2K video format, up to 2 channels can be received with one 10 Gbit Ethernet cable.

With the front panel equipped with key buttons and knobs that follow the operability of conventional models, operation with a USB mouse is also possible. In addition, the LV5600 adopts a 7-inch full HD panel with a touch panel function, and the LV7600 can be operated and set intuitively by touch operation by connecting an external LCD adopted touch panel with a USB cable. * It does not guarantee the operation with the external LCD monitor adopted by all touch panels.

Various video signals include video signal waveform display, vector display, picture display 5 BAR display, CIE chromaticity diagram display, etc.In addition to the various displays, freeze error, Black error, gamut error detection Functions etc. Quality control (QoE) of video signals Features are equipped.

  • Features:

    • Supports various signal inputs
    • It supports SD-SDI, HD-SDI, 3G-SDI, 12G-SDI single link, 3G-SDI dual link and quad link, HD-SDI quad link, IP (video over IP).

      Eye pattern display From SD-SDI to 12G-SDI
    • In the physical layer measurement of the SDI signal some eye pattern display, jitter display is possible.

      Customizable layout
    • Various items such as video signal waveforms, vector waveforms, and pictures of input signals can be laid out in any position with your favorite size.

      SDI signal generation function
    • SDI signal generation function can handle from HD-SDI to 12G-SDI.

      HDR
    • The HDR signal level monitoring and the level management at the assumed luminance (cd /m2 ) in a display considering OOTF are possible.

      Focus Assist
    • Leader developed a new focus detection algorithm based on nonlinear super-resolution technology; accordingly the focus with high sensitivity can be detected even with low-contrast images, which were conventionally difficult to detect.


  • Specifications:

    • External synchronize input terminal
    • Input: terminal BNC terminal
    • Number of input terminals: 1 line 2 terminals
    • Input: impedance 15 kΩ Passive loop through
    • Input: return loss 30 dB or more (50 kHz to 30 MHz, 75 Ω termination)
    • Maximum input voltage ± 5 V (DC + peak AC)
    • Input signal: Ternary synchronization signal or NTSC/PAL black burst signal, 10 Field ID correspondence
    • Function: SDI reference signal input for video signal waveform display and phase difference display, Waveform display of external synchronization signal

      Headphone output terminal
    • Output terminal: standard jack 1 terminal (stereo)
    • Output signal: On the screen of the displayed audio signal, arbitrary 2 ch (Downmixed Lt, Rt is also acceptable)

      SDI output terminal
    • Function Output screen for SDI monitor
    • Output terminal BNC terminal
    • Number of output terminals: 1
    • Output signal: Output liquid crystal display screen is output with HD, 3G-A, 3G-B-DL.
    • 1920x1080 60, 59.94, 50 I/P, YCBCR 4:2:2 (10 bits)

    • TMDS output terminal
    • Function The displayed screen is output for HDMI monitor.
    • Output terminal HDMI terminal
    • Number of output terminals 1
    • Signal format Single Link T.M.D.S
    • DDC function Not supported
    • HOT PLUG detection function Not supported
    • Output signal Output liquid crystal display screen is output.
    • 1920x1080 60 P, 59.94 P, 50 P

    • Control terminal
      USB terminal
      Terminal shape: Standard A
      Number of terminals: 2
      Standard USB 2.0
      Compatible device: USB memory, USB mouse, touch panel type monitor

      For Ethernet terminal control
    • Approved standard IEEE802.3
    • Supported protocols: TELNET, FTP, SNMP, HTTP, SNTP
    • Input/output terminals: RJ-45
    • Function Remote operation with an external PC or remote controller, File transfer, get status information
    • Types 10Base-T, 100Base-TX, 1000Base-T

      Remote terminal
    • Terminal: shape D Sub 15 pins (female)
    • Number of terminals: 1
    • Control signal: LV- TTL level (LOW active)
    • Function: Preset recall, input signal switching, alarm output, tally
    • Alarm output: When a format alarm, various errors, fan abnormality, or internal temperature occurs

      Dimensions
    • 16.77 inch x 1.73 inch x 11.81 inch (426 (W)x44 (H)x300 (D) mm)
