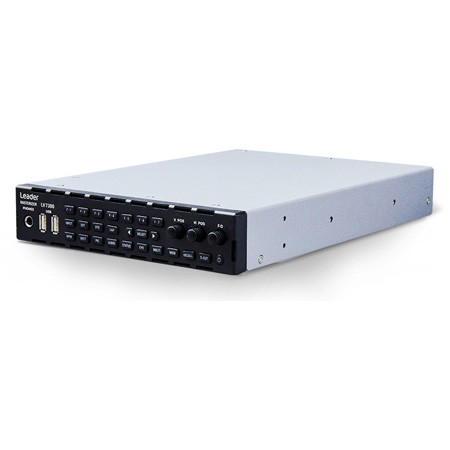

Leader LV7300-SER40 Multi SDI Zen Rasterizer Option adding Extended Vector

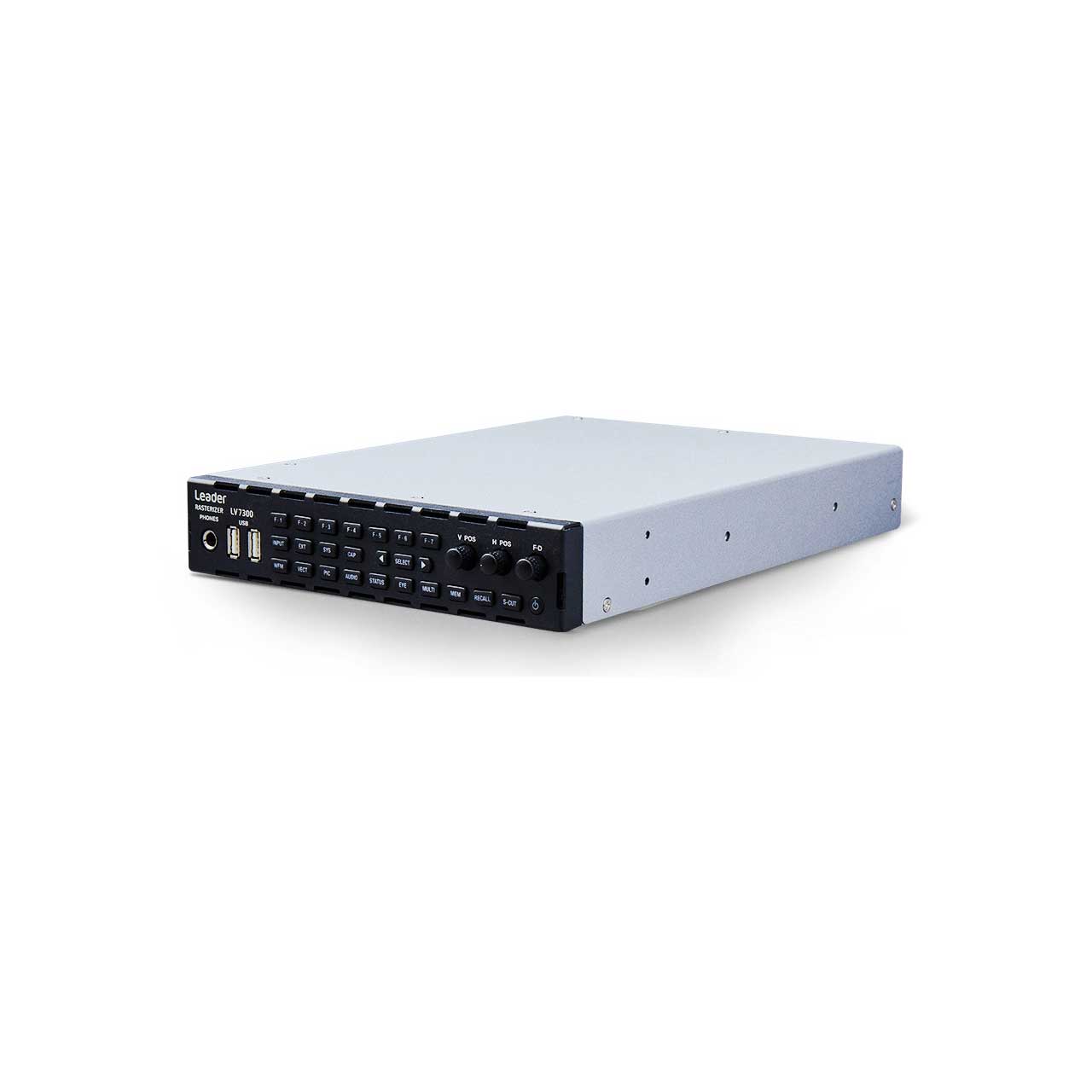

LV7300-SER40 - Overview

• Features:

  • Supports various signal inputs
  • Various SDI signals up to 12 G-SDI can be observed/monitored.
  • Audio signals can correspond to SDI embedded voice.

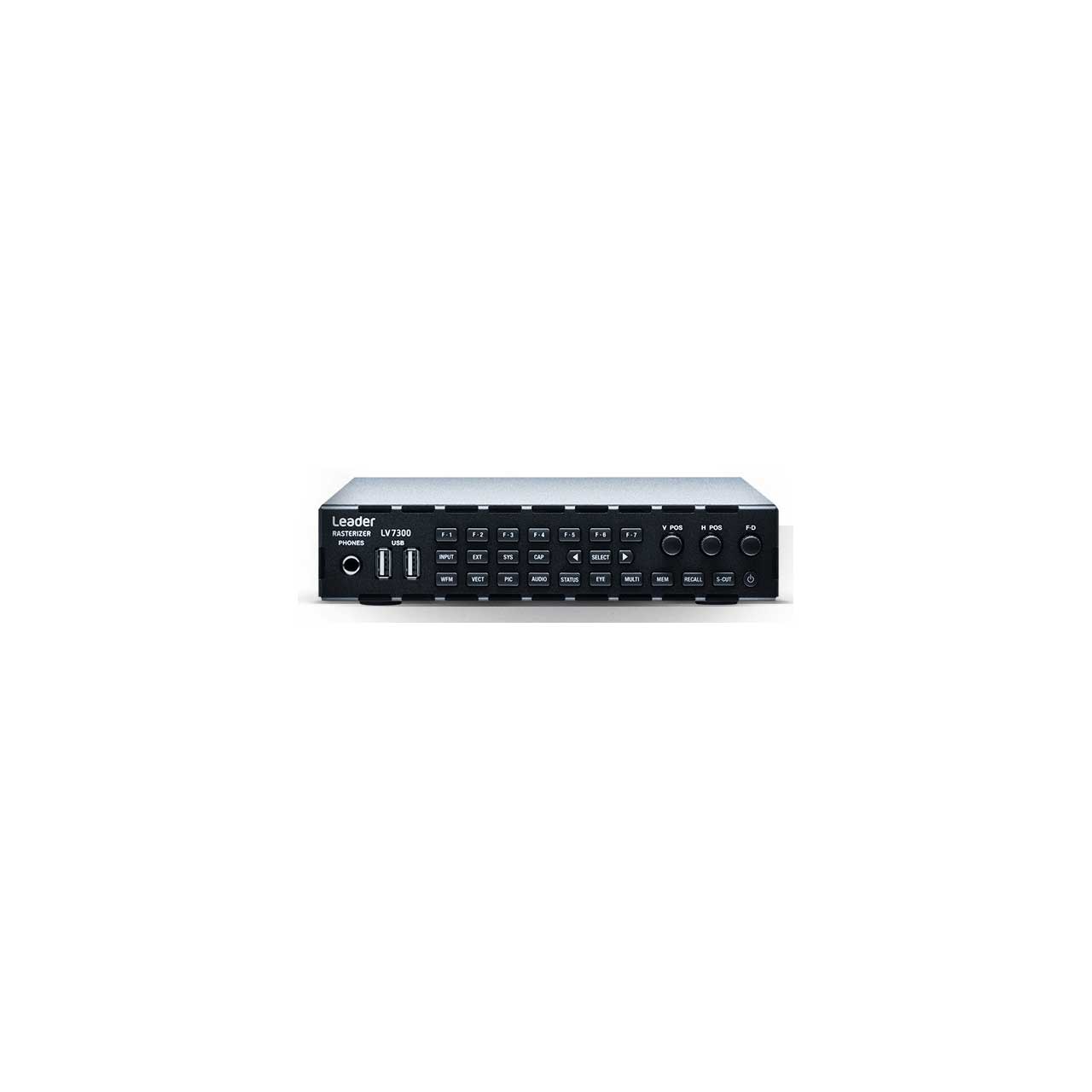

  • Excellent operability
  • With the front panel equipped with key buttons and knobs that follow the operability of conventional models, operation with a
  • USB mouse is also possible. In addition, the LV5300/LV5350 adopt a 7-inch full HD panel with a touch panel function, and the LV7300 can be operated and set intuitively by touch operation by connecting an external LCD adopted touch panel with a USB cable
  • SDI input format
  • SD-SDI, HD-SDI, 3G-SDI, 12G-SDI Single Link is supported


• Specifications:

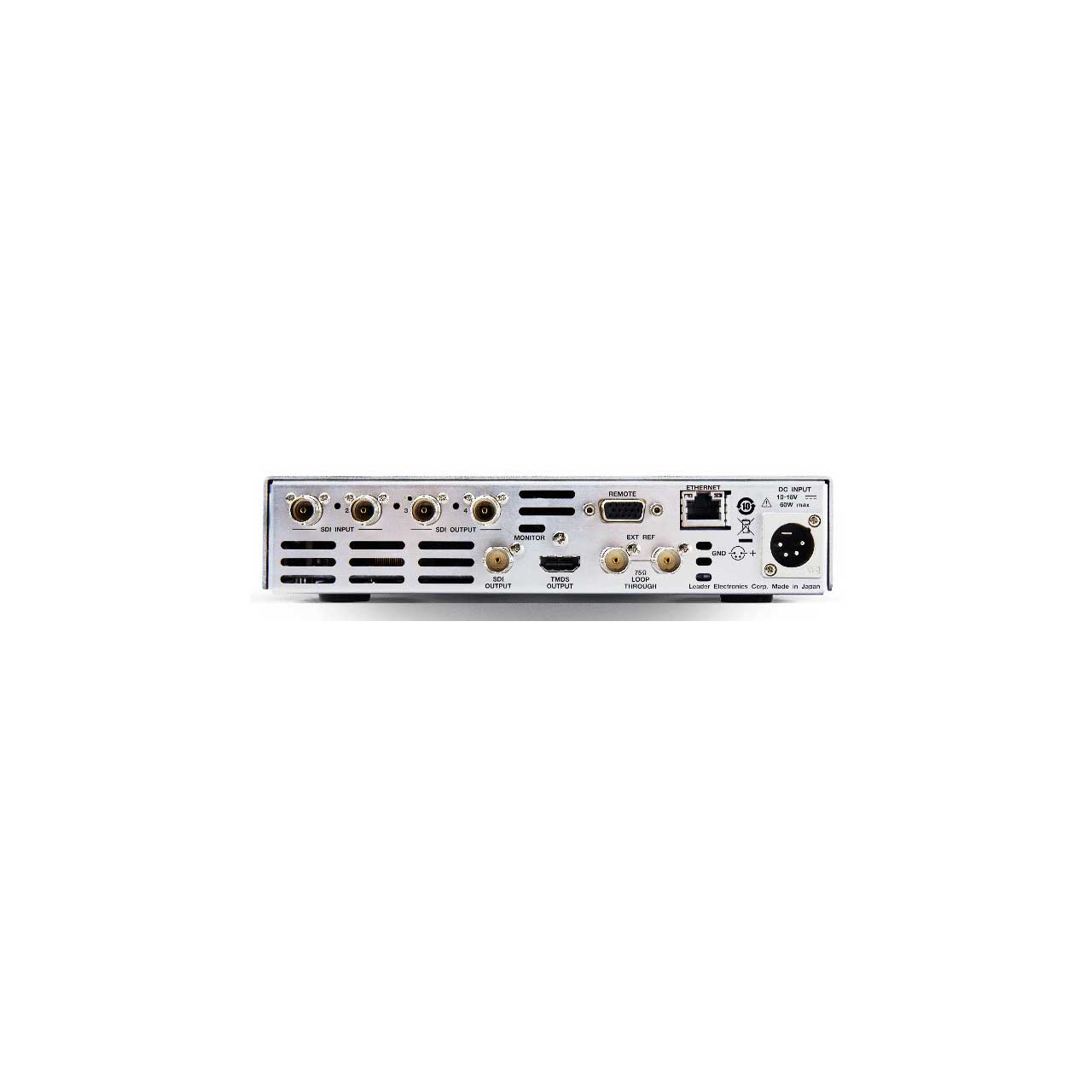

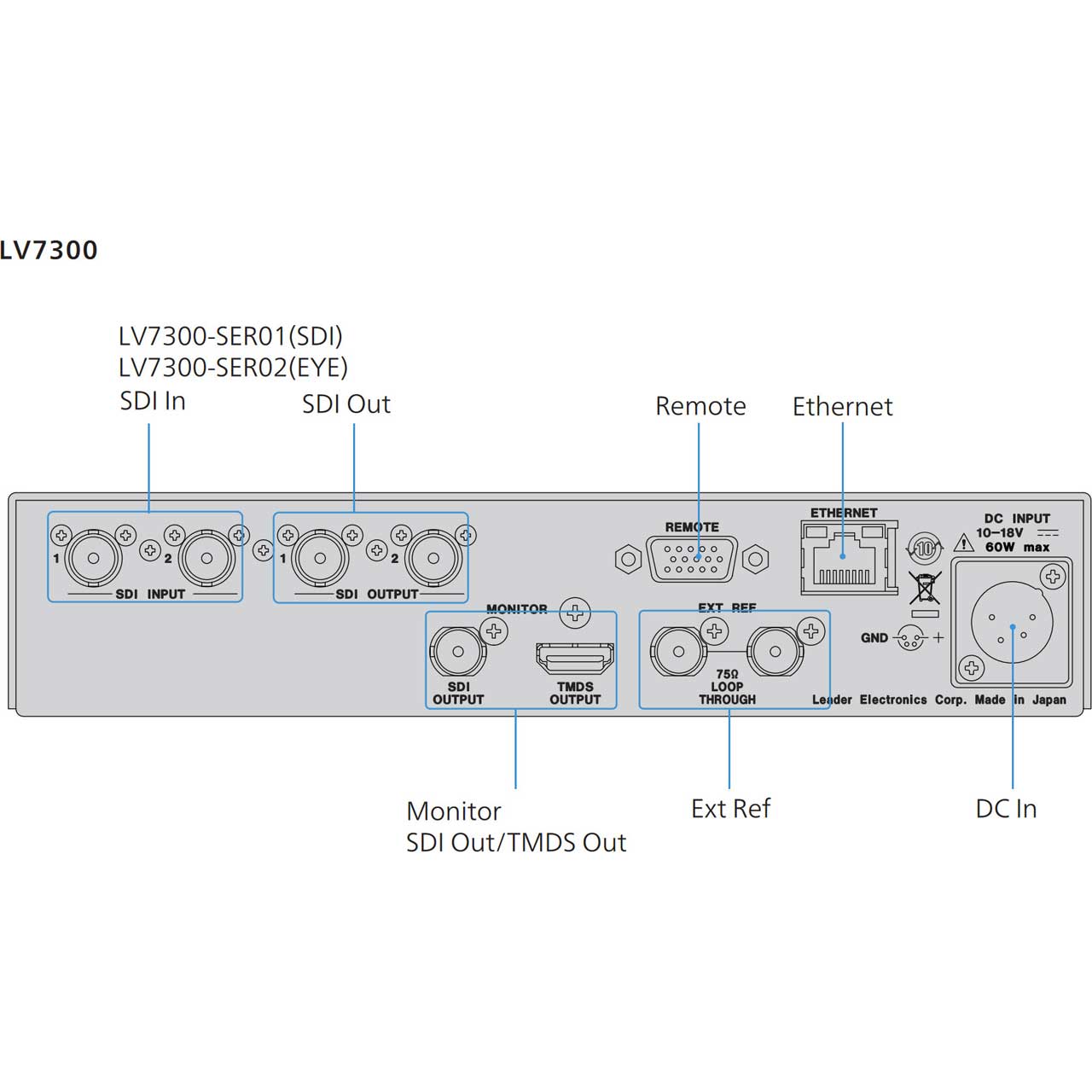

  • External Synchronize Input Terminal
  • Input Terminal: BNC terminal
  • Number Of Input Terminals: 1 line, 2 terminals
  • Input Impedance: 15kΩ Passive loop through
  • Input Return Loss: 30dB or more (50kHz to 30MHz, 75Ω termination)
  • Maximum Input Voltage: ±5 V (DC + peak AC)
  • Input Signal: Ternary synchronization signal or NTSC/PAL black burst signal; 10 Field ID correspondence
  • Function: SDI reference signal input for video signal waveform display and phase difference display

    Headphone Output Terminal
  • Output Terminal: Standard jack 1 terminal (stereo)
  • Output Signal: On the screen of the displayed audio signal, arbitrary 2 ch (Downmixed Lt, Rt is also acceptable)

    SDI Output Terminal
  • Output Terminal: BNC terminal
  • Number Of Output Terminals: 1
  • Output Signal: Output liquid crystal display screen is output with HD, 3G-A, 3G-B-DL. 1920x1080 60, 59.94, 50 I/P, YCBCR 4:2:2 (10 bits)

    TMDS Output Terminal
  • Output Terminal: HDMI terminal
  • Number Of Output Terminals: 1
  • Signal Format: Single Link T.M.D.S
  • DDC Function: Not supported
  • HOT PLUG Detection Function: Not supported
  • Output Signal: Output liquid crystal display screen is output. 1920x1080 60 P, 59.94 P, 50 P

    Control Terminal - USB Terminal
  • Terminal Shape: Standard A
  • Number Of Terminals: 2
  • Standard USB 2.0
  • Compatible device USB memory, USB mouse, touch panel type monitor

    For Ethernet Terminal Control
  • Approved Standard: IEEE802.3
  • Supported Protocols:TELNET, FTP, SNMP, HTTP, SNTP
  • Input/Output Terminals: RJ-45
  • Function: Remote operation with an external PC or remote controller, File transfer, get status information
  • Types: 10Base-T, 100Base-TX, 1000Base-T

    Remote Terminal
  • Terminal Shape: D Sub 15 pins (female)
  • Number Of Terminals: 1
  • Control Signal: LV- TTL level (LOW active)
  • Function Preset: recall, input signal switching, alarm output, tally
  • Alarm Output: When a format alarm, various errors, fan abnormality, or internal temperature occurs

    General Specifications
  • Operating Temperature Range: 32°F - 104°F (0°C - 40°C)
  • Operating Humidity Range: 85% RH or less (with no condensation)
  • Performance Guarantee Temperature Range: 50°F - 86°F (10°C - 30°C)
  • Usage Environment: Indoors
  • Usable Altitude: Up to 2,000m
  • Overvoltage Category: 1
  • Pollution Degree: 2
  • Power Supply: Voltage DC 10V - 18V
  • Dimensions (HxWxD): 1.7" x 8.3" x 11.8" (43mm x 211mm x 300mm)
