Leader LV7300-SER22 Multi SDI Zen Rasterizer Option adding CIE Chart Display P3 Color Space Display

Name: Leader LV7300-SER22 Multi SDI Zen Rasterizer Option adding CIE Chart Display P3 Color Space Display
Brand: Leader
SKU: LR-LV7300-SER22
Price: 1011.75 USD
Availability: InStock

ITEM #: LR-LV7300-SER22 MFG #: LV7300-SER22

Leader

This item is custom made. Ordering this product requires written authorization. Please contact a sales engineer at 1-800-522-2025 for details.

Availability: Ships Factory Direct, Typically in 3-10 Business Days

Special Order Item: non-cancelable, non-returnable, non-refundable.

Report Lower Price Large Quantity Quote

Required Accessories

Recommended Accessories

LV7300-SER22 - Overview

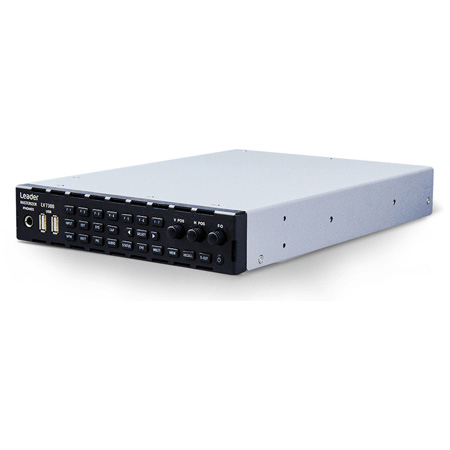

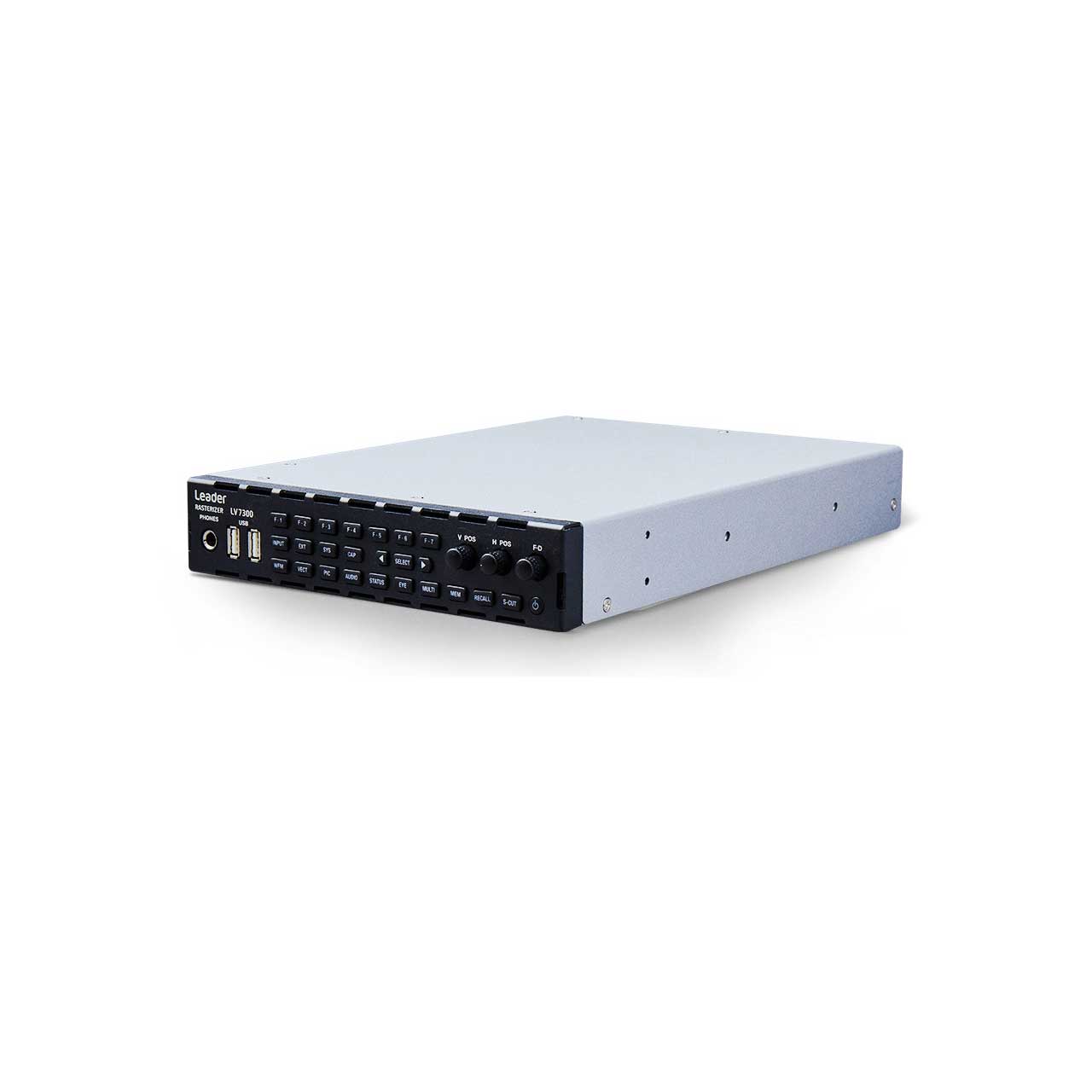

The Leader LV7300 is a space-saving, compact waveform monitor specialized for SD-SDI video signals. The LV7300 is a 1U half rack size rasterizer sold seperately. It is compact but supports eye pattern measurement up to 12 G-SDI.

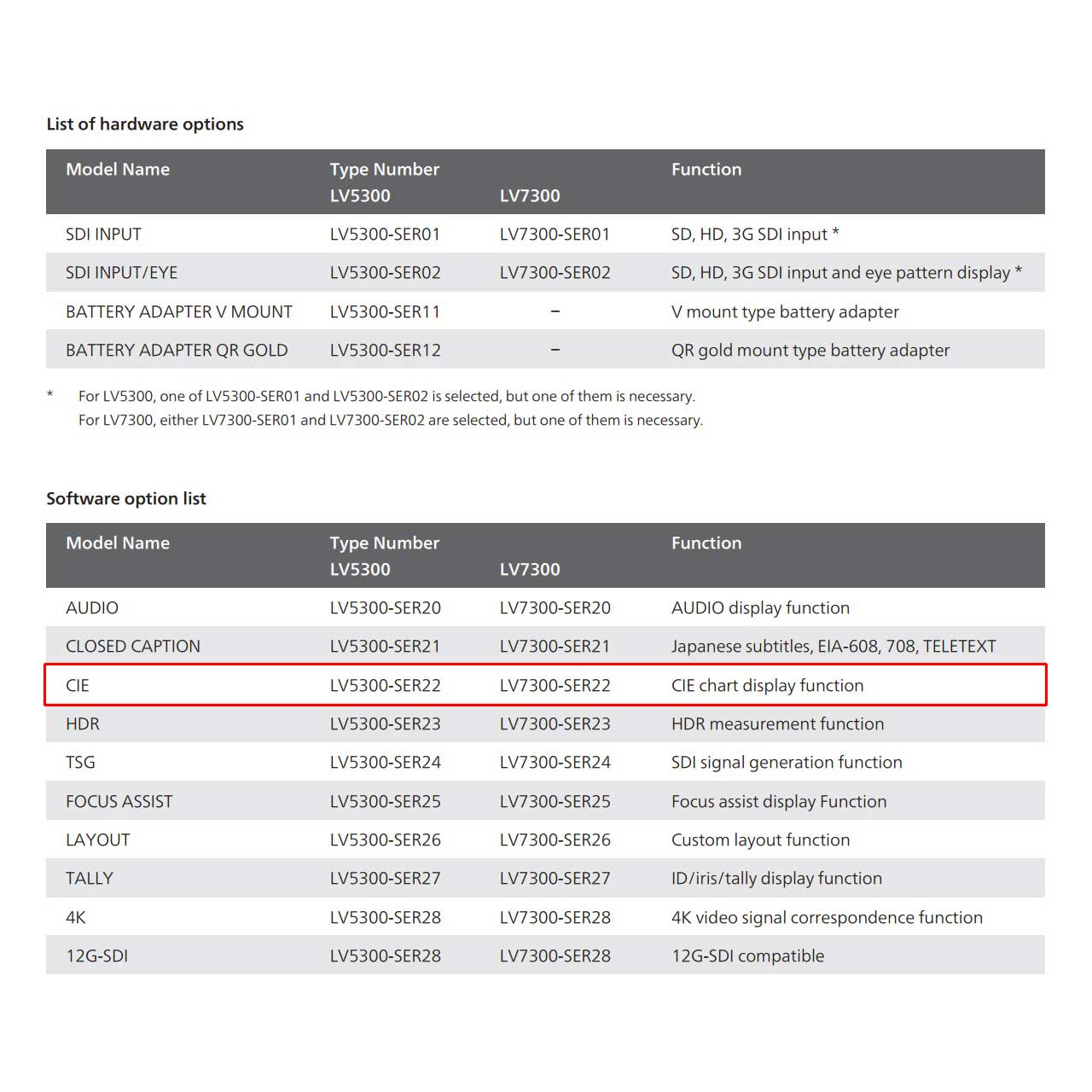

LV7300-SER22 adds the CIE chart display function to the LV7300-SER01 or LV7300-SER02

The Leader LV7300-SER22 is a chromaticity diagram display function corresponding to colorimetry ITU- R BT. 601, ITU- R BT. 709, ITU- RBT. 2020. The display mode corresponds to CIE 1931 (xy display) and CIE 1976 (u'v 'display). Since the CIE chart display function can display two color gamuts, the function can be used to suppress the color gamut of BT.709 using the equipment compatible with BT.2020, and to confirm the content that exceeds the color gamut of BT.709.

In color display, the chromaticity point is displayed using the color (on the picture) in the video signal. The chromaticity point can be measured at the point with the cursor.

Features:
- Supports various signal inputs
- Various SDI signals up to 12 G-SDI can be observed/monitored.
- Audio signals can correspond to SDI embedded voice.

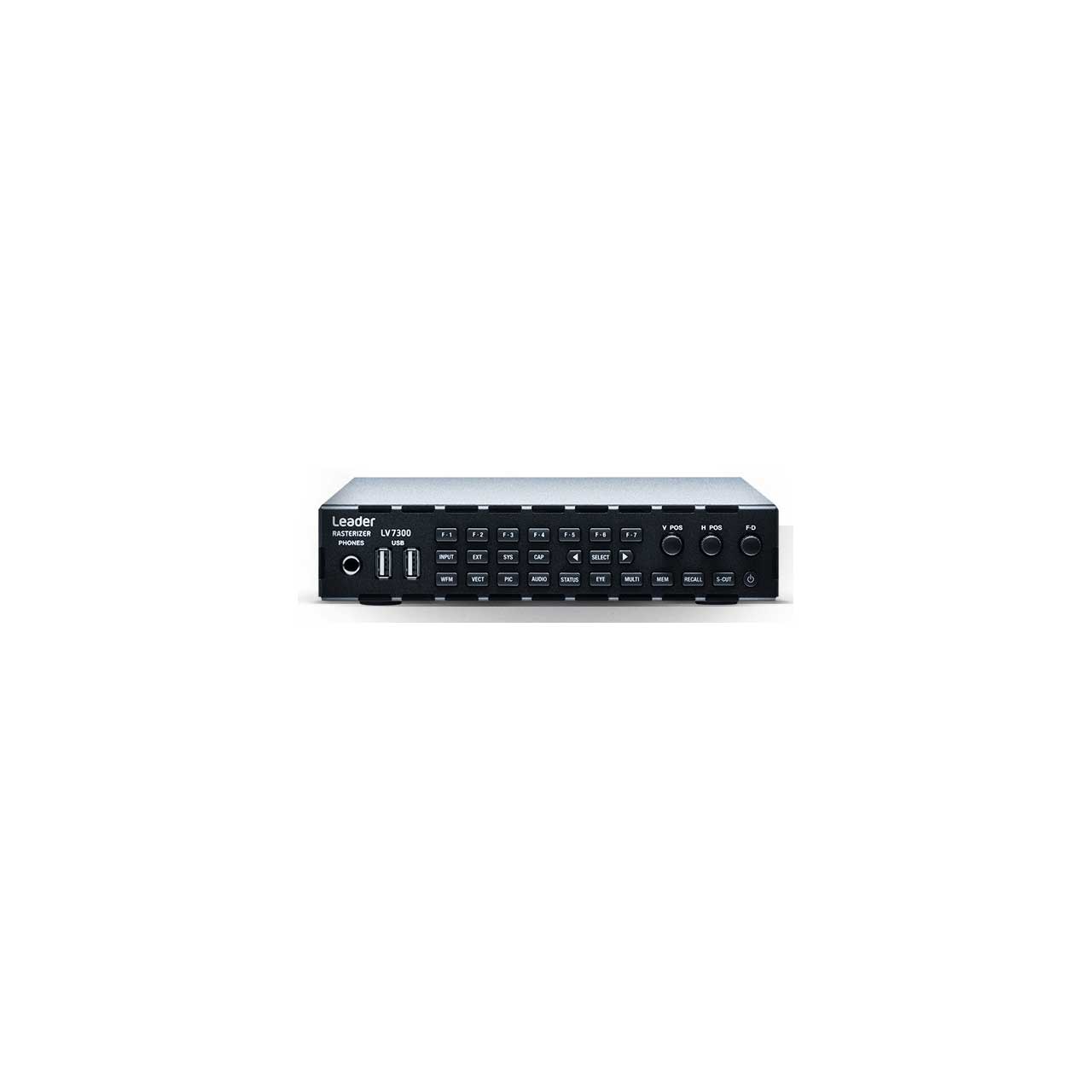

- Excellent operability
- With the front panel equipped with key buttons and knobs that follow the operability of conventional models, operation with a
- USB mouse is also possible. In addition, the LV5300/LV5350 adopt a 7-inch full HD panel with a touch panel function, and the LV7300 can be operated and set intuitively by touch operation by connecting an external LCD adopted touch panel with a USB cable
- SDI input format
- SD-SDI, HD-SDI, 3G-SDI, 12G-SDI Single Link is supported
Specifications:

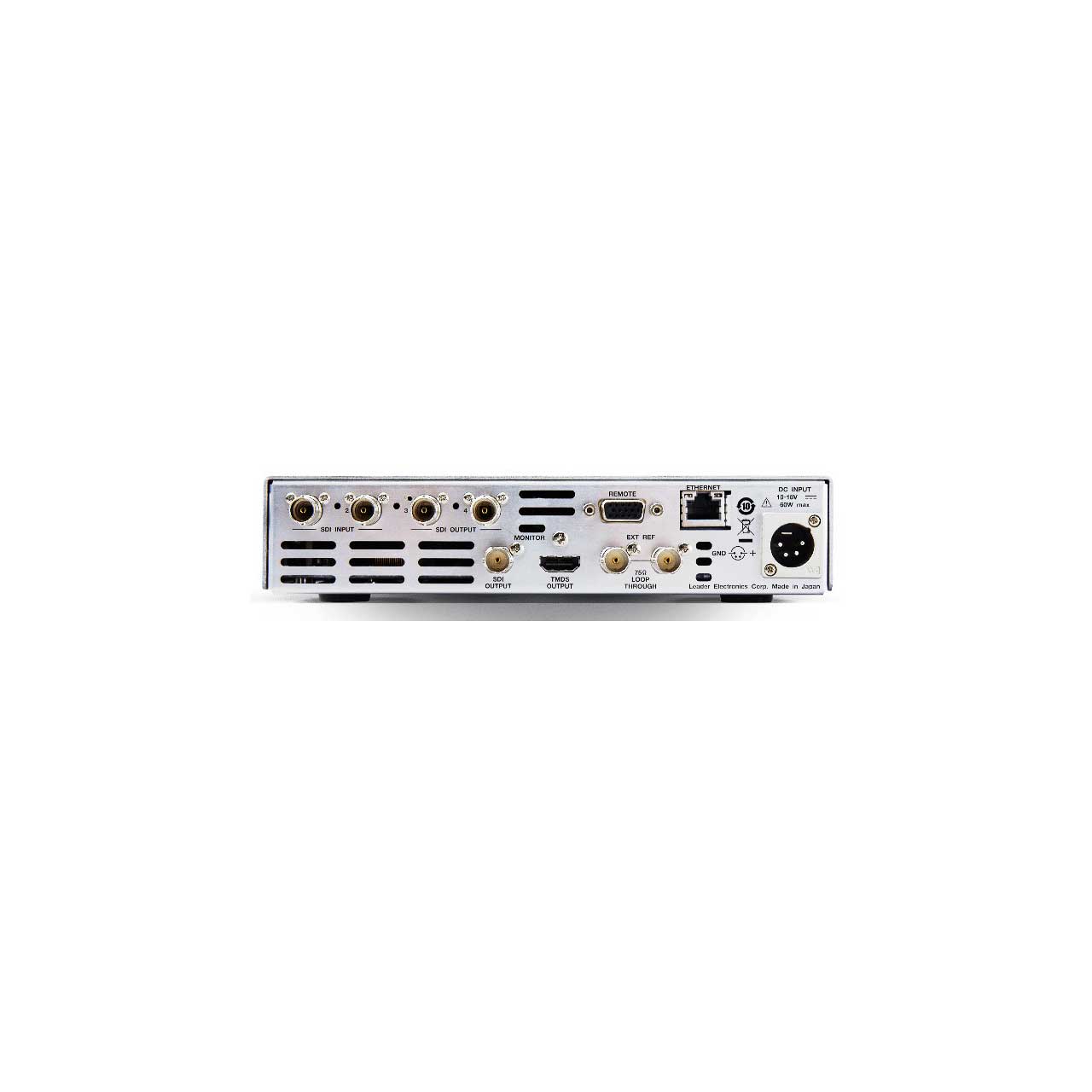

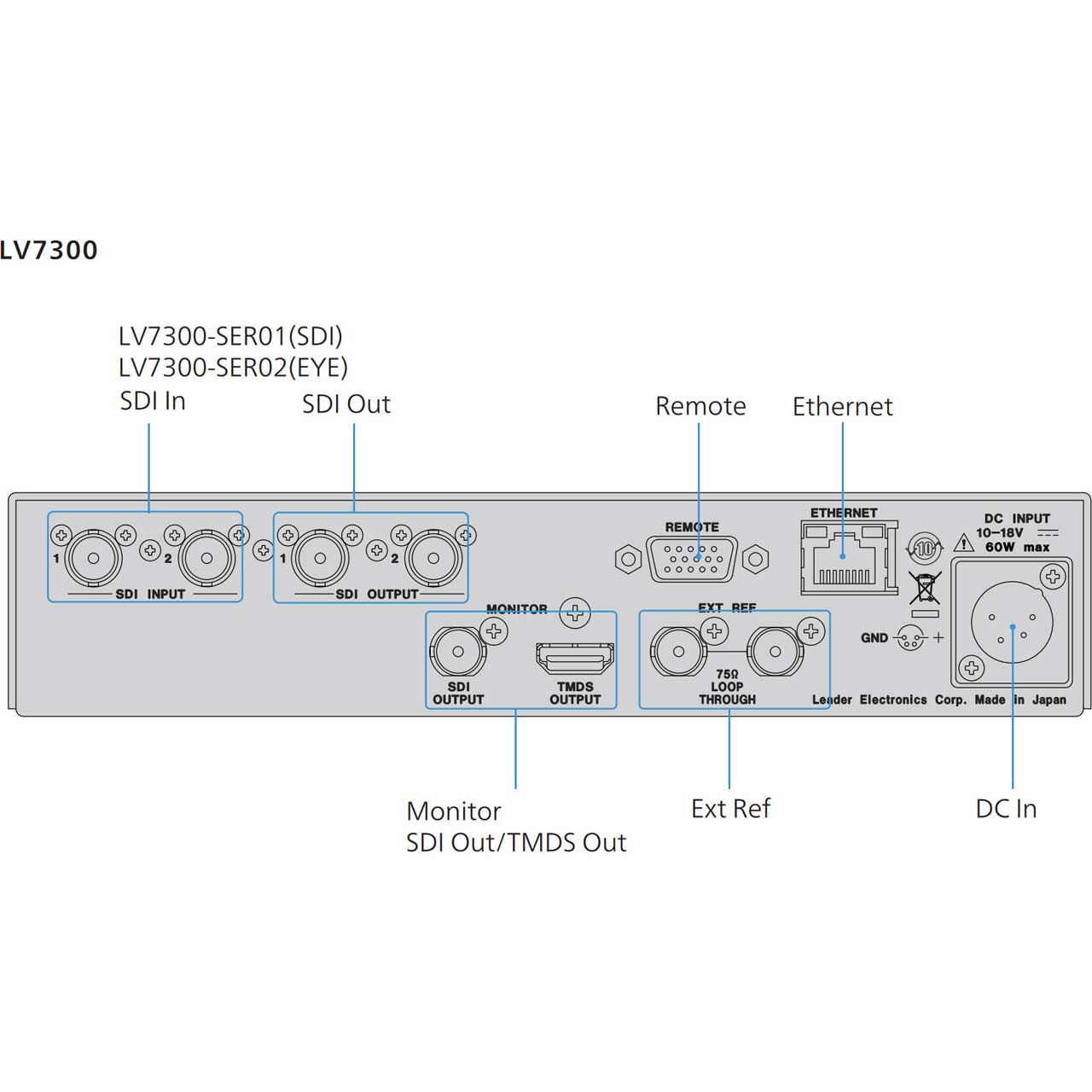

- External Synchronize Input Terminal
- Input Terminal: BNC terminal
- Number of Input Terminals: 1 line, 2 terminals
- Input Impedance: 15kΩ Passive loop through
- Input Return Loss: 30dB or more (50kHz - 30MHz, 75Ω termination)
- Maximum Input Voltage: ±5V (DC + peak AC)
- Input Signal: Ternary synchronization signal or NTSC/PAL black burst signal; 10 Field ID correspondence
- Function: SDI reference signal input for video signal waveform display and phase difference display

  Headphone Output Terminal
- Output Terminal: Standard jack 1 terminal (stereo)
- Output Signal: On the screen of the displayed audio signal, arbitrary 2 ch (Downmixed Lt, Rt is also acceptable)

  SDI Output Terminal
- Function: Output screen for SDI monitor
- Output Terminal: BNC terminal
- Number of Output Terminals: 1
- Output Signal: Output liquid crystal display screen is output with HD, 3G-A, 3G-B-DL. 1920x1080 60, 59.94, 50 I/P, YCBCR 4:2:2 (10 bits)

  TMDS Output Terminal
- Function: The displayed screen is output for HDMI monitor.
- Output Terminal: HDMI terminal
- Number of Output Terminals: 1
- Signal Format: Single Link T.M.D.S
- DDC Function: Not supported
- HOT PLUG Detection Function: Not supported
- Output Signal: Output liquid crystal display screen is output. 1920x1080 60 P, 59.94 P, 50 P

  Control Terminal - USB
- Terminal Shape: Standard A USB 2.0
- Number of Terminals: 2
- Compatible device USB memory, USB mouse, touch panel type monitor

  For Ethernet Terminal Control
- Approved Standard: IEEE802.3
- Supported Protocols:TELNET, FTP, SNMP, HTTP, SNTP
- Input/Output Terminals: RJ-45
- Function: Remote operation with an external PC or remote controller, File transfer, get status information
- Types: 10Base-T, 100Base-TX, 1000Base-T

  Remote Terminal
- Terminal Shape: D-Sub 15 pins (female)
- Number of Terminals: 1
- Control Signal: LV- TTL level (LOW active)
- Function Preset: Recall, input signal switching, alarm output, tally
- Alarm Output: When a format alarm, various errors, fan abnormality, or internal temperature occurs

  General Specifications
- Operating Temperature Range: 32°F - 104°F (0°C - 40°C)
- Operating Humidity Range: 85% RH or less (with no condensation)
- Performance Guarantee Temperature Range: 50°F - 86°F (10°C - 30°C)
- Usage Environment: Indoors
- Usable Altitude: up to 2,000m
- Overvoltage Category: 1
- Pollution Degree: 2
- Power Supply: Voltage DC 10V - 18V
- Dimensions (HxWxD): 1.7" x 8.3" x 11.8" (43mm x 211mm x 300mm)

LV7300-SER22 - Required Accessories

Leader LV7300-SER01 Multi SDI Zen Rasterizer option adding SDI Inputs (2)
LR-LV7300-SER01
Item Details
Leader LV7600 Rasterizer - Mainframe Only
LR-LV7600
Item Details

LV7300-SER22 - Recommended Accessories

LV7300-SER22 - Reviews
