LV7300-SER23 - Overview

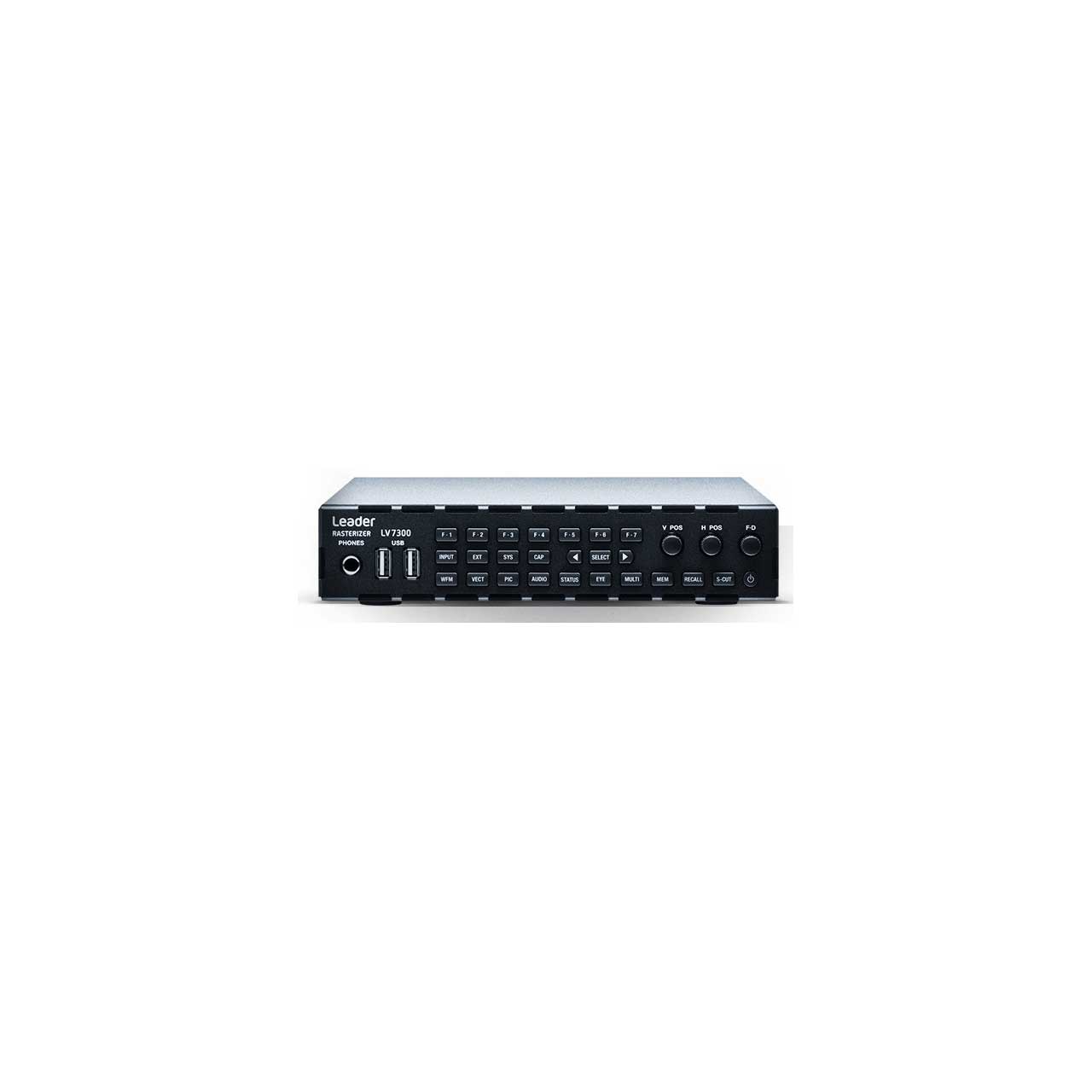

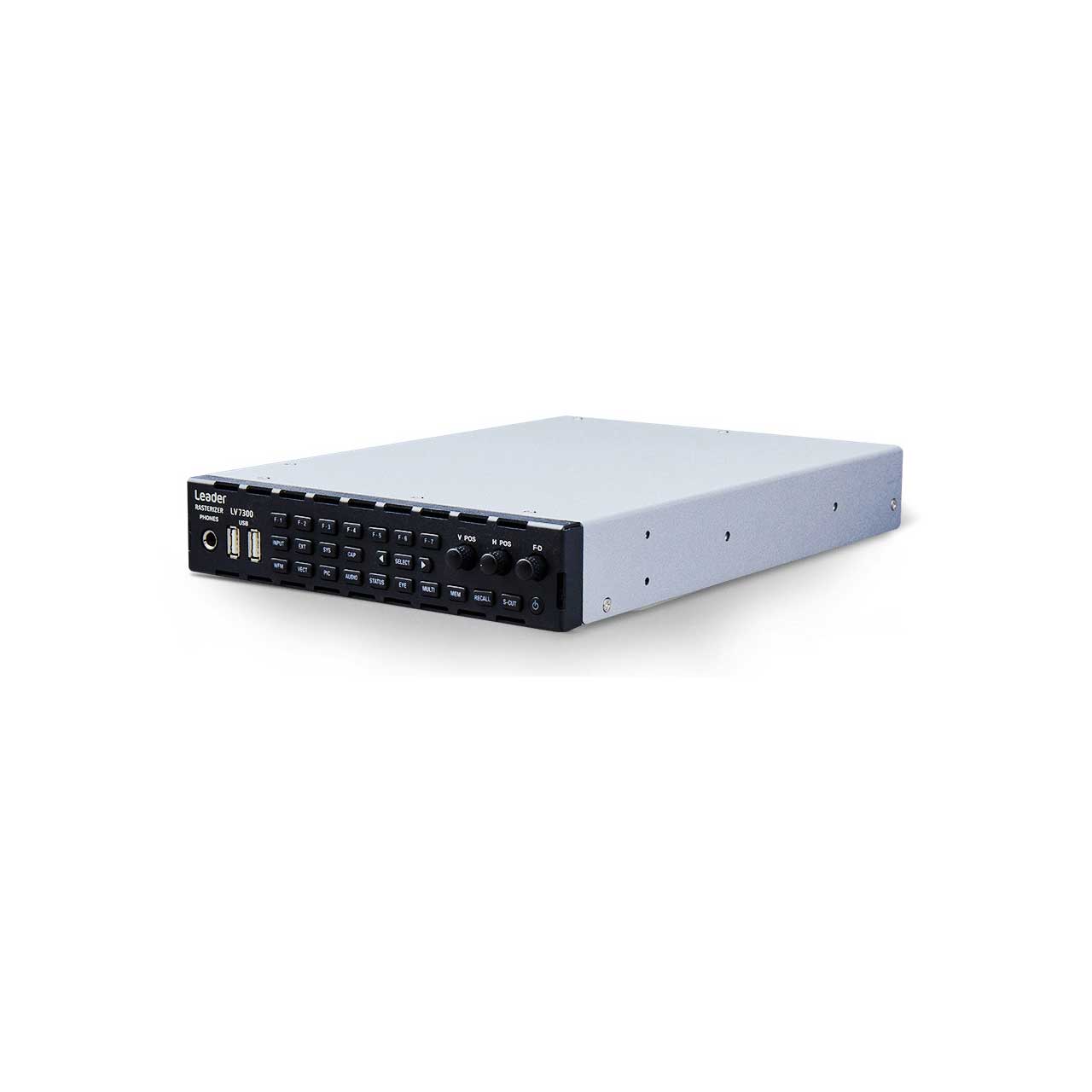

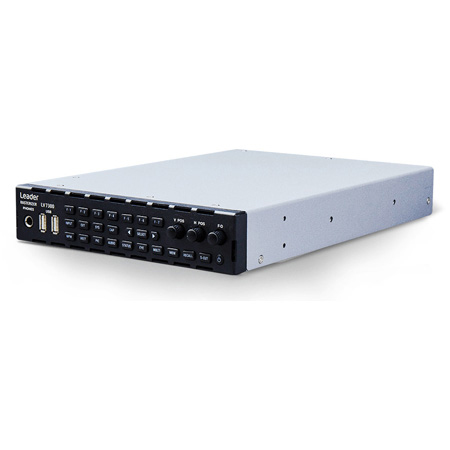

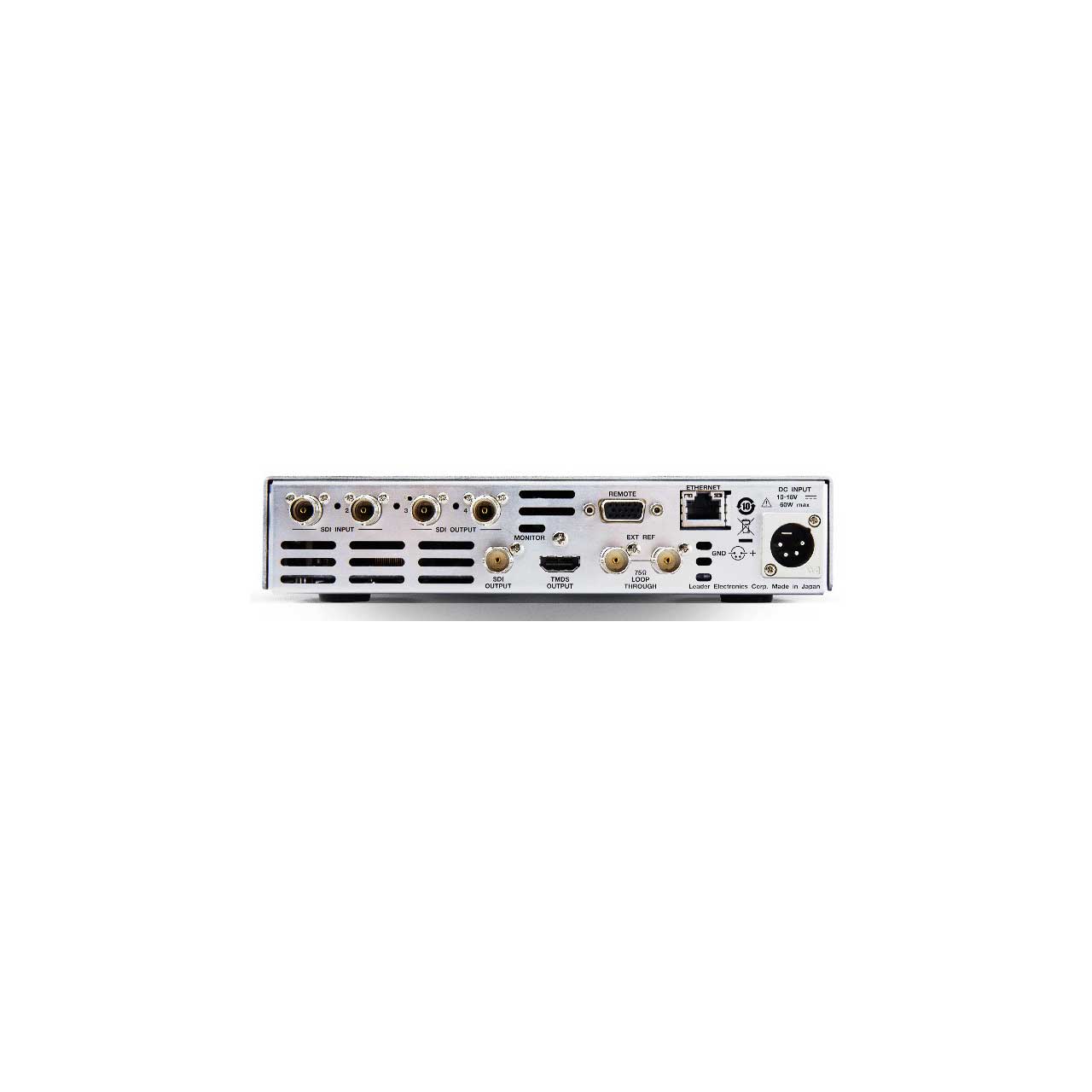

The Leader LV7300 is a space-saving, compact waveform monitor specialized for SD-SDI video signals. The LV7300 is a 1U half rack size rasterizer sold seperately. It is compact but supports eye pattern measurement up to 12 G-SDI.

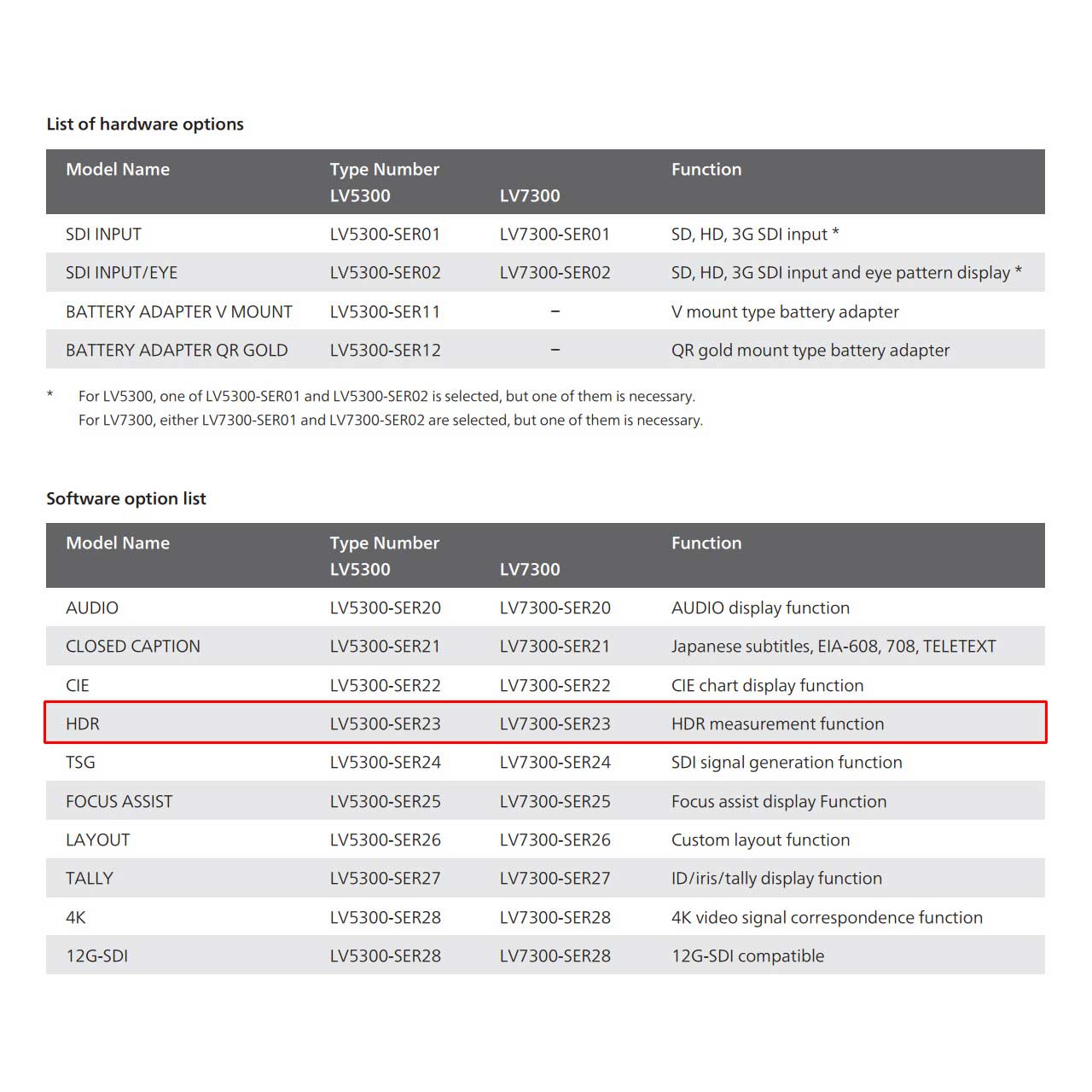

LV7300-SER23 adds the HDR measurement function to the LV7300-SER01 or LV7300-SER02

Leader LV7300-SER23 In addition to HLG and PQ provided by ITU-R BT.2100, the level monitoring of the HDR signal corresponding to S-log and the level management at the assumed luminance (cd/m2) in a display considering OOTF are possible. The video signal waveform display corresponds to the HDR scale added to the IRE scale. In the cine zone display, the luminance distribution of the HDR area can be easily confirmed by displaying the SDR area with monochrome, and the HDR with a color according to the brightness.

Features:
- Supports various signal inputs
- Various SDI signals up to 12 G-SDI can be observed/monitored.
- Audio signals can correspond to SDI embedded voice.
- Excellent operability
- With the front panel equipped with key buttons and knobs that follow the operability of conventional models, operation with a
- USB mouse is also possible. In addition, the LV5300/LV5350 adopt a 7-inch full HD panel with a touch panel function, and the LV7300 can be operated and set intuitively by touch operation by connecting an external LCD adopted touch panel with a USB cable
- SDI input format
- SD-SDI, HD-SDI, 3G-SDI, 12G-SDI Single Link is supported

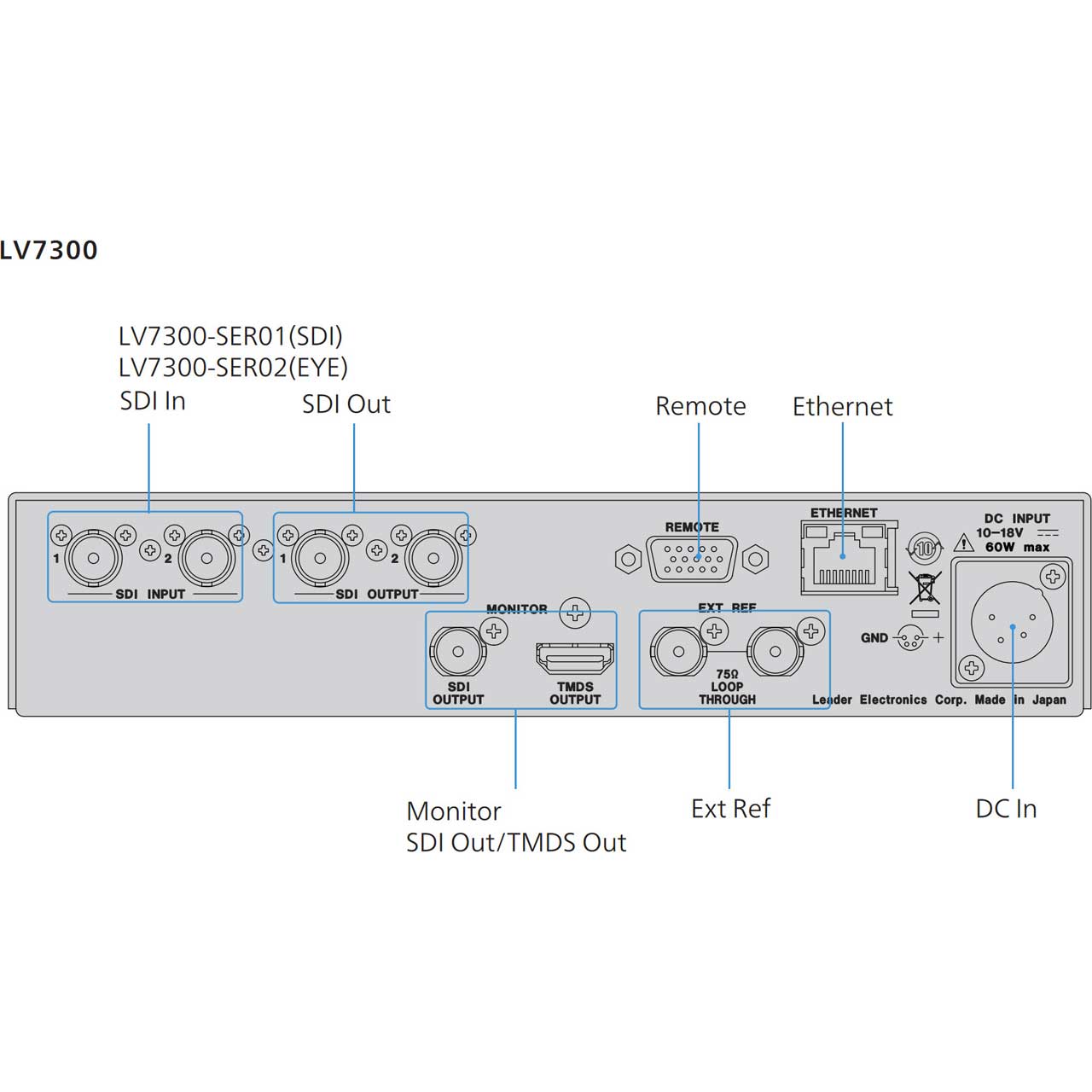

Specifications:
- External Synchronize Input Terminal
- Input Terminal: BNC terminal
- Number of Input Terminals: 1 line, 2 terminals
- Input Impedance: 15kΩ Passive loop through
- Input Return Loss: 30dB or more (50kHz - 30MHz, 75Ω termination)
- Maximum Input Voltage: ±5V (DC + peak AC)
- Input Signal: Ternary synchronization signal or NTSC/PAL black burst signal; 10 Field ID correspondence
- Function: SDI reference signal input for video signal waveform display and phase difference display

  Headphone Output Terminal
- Output Terminal: Standard jack 1 terminal (stereo)
- Output Signal: On the screen of the displayed audio signal, arbitrary 2 ch (Downmixed Lt, Rt is also acceptable)

  SDI Output Terminal
- Function: Output screen for SDI monitor
- Output Terminal: BNC terminal
- Number of Output Terminals: 1
- Output Signal: Output liquid crystal display screen is output with HD, 3G-A, 3G-B-DL. 1920x1080 60, 59.94, 50 I/P, YCBCR 4:2:2 (10 bits)

  TMDS Output Terminal
- Function: The displayed screen is output for HDMI monitor.
- Output Terminal: HDMI terminal
- Number of Output Terminals: 1
- Signal Format: Single Link T.M.D.S
- DDC Function: Not supported
- HOT PLUG Detection Function: Not supported
- Output Signal: Output liquid crystal display screen is output. 1920x1080 60 P, 59.94 P, 50 P

  Control Terminal - USB
- Terminal Shape: Standard A USB 2.0
- Number of Terminals: 2
- Compatible device USB memory, USB mouse, touch panel type monitor

  For Ethernet Terminal Control
- Approved Standard: IEEE802.3
- Supported Protocols:TELNET, FTP, SNMP, HTTP, SNTP
- Input/Output Terminals: RJ-45
- Function: Remote operation with an external PC or remote controller, File transfer, get status information
- Types: 10Base-T, 100Base-TX, 1000Base-T

  Remote Terminal
- Terminal Shape: D Sub 15 pins (female)
- Number of Terminals: 1
- Control Signal: LV- TTL level (LOW active)
- Function Preset: Recall, input signal switching, alarm output, tally
- Alarm Output: When a format alarm, various errors, fan abnormality, or internal temperature occurs

  General Specifications
- Operating Temperature Range: 32°F - 104°F (0°C - 40°C)
- Operating Humidity Range: 85% RH or less (with no condensation)
- Performance Guarantee Temperature Range: 50°F - 86°F (10°C - 30°C)
- Usage Environment: Indoors
- Usable Altitude: up to 2,000m
- Overvoltage Category: 1
- Pollution Degree: 2
- Power Supply: Voltage DC 10V - 18V
- Dimensions (HxWxD): 1.7" x 8.3" x 11.8" (43mm x 211mm x 300mm)
