Leader LV7300-SER27 Multi SDI Zen Rasterizer Option adding Tally - Source ID/Iris/Tally Display

Name: Leader LV7300-SER27 Multi SDI Zen Rasterizer Option adding Tally - Source ID/Iris/Tally Display
Brand: Leader
SKU: LR-LV7300-SER27
Price: 1064.95 USD
Availability: InStock

ITEM #: LR-LV7300-SER27 MFG #: LV7300-SER27

Leader

This item is custom made. Ordering this product requires written authorization. Please contact a sales engineer at 1-800-522-2025 for details.

Availability: Ships Factory Direct, Typically in 3-10 Business Days

Special Order Item: non-cancelable, non-returnable, non-refundable.

Report Lower Price Large Quantity Quote

Required Accessories

Recommended Accessories

LV7300-SER27 - Overview

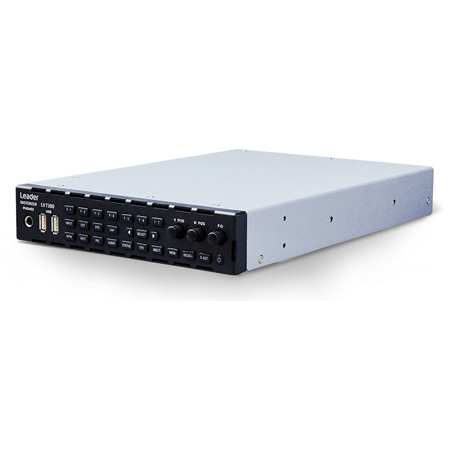

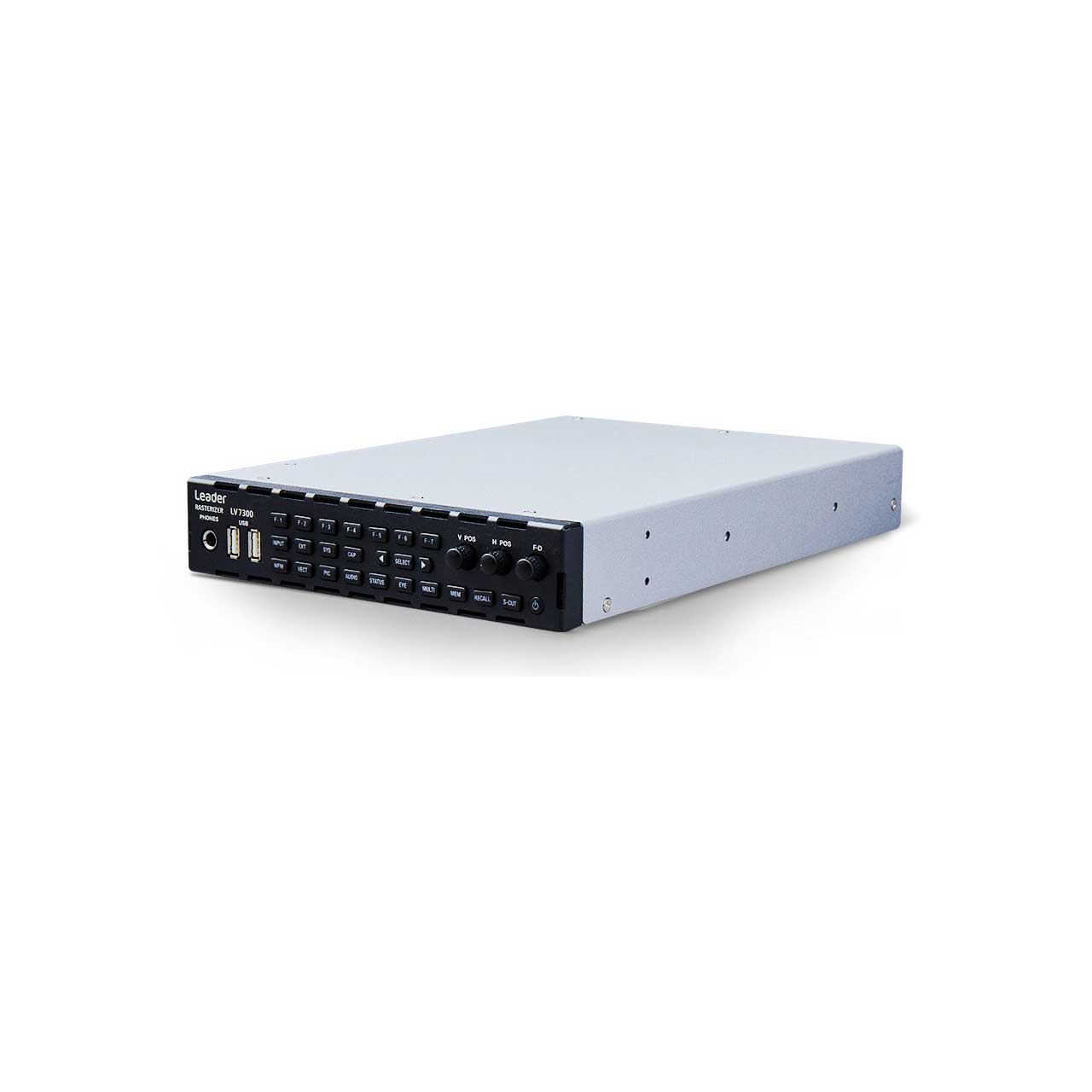

The Leader LV7300 is a space-saving, compact waveform monitor specialized for SD-SDI video signals. The LV7300 is a 1U half rack size rasterizer sold seperately. It is compact but supports eye pattern measurement up to 12 G-SDI.

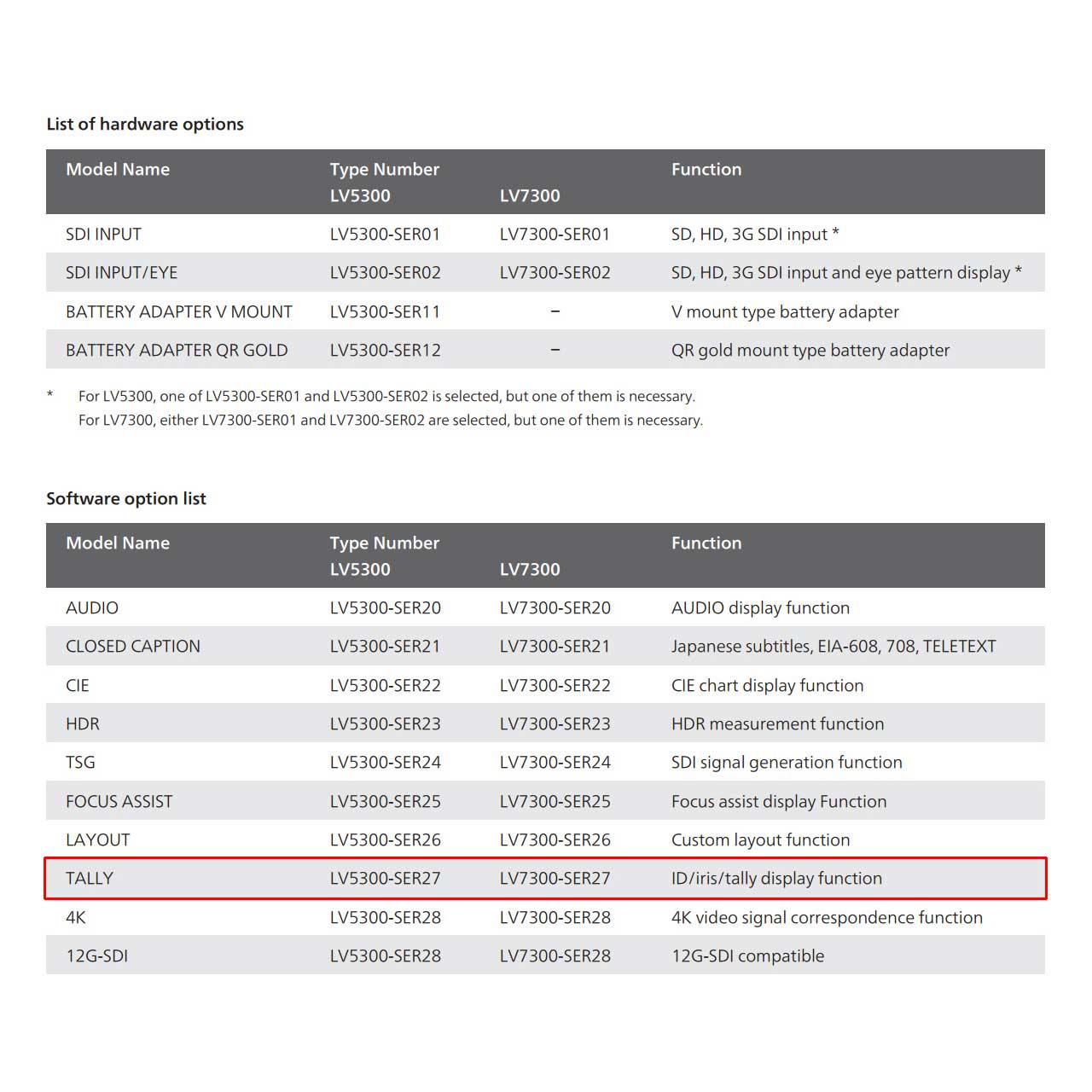

The LV-7300-SER27 adds ID/tally display function to the LV7300-SER01 or LV7300-SER02

Leader LV7300-SER27 enables fast switching of tally display by remote terminal. As for the camera ID, a fixed name can be assigned to each channel in the setting of this unit.

Features:
- Supports various signal inputs
- Various SDI signals up to 12 G-SDI can be observed/monitored.
- Audio signals can correspond to SDI embedded voice.

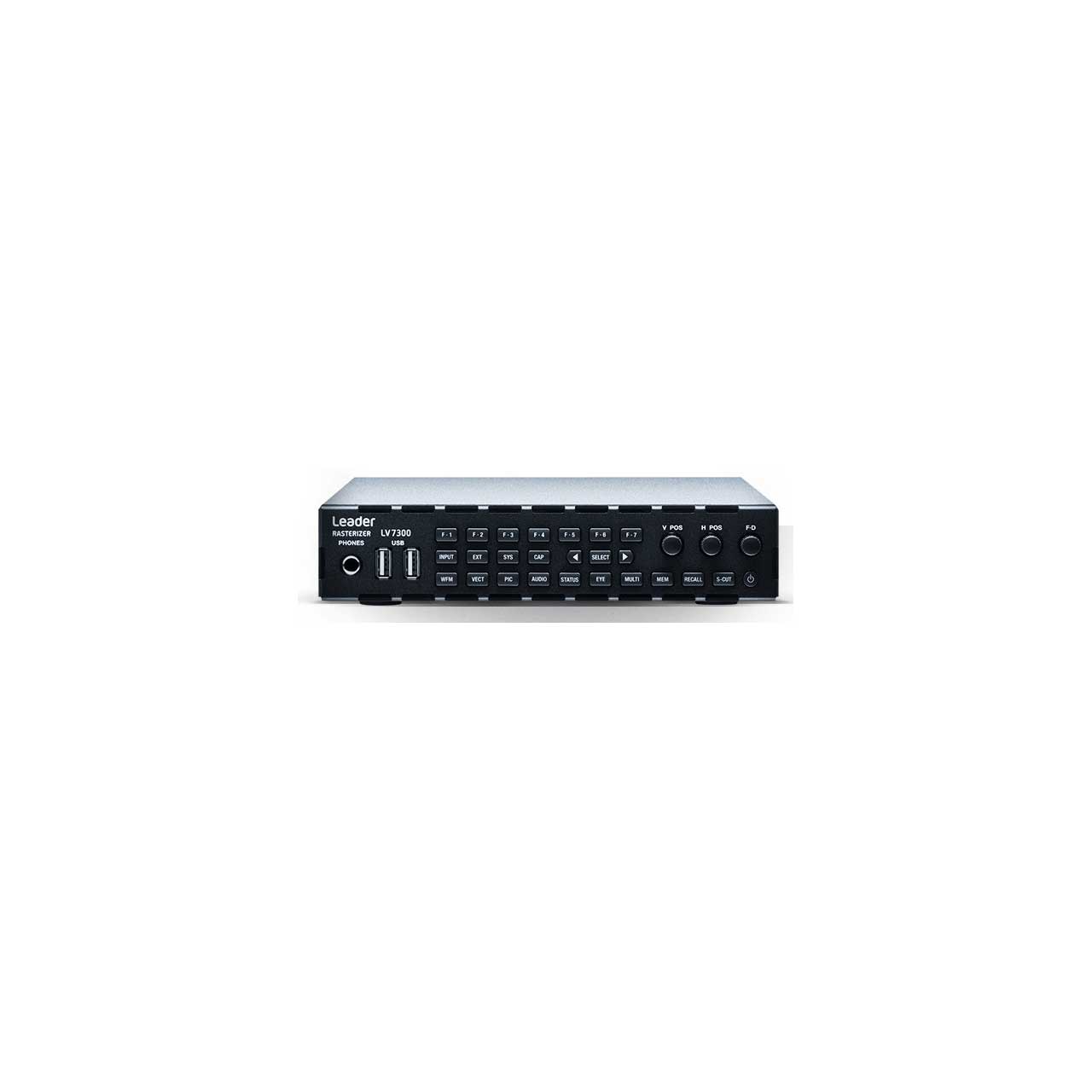

- Excellent operability
- With the front panel equipped with key buttons and knobs that follow the operability of conventional models, operation with a
- USB mouse is also possible. In addition, the LV5300/LV5350 adopt a 7-inch full HD panel with a touch panel function, and the LV7300 can be operated and set intuitively by touch operation by connecting an external LCD adopted touch panel with a USB cable
- SDI input format
- SD-SDI, HD-SDI, 3G-SDI, 12G-SDI Single Link is supported

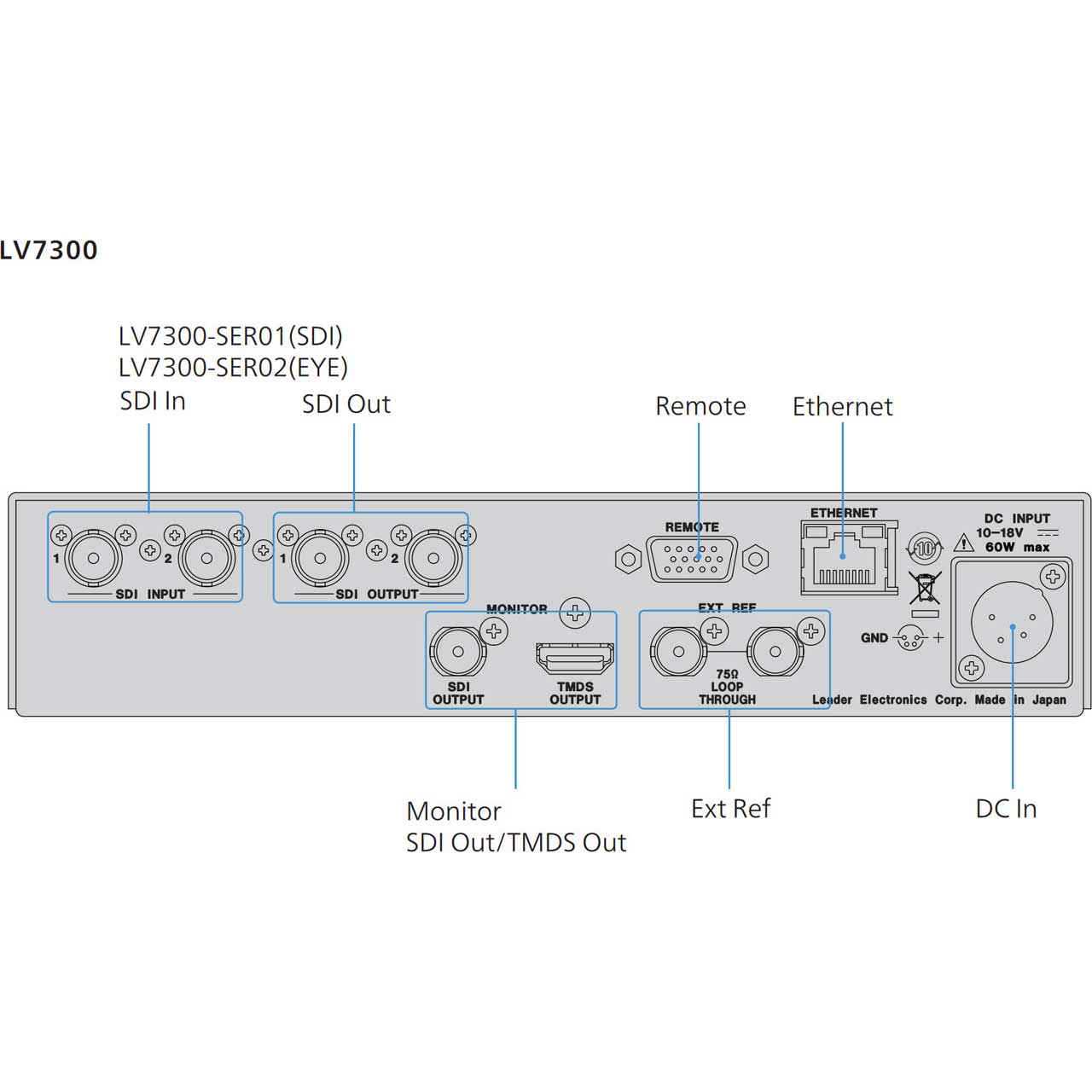

Specifications:

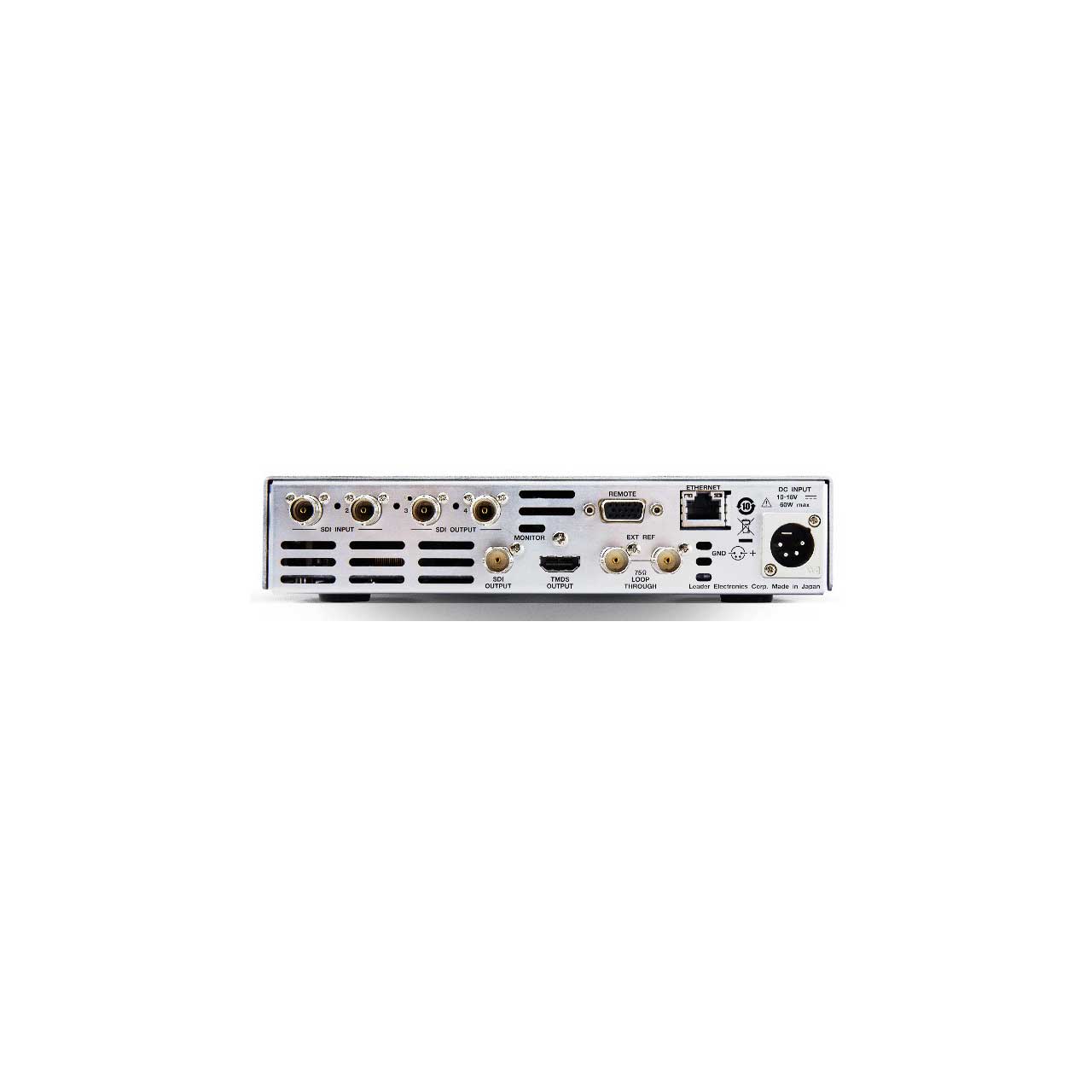

- External Synchronize Input Terminal
- Input Terminal: BNC terminal
- Number of Input Terminals: 1 line, 2 terminals
- Input Impedance: 15 kΩ Passive loop through
- Input Return Loss: 30dB or more (50kHz - 30MHz, 75Ω termination)
- Maximum Input Voltage: ±5V (DC + peak AC)
- Input Signal: Ternary synchronization signal or NTSC/PAL black burst signal; 10 Field ID correspondence
- Function: SDI reference signal input for video signal waveform display and phase difference display

  Headphone Output Terminal
- Output Terminal: Standard jack 1 terminal (stereo)
- Output Signal: On the screen of the displayed audio signal, arbitrary 2 ch (Downmixed Lt, Rt is also acceptable)

  SDI Output Terminal
- Function: Output screen for SDI monitor
- Output Terminal: BNC terminal
- Number of Output Terminals: 1
- Output Signal: Output liquid crystal display screen is output with HD, 3G-A, 3G-B-DL. 1920x1080 60, 59.94, 50 I/P, YCBCR 4:2:2 (10 bits)

  TMDS Output Terminal
- Function: The displayed screen is output for HDMI monitor.
- Output Terminal: HDMI terminal
- Number of Output Terminals: 1
- Signal Format: Single Link T.M.D.S
- DDC Function: Not supported
- HOT PLUG Detection Function: Not supported
- Output Signal: Output liquid crystal display screen is output. 1920x1080 60 P, 59.94 P, 50 P

  Control Terminal - USB
- Terminal Shape: Standard A USB 2.0
- Number of Terminals: 2
- Compatible device USB memory, USB mouse, touch panel type monitor

  For Ethernet Terminal Control
- Approved Standard: IEEE802.3
- Supported Protocols:TELNET, FTP, SNMP, HTTP, SNTP
- Input/Output Terminals: RJ-45
- Function: Remote operation with an external PC or remote controller, File transfer, get status information
- Types: 10Base-T, 100Base-TX, 1000Base-T

  Remote Terminal
- Terminal Shape: D Sub 15 pins (female)
- Number of Terminals: 1
- Control Signal: LV- TTL level (LOW active)
- Function Preset: recall, input signal switching, alarm output, tally
- Alarm Output: When a format alarm, various errors, fan abnormality, or internal temperature occurs

  General Specifications
- Operating Temperature Range: 32°F - 104°F (0°C - 40°C)
- Operating Humidity Range: 85% RH or less (with no condensation)
- Performance Guarantee Temperature Range: 50°F - 86°F (10°C - 30°C)
- Usage Environment: Indoors
- Usable Altitude: up to 2,000m
- Overvoltage Category: 1
- Pollution Degree: 2
- Power Supply: Voltage DC 10V - 18V
- Dimensions (HxWxD): 1.7" x 8.3" x 11.8" (43mm x 211mm x 300mm)
