10-2263-I - Overview

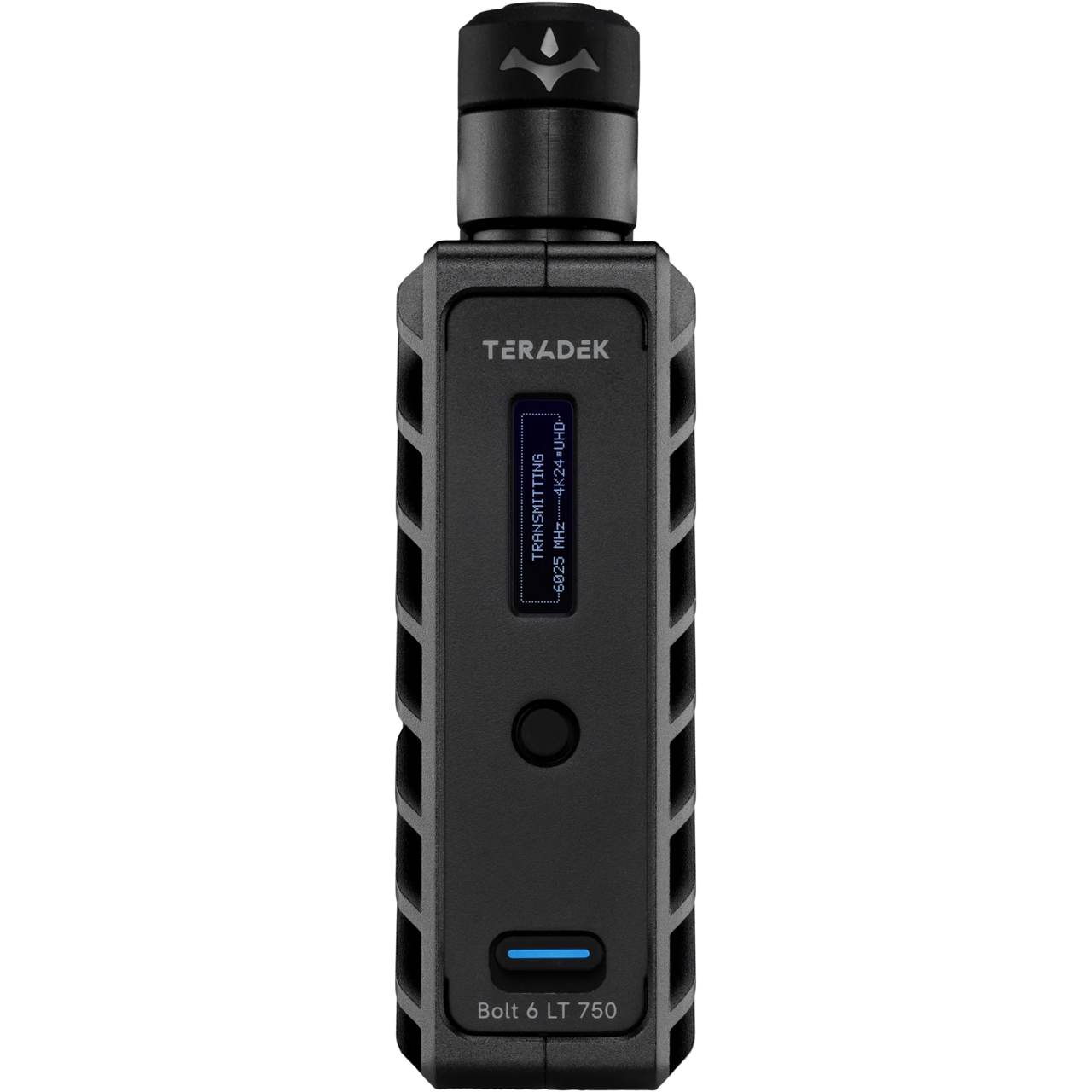

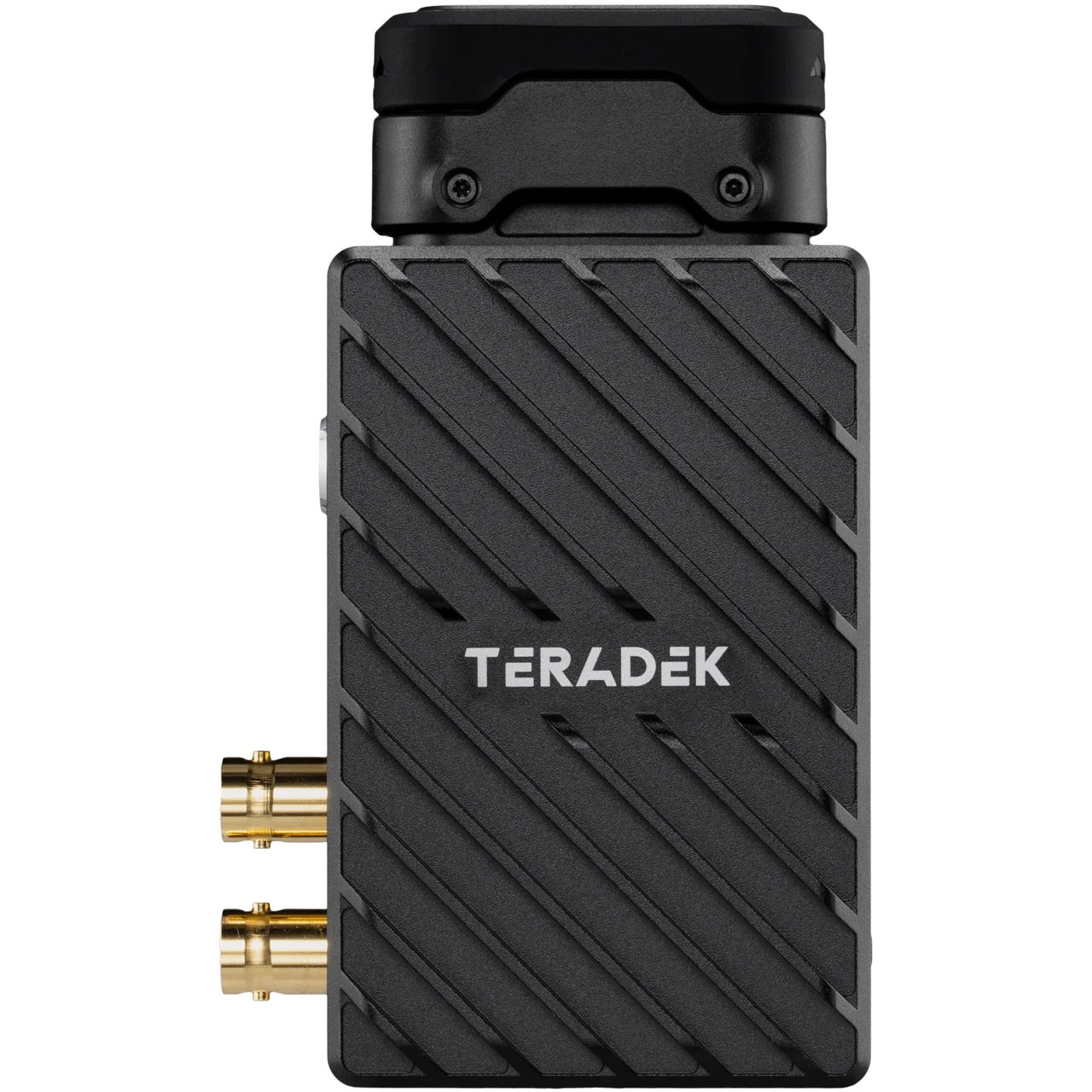

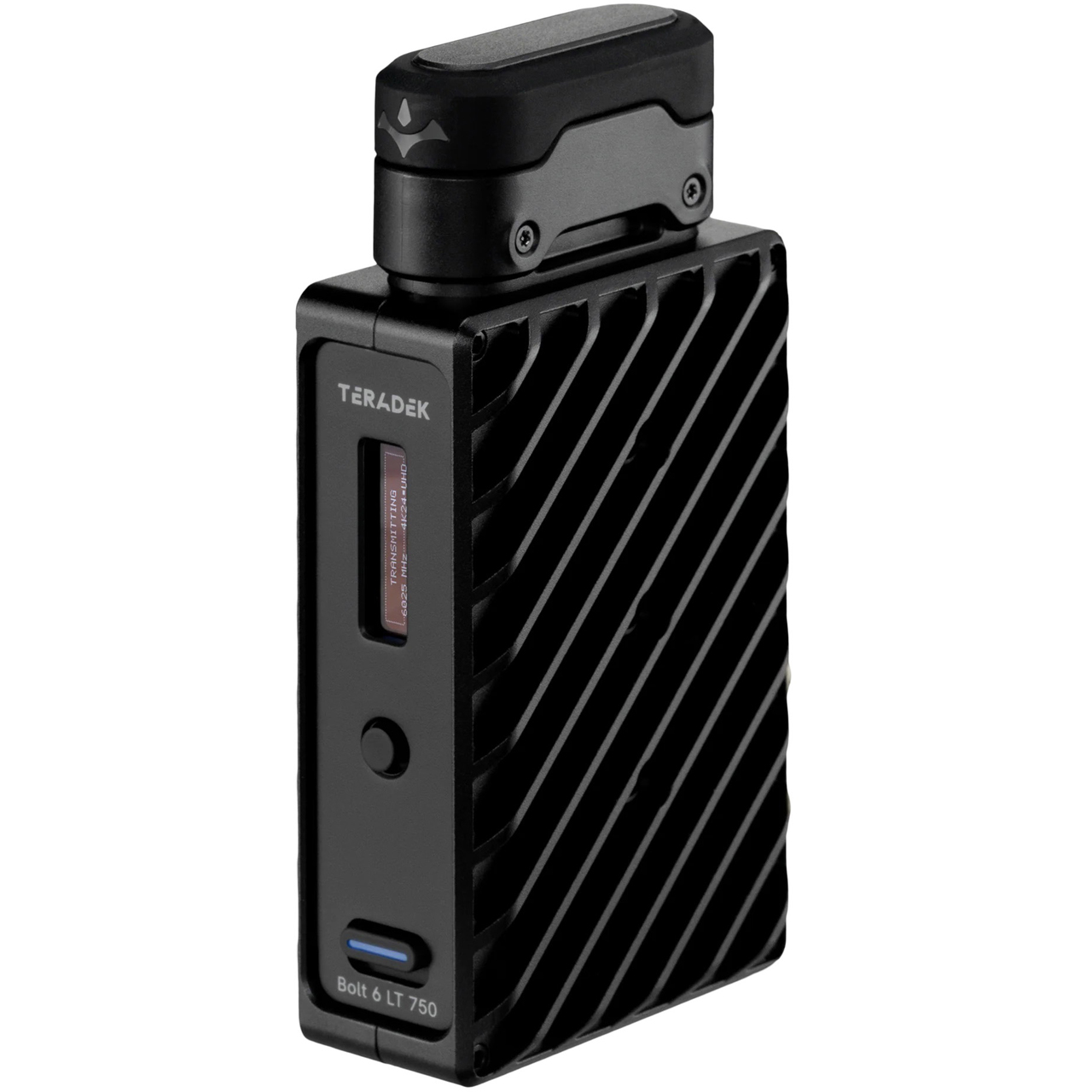

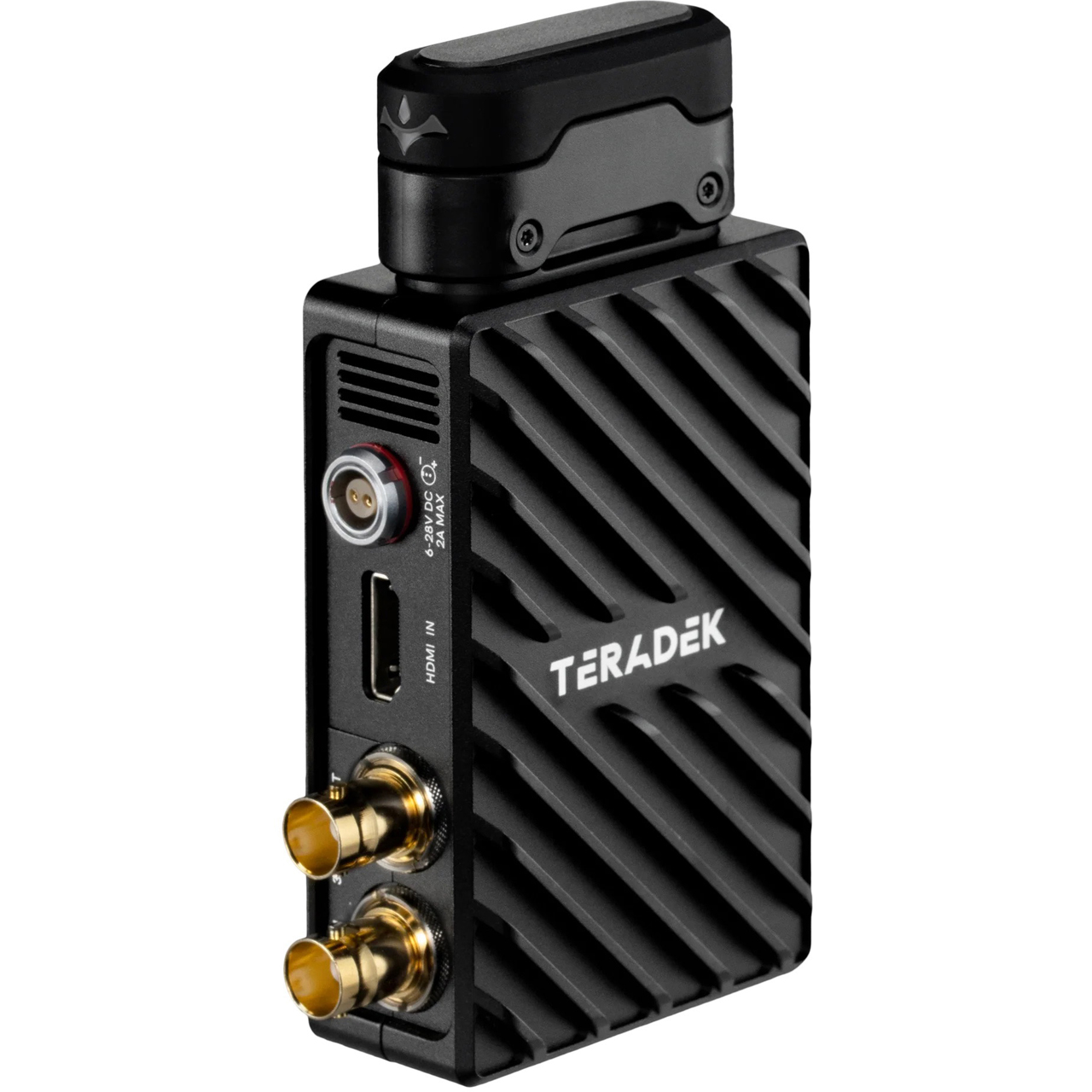

The Teradek 10-2263-I Bolt 6 LT TX is a wireless video transmitter with internal antenna that supports up to 1080p60 10-bit 422 HDR video over 3G-SDI, or 4K30 over HDMI. Bolt 6 uses Teradek's patented Zero-Delay silicon chip to send wireless video over 5GHz and 6GHz radio frequencies.

Bolt 6 LT TX offers three line-of-sight options: 750 ft., 1500 ft., and the MAX model, which can be configured for up to 5,000 ft when using the optional Array Antenna and Broadcast Mode.

The Transmitter is cross-compatible with the entire Bolt 4K Series - including Bolt 4K, Bolt 4K LT, and the Bolt 4K Monitor Modules - giving you the option to expand your workflow requirements. Link up to 6 receivers to one transmitter, or unlimited receivers when used in Broadcast Mode (available on MAX models).

Optionally, the 750 model of Bolt 6 LT TX can include permanent internal antennas to allow for reliable zero-delay transmission in a more compact and durable form factor.

Features:
- Up to 4K30 10-bit 422 HDR Video with Zero-Delay over 5GHz and 6GHz Frequencies
Specifications:
- Video

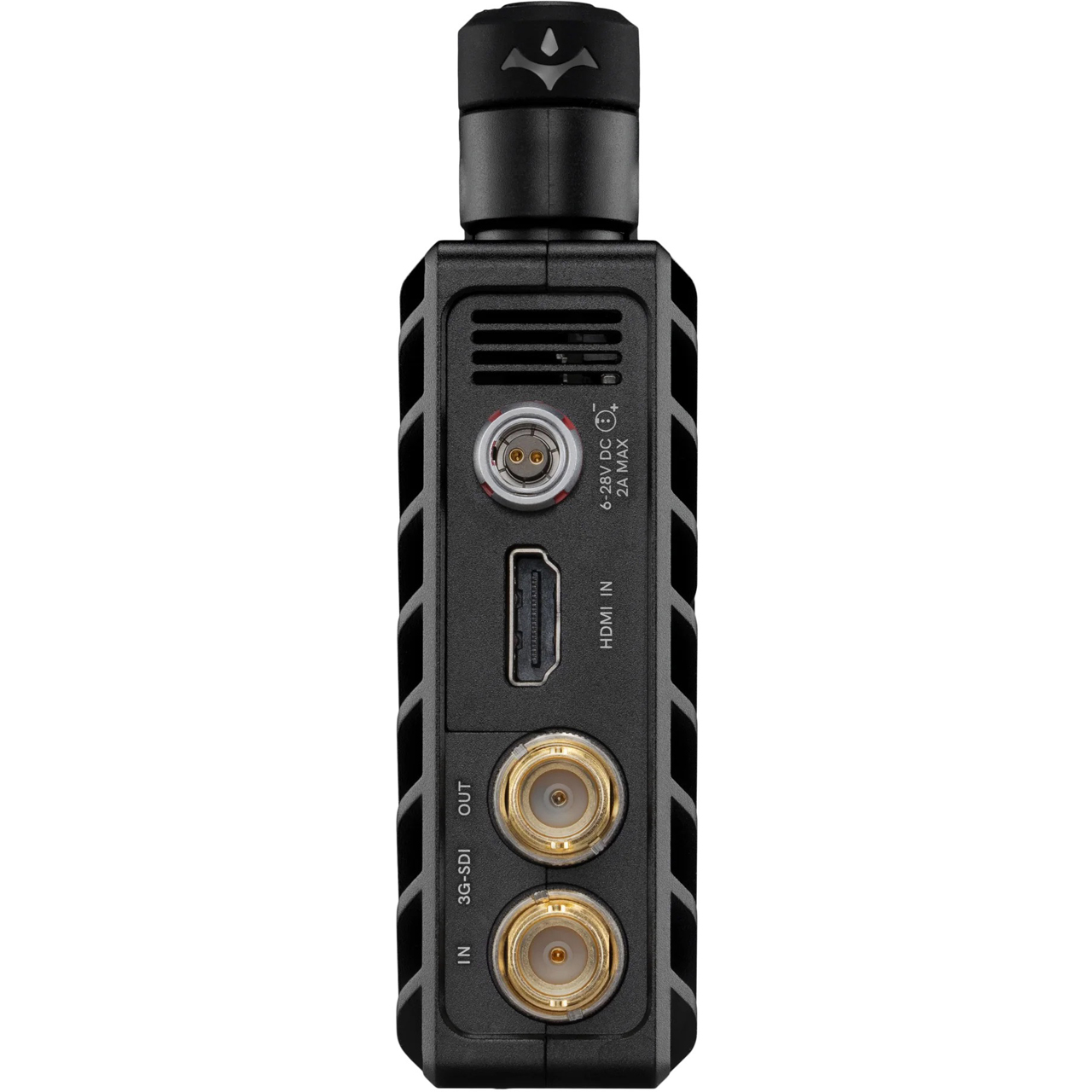

- Video Inputs:
  - 1x 3G-SDI BNC SMPTE 424M standard/75Ω
  - 1x HDMI 1.4b Type-A receptacle
- Video Outputs: 1x 3G-SDI BNC SMPTE 424M standard/75Ω
- SDI Ancillary Data Support: Supports reading metadata, timecode, and start/stop flags from most camera manufacturers.
- Color Sampling: SDI: YCbCr 4:2:2, 10-bit/ HDMI: RGB/YCbCr 4:4:4 8-bit, 4:2:2 10-bit
- Delay Tx To Rx: <0.001sec
- Input Cross Conversion: Yes, HDMI to SDI (4Kp23.98-30 HDMI input is scaled and looped out as 1080p23.98-30 on SDI loopout)

  Supported Resolutions
- 4Kp23.98/24/25/29.97/30 (HDMI only)
- 1080p23.98/24/25/29.97/30/50/59.94/60
- 1080psf23.98/24/25/29.97/30
- 1080i50/59.94/60
- 720p50/59.94/60

  Video Processing
- Video Compression: Visually Lossless
- Color Correction: None

  Audio Processing
- Audio Compression: 48kHz 24-bit PCM

  Inputs
- Audio Input: Embedded SDI/HDMI Audio Input (2 Channel)

  Physical
- Dimensions: 2.8" x 4.7" x 1.3" (72mm x 19.8mm x 33.1mm)
- Weight: 7.5oz (212g)
- Construction: Milled Aluminum (Chassis) and regulation-compliant PCB
- Mountability: Multiple mounting options with 1/4"x20 and M3 holes

  Interfaces
- Configuration Interfaces: OSD with Menu, Joystick Navigation
- Switches: On/Off Switch
- Mobile App: Bolt App
- Desktop App: Bolt Manager application for OSX & Windows
- USB Interface Functionality: Upgrade via Micro-USB
- Bluetooth: 2.4 GHz

  Network
- Antennas: 4x Internal 2dBi Antennas
- Wireless:
  - DFS Frequencies: 5.270 - 5.670 GHz
  - Non-DFS Frequencies: 5.190 - 5.230 GHz, 5.755 - 5.795 GHz, and 5.945 - 6.425GHz
- RF Channel Selection: Auto, Manual
- Encryption: AES-256, RSA-1024 key exchange
- RF Power: 23 dbm EIRP
- Range: Up to 750ft, line of sight
- Unicast Multicast: Can connect one Transmitter to up to 6 Receivers
- Noise Rejection: Can coexist with WiFi and 5GHz cordless phones. Can operate up to 6 sets in same location.
- Interoperability Compatibility: Can transmit wireless video to all ranges of Bolt 4K XT and Bolt 4K LT receivers (limited by shortest range device)

  Power
- Power Input: 2-Pin Circular locking Connector 6-28 VDC
- Battery: None, optional Sony/Canon dual battery plate
- Nominal Power Consumption: 9 Watts

  Environmental
- Operating Temperature: 32°F - 104°F (0°C - 40°C)
Item Includes:
- 1x Bolt 6 LT 750 TX Internal Antenna
- 1x 2pin to P-Tap Cable, 18in
- 1x 2pin to AC Adapter 18W, 6ft
- 1x Ultra Thin HDMI Male to Male Cable, 18in
- 1x SDI Cable, 10in
- 1x USB-C 2.0 Male to Male, 1m
Warranty:
- 12 Months
