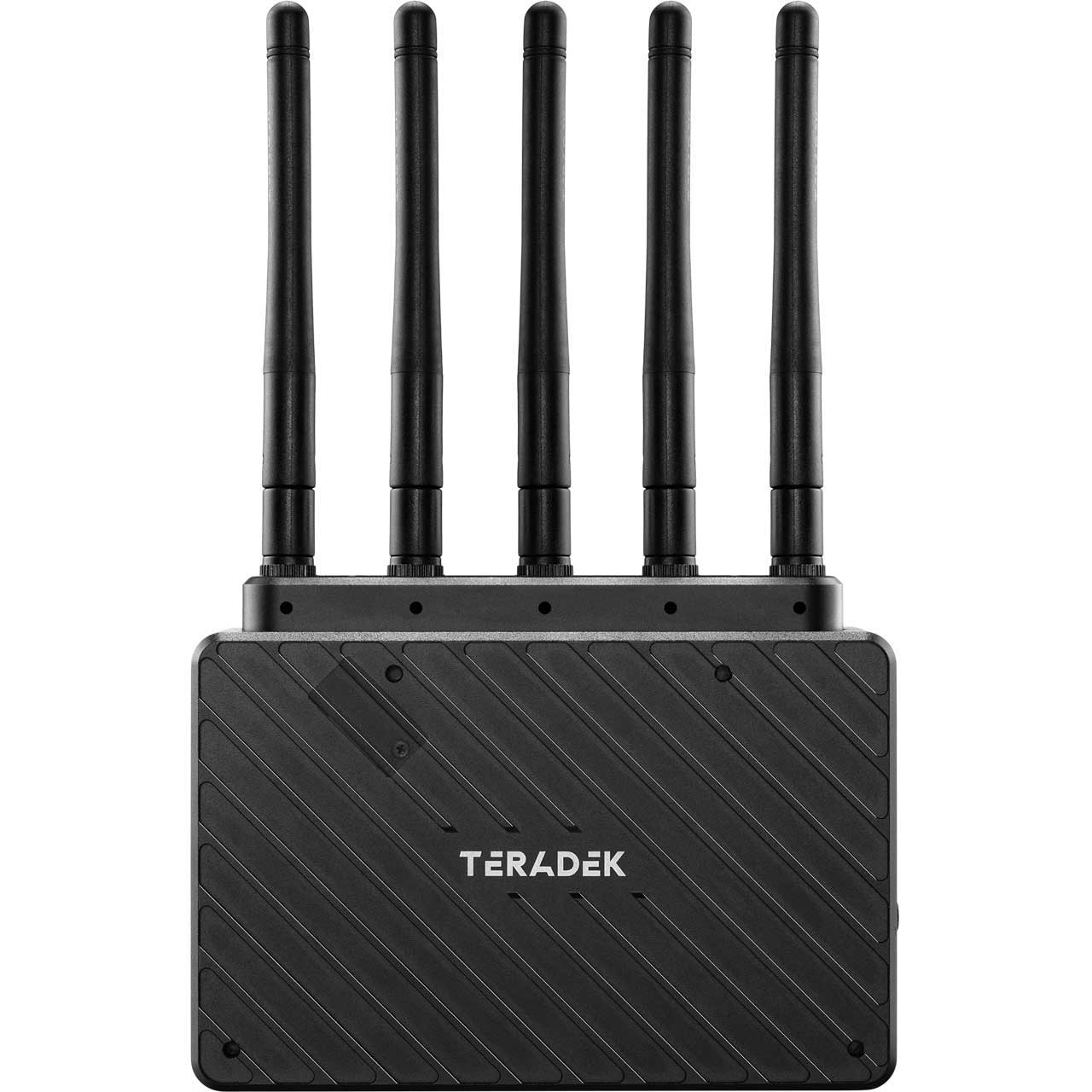

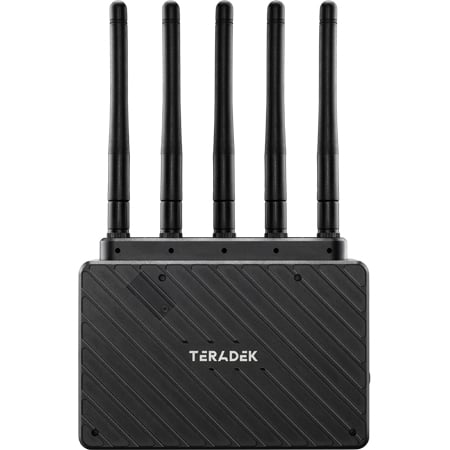

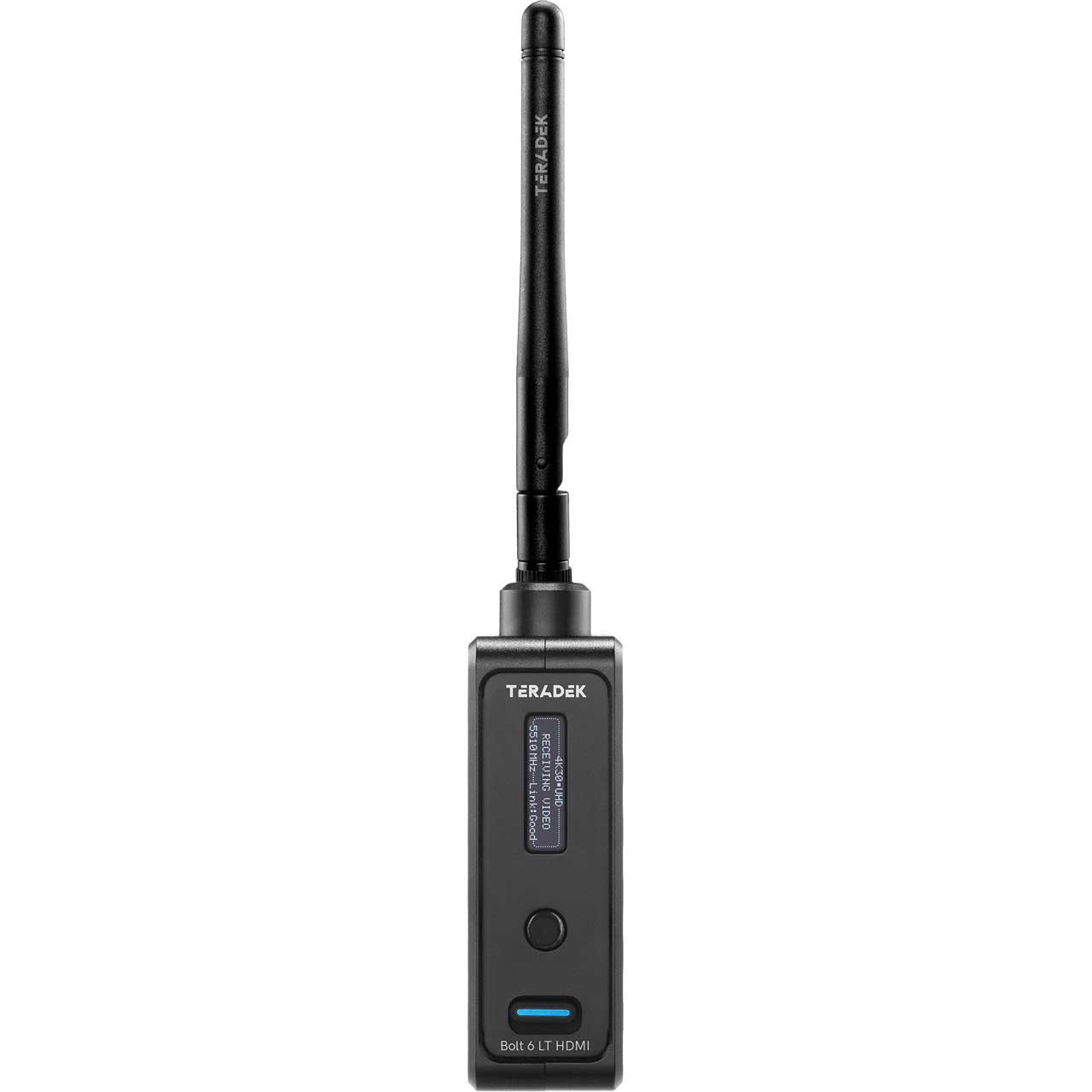

Teradek Bolt 6 LT HDMI 750 Wireless Video Receiver with No Battery Mount

ITEM #: TER-BLT6LTHD75RX MFG #: 10-2267-N

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order


Availability: Sold Out
iAvailability Description Popup


10-2267-N - Overview

Teradek Bolt 6 LT HDMI 750 is a Wireless Video Receiver with No Battery Mount. The Bolt 6 LT HDMI RX is a real-time wireless video receiver that supports 4K video with Teradek’s patented Zero-Delay technology, now with less interference using the newly opened 6GHz wireless frequency. Bolt 6 LT can receive color-accurate, True-HDR videos in under 0.001 seconds.

Bolt 6 also offers new tools for high-end users, including better visibility over connections and signals, adding confidence to the workflow no matter how challenging the environment. It additionally gives you access to their new Long Range Mode, offering better video quality at longer distances. A 5-pin USB adapter, sold separately, allows for effortless and wireless camera-control setup when using SmallHD Smart Monitors.

The Receiver is cross-compatible with the entire Bolt 4K Series – including Bolt 4K, Bolt 4K LT, and the Bolt 4K Monitor Modules – giving you the option to expand your workflow requirements. Link up to 6 receivers to one transmitter.

Additionally, you can upgrade your RX to include Gold or V-Mount Battery plates. The Bolt 6 LT HDMI RX is 4K HDMI only. If you require both 4K HDMI and 1080p SDI input and outputs, you can also select the Bolt 6 LT model.

  • Features:

    • Zero Delay
    • 6GHz Wireless Frequency Access
    • Bolt 4K Cross-Compatibility
    • Improved Long Range Mode
    • Outputs: HDMI

  • Specifications:

    • Video
    • Video Outputs: 1 x HDMI 1.4b Type-A receptacle
    • Color Sampling: HDMI: RGB/YCrCb 4:4:4, 8/10-bit; YCrCb 4:2:2
    • Delay Tx To Rx: <0.001sec

      Supported Resolutions
    • 4Kp23.98/24/25/29.97/30
    • 1080p23.98/24/25/29.97/30/50/59.94/60
    • 1080psf23.98/24/25/29.97/30
    • 1080i50/59.94/60
    • 720p50/59.94/60
    • 480p59.94/60 576p50

      Video Processing
    • Video Compression: Visually Lossless
    • Test Pattern Generator Support: None
    • Spectrum Analyzer: Yes
    • Color Correction: None

      Audio Processing
    • Audio Compression: 48kHz 24-bit PCM

      Outputs
    • Audio Output: Embedded HDMI Audio Input (2 Channel)

      Physical
    • Dimensions: 4.80 x 3.70 x 1.06"
    • Weight: 292g (10.3oz)
    • Construction: Milled Aluminum(Chassis) and regulation-compliant PCB

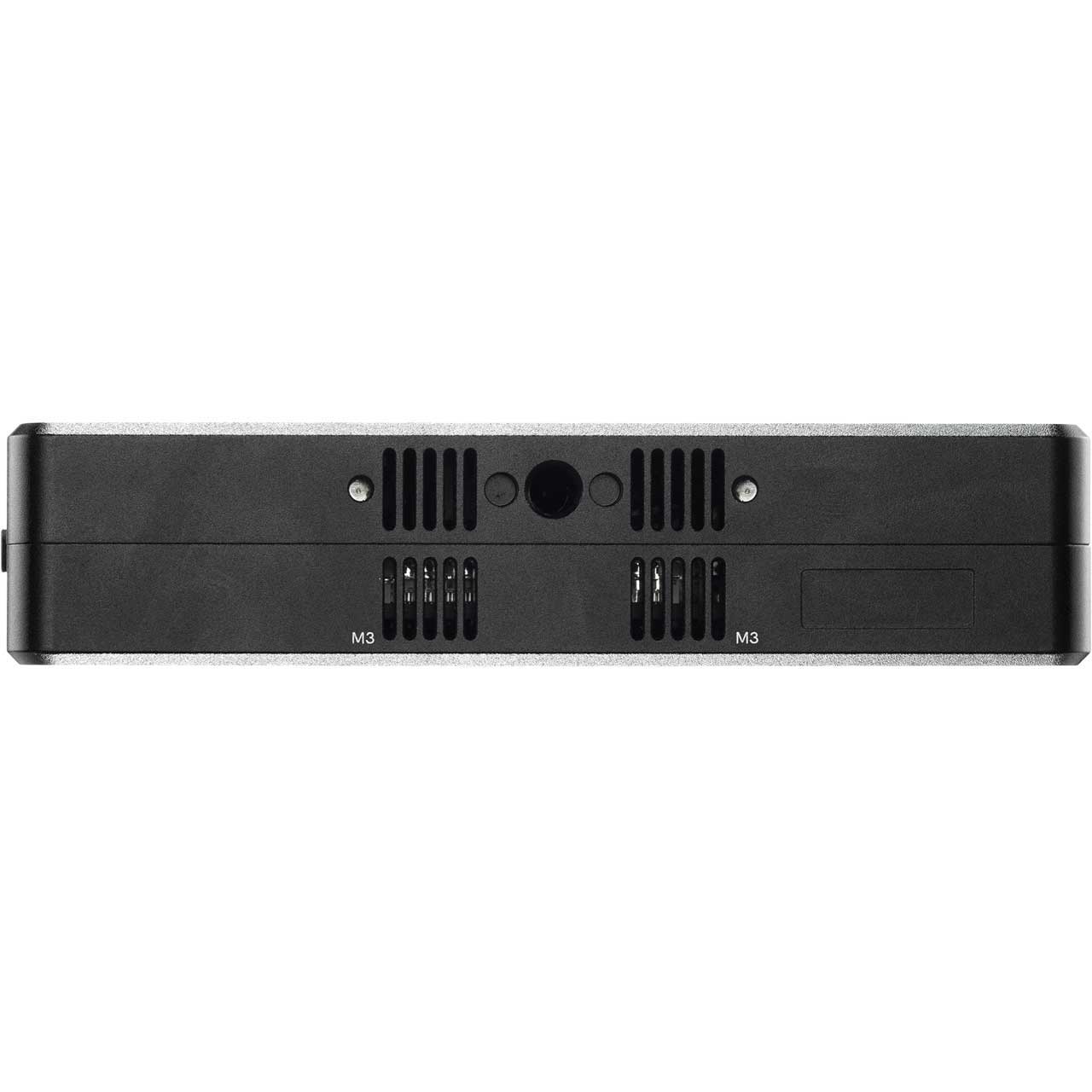

    • Mountability: Multiple mounting options with 1/4"x20 and 3/8"x16 holes

      Interfaces
    • Configuration Interfaces: OSD with Menu, Joystick Navigation
    • Switches: On/Off Switch
    • Mobile App: Bolt App
    • Desktop App: Bolt Manager application for OSX & Windows
    • USB Interface Functionality: Upgrade via USB-C and 5pin Locking Connector CCU
    • Bluetooth: 2.4 GHz

      Network

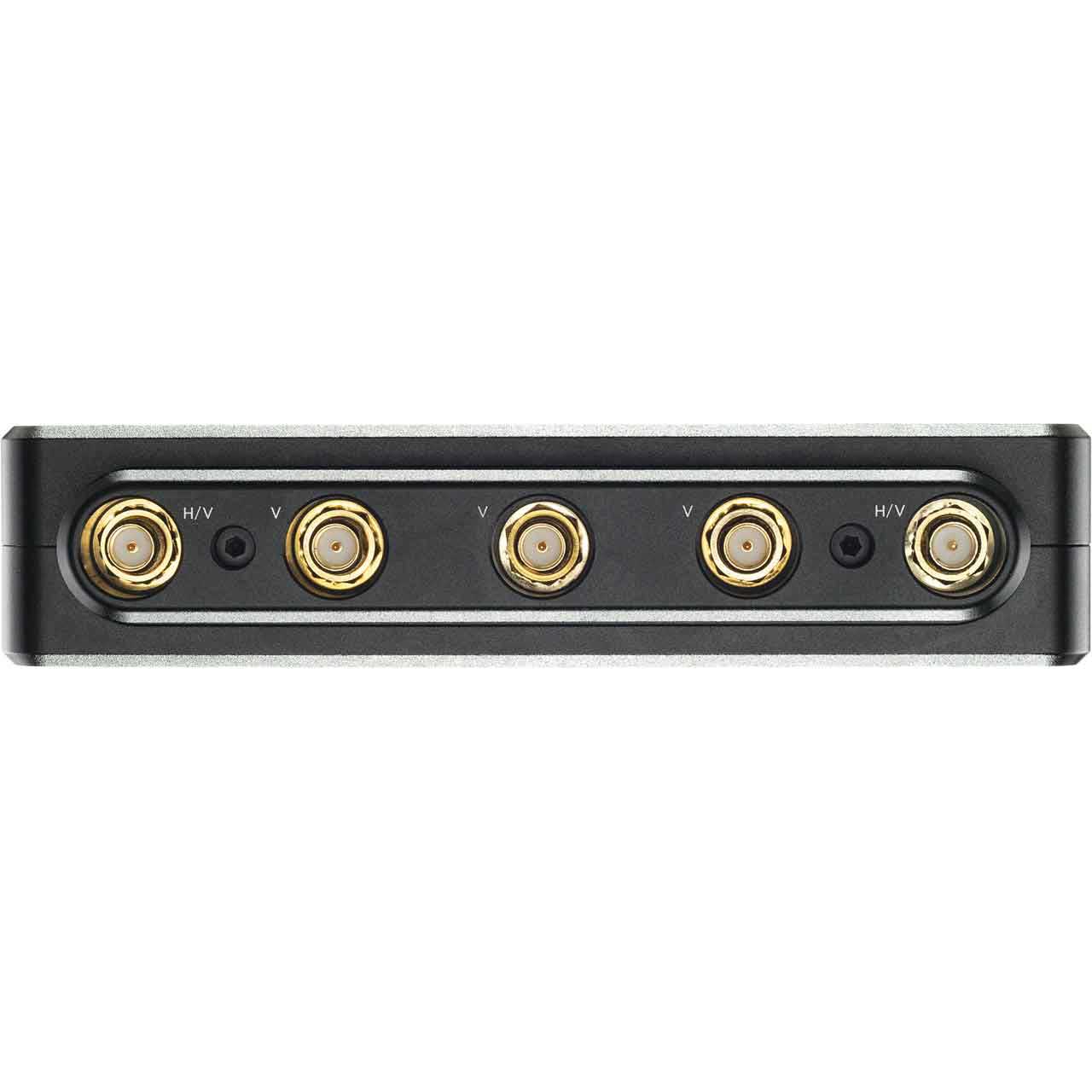

    • Antennas: 5 External 2 dBi antennas (included)
    • Wireless
      Non-DFS Frequencies: 5.190 ~ 5.230 GHz, 5.755 ~ 5.795 GHz, 5.945 ~ 6.425GHz
      DFS Frequencies: 5.270 ~ 5.670 GHz
    • Rf Channel Selection: Auto, Manual
    • Encryption: AES-256, RSA-1024 key exchange
    • Rf Power: 21 dbm EIRP
    • Range: Up to 750 ft, line of sight
    • Unicast Multicast: Can connect one Transmitter to up to 6 Receivers
    • Noise Rejection: Can coexist with WiFi and 5GHz cordless phones. Can operate up to 6 sets in same location
    • Interoperability: Can receive wireless video from all ranges of Bolt 4K XT and Bolt 4K LT transmitters (limited by shortest range device)

      Power
    • Power Input: 2-Pin Circular locking Connector 6-28 VDC
    • Battery: None, optional Gold or V mount battery plate
    • Nominal Power Consumption: 6 Watts

      Environmental
    • Operating Temperature: 32° to 104°

  • Item Includes:

    • 1x Bolt 6 LT HDMI 750 RX
    • 1x (Bit 118) 2pin Conn. to PowerTap - 18in/46cm Cable
    • 1x Ultra Thin HDMI Male Type A (Full) - HDMI Male Type A (Full) 18in Cable
    • 1x PSU 2pin Conn. to 18W AC Adapter (Int) - 6ft Cable
    • 1x USB 2.0 Type A Male to USB Type C Male - 1m Cable

  • GTIN:

    0818264028858
