Thor F-8SDI-3G-TxRx-RM 8 Ch SD/HD 3G-SDI Over Single Fiber CWDM Uncompressed Rack-Mountable

ITEM #: THR-8SDI-3GTRXRM MFG #: F-8SDI-3G-TXRX-RM

Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3
Free Shipping with $49 Minimum Order

List Price:

$10,794.00

Our Price:

$8,995.00

Availability: In Stock
iAvailability Description Popup


F-8SDI-3G-TXRX-RM - Overview

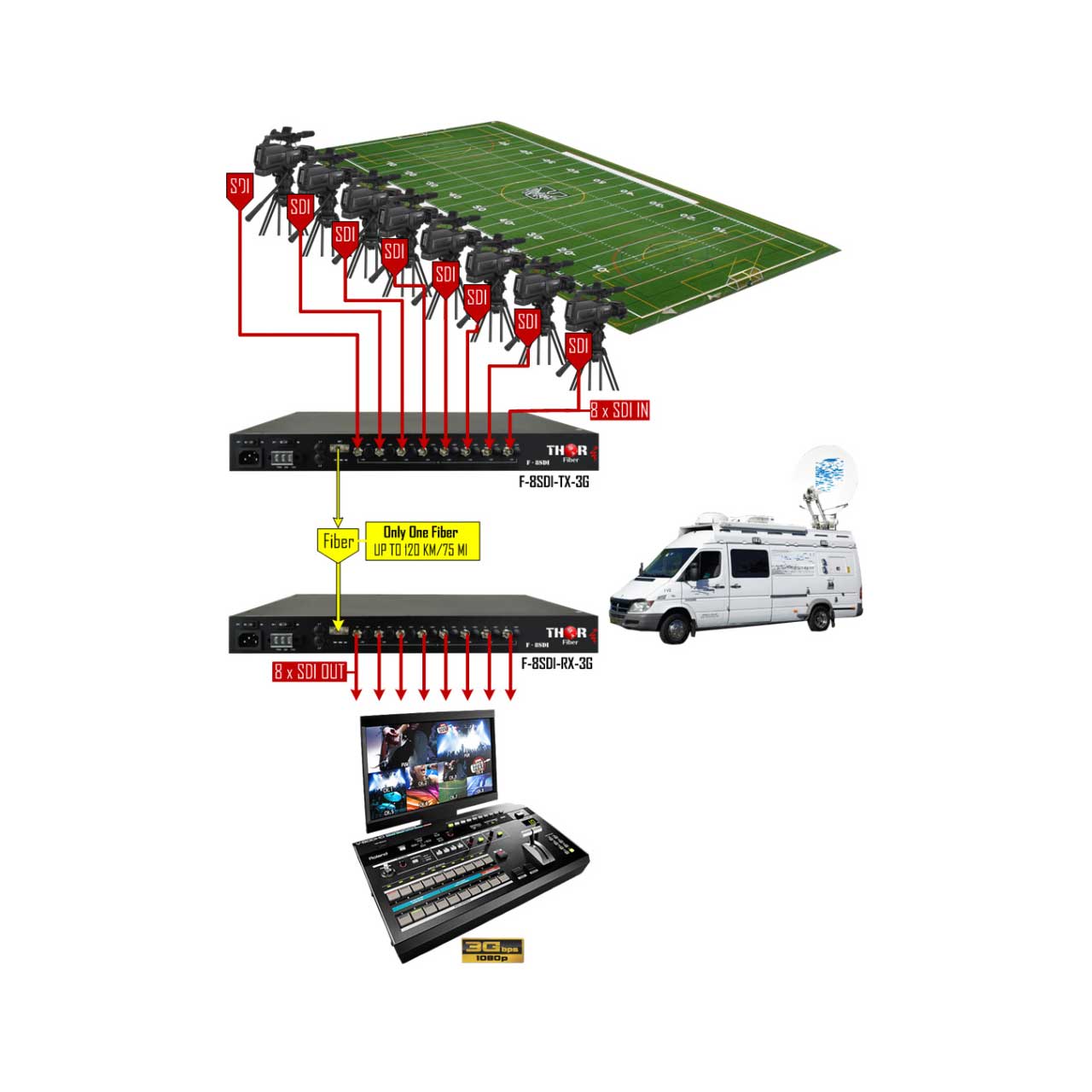

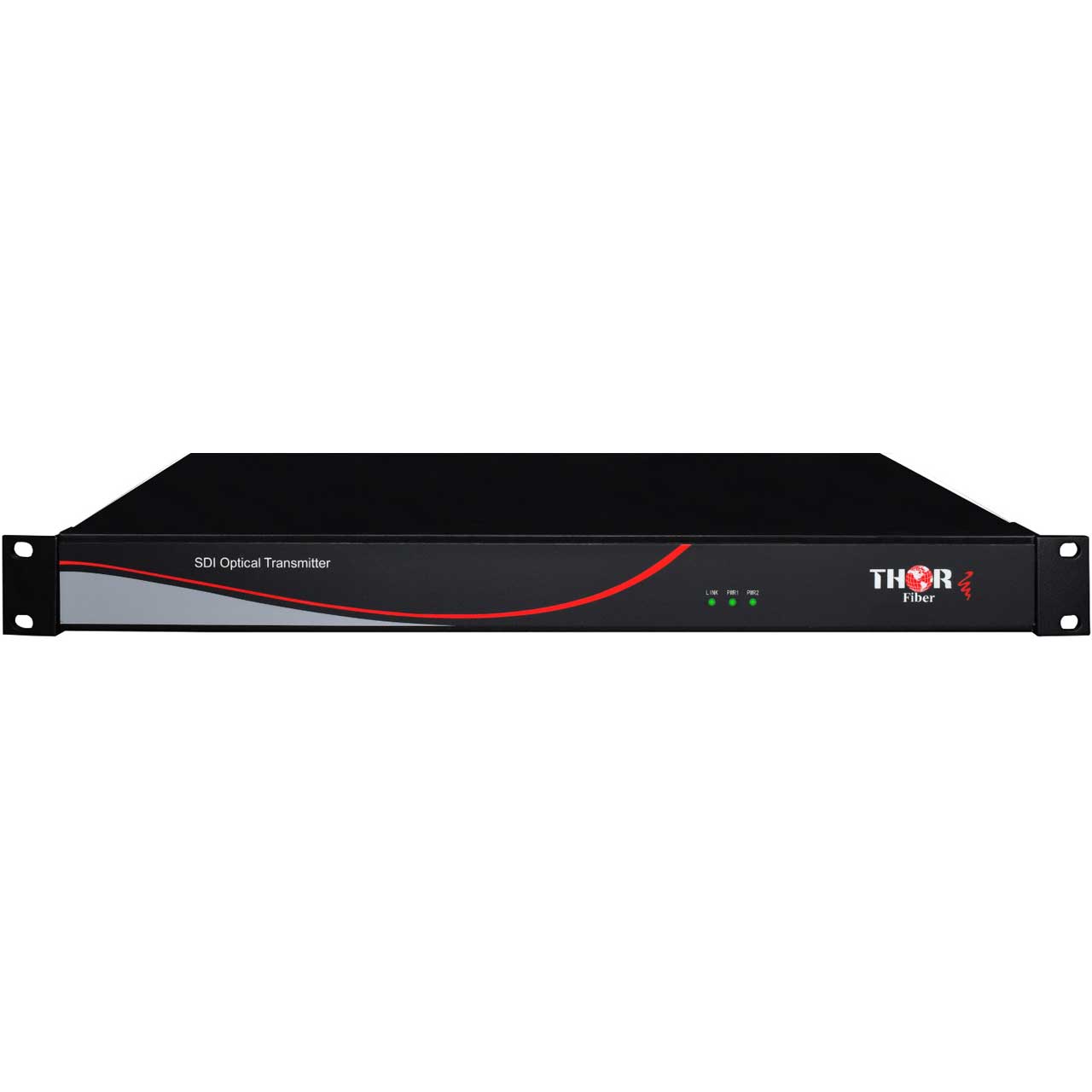

The Thor Fiber uncompressed 3G-CWDM F-8SDI-3G-RM-TxRx comes in a kit (Tx & Rx) and are standard configuration Fiber Optic Transmitter and Receivers for Serial Digital signals up to 3G-SDI running at 3.0 Gbps. This system can be ordered with any standard CWDM optics package, and internal passives are available by request. This is a 8 Channel system based on a standard 40km platform. No configuration or management is needed, as the system automatically adjusts to any input signal type regardless of bit rate or protocol. Easy to read LED indicators for Input Signal Detect and optical link are present for all channels. Units come standard with ST/PC fiber connectors and a 1RU 19" rackmount form factor to keep your rack clean. Simplified easy to use plug and play units mean that anyone can deploy these in no time. Commercial grade intricate parts means these will work for years without hassle, backed by Thor Fiber's 5 year warranty and free tech support means a stress free guarantee.

  • Features:

    • Compatible with any Serial Digital Signal up to 3.0 Gbps
    • Standardized channels for both CWDM bands for compatibility with Python systems
    • Passes SDI embedded audio and all ancillary data
    • Input equalization and reclocking for SDI video on buffered outputs
    • Available in any custom configuration for Bi-Directional Transport up to 16 total channels
    • Real-time status LED indicators for troubleshooting and monitoring
    • DWDM systems available by request for higher density systems

  • Specifications:

    • Optical Characteristics
    • Wavelength: 1310 nm; CWDM Band: 1271nm, 1291nm, 1311nm, 1331nm, 1351nm, 1371nm, 1411nm, 1431nm, 1550 nm; CWDM Band: 1471nm, 1491nm, 1511nm, 1531nm, 1551nm, 1571nm, 1591nm, 1611nm
    • Fiber Cable: Single Mode or Multi Mode FOC
    • Optical Data Rate: Up to 4.25 Gbps (Model Specific)
    • Optical Source: DFB Laser Module - CWDM
    • Optical Budget: 25 dB - Standard; 35 dB - Long Range
    • Fiber Connectors: ST/PC

      Electrical Characteristics
    • Input: Any Serial Digital Signal up to 3.0 Gbps
    • Input Level: 1.00 V Peak to Peak
    • I/O Impedance: 75 Ohm
    • Electrical Connectors: BNC - 75 Ohm

      Mechanical/Environmental
    • Dimensions (L x W x H): 18.9" x 8.9" x 3.5"
    • Weight: 8-15lb - Depending On Configuration
    • Operating Temperature: -10° C to + 55° C
    • Storage Temperature: -30° C to + 70° C
    • Humidity Range: 0 to 95%, non-condensing
    • Power: 100 - 240 VAC Auto Switching PSU; 10 - 30 Watt Depending On Configuration
