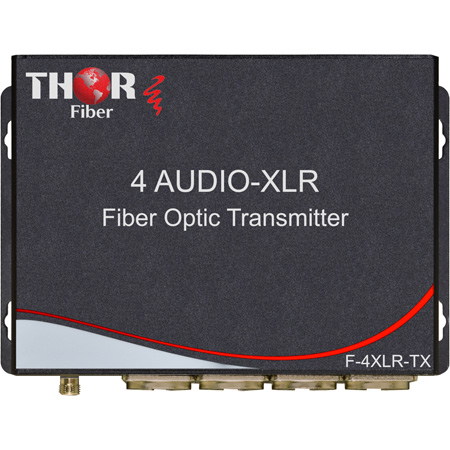

Thor Fiber F-4A-XLR-TXRX Four channel XLR Balanced Audio Over Fiber Transmitter/Receiver

ITEM #: THR-F-4A-XLRTXRX MFG #: F-4A-XLRTXRX

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

List Price:

$1,182.00

Our Price:

$985.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


F-4A-XLRTXRX - Overview

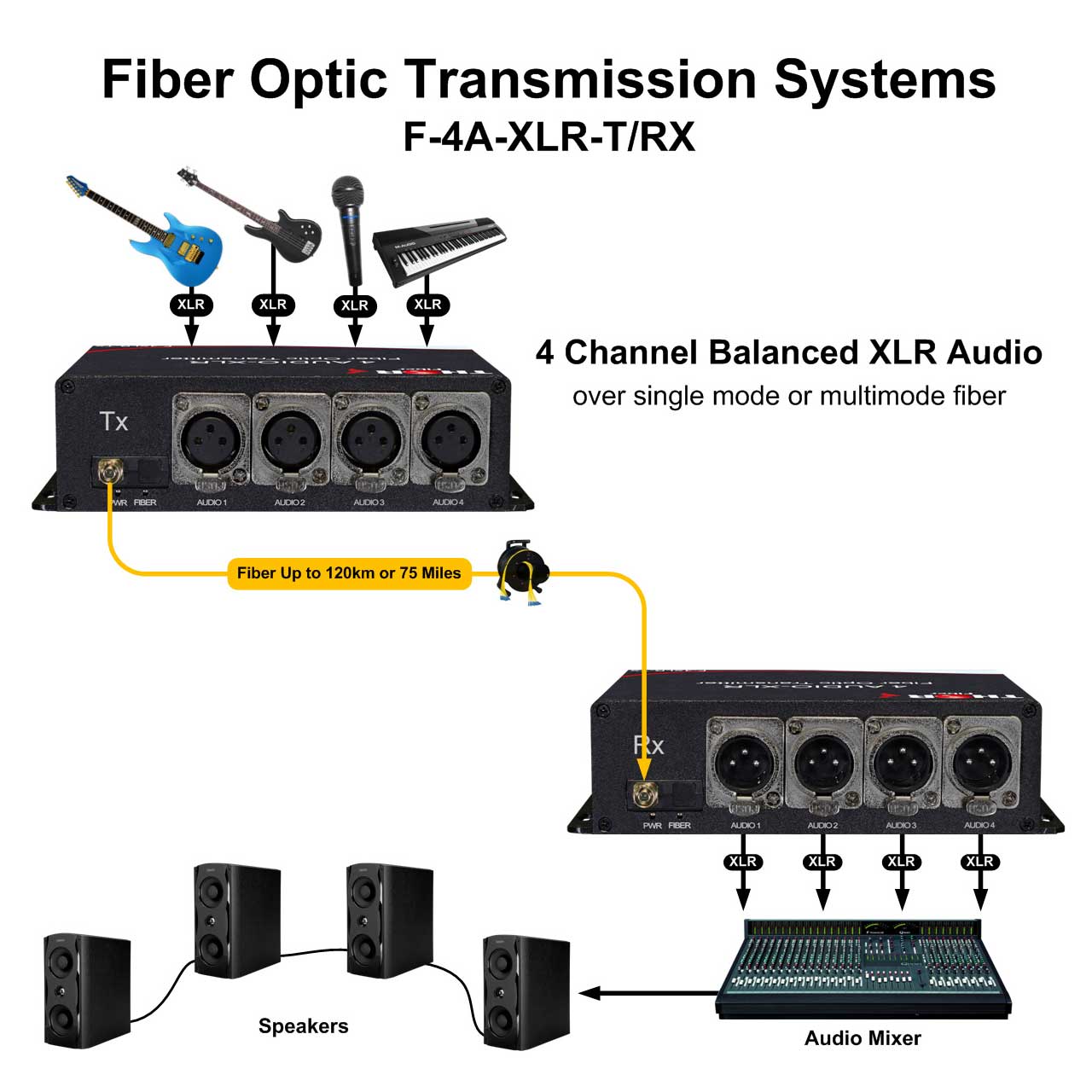

The Thor Fiber F-4A-XLR-TXRX XLR audio over fiber units are able to send balanced audio over fiber much further than traditional copper. Our Audio Interface with XLR kit has both a transmitter and receiver unit. Available options are for 2, 4, 8 or 16, 32 XLR inputs/outputs can be used on a single transmitter unit and sent over fiber to the receiver unit that also has an equal number of XLR outputs. The fiber allows the signal to be sent over a long distance without losing any quality in the signal. The kit is 16-bit digitally encoded broadcast quality balanced audio over one multi-mode or single-mode optical fiber. Thor XLR Audio Splitters are typically used in applications for Rental, Staging, Concerts, Theater, Churches, Stadiums, Theme Parks, Broadcast/Studio, Intercom, CCTV audio and Professional AV applications. They are available for stand-alone or rack-mount installations. Our standard fiber connectors are ST/PC, but it could also be ordered as SC/PC or FC/PC. Basic units support up to 20Km of single mode/3000 multimode fiber, other modes are available - 40km, 80km, 120km.

  • Features:

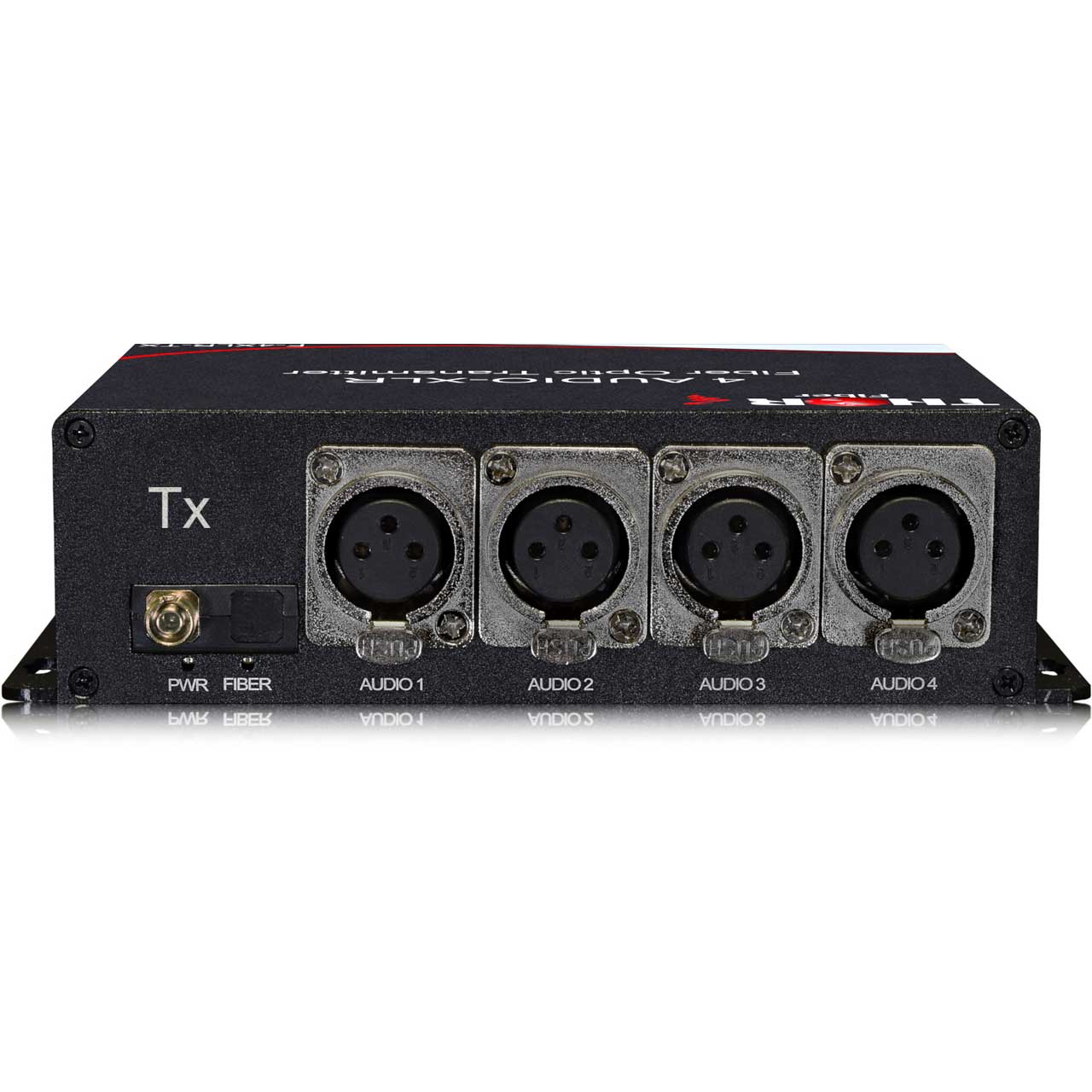

    • 3-Pin Balanced XLR Audio input/output
    • Uni-directional 2 or 4 or 8 or 16 or 32 Channel
    • Bi-directional over single fiber available on 2 and 4 Channel model

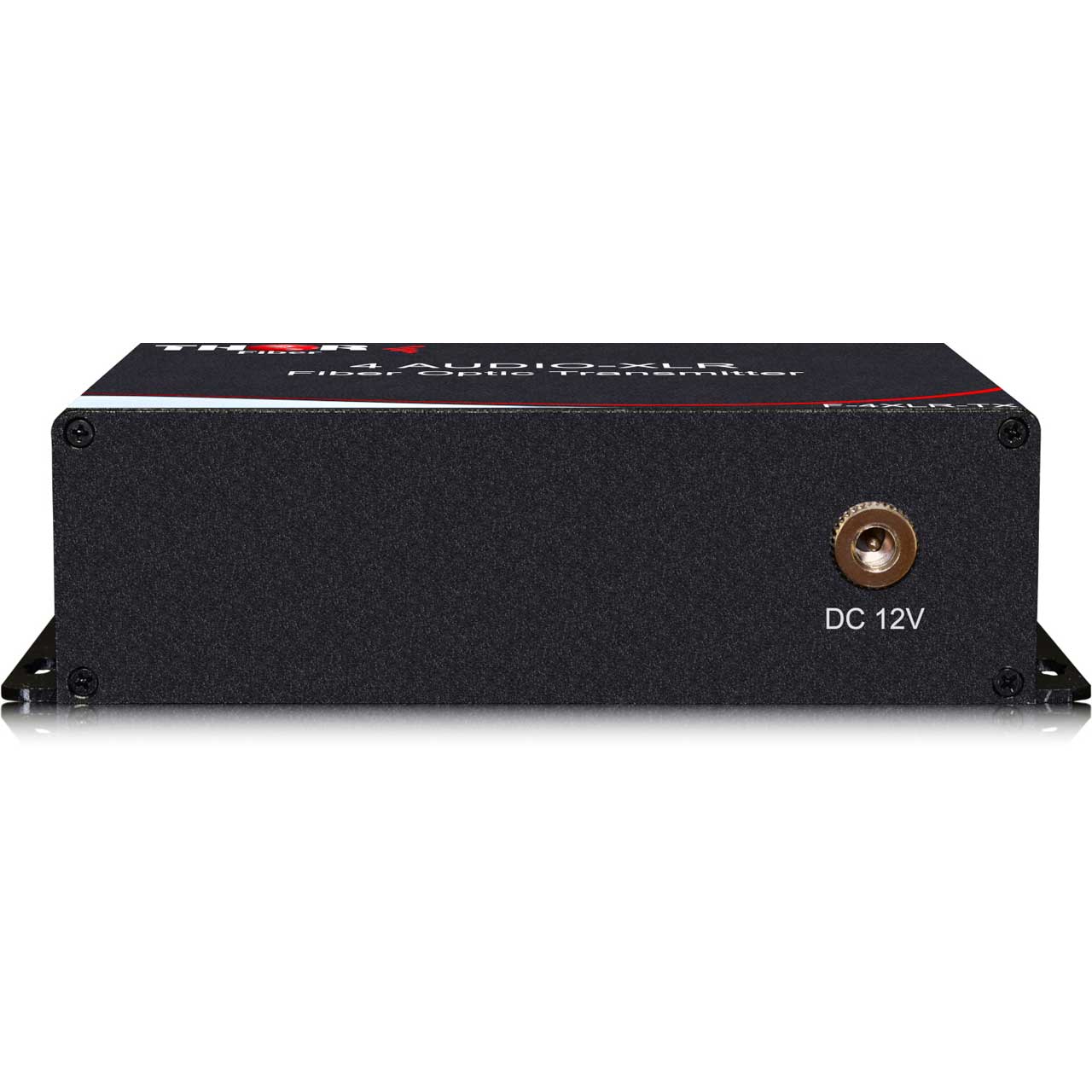

    • 12V DC Power input
    • Single mode fiber up to 20km, Multimode fiber up to 3000feet
    • Easy to Use, Plug and Play Untis

  • Specifications:

    • Optical
    • Wavelength: 1310nm or 1310/1550 for bi-directional models
    • Output Power: -8dBm (±2db)
    • Optic Fiber: 50/125u multimode, 62.5/125u multimode, 9/125u single mode
    • Rx Sensitivity: -25dBm
    • Optical Connector: ST/PC (optional FC/PC, SC-PC)
    • Distance: 20Km for singlemode and 0~2KM (MM), 40, 80 120Km - model specific

      Balanced Audio
    • Number of Channels: 2 Input +2 Output
    • Input Connector: XLR (female)

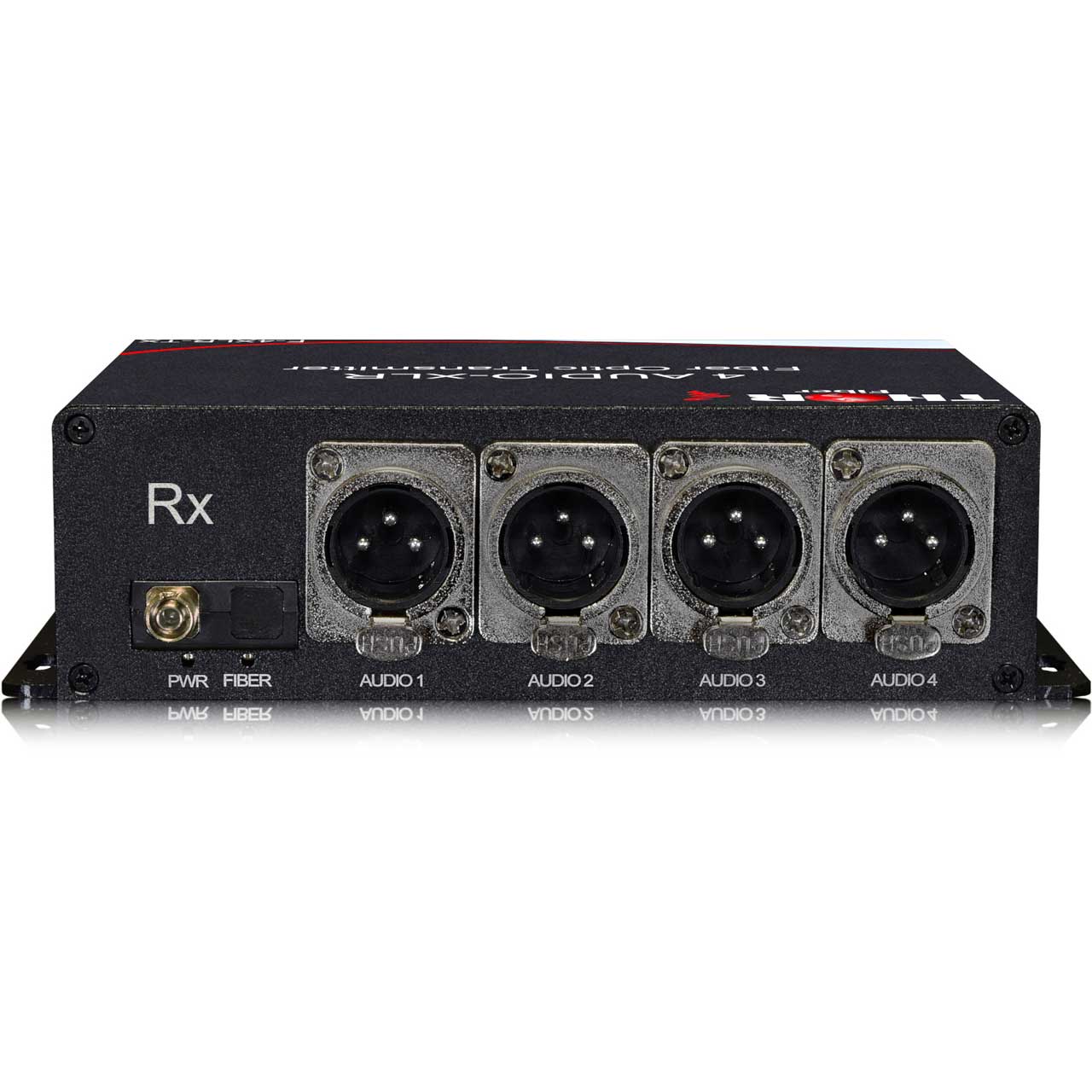

    • Output Connector: XLR (male)
    • Input/Output Impedance: 10K Ohm
    • Input Capacitance LINE inputs: 10 pF
    • Max Input/Output Voltage: 1.0Vp-p
    • Frequency Response: 10 Hz - 20kHz @±3dB
    • Sample Rates From: 48kHz
    • SNR: > 80dB

      Electrical & Mechanical
    • Input Power Requirements: DC 5V@2A
    • Power Adapter: AC 90V~240V
    • Power Consumption: < 5W
    • Stand-Alone Dimensions: 6.61 x 6.06 x 1.77" (168 x 154 x 45mm)
    • Shipping Weight (TX&RX): 5.51Lbs (2.5kg)

      Environmental
    • Operating Temperature: -4° to 167°F (-20° to 75°C)
    • Storage Temperature: -40° to 185°F (-40° to 85°C)
    • Relative Humidity: 0 to 95% (non-condensing)
    • MTBF: >100,000 hours
