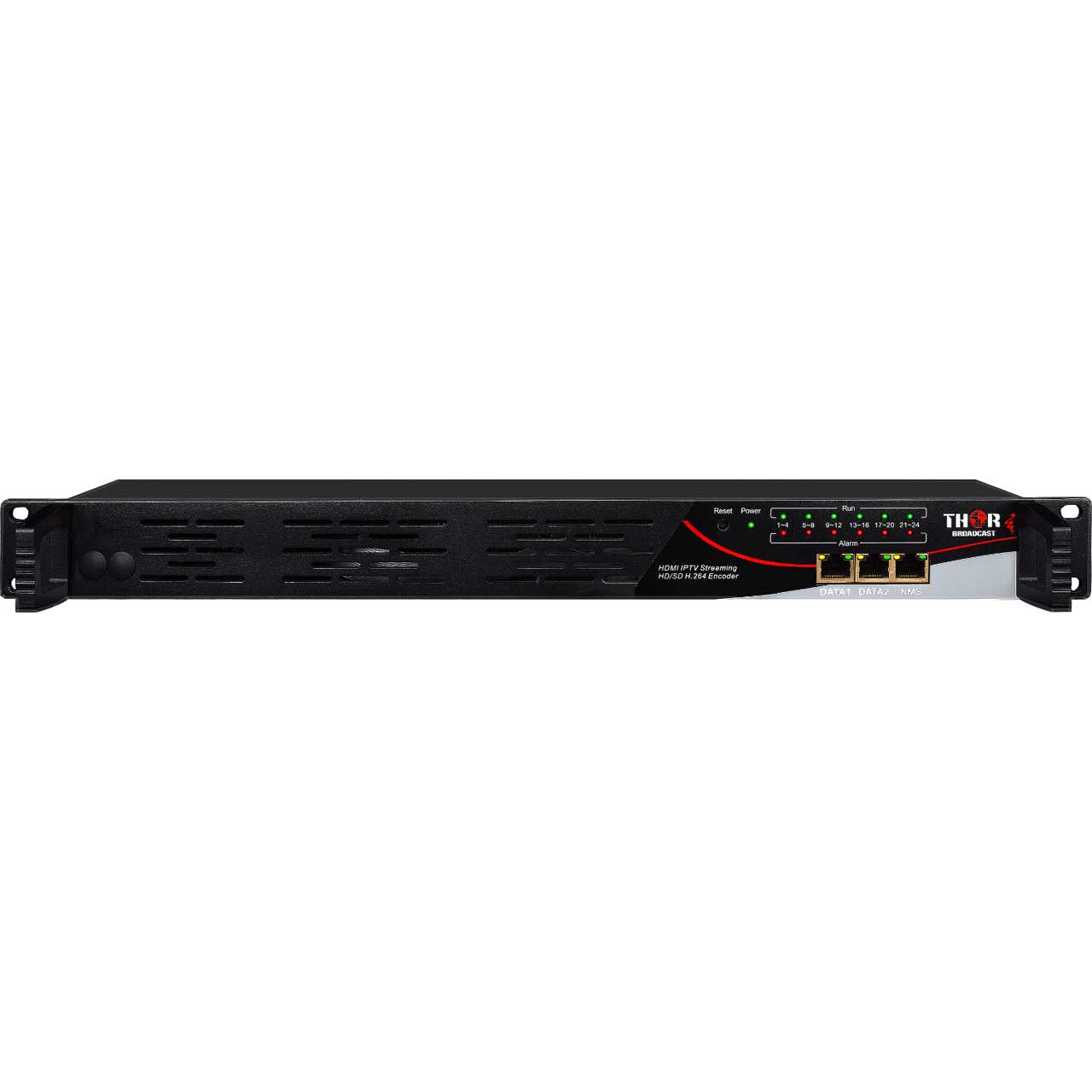

Thor Fiber H-4HDMI-IPCast 4 HDMI/H264 Video Streaming Encoder UDP (Unicast/Multicast) RTSP/RTMP/HTTP/HLS - 4 Inputs

ITEM #: THR-H4HDMIIPCAST MFG #: H-4HDMI-IPCAST

Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:

$4,194.00

Our Price:

$3,495.00

Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup


H-4HDMI-IPCAST - Overview

Thor Broadcast H-4HDMI-IPCast Encoder with 4 or 8 HDMI inputs with MPEG-4 AVC/H.264 video encoding and LC-AAC or HE-AAC audio encoding. The signal source could be from any STB, PC, TV, or any HDMI device. It can transfer the livestreaming programs through the internet via LAN, and will output IP over UDP (Unicast/Multicast), RTSP, RTMP, HTTP and HLS, and the output signals can be received by an IP device like a PC, phone, tablet, STB or any other mobile terminals. Simple setup and design means these inexpensive units will give you video IP transports solutions without breaking the bank.

Models are available with 4, 8 HDMI inputs for high density applications

You can use it as a live video or move cast streaming device and have the versilitiy to connect with a large audience. This unit supports multiple HD and SD resolutions; if your video source is Analog NTSC video, it is easy to convert it to HDMI using small external converter.

Applications

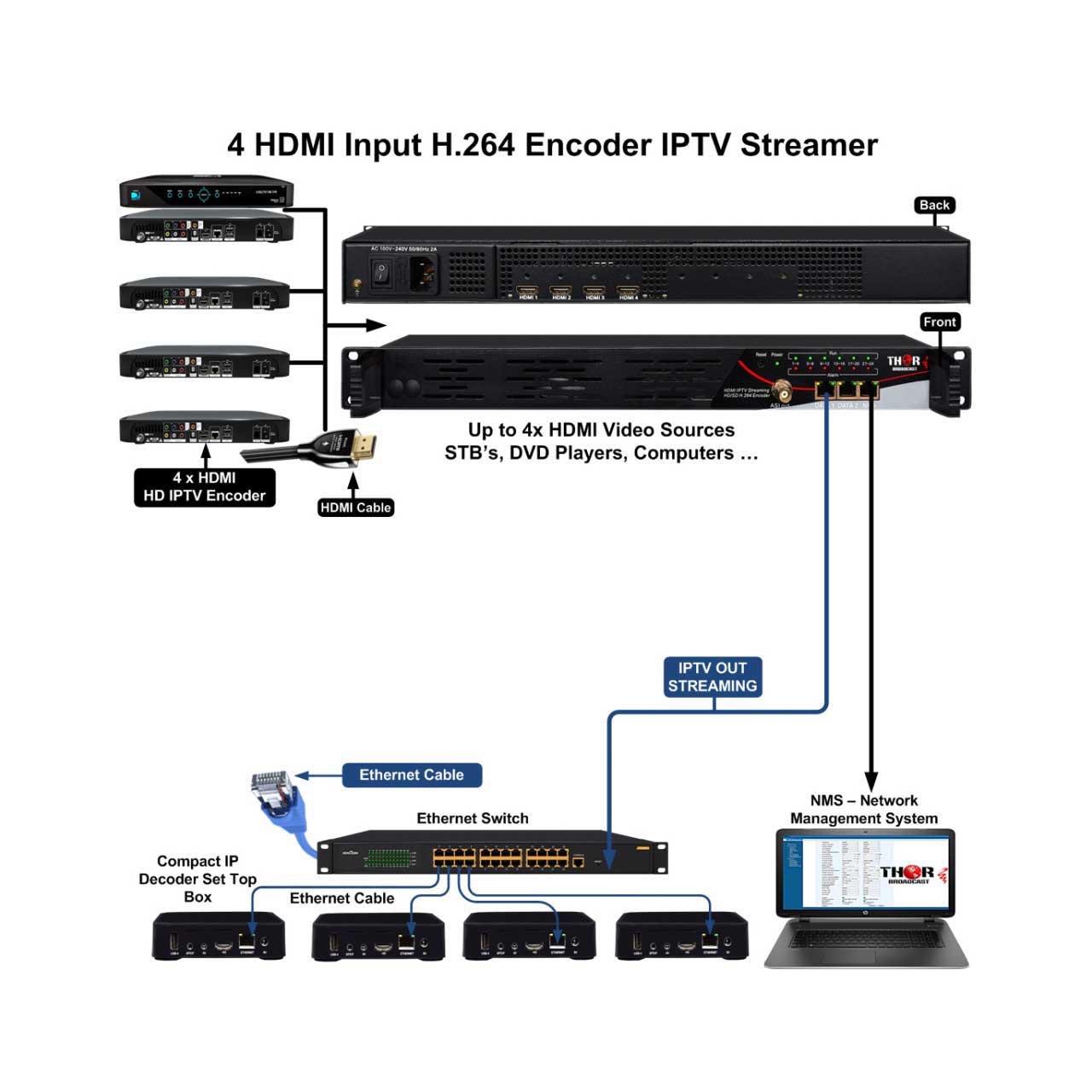

LIVE HDMI Video UDP /RTP distribution over the existing IP LAN Networks to an unlimited number of TV & IPTV Players
Direct streaming to SmartTVs
Direct streaming to Any IP Box
Direct streaming to Iphones Ipads Galaxy Android
Direct streaming to PCs
Direct streaming to WAN Internet
Direct streaming to YouTube
Direct straming to FaceBook
Direct streaming to SmartTVs

  • Features:

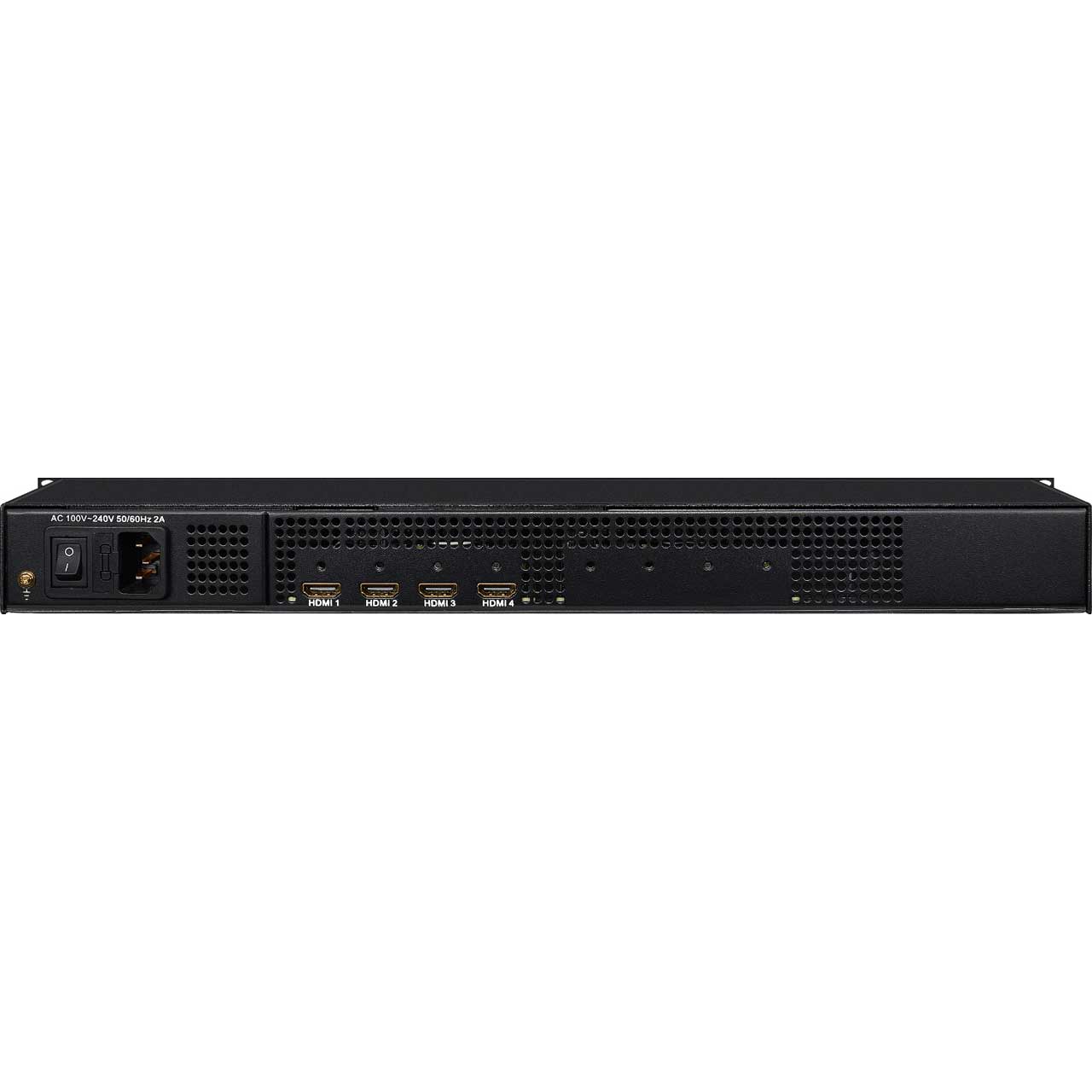

    • HDMI HDCP Inputs
    • MPEG-4 AVC/H.264 video encoding and LC-AAC or HE-AAC Audio encoding
    • IP Output over UDP (Unicast/Multicast), RTSP, RTMP, HTTP and HLS
    • Built-In Simultaneous IPTV Streaming Server,
    • Logo, Caption, QR Code inserting
    • Control and easy updates via web management NMS GUI
    • Four Scalers and Multi-Rate per each

  • Specifications:

    • Video Resolution:
    • Input:
      1920x1080/60p
      1920x1080/60i
      1920x1080/50p
      1920x1080/50i
      1280x720/60p
      1280x720/50p
      720x480/60i
      720x576/50i
    • Bit Rate: 1 Mbps - 13 Mbps
    • Rate Mode: CBR/VBR
    • GOP Size: 25-50
    • Audio: Encoding
    • Sampling Rate: 44.1KHz
    • Output
      1920x1080/30p
      1920x1080/25p
      1280x720/30p
      1280x720/25p
      720x480/30p
      720x576/25p
    • Audio: LC-AAC or HE-AAC
    • Bit Rate: LC-AAC: 48, 64, 96, 128, 256 kbps
    • Stream Out: IP out over UDP, RTSP, RTMP, HTTP, HLS

      System
    • Remote Control: Network Management (WEB)
    • Language: English
    • Upgrade: Ethernet Software Upgrade
    • Operation Temperature: 32~113°F(Operating), -4~176°F(Storage)
    • Power Supply: AC 100-240 V 50/60Hz 2A
    • Dimensions (LxWxH): 18.97 x 12.91 x 1.73 Inches
