ZM-9014 - Overview

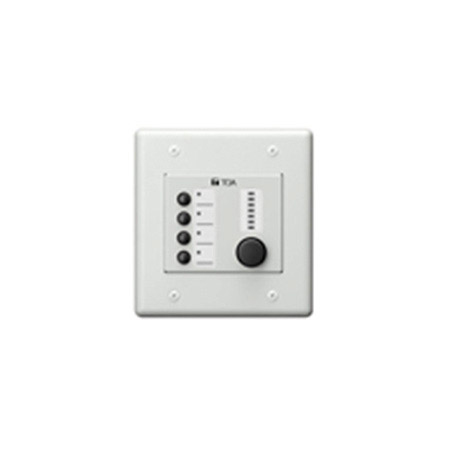

Designed for exclusive use with the 9000M2 Series amplifier or M-864D, the TOA ZM-9014 is a wall mounted remote control panel having 4 buttons and 1 volume control knob. It is used in conjunction with the RC-001T Remote control module or M-864D. It can be mounted in an American standard 2-gang electrical box in the wall.

  • Features:

    • Fits in standard dual-gang electrical box
    • Four assignable buttons each with LED status indicator can control Xpoint settings (on/off, select), paging activation, scene and relay activation
    • Assignable ID rotary adjustment on box
    • Supplied matching decor plate
    • Removable terminal block


  • Specifications:

    • Power Source: 24 V DC (supplied from RC-001T or M-864D)
    • Current Consumption: 50 mA or less
    • Terminal: Removable terminal block (10 pins)
    • Connection Cable: Shielded CPEV cable (paired data line and paired power line) or Category 5 twisted pair cable for LAN (CAT5-STP)
    • Operating Section: 4 function buttons, 1 volume control
    • Indicator: 4 function indicators (green LEDs), Level indicators (green LEDs)
    • Operating Temperature: 0 °C to +40 °C (32 °F to 104 °F)
    • Operating Humidity: 35 % to 80 %RH (no condensation)
    • Finish: Surface-treated steel plate, white, paint
    • Dimensions: 120 (W) x 127 (H) x 58.5 (D) mm (4.72" x 5" x 2.3")
    • Weight: 374 g (0.82 lb)
