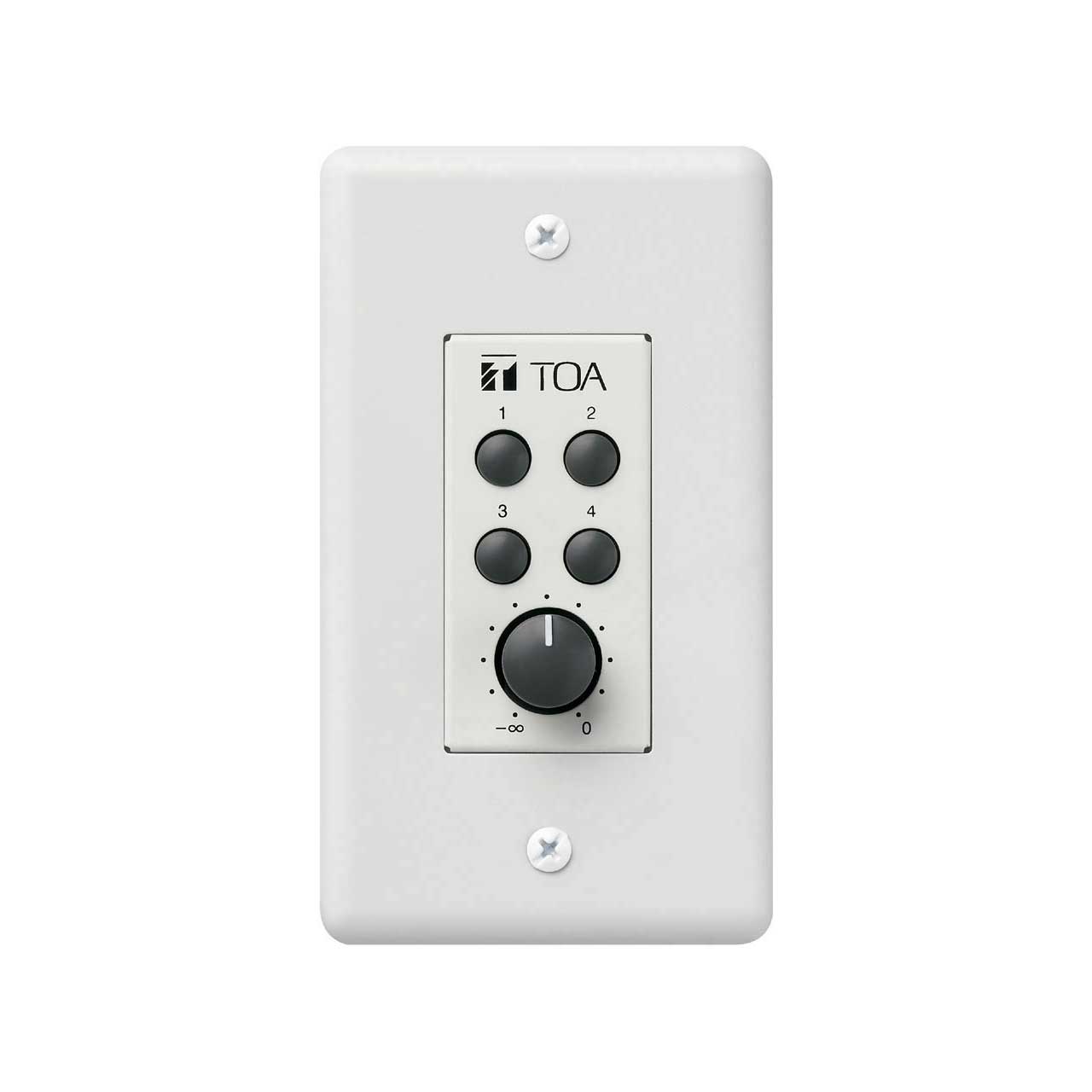

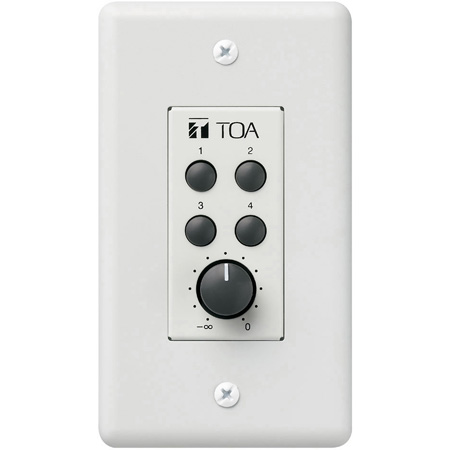

TOA ZM-9002 Remote Panel - 4-Switches and 1-Volume Control to 9000 Chassis Terminals

ITEM #: TOA-ZM9002 MFG #: ZM-9002

Primary Image
TOA Electronics, Inc.
Free Shipping with $49 Minimum Order

List Price:

$91.00

Our Price:

$73.00

Add to Wish ListLeasing Options
Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
  • Special Order Item: non-cancelable, non-returnable, non-refundable.
Report Lower PriceLarge Quantity Quote

ZM-9002 - Overview

The TOA ZM-9002 is a remote control switch/volume panel used with the 9000 series amplifiers. It adds 4 amplifier control inputs and 1 remote volume control, and can be mounted in an American Standard 1-gang electrical box in the wall.

Note: Since no electrical box is supplied with the unit, prepare it separately.

  • Features:

    • Four push buttons to activate preset selection or volume up/down
    • Volume control knob
    • Wiring: Single conductor shielded cable
    • Max. loop resistance: 50 ohms per line
    • Fits one gang electrical box (American type)
    • Maximum two ZM-9001/9002 per chassis


  • Specifications:

    • Applicable Cable: Single conductor shielded cable
    • Line Resistance: 50 Ω or less (per line)
    • Terminal: M3 screw terminal, distance between barriers: 7.62 mm
    • Operating Temperature: -10°C to +40°C
    • Finish: Surface-treated steel plate, white, paint
    • Dimensions: 72 (W) x 127 (H) x 56 (D) mm
    • Weight: 170 g
