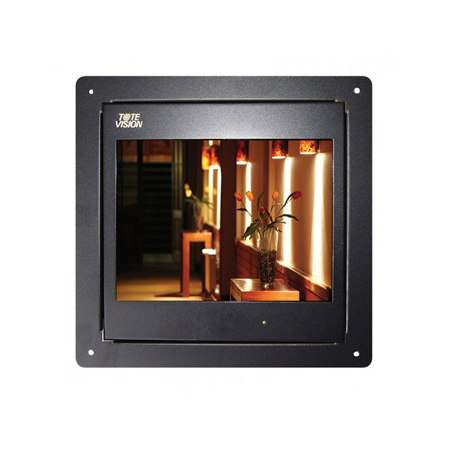

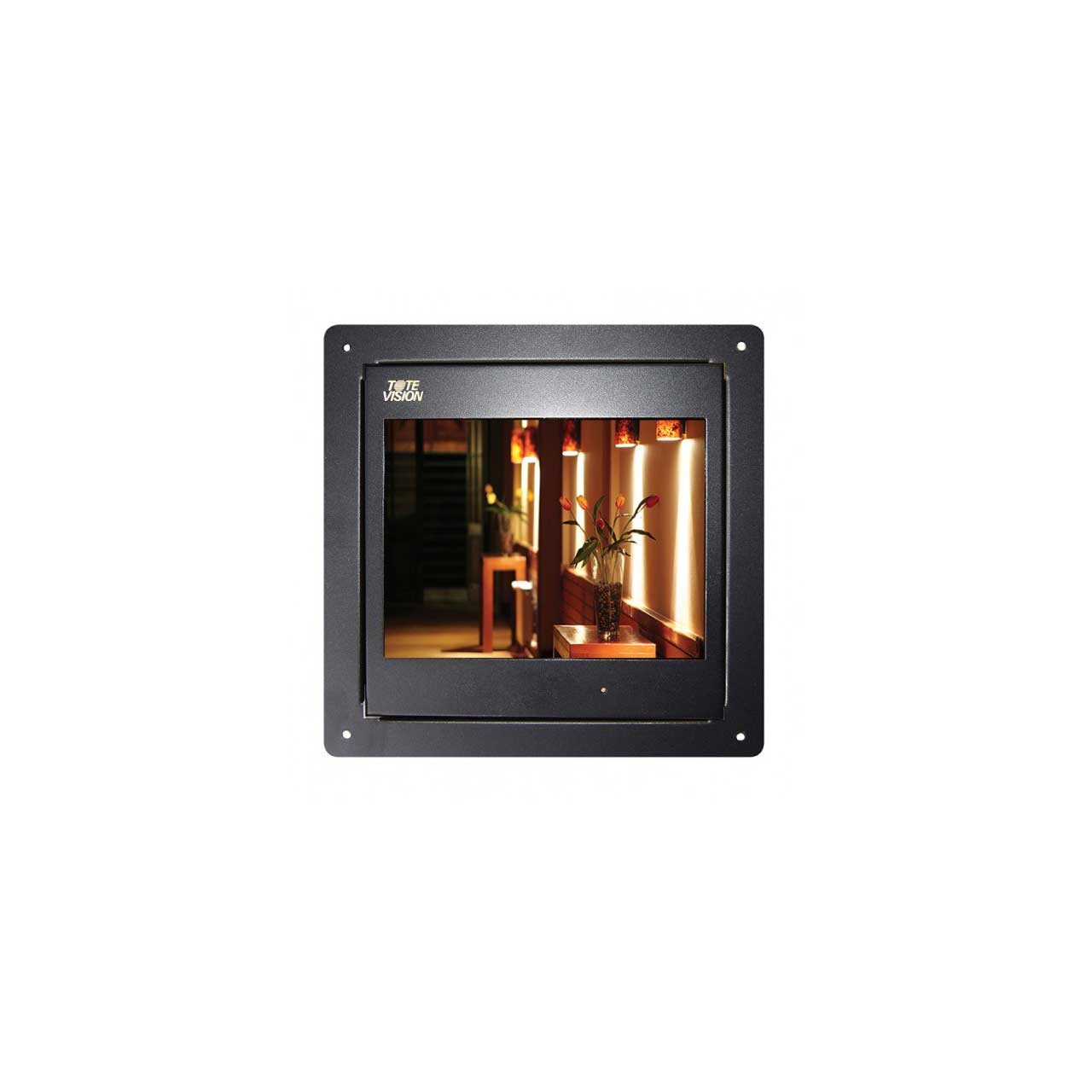

ToteVision LED-1003HDLX Commercial Grade 9.7 inch Flush Mount LED-Backlit Monitor

LED-1003HDLX - Overview

• Features:

  • LED backlight: brighter picture using less power
  • Displays HD signals (1080i/p)
  • Wide viewing angle (89/89/89/89)
  • Multiple connections including 2x BNC composite Input / Output for looping
  • Excellent contrast ratio
  • Very fast response time
  • Image enhancing: 3D Interlace comb filter, DNR, 4H filter
  • Durable metal case


• Specifications:

  • Mount: Flush-mount with no front controls
  • Display: 9.7" TFT Active Matrix Panel
  • Resolution: 1024(H) x 768(V)
  • Native Aspect Ratio : 4:3
  • Visible Screen Size: 7.8" x 5.9" / 197.6 x 148.8mm
  • Back Light: LED (30K)
  • HD Compatible: Displays 1080i/p
  • Anti-Glare Coating: Yes
  • Brightness: 400 cd/m² (Nit)
  • Contrast: 1000:1
  • Dot Pitch: 0.192(H) x 0.192(V)mm
  • Color Depth: 262,144
  • Pixel Configuration: RGB Vertical Stripe
  • Response Time: 2ms / 2ms (Rising / Falling)
  • Viewing Angle: 89/89/89/89 degrees
  • DSP / 3D Comb Filter: Yes
  • Audio Power / Speakers: x2 built-in speakers
  • HDMI: x1 Input
  • Composite: x2 BNC Inputs; x2 BNC Outputs
  • VGA: x1 15-pin D-sub Input
  • Audio: x1 3.5mm PC Input; x1 RCA L/R Input
  • Power: 2.1mm DC Input
  • Operating Temp: 32 ~ 104°F / 0 ~ 40°C
  • Power Requirements: 12VDC, 2A negative ground
  • Power Consumption: 15 watts (Max)
  • Dimensions: 10.75" x 9.8" x 1.85" / 273 x 248 x 47mm
  • Product Weight: Net: 4 lbs / 1.8 kg; Gross: 6.25 lbs / 2.8 kg
  • Case: Durable Metal
  • GSA: Yes


• GTIN:

  0081651482476
