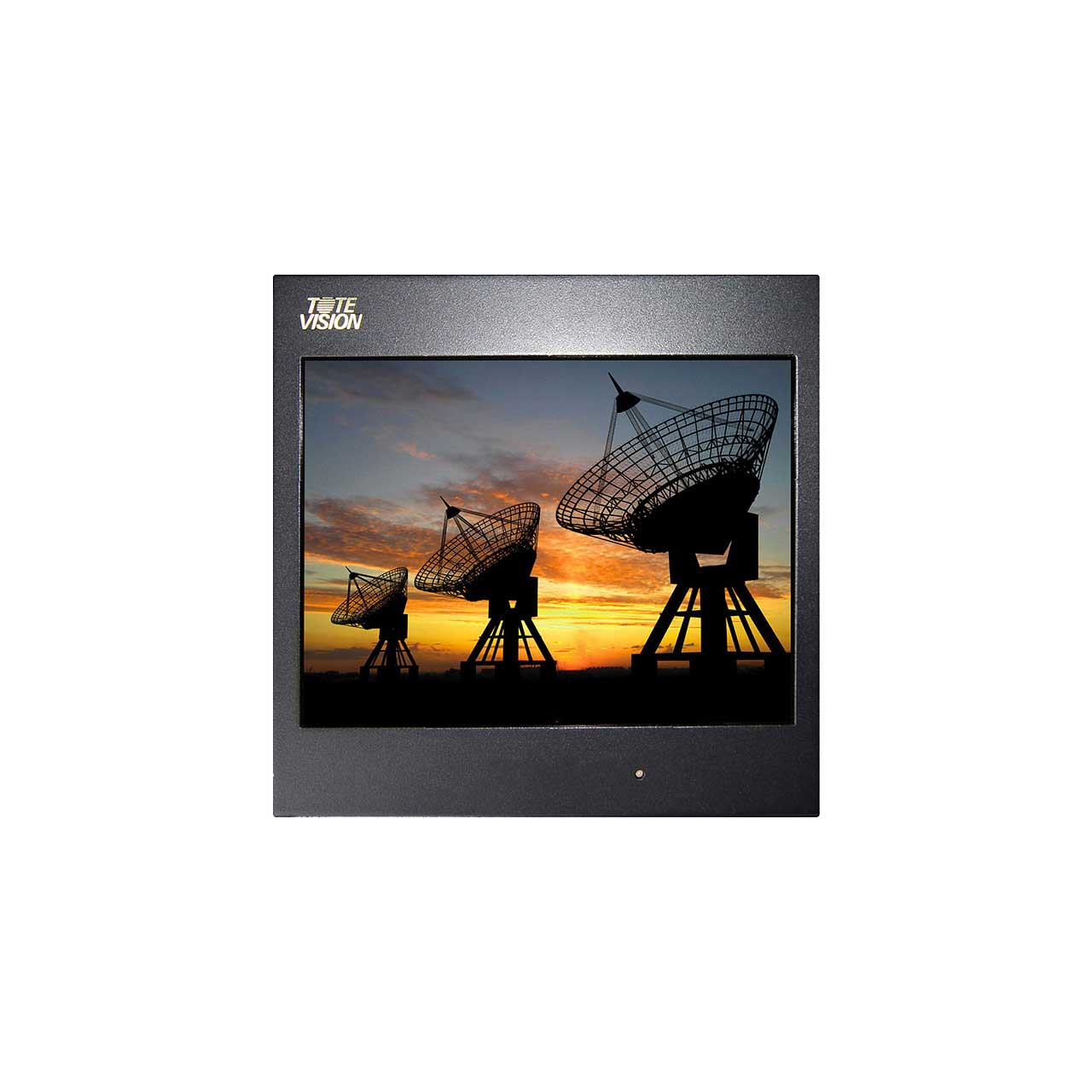

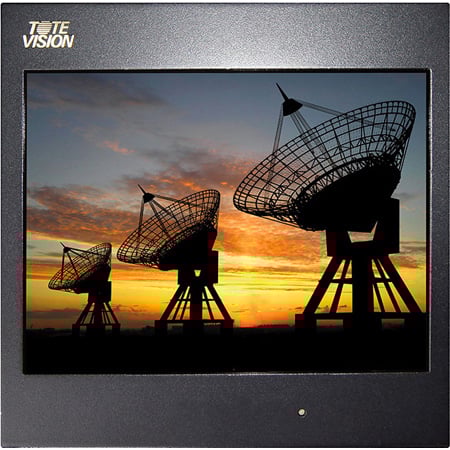

ToteVision LED-1003HDX 9.7 Inch TFT Active Matrix Monitor with No Front Control

LED-1003HDX - Overview

• Features:

  • LED backlight: brighter picture using less power
  • Displays HD signals (1080i/p)
  • Wide viewing angle (89/89/89/89)
  • Multiple connections including BNC composite Input and Output for looping
  • Excellent contrast ratio
  • Very fast response time
  • Image enhancing: 3D Interlace comb filter, DNR, 4H filter
  • Durable metal case


• Specifications:

  • Mount: Wall: VESA 75x75mm / 100x100mm; 1/4 - 20 pad on top; removable desk stand
  • Display: 9.7" TFT Active Matrix Panel
  • Resolution: 1024(H) x 768(V)
  • Native Aspect Ratio: 4:3
  • Visible Screen Size: 7.8" x 5.9" / 197.6 x 148.8mm
  • Back Light: LED (30K)
  • HD Compatible: Displays 1080i/p
  • Anti-Glare Coating: Yes
  • Brightness: 400 cd/m² (Nit)
  • Contrast: 1000:1
  • Dot Pitch: 0.192(H) x 0.192(V)mm
  • Color Depth: 262, 144 colors
  • Response Time: 2ms / 2ms (Rising / Falling)
  • Viewing Angle: 89/89/89/89 degrees
  • DSP / 3D Comb Filter: Yes
  • Audio Power / Speakers: x2 built-in speakers
  • HDMI: x2 Inputs
  • Composite: x1 BNC Input; x1 BNC Output
  • VGA: x1 15-pin D-sub Input
  • Audio: x1 3.5mm PC Input; x1 RCA R/L Input
  • Power: 2.1mm DC Input
  • Operating Temp: 32 ~ 104°F / 0 ~ 40°C
  • Power Requirements: 12VDC, 2A negative ground
  • Power Consumption: 15 watts (Max)
  • Dimensions: 8.8" x 7.7" x 1.85" / 223 x 196.4 x 47mm
  • Product Weight: Net: 3.75 lbs / 1.7 kg; Gross: 5.5 lbs / 2.5 kg
  • Case: Durable Metal
