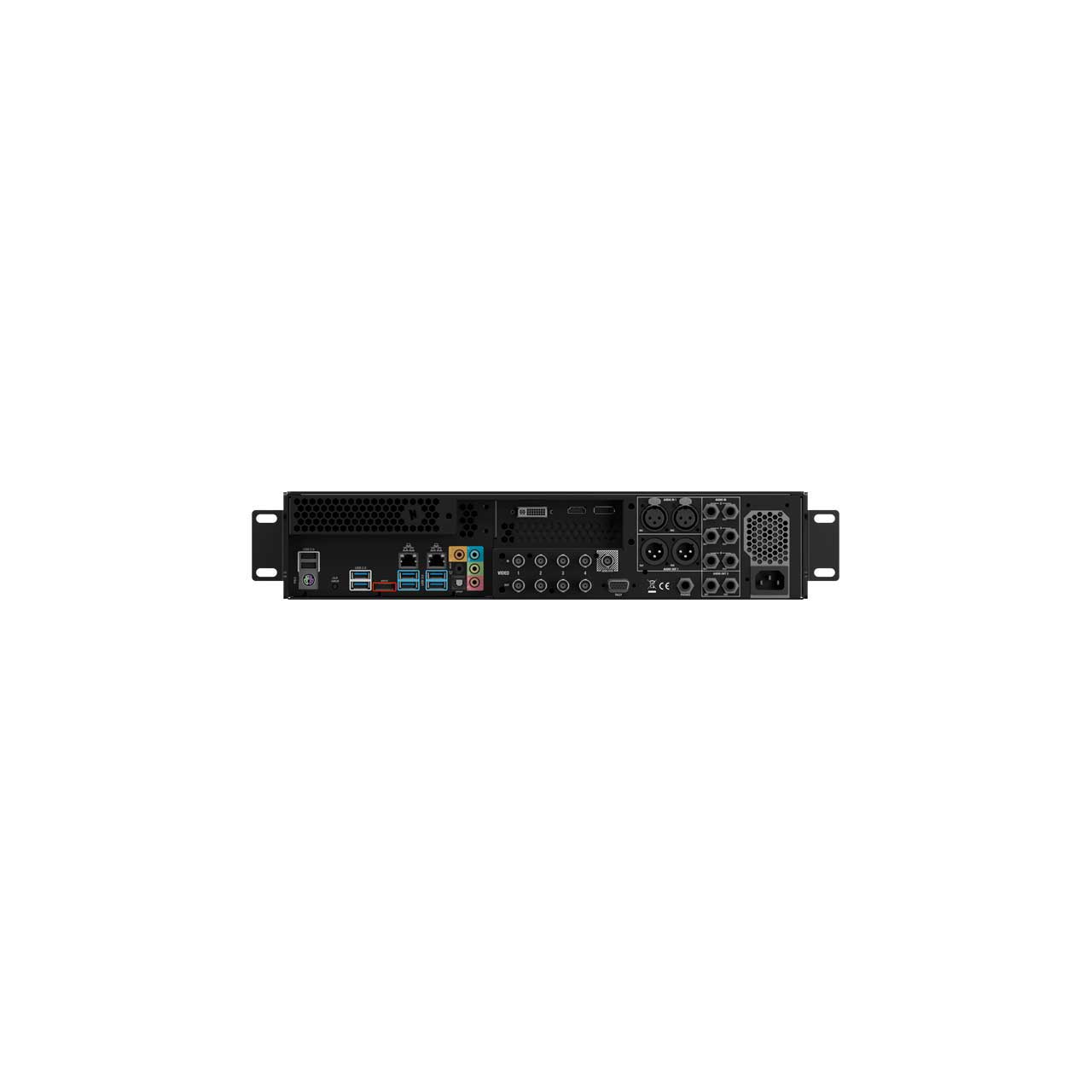

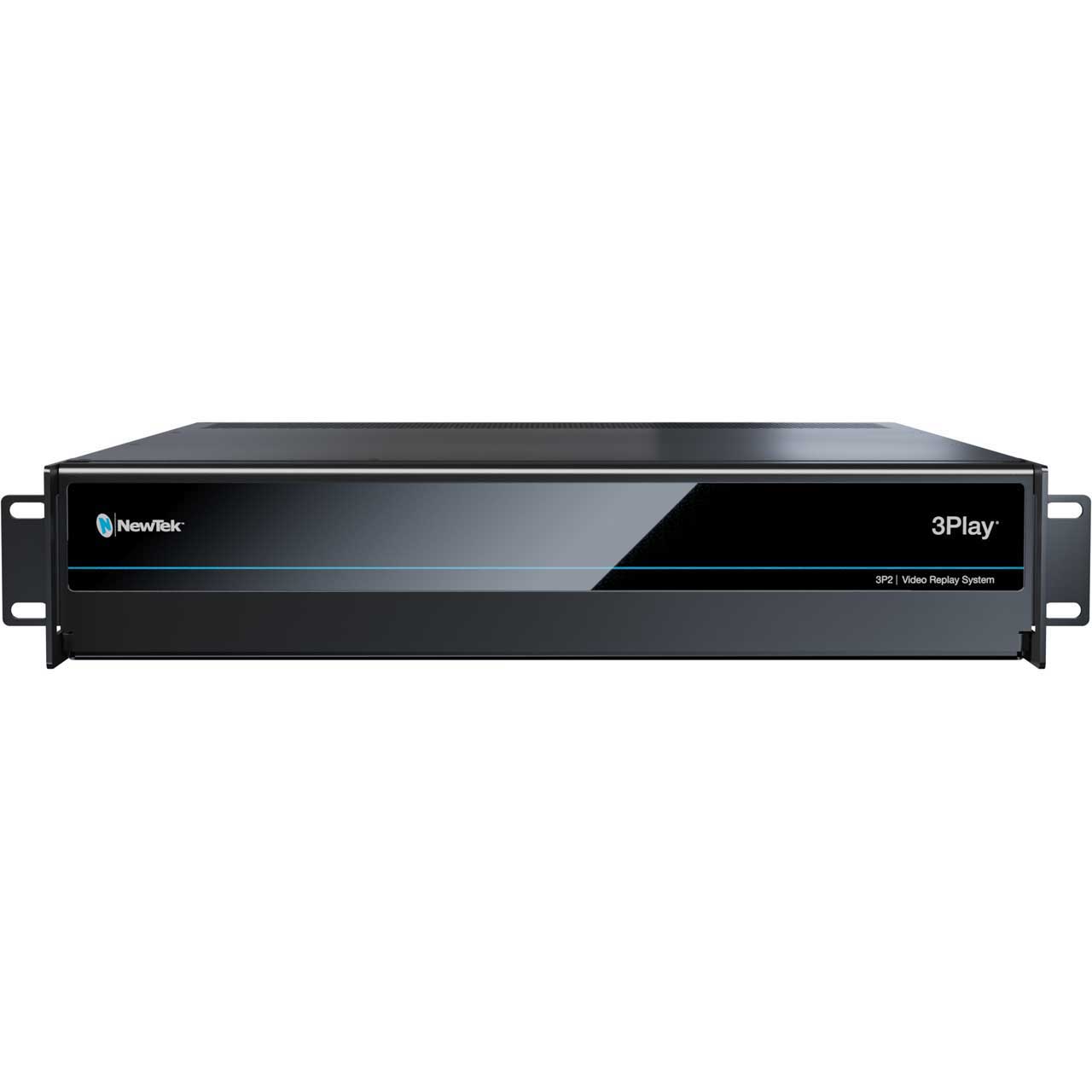

VIZRT 3Play 3P2 Sports Replay Production System - Includes 3P1 CS

3P22RU - Overview

Native IP Replay in Stunning 4K!!

• Features:

  • 10 channel replay system supporting up to 8 external inputs and 2 outputs
  • 8 concurrent capture streams
  • Record and playback simultaneously
  • Multi-purpose video server with record, clip preview, and playout
  • Preview all angles simultaneously while recording and playing back video
  • Keyframe Pan & Scan for area of interest replays
  • Up to 4Kp60 video on all channels with end-to-end IP connectivity
  • 8x NDI inputs supporting hybrid SDI and IP source workflow
  • 4 x 3G-SDI inputs on the chassis for convenience
  • Playlist sharing allowing collaboration between 3Play® and TriCaster production systems
  • 3 multi-viewer outputs
  • LivePanel™ add-on to build browser-based user interfaces and workflows
  • Macro triggering via NDI, HTTP, GPI, MIDI, and more
  • Real-time social media export or transcode files for immediate delivery
  • Ultra-high definition 2160p60 video format
  • Build playlists with full transitions, audio, sound effects, and stinger animations
  • Integrated dual channel telestration with remote transport control
  • Automatic color correction and full proc amp controls on every input
  • Program/Preview workflow with animated warping transitions
  • Independent resolution and framerate support per input
  • Music bed for highlight reels (melts)


• Specifications:

  • Network Video Input: 8x resolution-independent IP video inputs via NDI® at rates up to 4k60p
  • SDI Video Input:
  • 4x 3G/HD/SD-SDI connections supporting video input in any combination of standard formats, resolutions, and frame rates - Available frame rates determined by session video standard (NTSC or PAL)
  • 1080p: 59.94, 50, 29.97, 25
  • 1080i: 59.94, 50
  • 720p: 59.94, 29.97, 25
  • 576i 50
  • 480i 59.94
  • Video Output: 2x session-format video outputs, with simultaneous delivery via IP and SDI
  • Network Video Output: 2x session-format IP video outputs via NDI®
  • SDI Video Output: 2x 3G/HD/SD-SDI connections. 4 BNC connectors that can be either 3G-SDI Output A, 3G-SDI Output A, 3G-SDI Output B, 3G-SDI Output B or 1x UHD 2160p output via quad-link - Output B
  • Multiviewer Output:
  • 1x DVI user interface with multiviewer
  • 1x HDMI multiviewer
  • 1x DisplayPort multiviewer
  • Recording: 8x simultaneous recording channels
  • Recording Format: QuickTime® SpeedHQ (4:2:2 encoding, 32-bit audio)
  • Storage: 10TB internal drive (capacity varies by format, resolution and file specification)
  • Grab: Grab full-resolution, deinterlaced still images from inputs and outputs
  • Export: Export video and image files to social media, FTP, local or external volumes, and network servers, with optional transcoding
  • DSK: 1x DSK channel per output, with independent source selection and transition
  • Transitions: Supports custom transitions between output channels and playlist clips
  • Telestration: Integrated NDI® Telestrator Pro technology supporting real-time telestration and transport control from compatible devices over the network
  • Asset Management: Asset management system supporting metadata entry, tagging, filtering, organization, navigation, bookmarking, and integration with compatible MAM platforms
  • Local Audio Input:
  • 4x SDI embedded
  • 1x Balanced XLR stereo pair (Line)
  • 3x Balanced 1/4" stereo pairs (Line)
  • Local Audio Output:
  • 4x SDI embedded
  • 1x Balanced XLR stereo pair
  • 1x Balanced 1/4" stereo pair
  • 1x Stereo 1/4" (phones)
  • Network Audio: Native support for network audio input and output via NDI®
  • Processing:
  • Video: Floating Point YCbCr +A 4:4:4:4
  • Audio: Floating Point, 96 kHz
  • A/V Standards:
  • 3G-SDI video conforms to SMPTE 424M (Level A)
  • HD-SDI video conforms to SMPTE 292M
  • SD video conforms to SMPTE 259M and ITU-R BT.656
  • Analog audio levels conform to SMPTE RP-155
  • Genlock: Genlock input supporting SD (Bi-level) or HD (Tri-level) reference signals
  • Macros: Record, store, edit, and automate commands and user-configured operation sequences including support for cross-platform automation between supported systems
  • AMP: Supports Advanced Media Protocol for remote control via compatible third-party production systems
  • GPI: Supports GPI signals via JLCooper Electronics eBox GPI interface
  • MIDI: Support for standard MIDI protocol enabling third-party device control
  • System Drive: 5 x 2TB SSD configured in RAID 0/Capacity: 10 TB
  • NIC: 1 x 10 GbE NIC & 1 x 1 Gigabit NIC
  • System Physical:
  • 2RU chassis with 400W PSU and multi-tiered hardware and software fail-safe
  • Dimensions: 19 x 3.5 x 19.57" (48.3 x 8.9 x 49.7cm) with rack ears attached
  • Weight: 26Lbs (12kg)
