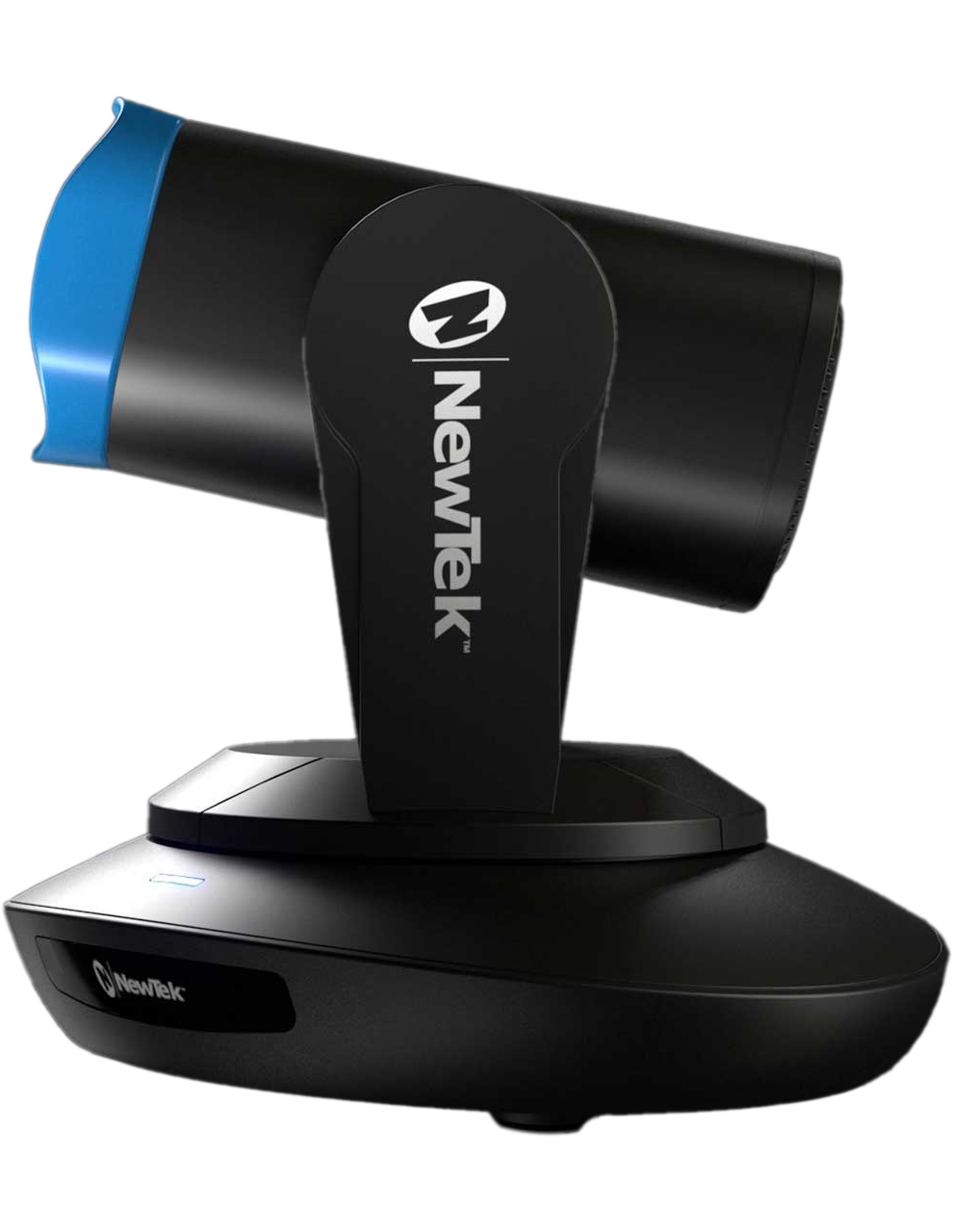

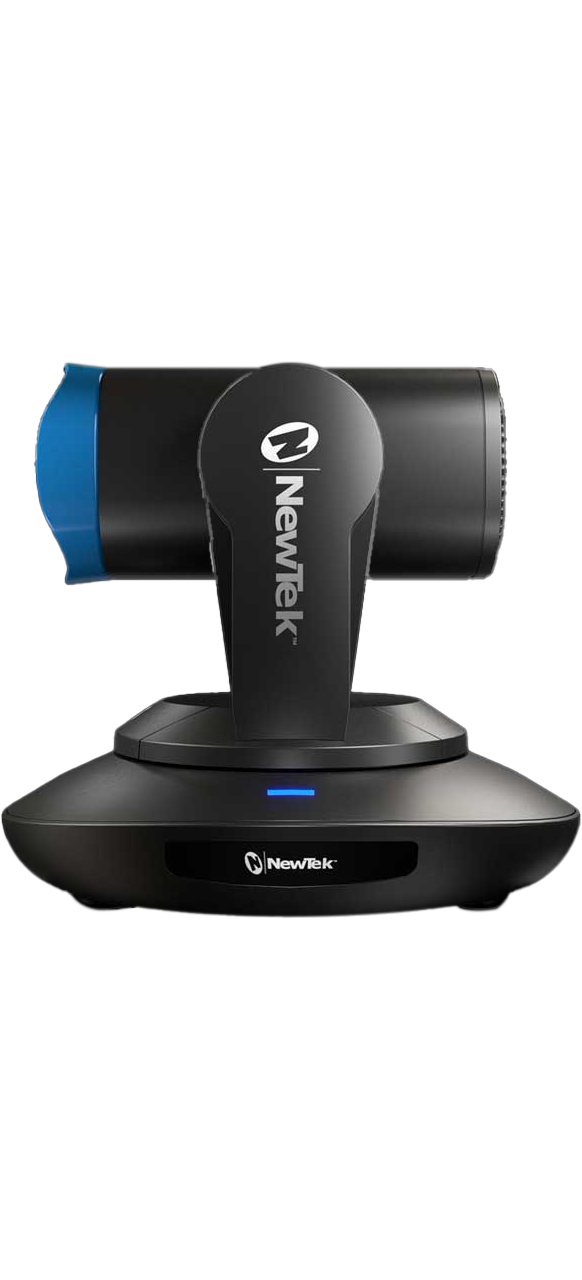

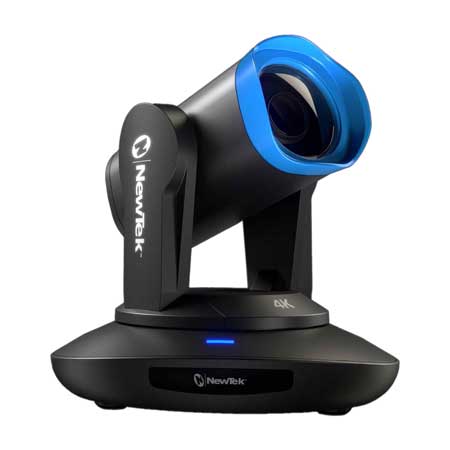

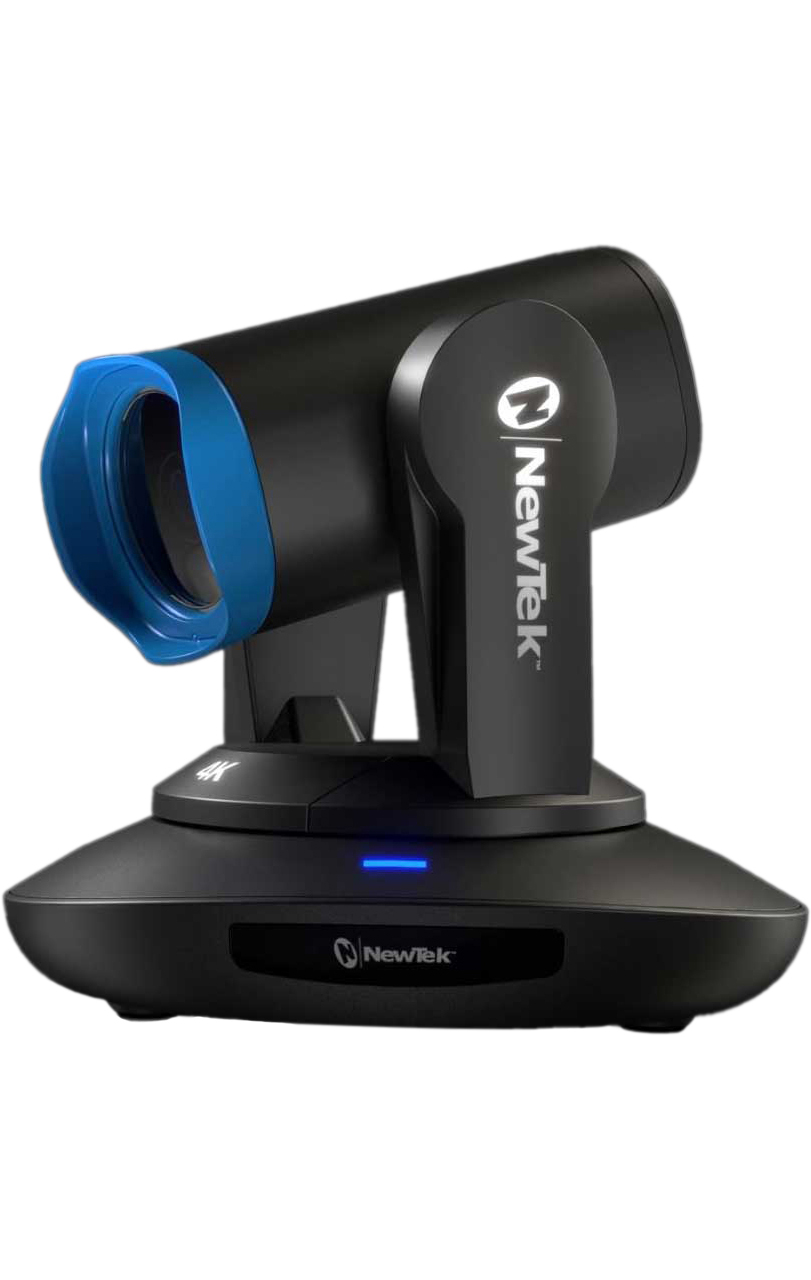

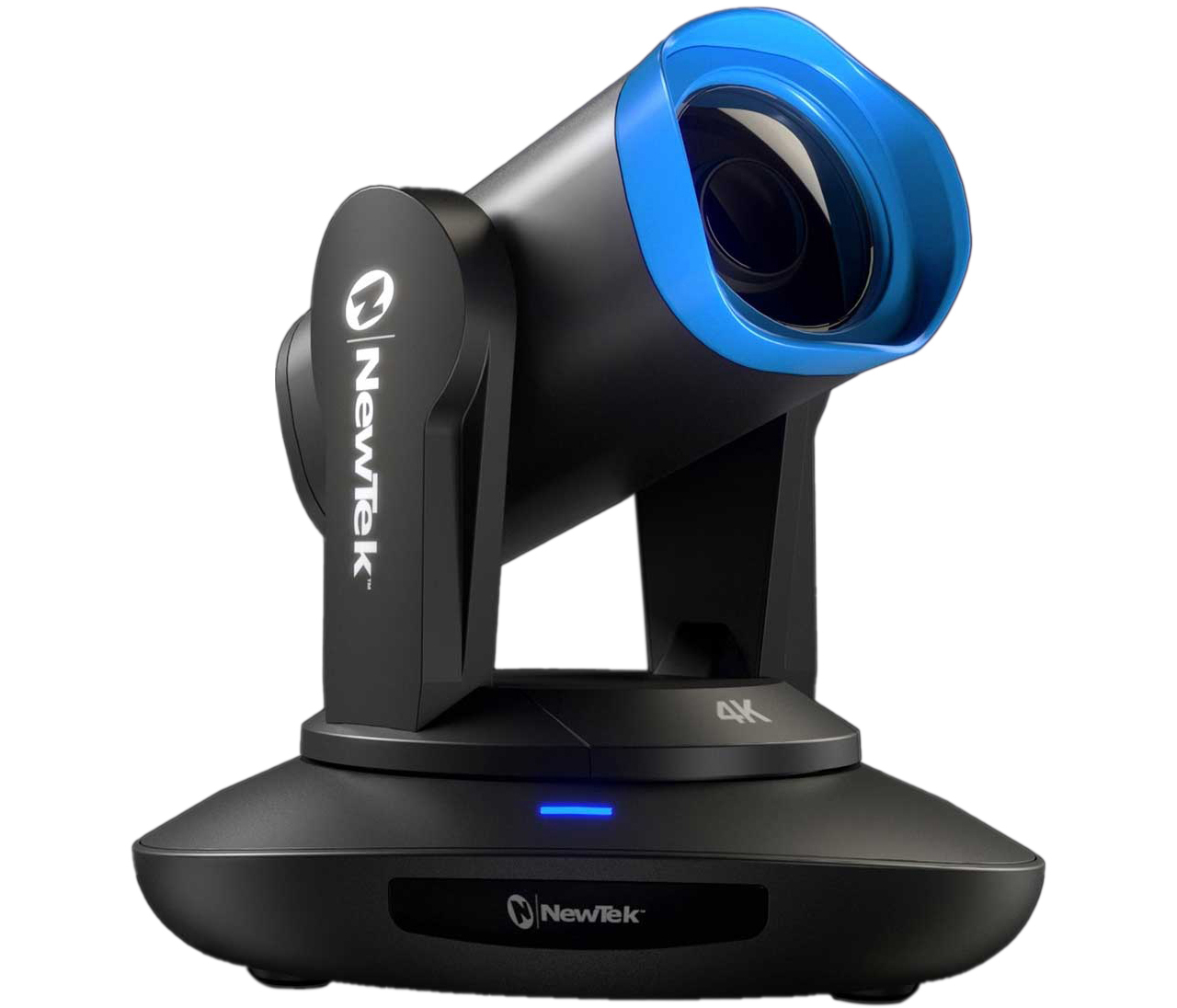

VIZRT PTZ3UHD 4Kp60 PTZ Camera with 30X Optical Zoom

ITEM #: TRI-PTZ3UHD MFG #: PTZ3UHD

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

Our Price:

$4,695.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


PTZ3UHD - Overview

Mastering the Art of Capture
The VIZRT PTZ3 UHD is the best and easiest way of getting the highest quality video and audio onto any network and into any production. The PTZ3 UHD is the only VIZRT 4Kp60 camera on the market that offers both professional audio and ultra-high-definition video - all built on the unshakable foundation of NDI®.

Mastering Audio
For the first time in a VIZRT UHD camera, Professional XLR audio input seamlessly runs with equipment such as microphones, mixers, amplifiers, and soundboards. The Professional XLR integration offers clean, balanced audio directly from the camera into the NDI network, so the audio maintains the highest fidelity for customers and integrators.

Mastering Video
To ensure users deliver high-quality images and video, the PTZ3 UHD takes pan/tilt/zoom quality to a new level with improved movement between camera presets. Ease-in and ease-out movements deliver seamless, smooth transitions for a natural,superior quality production without jittery or stuttering movements.

Mastering Connectivity
No other camera on the market offers this level of simplicity and control. Whether it's using a single cable for audio and video, PTZ control, tally and PoE for power or connecting via NDI, VIZRT PTZ Cameras simply appear on the network and can immediately be built into any workflow with ease.

Constructed with NDI® at its core, the PTZ3 UHD guarantees the tightest integration with any VIZRT live production system and any NDI® workflow - offering professional audio,pristine 4Kp60 and infinite production possibilities.

  • Features:

    • One ethernet cable for audio and video, PTZ control and tally
    • Professional XLR audio connection
    • Sony 1/1.8" 12MP Sony Sensor
    • 30 x Optical Zoom
    • Ease-in and ease-out movements deliver seamless, smooth transitions
    • Pristine 4Kp60 UHD Video
    • Offers supports for NDIr|HX3
    • Support for H.264, H.265 via NDI®|H

  • Specifications:

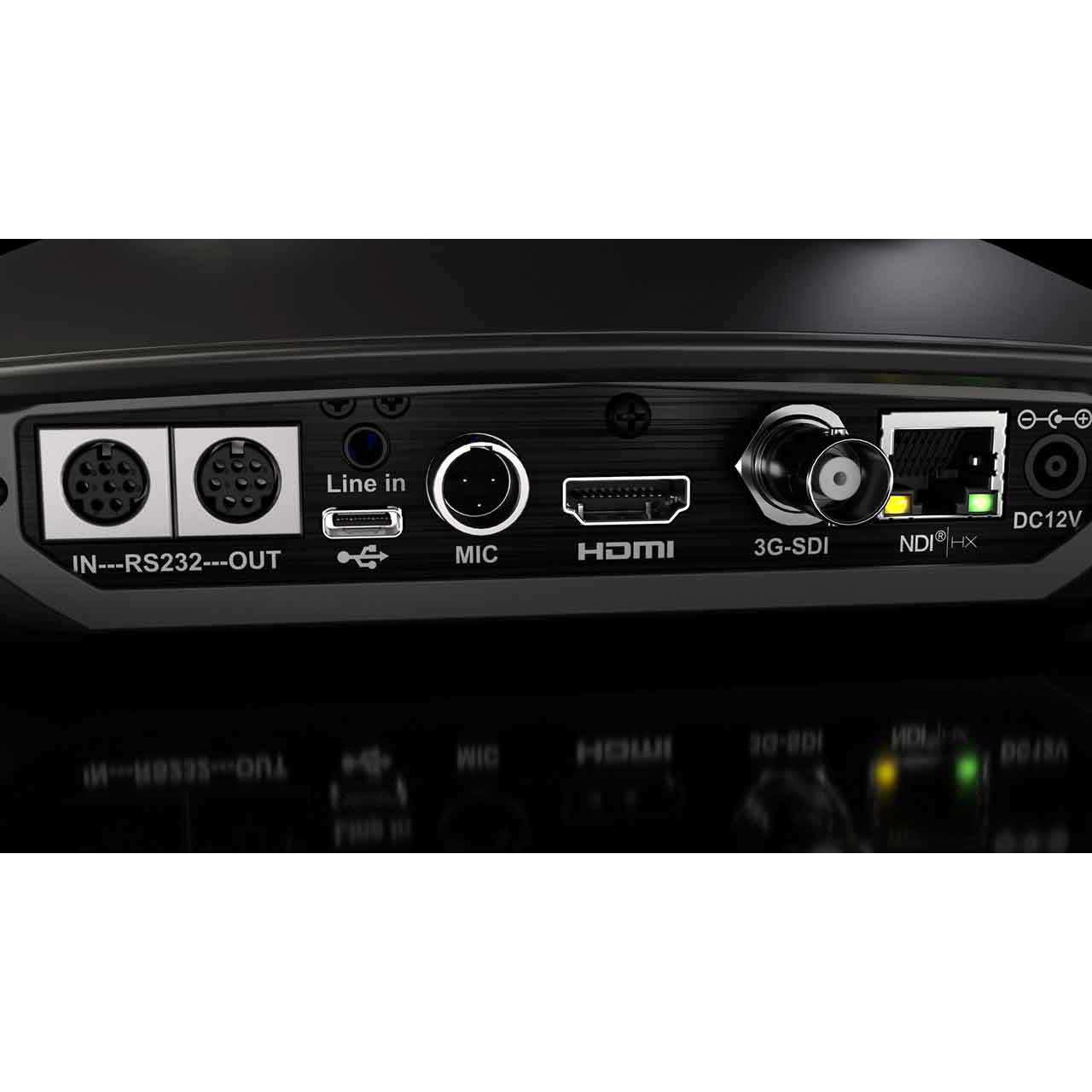

    • Video Output: NDI|HX, 3G-SDI, HDMI
    • Audio Output: NDI|HX, HDMI, SDI
    • Video Formats:
      - NDI|HX: 3840*2160P60/59.94/50/30/29.97/25, 1920*1080P60/59.94/50/30/29.97/25/24, 1280*720P60/59.94/50/30/29.97/25
      - HDMI: 3840*2160P60/59.94/50/30/29.97/25, 1920*1080P60/59.94/50/30/29.97/25/24/23.98, 1920*1080I60/59.94/50 1280*720P60/59.94/50/30/29.97/25
      - SDI: 1920*1080P60/59.94/50/30/29.97/25/24/23.98 1920*1080I60/59.94/50 1280*720P60/59.94/50/30/29.97/25
    • Zoom: 30x Optical & 2x digital zoom
    • Sensor: Sony 1/1.8 inch 12MP sensor.
    • ColorSpace: 8 bit NDI - 4:2:0 / HDMI & SDI - 4:2:2
    • Shutter Speed: 1/30 to 1/10,000 sec
    • Panning Angle: -170° to +170°
    • Panning Speed: Max 120°/sec
    • Tilting Angle: 30° to +60°
    • Tilting Speed: Max 80°/sec
    • Aperture: F1.8 ~ F14
    • Focal Length: 6.91mm - 214.64mm
    • Horizontal Angle of View: 60°(Far)-2°(Near)
    • Min. Object Distance: 4.92ft (1.5m Wide/Tele)
    • Min. Illumination: 0.1 lux
    • Encoding: H.264/H.265, NDI|HX & HEVC
    • Audio Input: Mini XLR, 3.5mm stereo audio input (line)
    • Embedded Audio: NDI, HDMI
    • Signal: Balanced (Mini XLR), Unbalanced (Line In)Sample Rate 48KHz
    • Frequency: 100Hz - 20KHzTotal
    • Harmonic Distortion: -90dB
    • Tally: Supported
    • White Balance: Auto, Manual, Auto Tracking, One Push, Outdoor, Indoor
    • Exposure: Auto, Manual, Shutter Priority, Iris Priority, Brightness Priority
    • Focus: Auto, Manual, Iris Auto, Manual Shutter Auto, Manual
    • Anti-Flicker: Off/50Hz/60HzGain Control Auto, Manual
    • Control: NDI
    • User Interface: Web based or VIZRT NDI® Studio Monitor applications for remote configuration, control, and monitoring
    • POE+: POE+ (IEEE 802.3 at)
    • Direct Power: DC12V
    • Power Consumption: 12W
    • Operating Temperature: 50° - 122°C (-10° - 50°C)
    • Operating Humidity: 20% - 80%
    • Physical Dimensions: 8.66 x 7.48 x 6.41 in (220 x 190 x 173 mm)
    • Weight: 2.97lbs (1.35 kg)

  • Item Includes:

    • 1x PTZ3UHD 4Kp60 30X PTZ Camera
