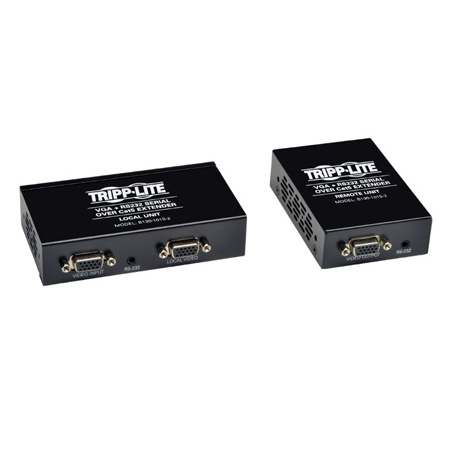

Tripp Lite B130-101S-2 VGA with RS232 over Cat5/Cat6 Extender Kit Box-Style Transmitter/Receiver with EDID - 1000 Feet

B130-101S-2 - Overview

• Features:

  • Extends a 1920 x 1440 (60Hz) Video and RS232 Serial signal up to 500 ft., or a 1024 x 768 (60Hz) Video and RS232 Serial signal up to 1,000 ft., when using 24 AWG, Solid Wire Cat5e/6 cable, such as Tripp Lite's N022-01K-GY (Cat5) and N222-01K-GY (Cat6)
  • For optimal image quality between 500 and 1,000 ft., use Zero-Skew cable, such as Tripp Lite P524-01K
  • EDID copy feature ensures optimal display compatibility
  • Supports bi-directional communication

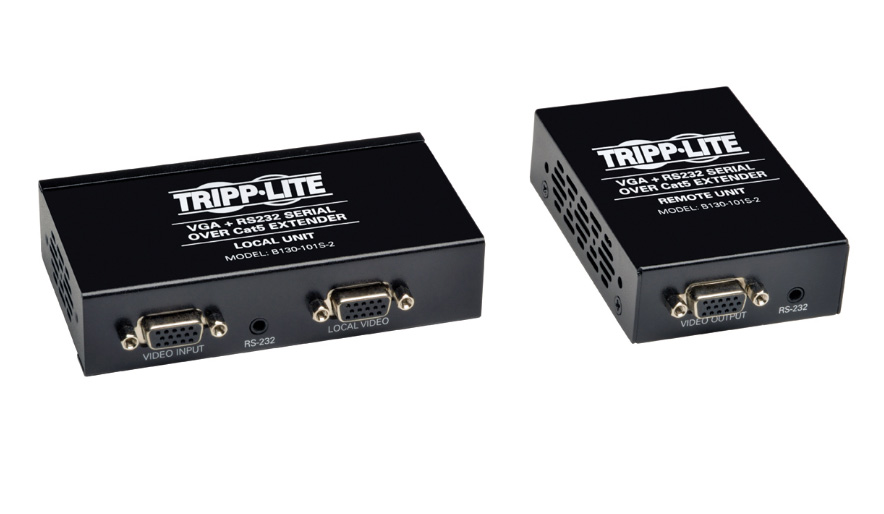

  • The local (Transmitter) unit features an additional VGA port for the connection of a local monitor
  • The remote (Receiver) unit features built-in Equalization and Gain controls to adjust the video image
  • Includes mounting hardware for both the local and remote units, allowing them to be wallmounted, rackmounted or pole mounted
  • Ideal for digital signage situations needing serial access, such as bar code scanners or touchscreen monitors
  • Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule Purchases


• Specifications:

  • AC Adapter: Input: 100-240V, 50/60Hz, 0.5A; Output: 5V, 2A, 5 ft.
  • Shipping Weight (lbs.): 1.8
  • Shipping Weight (kg): 0.82
  • Color: Black
  • Max 1024 x 768 Range (ft): 1000
  • Max 480P Range (ft): 1000
  • Max 1440 x 900 Range (ft): 500
  • Max 1080i Range (ft): 500
  • Max 1080P Range (ft): 500
  • Max 1920 x 1440 Range (ft): 500
  • Max 480i Range (ft): 1000
  • Max 640 x 480 Range (ft): 1000
  • Max 800 x 600 Range (ft): 1000
  • Max 1600 x 1200 Range (ft): 500
  • Max 1920 x 1200 Range (ft): 500
  • Max 720P Range (ft): 500
  • Ports: 1

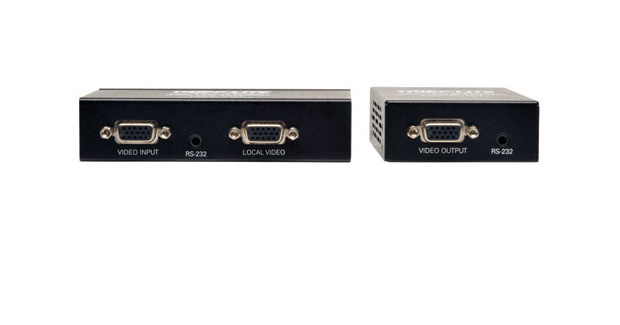

  • Side A - Connector 1: (2) HD15 (FEMALE)

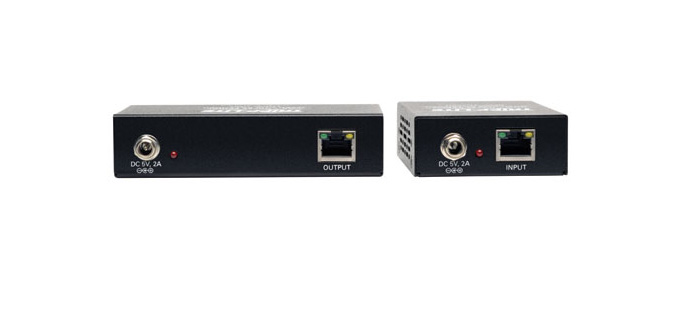

  • Side A - Connector 2: RJ45 (FEMALE)
  • Side A - Connector 3: DB9 (MALE)
  • Side B - Connector 1: HD15 (FEMALE)
  • Side B - Connector 2: DB9 (FEMALE)
  • Side B - Connector 3: RJ45 (FEMALE)
  • Product Warranty Period (Worldwide): 1-year limited warranty

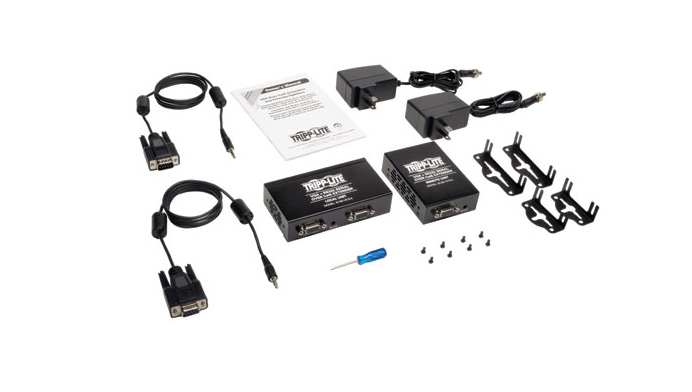

• Item Includes:

  • Local (Transmitter) unit 1 x 4.5 x 2.5 (in.)
  • Remote (Receiver) unit 1 x 2.5 x 3.5 (in.)
  • Mini-Screwdriver for EQ/Gain adjustment
  • (x2) Mounting Hardware Kits
  • (x2) External Power Supply with NEMA 1-15P Plug (Input: 100-240V, 50/60Hz, 0.5A Output: 5V, 2A, 5 ft.)
  • Owner's Manual


• Warranty:

  • 1 Year


• GTIN:

  0037332178428
