Tripp Lite B132-100A-WP-1 VGA with Audio over Cat5/Cat6 Extender Wallplate Receiver 1920x1440 at 60Hz Up to 1000 Feet

B132-100A-WP-1 - Overview

• Features:

  • Works with a local unit to extend a 1920 x 1440 (60Hz) Video and Audio signal up to 500 ft., or a 1024 x 768 (60Hz) Video and Audio signal up to 1,000 ft.
  • 24Awg, Solid Wire Cat5e/6 cable, such as Tripp Lite's N022-01K-GY (Cat5) and N222-01K-GY (Cat6), is required to achieve maximum distance and resolution
  • For optimal image quality between 500 and 1,000 ft., use Zero-Skew cable, such as Tripp Lite P524-01K
  • Features built-in Equalization and Gain controls to adjust the video image
  • RJ45 type wallplate allows you to use standard patch cable, eliminating the need for a 110 punchdown connection
  • Ideal for digital signage situations, such as retail, schools, churches, etc..
  • Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases
  • 1 year limited waranty.


• Specifications:

  • Physical
  • Color: White
  • Shipping Dimensions (hwd / in.): 7.20 x 6.50 x 2.20
  • Shipping Weight (lbs.): 0.90
  • Unit Dimensions (hwd / in.): 4.5 x 2.75 x 1
  • Unit Weight (lbs.): 0.5

    Communications
  • Max 1024 x 768 Range (ft): 1000
  • Max 480P Range (ft): 1000
  • Max 1440 x 900 Range (ft): 500
  • Max 1080i Range (ft): 500
  • Max 1080P Range (ft): 500
  • Max 1920 x 1440 Range (ft): 500
  • Max 480i Range (ft): 1000
  • Max 640 x 480 Range (ft): 1000
  • Max 800 x 600 Range (ft): 1000
  • Max 1600 x 1200 Range (ft): 500
  • Max 1920 x 1200 Range (ft): 500
  • Max 720P Range (ft): 500

    Connections
  • Ports: 1

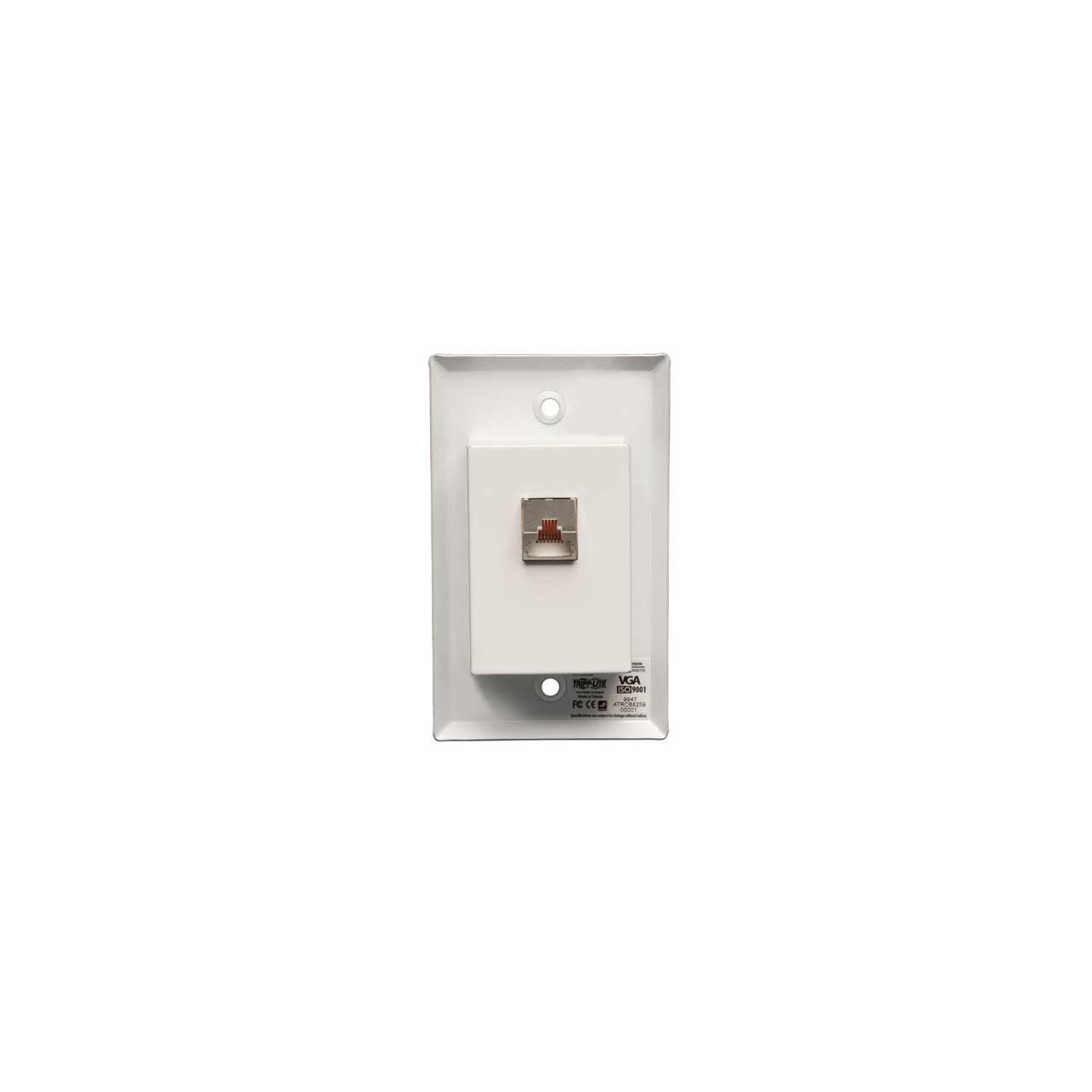

  • Side A - Connector 1: RJ45 (FEMALE)

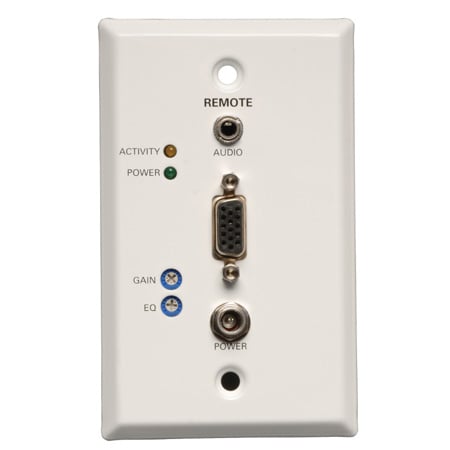

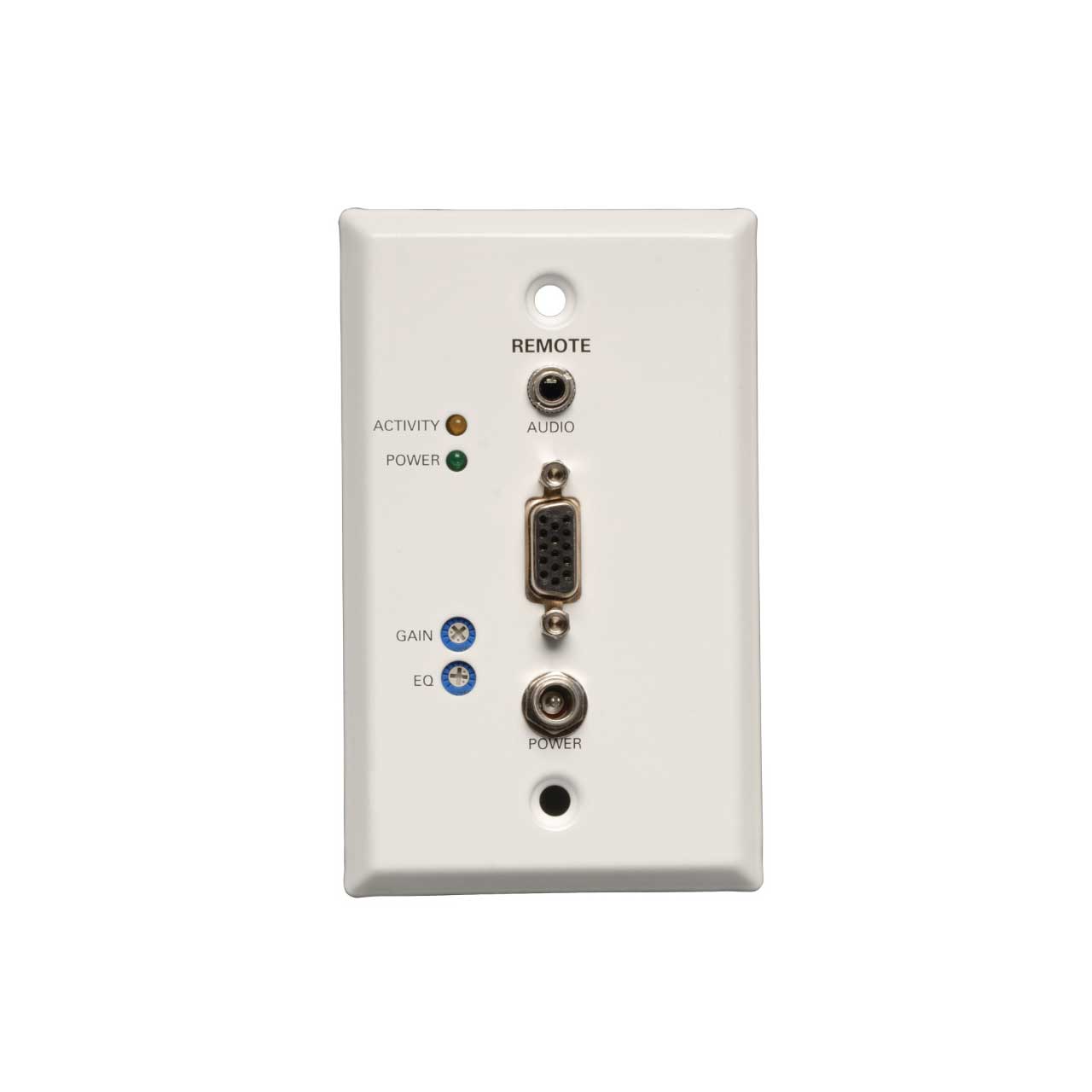

  • Side B - Connector 1: HD15 (FEMALE)
  • Side B - Connector 2: 3.5MM (FEMALE)

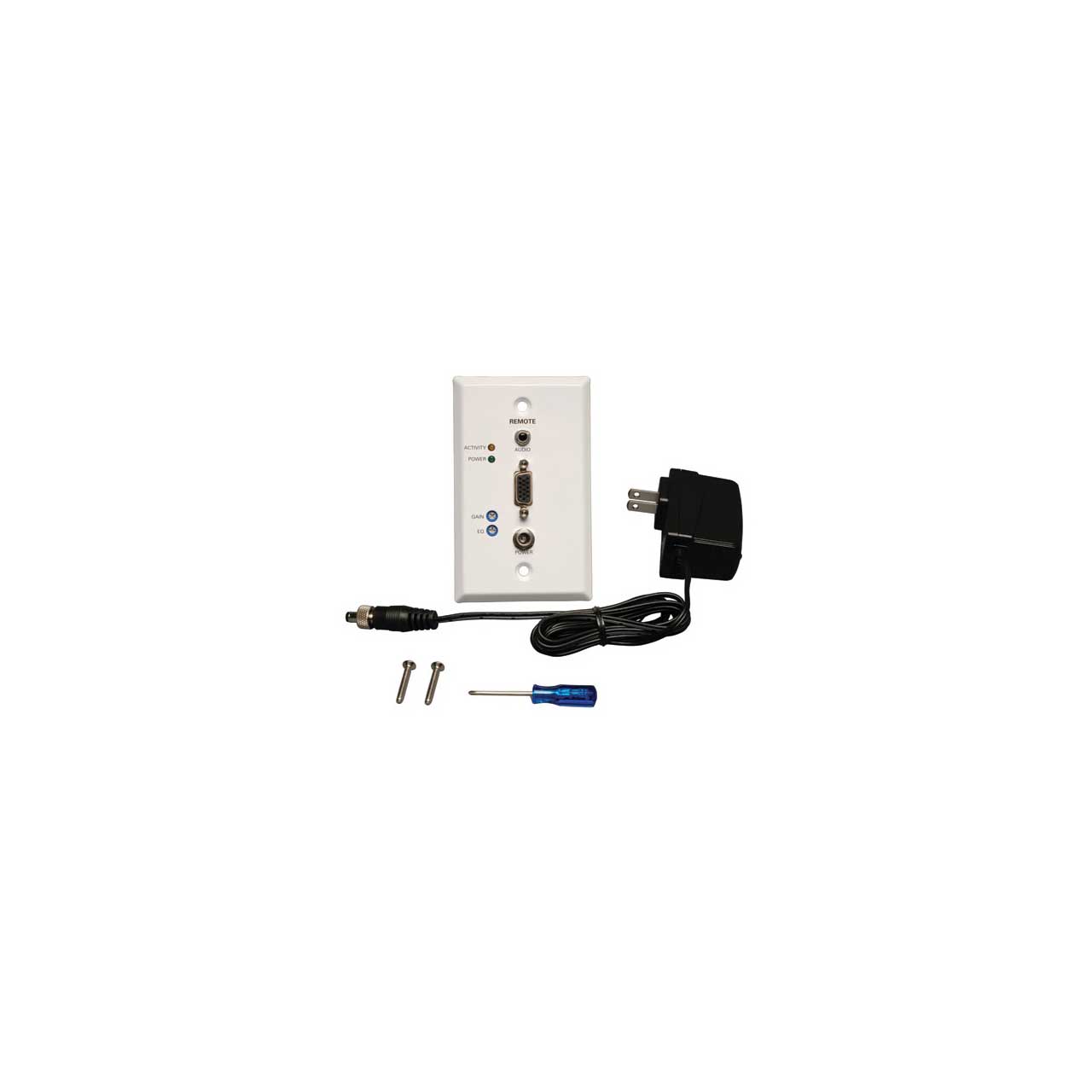

• Item Includes:

  • 1x Extender remote (Receiver) wallplate
  • 1x Mini-Screwdriver for EQ/Gain adjustment
  • 1x Wallplate screws
  • 1x External Power Supply with NEMA 1-15P Plug (Input: 100-240V, 50/60Hz, 0.5A; Output: 5V, 2A, 5 ft.)
  • 1x Owner's Manual


• Warranty:

  • 1 Year


• GTIN:

  0037332160096
