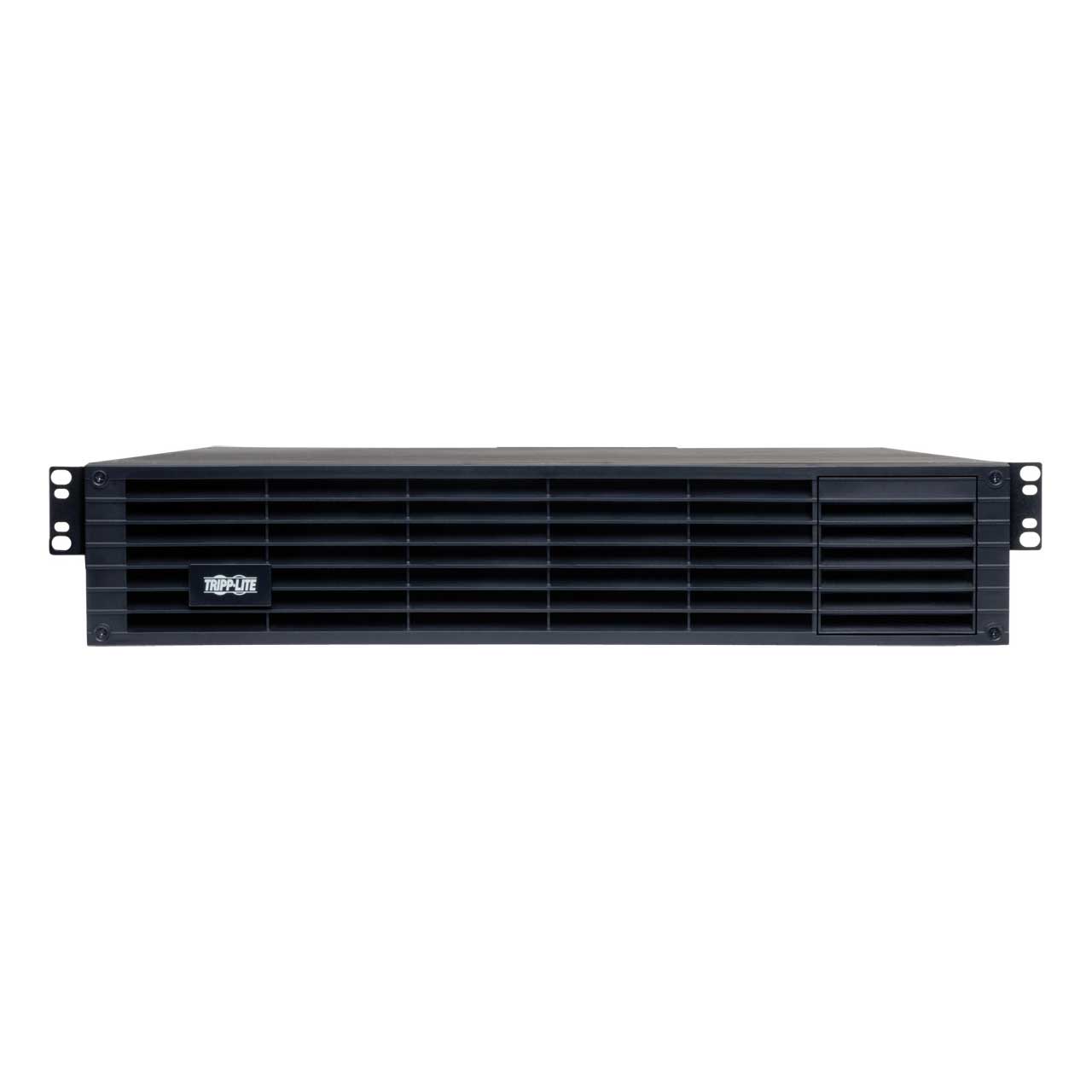

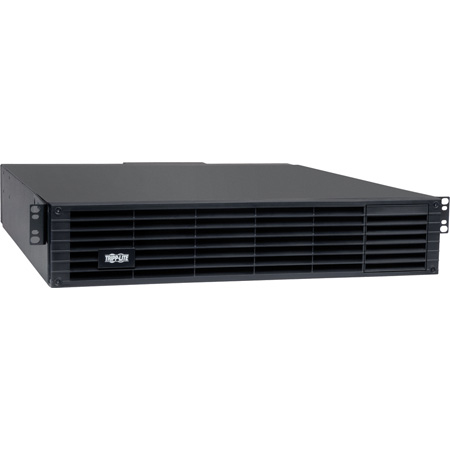

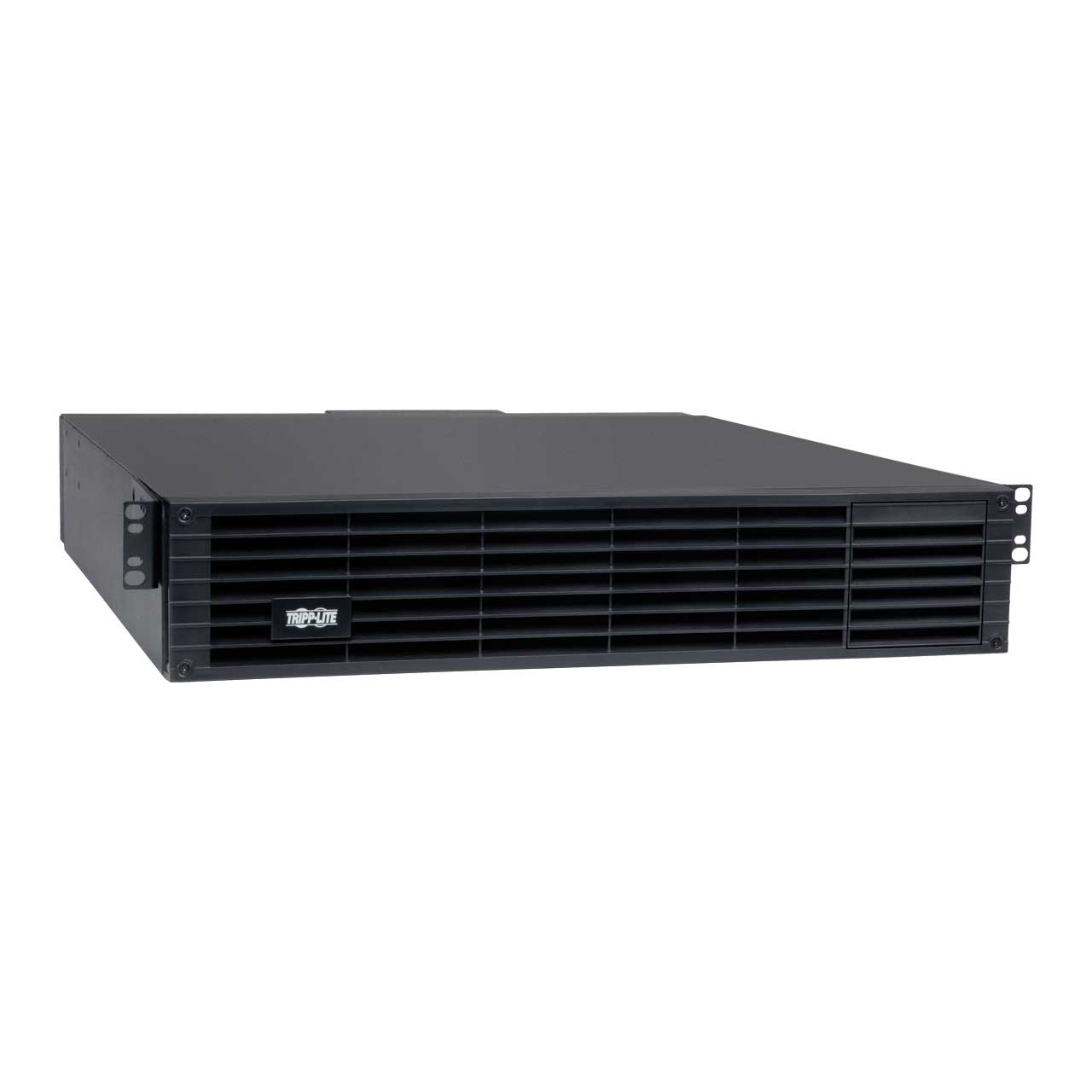

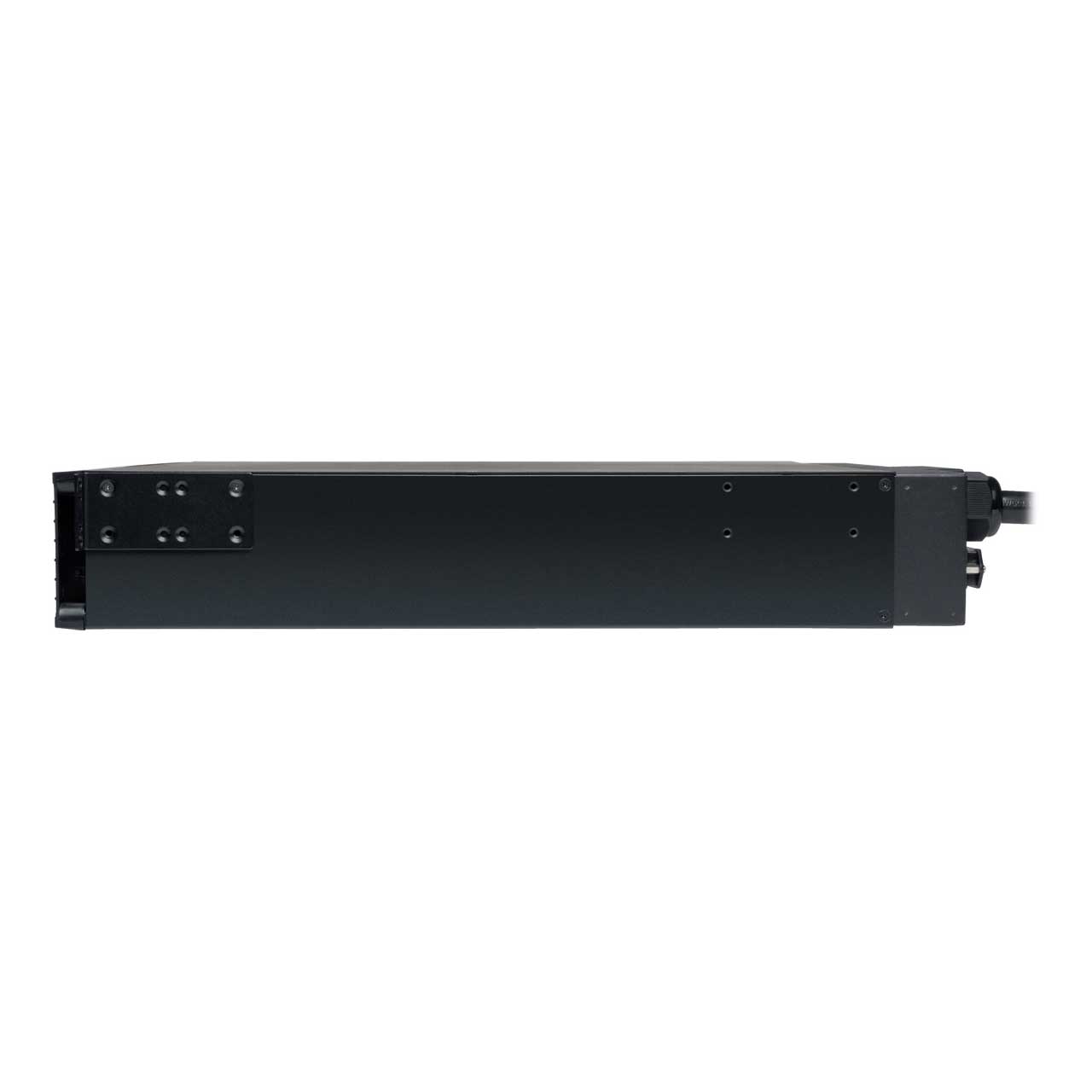

Tripp Lite BP48V27-2US 48VDC External Battery Pack Select AVR Online UPS Rack Tower 2U

ITEM #: TRL-BP48V27-2US MFG #: BP48V27-2US

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

List Price:

$1,639.88

Our Price:

$1,007.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
  • Shipped truck freight.


BP48V27-2US - Overview

Tripp Lite's BP48V27-2US rackmount external battery pack offers extended battery runtime when used in conjunction with expandable 48V Tripp Lite rackmount UPS systems. Includes heavy gauge cabling with high current DC connector for safe, simple installation. Included daisychain connector enables the connection of additional compatible 48V external battery packs to the host UPS. Included mounting accessories support 2U rackmount installation in 4 post racks. Options for 2-point front-rail mounting, 2 post center-mounting and wallmount installation available.

Compatible with these UPS Systems - SM2200RMDVTAA, SMART1500CRMXL, SMART2200CRMXL, SMART2200RMXL2U, SMART2200RMXL2UP, SMART2200RMXLN, SMART2200VSXL, SMART2600RM2U, SMART3000CRMXL, SMART3000RM2U, SMART3000RM2UN, SMART3000RMXL2U, SMART3000RMXLN, SMART3000VS, SMART5000RT3U, SMART5000XFMRXL, SMARTINT3000VS, SMX2200XLRT2U, SMX3000XLRT2UA, SMX5000XLRT3U, SU1500RTXL2UA, SU1500RTXLCD2U, SU2200RTXL2UA, SU2200RTXLCD2U and other Tripp Lite UPS systems that specify the use of this battery pack.

  • Features:

    • Offers extended-run UPS operation when used in conjunction with compatible 48V DC Tripp Lite UPS systems
    • Includes heavy gauge cabling with high current DC connectors for simple installation
    • Daisychain connector enables the connection of additional compatible 48V external battery packs to the host UPS
    • Included mounting brackets support rackmount installation in 4 post racks using only 2 rack spaces (2U)
    • Set of optional-use detection jacks automatically configure host UPS systems supporting this feature for one or more external battery packs
    • UPDHDEARKIT option supports 2 point front-rail rackmount installation without rear supports
    • 2POSTRMKITWM option supports balanced 2 point center-mounting in 2 post equipment racks
    • 2POSTRMKITWM option also enables wallmount installation

  • Specifications:

    • Overview
    • UPC Code:037332181404

      Input
    • Input Phase:Single-Phase

      Battery
    • DC System Voltage (VDC):48
    • UPS Connection:Attached cable with blue 2-point DC connector
    • Typical Battery Lifespan:4-6 years typical (North America)

      Physical
    • Installation Form Factors Supported with Included Accessories:4 post 19 inch rackmount
    • Installation Form Factors Supported with Optional Accessories:2 post rackmount (2POSTRMKITWM); Wallmount (2POSTRMKITWM); 2-4 post front rail rackmount (UPSHDEARKIT)
    • Minimum Required Rack Depth (inches):29.6
    • Shipping Dimensions (hwd / in.):9.67 x 26.42 x 28.27
    • Shipping Weight (lbs.):124.00
    • Unit Dimensions (hwd / in.):3.4 x 17.3 x 22.6
    • Unit Weight (lbs.):88.1
    • External Battery Pack Form Factor:Rack/Tower

  • Item Includes:

    • BP48V27-2US external battery pack with attached DC cabling

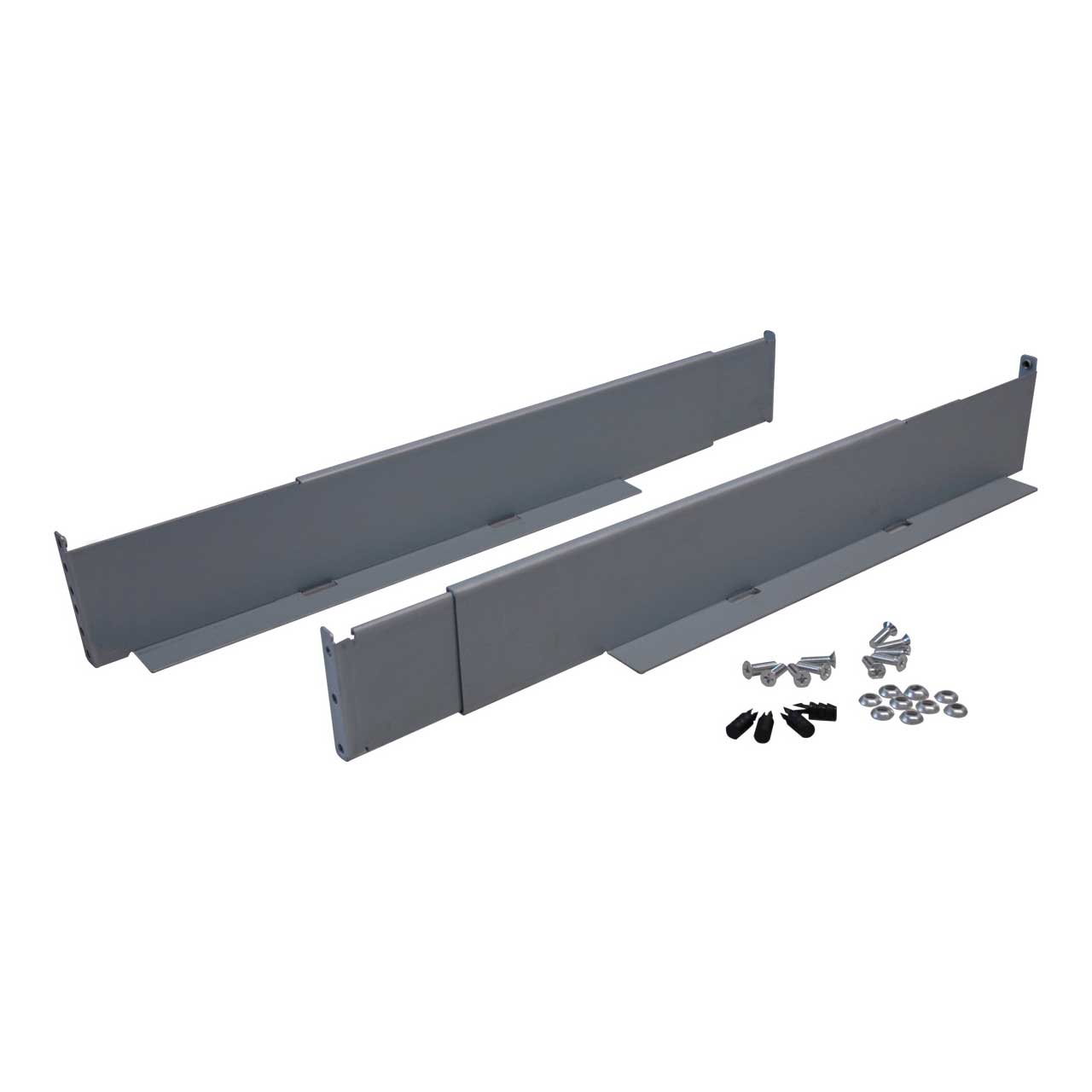

    • 4 post compatible mounting hardware
    • Owner's manual

  • Warranty:

    • 2-year limited warranty

  • GTIN:

    0037332181404
