Tripp Lite SMART5000XFMRXL 5000VA 3750W UPS Smart Rackmount AVR 120V/208V 5kVA USB DB9 3URM

ITEM #: TRL-SM5000XFMRXL MFG #: SMART5000XFMRXL

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

List Price:

$6,136.42

Our Price:

$3,788.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
  • Shipped truck freight.


SMART5000XFMRXL - Overview

Tripp Lite 5kVA Smart RM UPS. 5000VA line-interactive UPS for server, network and telecommunications equipment. UPS with internal batteries requires 3 rack spaces installed. Accepts 208V nominal input voltage. Simultaneous 208 & 120V output. Corrects brownouts and overvoltages from 167V to 260V. Sine wave output. Maintains battery-derived AC output during blackouts and severe voltage fluctuations. Expandable runtime with optional external battery packs. 11 output receptacles. NEMA L6-30P input connection with support for user-supplied 50A or hardwire input. Network-grade AC surge and noise suppression. Network management interfaces include USB, DB9 serial and SNMPWEBCARD slot. Supports simultaneous detailed monitoring of equipment load levels, self-test data and utility power conditions via all network interfaces simultaneously. Includes PowerAlert monitoring software and complete cabling. Emergency Power Off (EPO) interface. Integrated 8-bank switched PDU. 3-stage metered current monitoring and battery charge LEDs. Utility power and voltage regulation LEDs. Audible alarm. Self-test. 4-post rack mounting accessories included; 2-9USTAND and 2POSTRMKITWM accessories available. Field-replaceable, hot-swappable internal batteries and battery packs.

  • Features:

    • 5000VA/3750 watt max. output power capacity compatible with North American 208V/60Hz input voltage
    • Supports full output at either 208V or 120V
    • 3U rack/tower UPS installs in standard 19 inch rack enclosures with an installed depth of only 25 inches / 63.5cm
    • Protects sensitive networking equipment from blackouts, voltage fluctuations and transient surges

  • Specifications:

    • 5000VA/3750 watt max. output power capacity compatible with North American 208V/60Hz input voltage
    • Supports full output at either 208V or 120V
    • 3U rack/tower UPS installs in standard 19 inch rack enclosures with an installed depth of only 25 inches / 63.5cm
    • Protects sensitive networking equipment from blackouts, voltage fluctuations and transient surges
    • Line Interactive Automatic Voltage Regulation (AVR) corrects 208V nominal input from 167 to 260VAC back to usable 208/120V levels without consuming battery power
    • AVR circuits boost undervoltages by 12% and reduce overvoltages by 12%
    • Network interfaces support simultaneous communications via USB, DB9 serial and SNMPWEBCARD slot
    • Included PowerAlert UPS monitoring software supports safe unattended shutdown, monitoring and control via local connected servers, plus any number of additional servers over IP
    • Communications ports support on-battery, low-battery, power-restored, AC-voltage, DC-voltage, output current monitoring, battery charge current, battery capacity, internal UPS temperature, AC line frequency, timed inverter shutoff, activate self-test and load bank output power control
    • Built-in Emergency Power Off (EPO) interface with cable
    • Sine wave output in AC and battery mode
    • Expandable runtime with optional BP48V24-2U (limit 1), BP48V60RT-3U (multi-pack compatible) and BP48V27-2US (multi-pack compatible) external battery packs
    • Half/full load runtime of 20/8.5 minutes with internal batteries
    • Includes 11 output receptacles (2 L6-20, 1 L6-30 & 8 NEMA 5-15/20R)

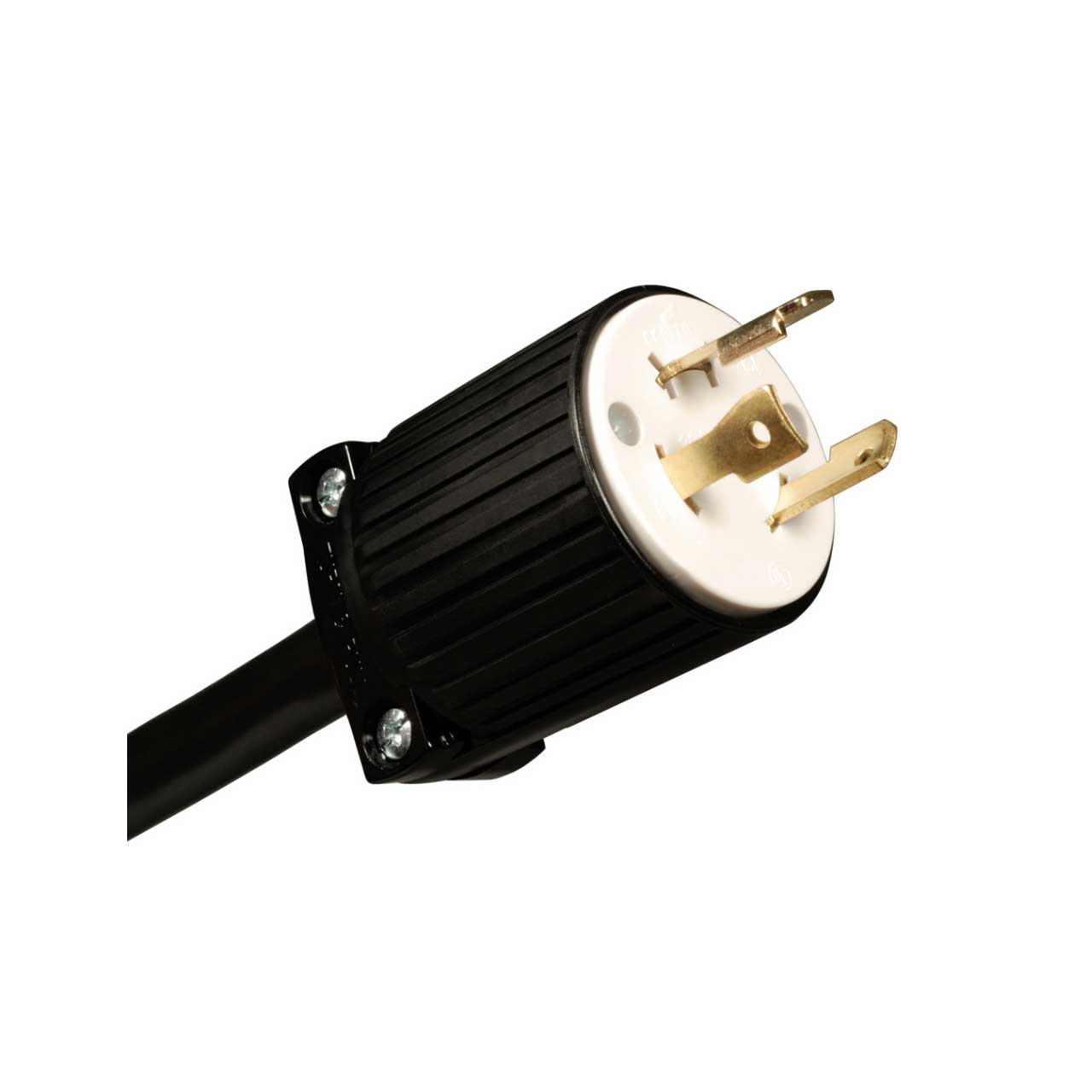

    • Ships with installed L6-30P input plug, supports user supplied 50A replacement plug or hardwire input
    • Integrated 8 bank switched PDU enables remote outlet management for load shedding or remote reboot of individual devices

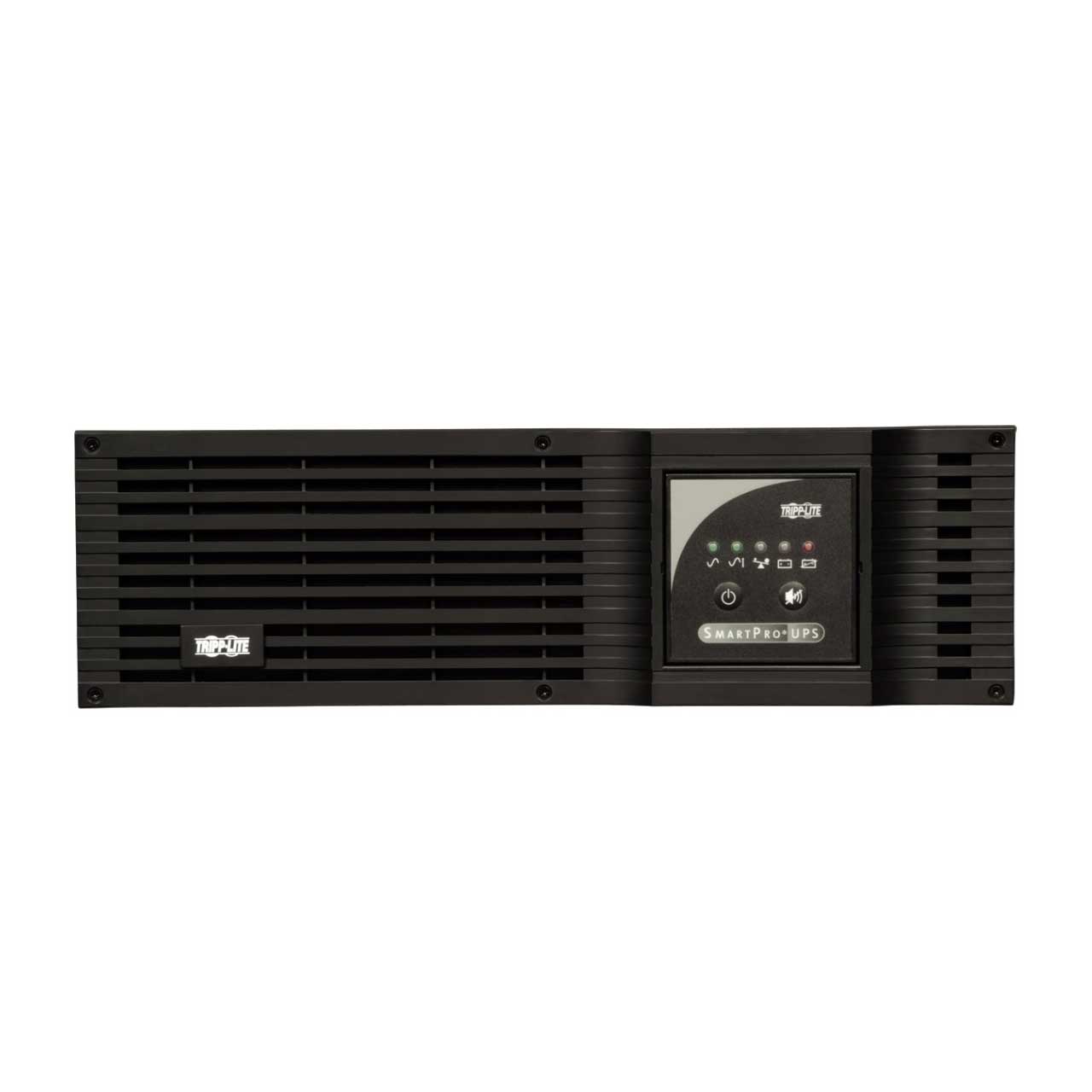

    • 3 stage metered LEDs offer current monitoring and battery charge level
    • Mains power and voltage regulation LEDs offer at-a-glance power status information
    • Front panel switches support self-test and alarm cancel functions

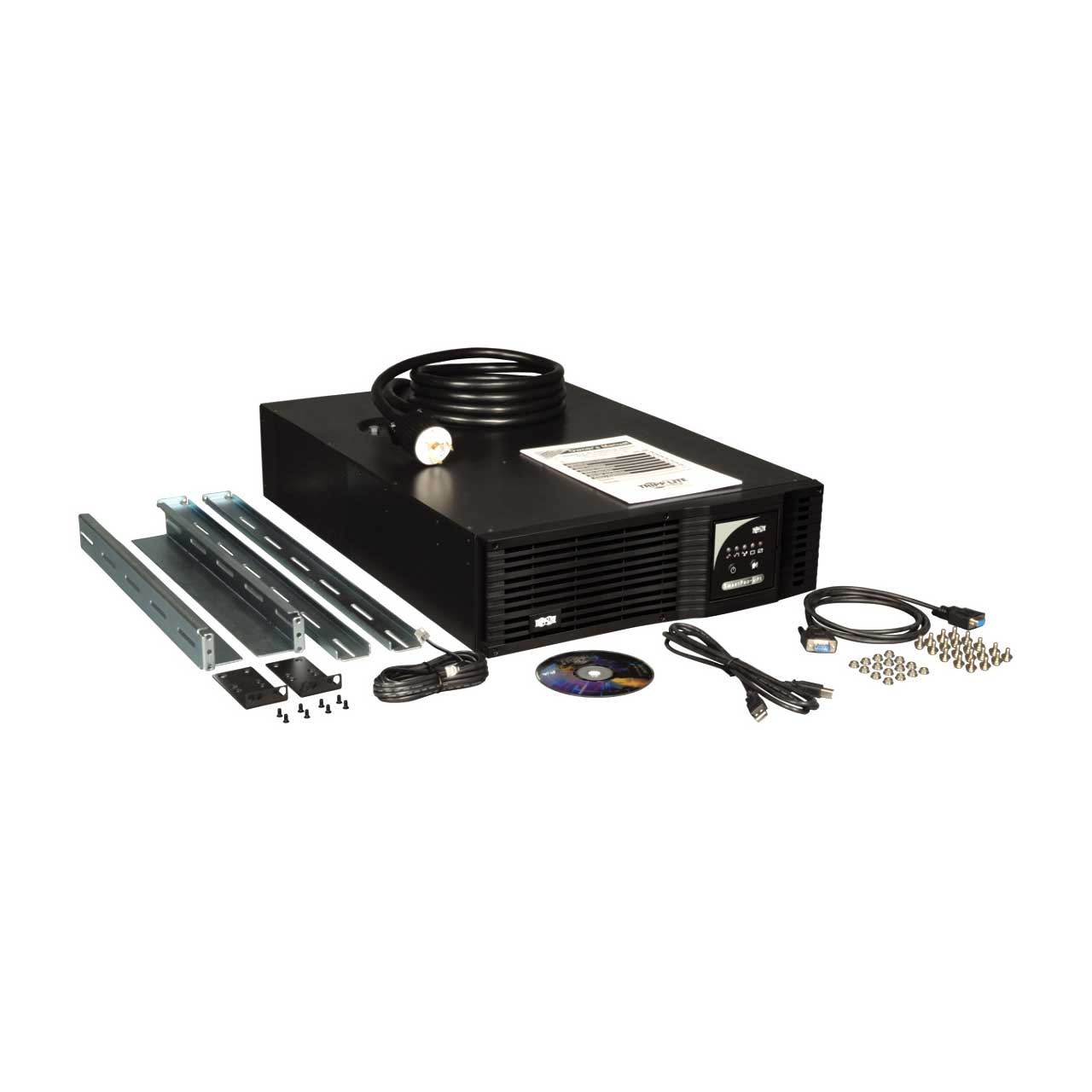

    • Included adjustable mounting rails support installation in 4 post 19 inch racks
    • UPS ships fully assembled in full compliance with DOT regulations, no time consuming connection of internal batteries by user is required
    • Supports 2 post rackmount installation with optional 2POSTRMKIT accessory
    • Supports upright tower placement with optional 2-9USTAND accessory

  • GTIN:

    0037332121462
