    SMART2200RM2 - Overview

    Tripp Lite SmartPro Line Interactive UPS with enhanced LCD interface offers network-grade power protection for critical server, network and telecommunications equipment. Line Interactive Uninterruptible Power Supply (UPS) with built-in Auto-Voltage Regulation (AVR) actively corrects brownouts and overvoltages back to usable levels while maintaining a full battery charge in case of power failure. Tripp Lite's unique configuration excels in exceptionally poor-power environments with two separate levels of voltage boost to correct both slight undervoltages and severe brownout conditions. Interactive LCD interface reports UPS operating mode, detailed UPS and site-power data, plus enables a variety of UPS setup and configuration options. Super-fast switchover from line to battery power occurs within milliseconds to maintain operation of connected equipment without interruption or reboot. 96% line-mode efficiency offers reduced heat emissions and operating costs. Network management interfaces support communications via USB, RS-232 and optional SNMPWEBCARD network interface. HID-compliant USB interface enables integration with built-in power management and auto shutdown features of Windows and Mac OS X. Network communications ports enable detailed monitoring of equipment load levels, self-test data and utility power conditions. Includes PowerAlert monitoring software and complete cabling. Switched output load banks enable scheduled and real-time remote reboot and load shedding of select outlets. Emergency Power Off (EPO) interface. LCD display panel easily rotates for viewing in rackmount or tower configurations. Audible alarm with push-button momentary alarm-cancel and silent-mode configuration options. Programmable self-test. Field-replaceable, hot-swappable battery modules.

    • Features:

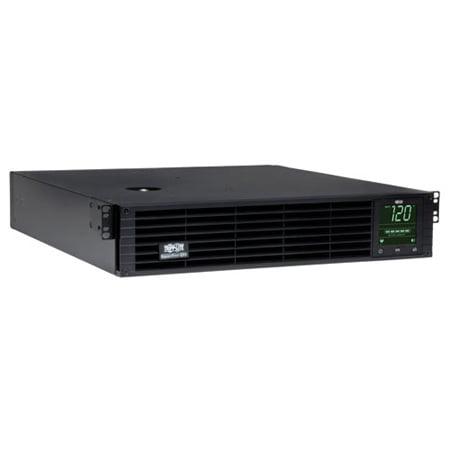

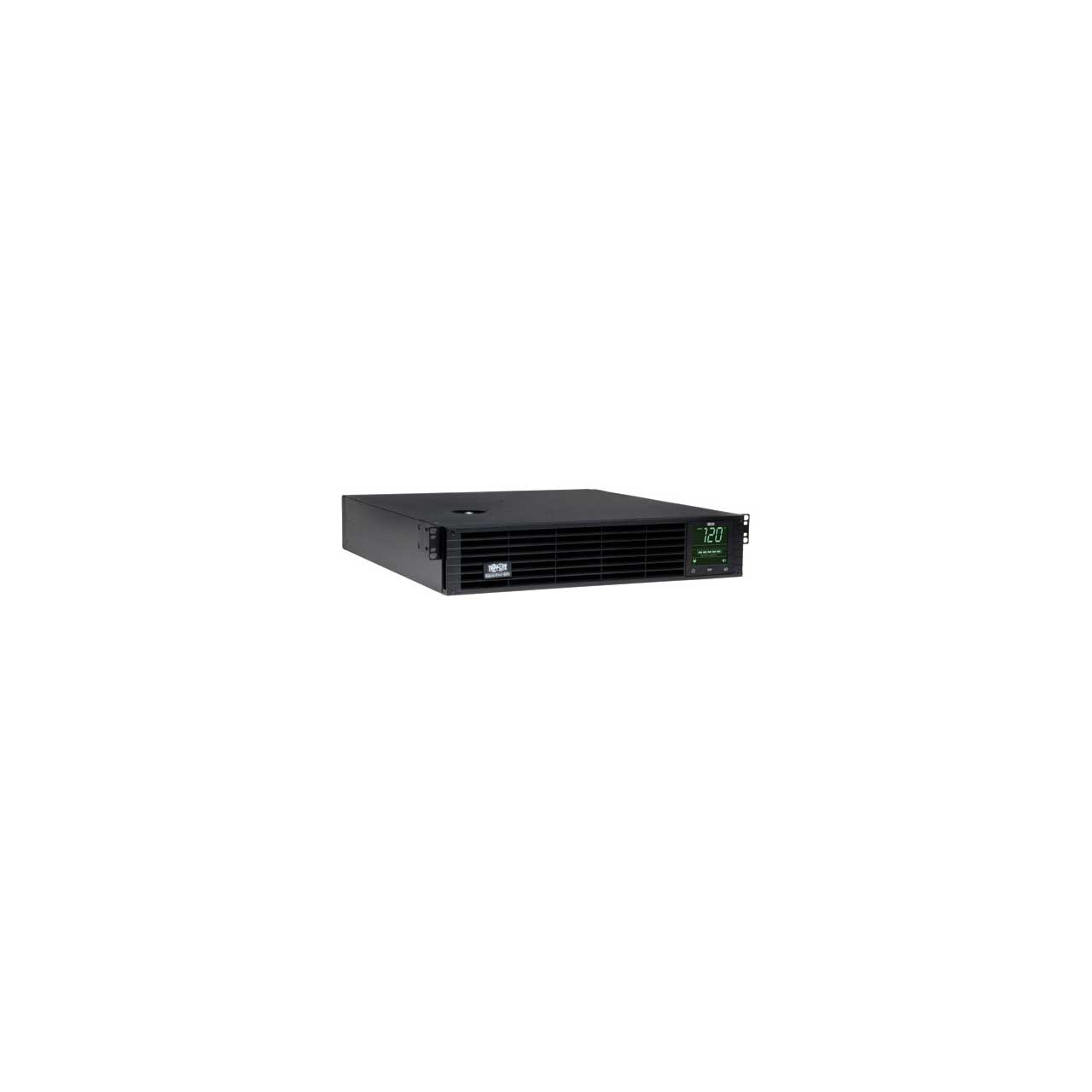

      • Tripp Lite SMART2200RM2U line interactive 2U rack/tower UPS with 2200VA / 2.2kVA / 1920W capacity
      • Line interactive UPS with Automatic Voltage Regulation (AVR) corrects brownouts and overvoltages from 83 to 145V

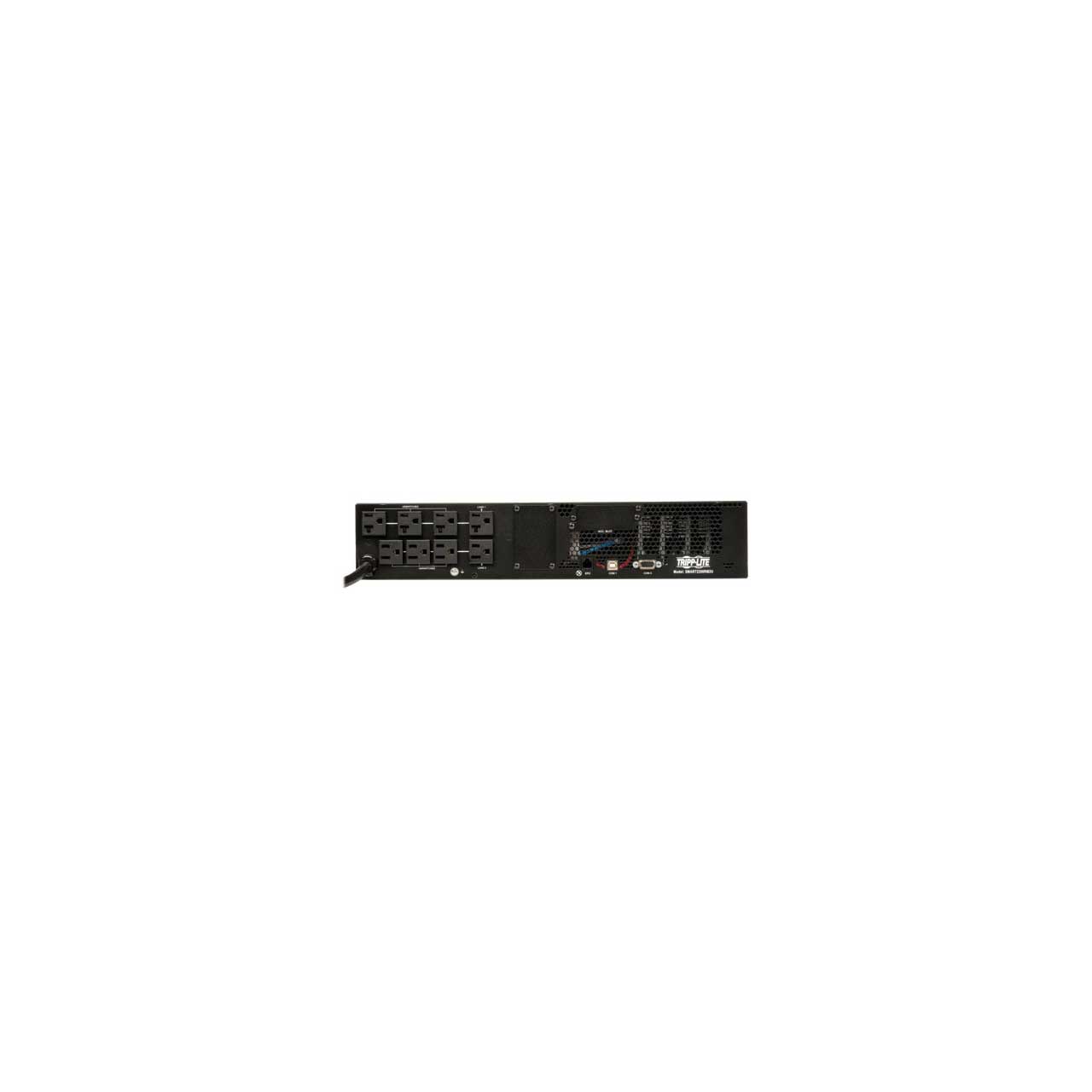

      • NEMA 5-20P input plug; 4 NEMA 5-15R & 4 NEMA 5-15/20R output receptacles, Two independently switchable output load banks
      • Maintains uninterrupted operation of connected networking equipment during blackouts, surges, brownouts and overvoltages
      • High 96% efficiency rating in line-power mode offers reduced power consumption and BTU emisssions
      • Internal batteries offer 12 minutes at 50% load (960W) and 4.5 minutes at 100% load (1920W)
      • Hot-swappable, user-replaceable internal batteries can be replaced with no disruption to connected equipment
      • Front panel LCD monitoring screen with MODE and ENTER buttons reports operating mode with 5-bar battery charge graphic, plus 7 selectable screens of detailed UPS and site power information
      • LCD interface also supports a number of advanced user setup and operating preferences
      • Ships with 4 post rackmount installation hardware; Optional 2POSTRMKITWM enables 2 post rackmount/wallmount installation; Optional 2-9USTAND enables tower placement
      • Built-in USB, RS-232 and optional SNMPWEBCARD accessory monitoring options
      • HID-compliant USB interface enables integration with built-in power management and auto shutdown features of Windows and Mac OS X
      • Included PowerAlert UPS monitoring software; Built-in Emergency Power Off (EPO) interface with cable

    • Specifications:

      • OUTPUT
      • Output Volt Amp Capacity (VA): 2200
      • Output kVA capacity (kVA): 2.2
      • Output Watt Capacity (watts): 1920
      • Output kW capacity: 1.92
      • Nominal Output Voltage(s) Supported: 120V
      • Frequency compatibility: 60 Hz
      • Output voltage regulation (line mode): -14%, +6%
      • Output voltage regulation (Battery mode): +/- 5%
      • Built-in UPS output receptacles: 4 5-15R outlet(s); 4 5-15/20R outlet(s)
      • Built-in controllable switched load banks: Two switchable single-outlet load banks
      • Output AC waveform (AC mode): Pure Sine wave
      • Output AC waveform (battery mode): Pure Sine wave

      • INPUT
      • Rated input current (at maximum load): 16A (120V)
      • Nominal Input Voltage(s) Supported: 120V AC
      • UPS input connection type: 5-20P
      • Input circuit breaker: 20A
      • UPS Input cord length (ft.): 10
      • UPS Input cord length (m): 3
      • Recommended Electrical Service: 20A 120V
      • Phase: Single-Phase

    • GTIN:

      0037332150622
