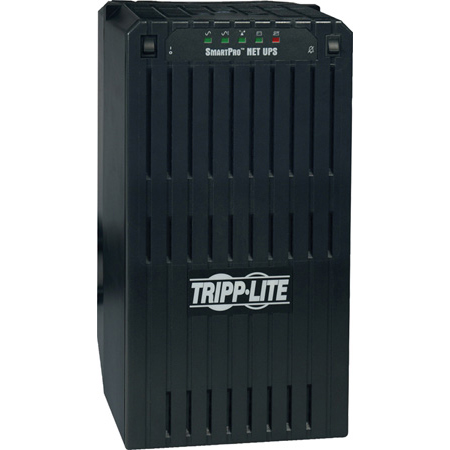

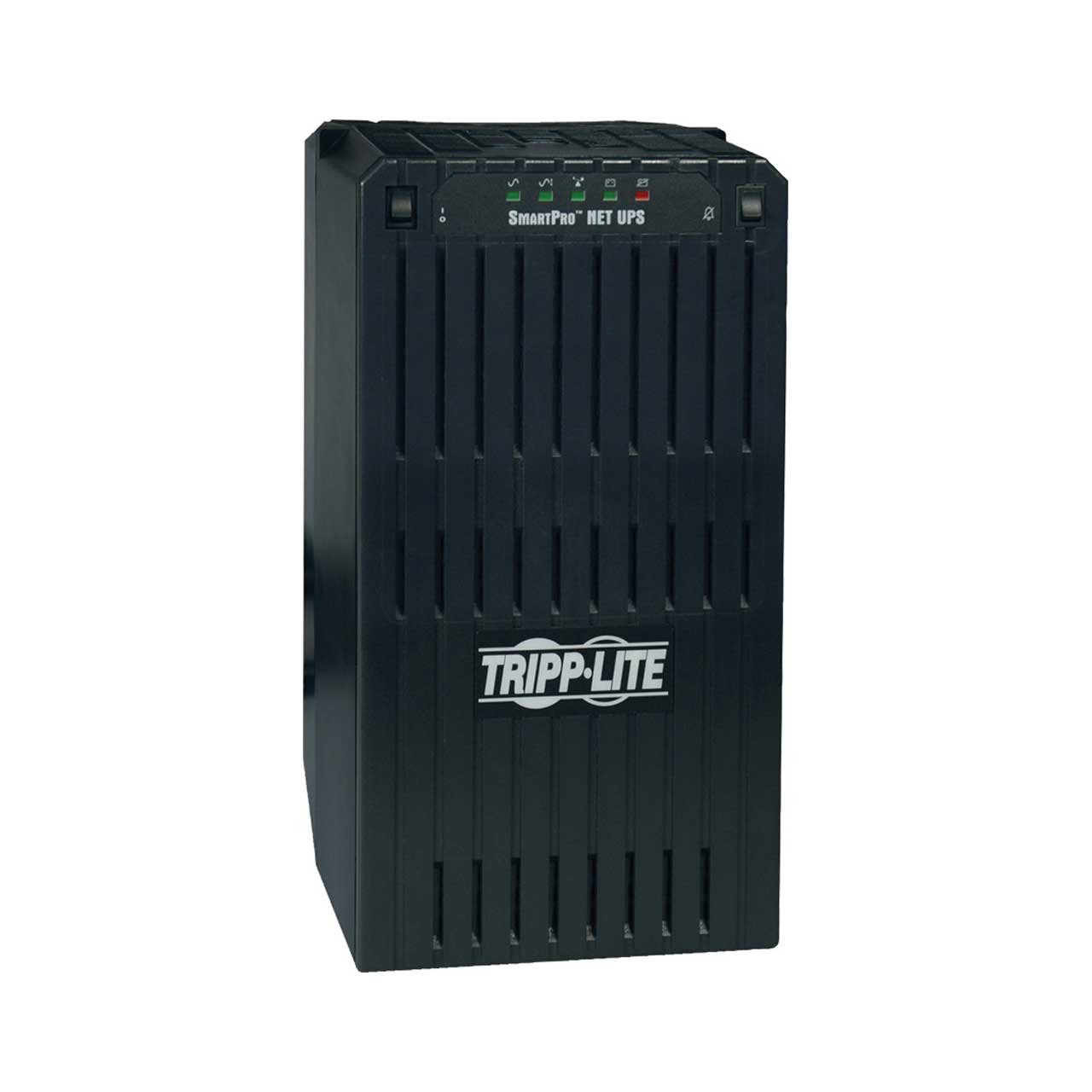

Tripp Lite SMART 3000NET 3000VA 2400W UPS Smart Tower AVR 120V XL DB9 for Servers

SMART 3000NET - Overview

• Features:

  • 3kVA / 3000VA / 2400W line interactive, extended-run tower UPS
  • 120V output, Corrects brownouts and overvoltages from 87V to 140V
  • 3 DB9 ports (1 RS232 / 2 contact-closure)
  • Front panel status LEDs with load and battery capacity display
  • 2 independently switchable output load banks

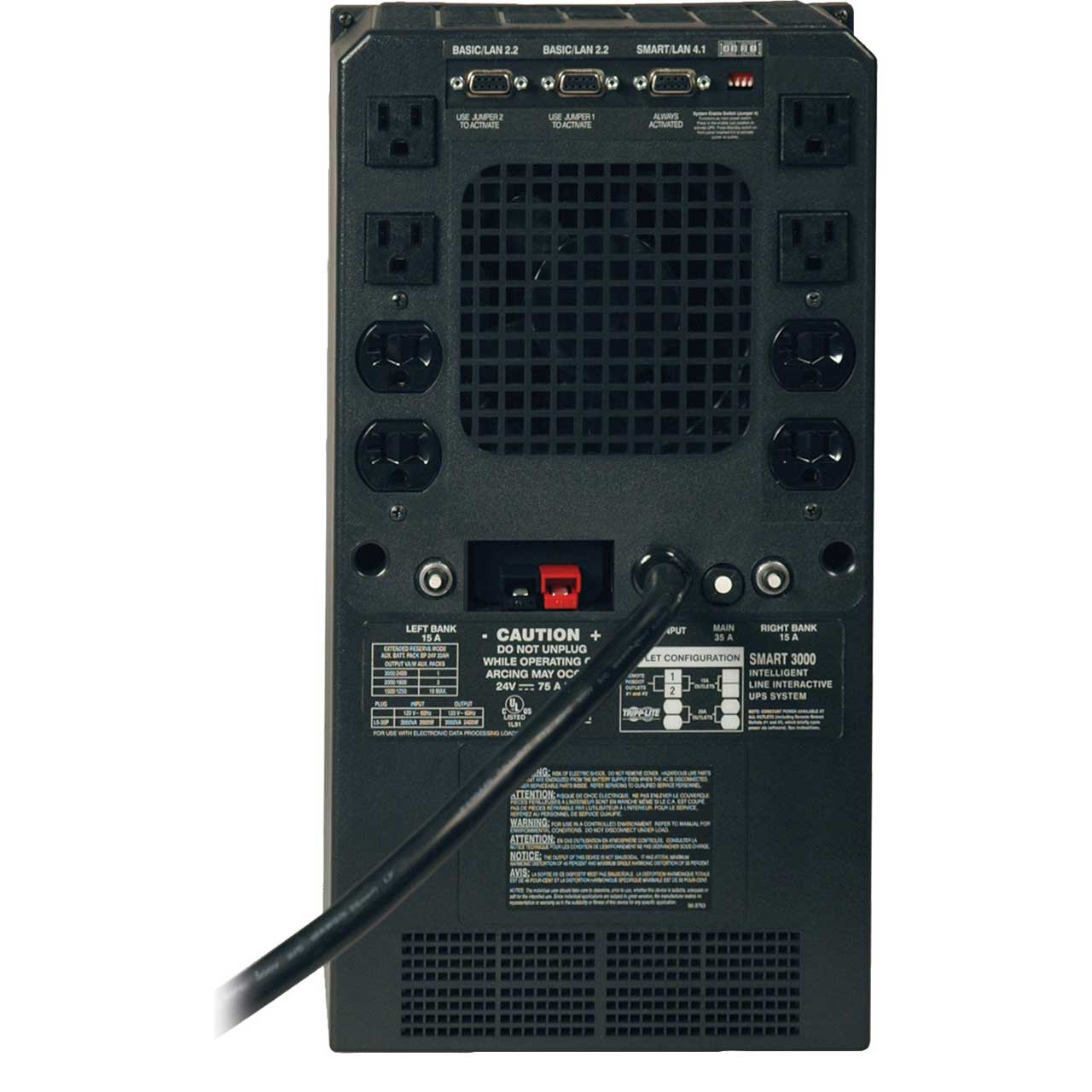

  • NEMA L5-30P input; 4 NEMA 5-15/20R & 4 NEMA 5-15R outlets
  • SMART 3000NET line interactive UPS offers battery derived AC output during power outages, voltage regulation during brownouts and overvoltages, plus network-grade AC surge suppression
  • 3000VA/2400 watt power handling capability supports a variety of networking, telecom and other sensitive electronic devices
  • Large internal batteries offer runtimes of 23 minutes at half load (1500VA/1200 watts) and 7 minutes at full load (3000VA/2400 watts)
  • Runtime is further expandable with optional external BP24V28-2U (limit 1) and BP24V70-3U (multi-pack compatible) battery packs
  • Intelligent battery management system extends battery life
  • Automatic Voltage Regulation (AVR) circuits maintain 120V nominal output over an input voltage range of 87-140V
  • Includes 8 fully protected outlets (4 NEMA 5-15R & 4 NEMA 5-15/20R) with 2 single outlet load banks that can be individually powered off and back on again via software interface
  • PowerAlert UPS monitoring and unattended shutdown software enables configurable network broadcast messaging, email notification, event logging and running user defined script commands
  • Offers simultaneous monitoring of up to 3 directly connected devices through included DB9 contact closure and RS-232 enabled interfaces, or the monitoring of any number of additional servers over IP with included PowerAlert monitoring software
  • In addition to the contact closure monitoring of on battery, low battery and power restored messaging, built-in RS-232 interface supports messaging of UPS and line power status, including AC line voltage, DC battery voltage and remaining battery capacity
  • Supports activate self-test and UPS output power control for delayed or immediate reboot of connected equipment
  • Diagnostic LEDs (indicate 17 performance conditions)


• Specifications:

  • OUTPUT
  • Output Volt Amp Capacity (VA) 3000
  • Output kVA Capacity (kVA) 3
  • Output Watt Capacity (Watts) 2400
  • Output kW Capacity (kW) 2.4
  • Output Capacity Details 1600W max with 1 external battery pack; 1200W max with 2 or more external battery packs
  • Power Factor 0.8
  • Nominal Output Voltage(s) Supported 120V
  • Frequency Compatibility 60 Hz
  • Output Voltage Regulation (Line Mode) -13% / +5%
  • Output Voltage Regulation (Battery Mode) +/- 5%
  • Output Receptacles (4) 5-15R; (4) 5-15/20R
  • Load Management Receptacles Two switchable single-outlet 5-15R load banks
  • Output Circuit Breakers 15A branch rated (x2) - each breaker protects 4 outlets
  • Output AC Waveform (AC Mode) Sine wave
  • Output AC Waveform (Battery Mode) PWM sine wave
  • INPUT
  • Rated input current (Maximum Load) 22A
  • Nominal Input Voltage(s) Supported 120V AC
  • UPS Input Connection Type L5-30P
  • UPS Input Cord Length (ft.) 8
  • Recommended Electrical Service 30A 120V
  • Input Phase Single-Phase


• GTIN:

  0037332032065
