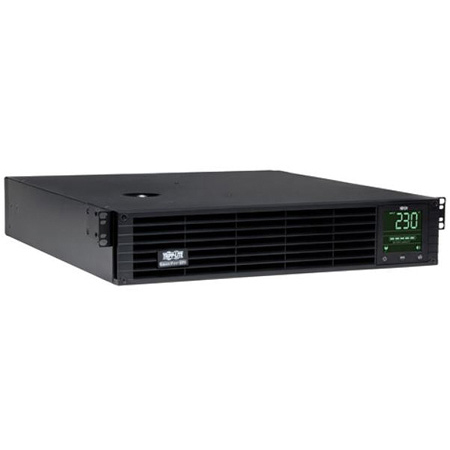

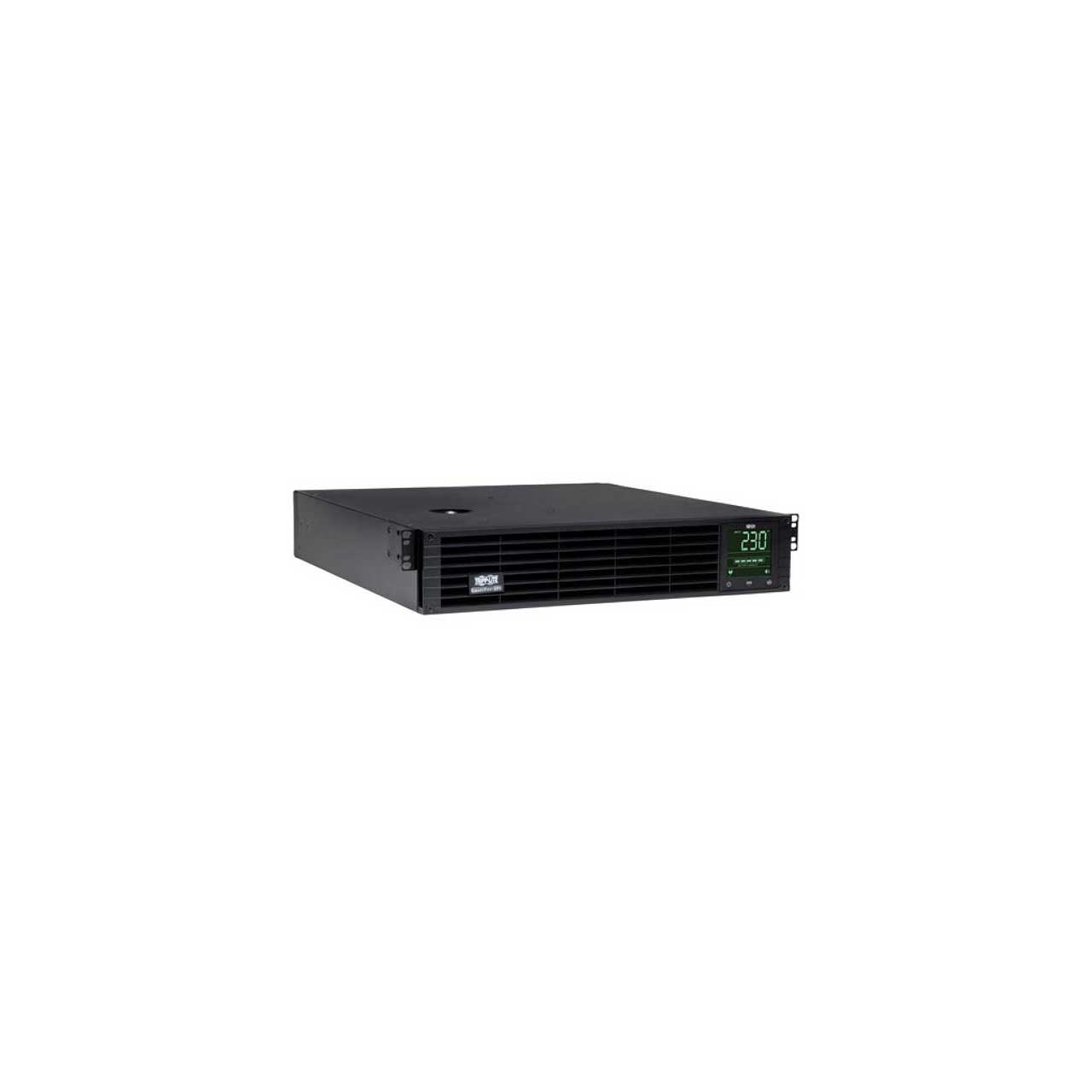

Tripp Lite SMX3000XLRT2UA SmartPro 3kVA 2700W Line Interactive Sine Wave UPS - 2U Rack/Tower - LCD - USB - RS232

ITEM #: TRL-SMX3000XLRT2 MFG #: SMX3000XLRT2UA

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
Free Shipping with $49 Minimum Order

List Price:

$2,936.00

Our Price:

$1,748.57

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
  • Shipped truck freight.


SMX3000XLRT2UA - Overview

Tripp Lite SmartPro Line Interactive UPS with enhanced LCD interface offers network-grade power protection for critical server, network and telecommunications equipment. Line Interactive Uninterruptible Power Supply (UPS) with built-in Auto-Voltage Regulation (AVR) actively corrects brownouts and overvoltages back to usable levels while maintaining a full battery charge in case of power failure. Tripp Lite's unique configuration excels in exceptionally poor-power environments with two separate levels of voltage boost to correct both slight undervoltages and severe brownout conditions. Interactive LCD interface reports UPS operating mode, detailed UPS and site-power data, plus enables a variety of UPS setup and configuration options. Super-fast switchover from line to battery power occurs within milliseconds to maintain operation of connected equipment without interruption or reboot. 98% line-mode efficiency offers reduced heat emissions and operating costs. Network management interfaces support communications via USB, RS-232 and optional SNMPWEBCARD network interface. HID-compliant USB interface enables integration with built-in power management and auto shutdown features of Windows and Mac OS X. Network communications ports enable detailed monitoring of equipment load levels, self-test data and utility power conditions. Includes PowerAlert monitoring software and complete cabling. Switched output load banks enable scheduled and real-time remote reboot and load shedding of select outlets. Emergency Power Off (EPO) interface. LCD display panel easily rotates for viewing in rackmount or tower configurations. Audible alarm with push-button momentary alarm-cancel and silent-mode configuration options. Programmable self-test. Field-replaceable, hot-swappable battery modules.

  • Features:

    • Tripp Lite SMX3000XLRT2UA line interactive 2U rack/tower UPS with 3000VA / 3kVA capacity and extended runtime options
    • Line interactive UPS with Automatic Voltage Regulation (AVR) corrects brownouts and overvoltages from 158 to 278V
    • C20 AC power inlet; 8 C13 and 1 C19 output receptacles, Two independently switchable output load banks
    • Maintains uninterrupted operation of connected networking equipment during blackouts, surges, brownouts and overvoltages
    • High 98% efficiency rating in line-power mode offers reduced power consumption and BTU emisssions
    • Internal batteries offer 11.1 minutes at 50% load (1350W) and 3.9 minutes at 100% load (2700W)
    • Extended runtime is available with optional external battery packs BP48V24-2U (limit 1), BP48V60RT-3U (multi-pack compatible) and BP48V27-2US (multi-pack compatible)
    • External battery configurations require the use of Tripp Lite's External Battery Configuration Software (see manual)
    • Hot-swappable, user-replaceable internal batteries and external battery packs can be replaced with no disruption to connected equipment
    • Intelligent battery management system extends battery life

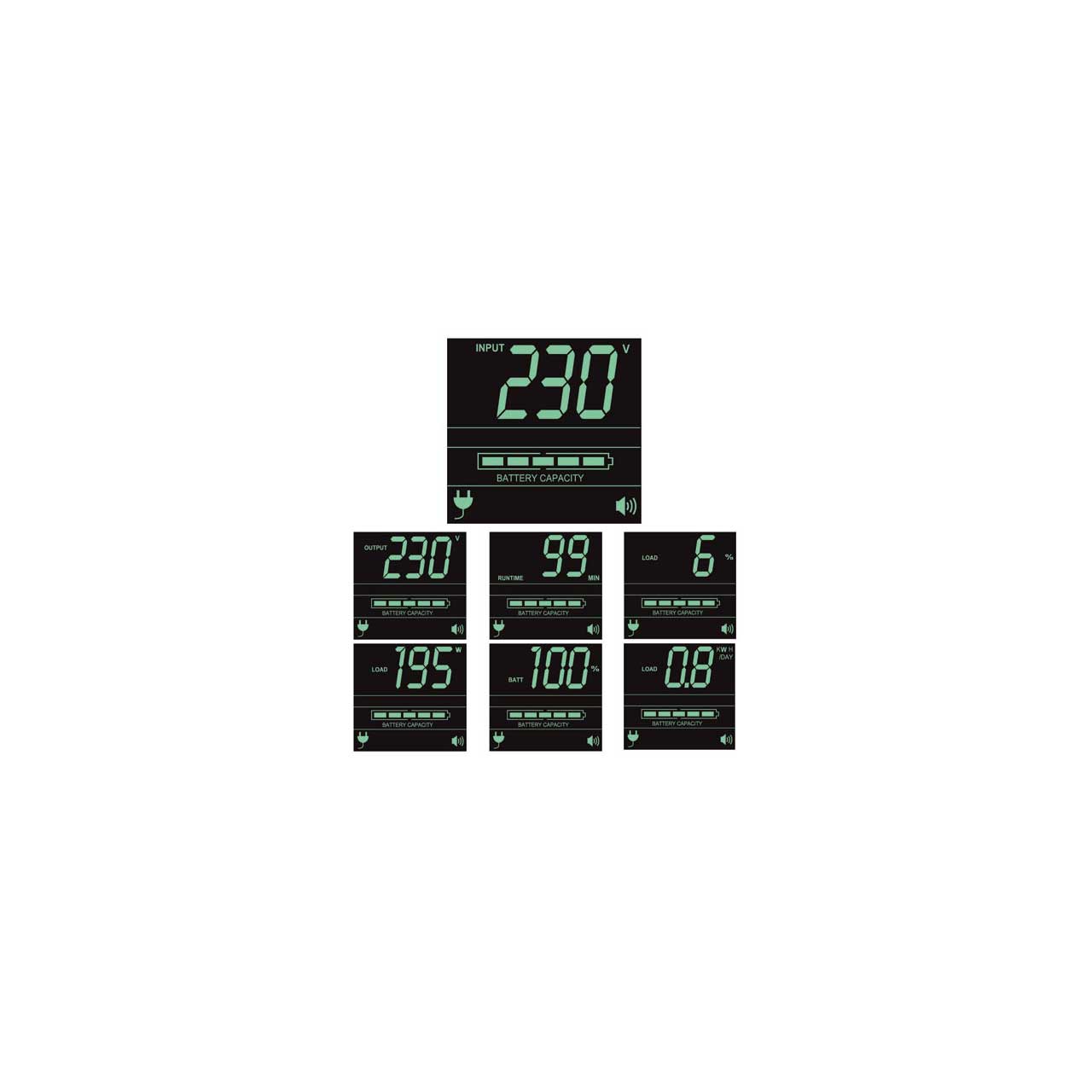

    • Front panel LCD monitoring screen with MODE and ENTER buttons reports operating mode with 5-bar battery charge graphic, plus 7 selectable screens of detailed UPS and site power information
    • LCD interface also supports a number of advanced user setup and operating preferences?Ships with 4 post rackmount installation hardware; Optional 2POSTRMKITWM enables 2 post rackmount/wallmount installation; Optional 2-9USTAND enables tower placement
    • Built-in USB, RS-232 and optional SNMPWEBCARD accessory monitoring options?HID-compliant USB interface enables integration with built-in power management and auto shutdown features of Windows and Mac OS X
    • Included PowerAlert UPS monitoring software; Built-in Emergency Power Off (EPO) interface with cable

  • Specifications:

    • Output
    • Output Volt Amp Capacity (VA): 3000
    • Output kVA Capacity (kVA): 3
    • Output Watt Capacity (Watts): 2700
    • Output kW Capacity (kW): 2.7
    • Power Factor: .9
    • Nominal Output Voltage(s) Supported: 220V; 230V; 240V
    • Nominal Voltage Details: 230v nominal inverter output voltage
    • Frequency Compatibility: 50 / 60 Hz
    • Output Voltage Regulation (Line Mode): +6%, -15%
    • Output Voltage Regulation (Battery Mode): +/-5%

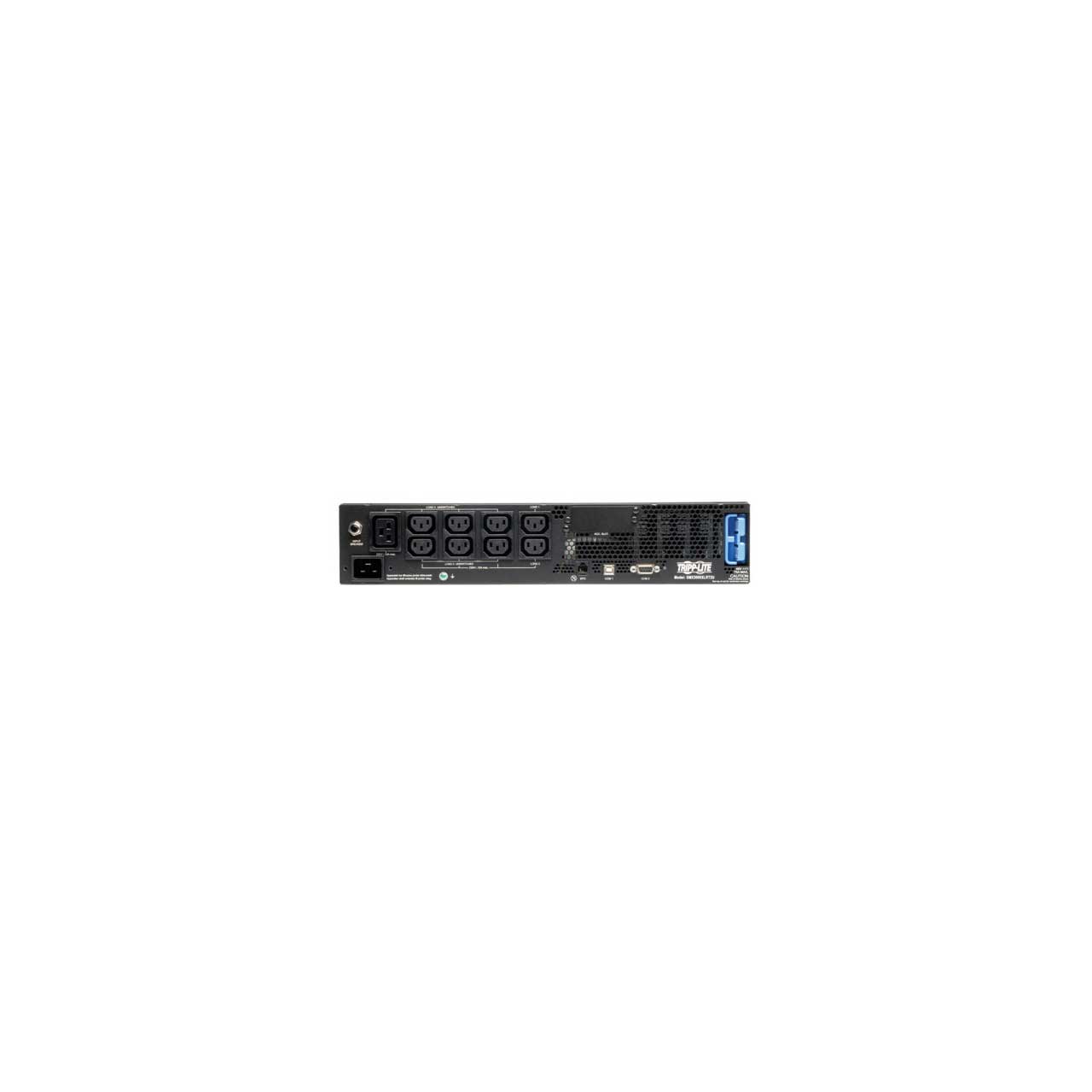

    • Output Receptacles: (8) C13; (1) C19
    • Included Output Power Cables: Set of 3 C13 to C14 power cables included
    • Load Management Receptacles: Two switchable single outlet C13 load banks
    • Output AC Waveform (AC Mode): Pure Sine wave
    • Output AC Waveform (Battery Mode): Pure Sine wave

      Intput
    • Rated input current (Maximum Load): 14.1A
    • Nominal Input Voltage(s) Supported: 230V AC
    • UPS Input Connection Type: C20 inlet
    • UPS Input Connection Description: IEC320-C20 input connection accepts a variety of user supplied detachable C19 output cordsets to match country or
    • site specific power sources
    • Input Circuit Breakers: 20A
    • Input Phase: Single-Phase

      Battery
    • Full Load Runtime (min.): 3.9 min. (2700w)
    • Half Load Runtime (min.): 11.1 min. (1350w)
    • Expandable Battery Runtime: Extended runtime supported via optional external battery packs
    • External Battery Pack Compatibility: BP48V24-2U(limit 1); BP48V60RT-3U(multi-pack compatible); BP48V27-2US(multi-pack compatible)
    • DC System Voltage (VDC): 48
    • Battery Recharge Rate (Included Batteries): Less than 5 hours from 10 to 90% (typical, full load discharge)
    • Internal UPS Replacement Battery Cartridge: RBC58-2U
    • Battery Access: Front panel battery access door
    • Battery Replacement Description: Hot-swappable, replaceable batteries
    • Expandable Runtime: Yes

      Physical
    • Included Mounting Accessory Description: 4 post rackmount installation hardware included
    • Installation Form Factors Supported with Optional Accessories: 2 post rackmount(2POSTRMKITWM); Wallmount(2POSTRMKITWM); Tower(2-9USTAND)
    • Primary Form Factor: Rackmount
    • UPS Power Module Dimensions (hwd, in.) 3.5 x 17.5 x 19.5
    • Rack Height (U Spaces): 2
    • UPS Power Module Weight (lbs.) 62.8
    • UPS Shipping Dimensions (hwd / in.) 9 x 23.75 x 20.5
    • Shipping Weight (lbs.) 72.6
    • Cooling Method: Fan
    • UPS Housing Material: Steel

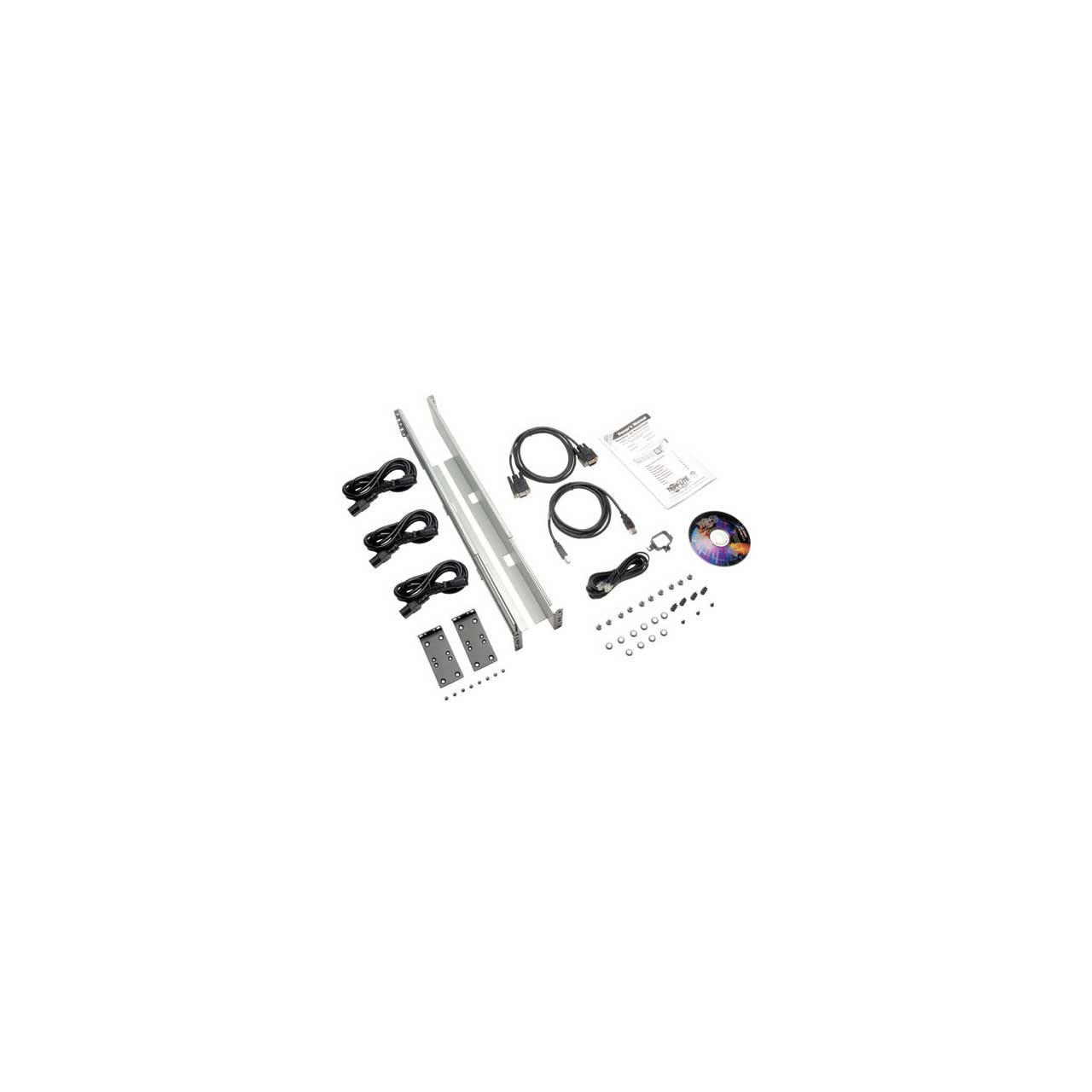

  • Item Includes:

    • SMX3000XLRT2UA UPS system
    • PowerAlert Software with USB, Serial & EPO cabling
    • 4 post rackmount installation kit
    • Set of 3 C13/C14 power cables
    • Instruction manual

  • Warranty:

    • 2-year limited warranty

  • GTIN:

    0037332181381
