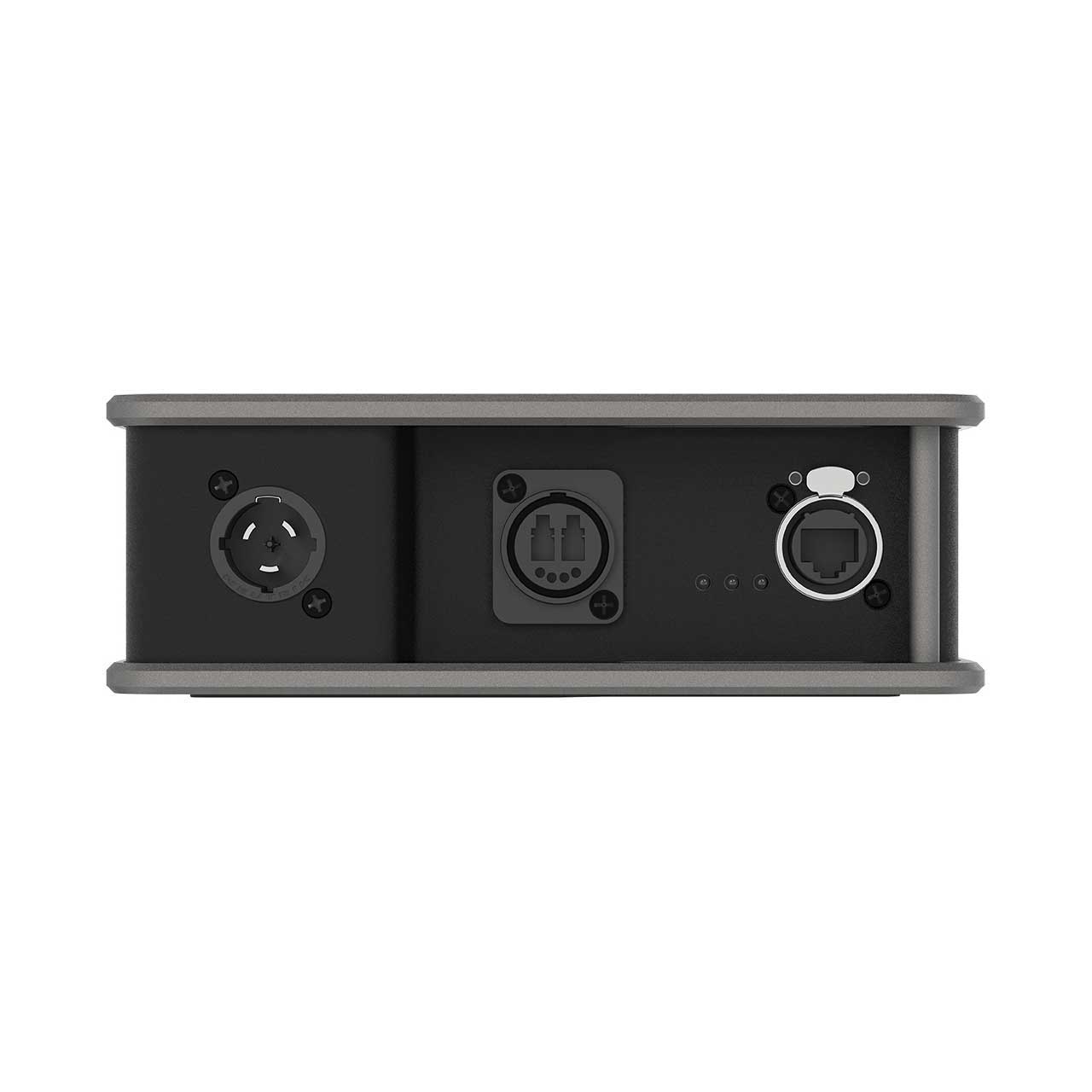

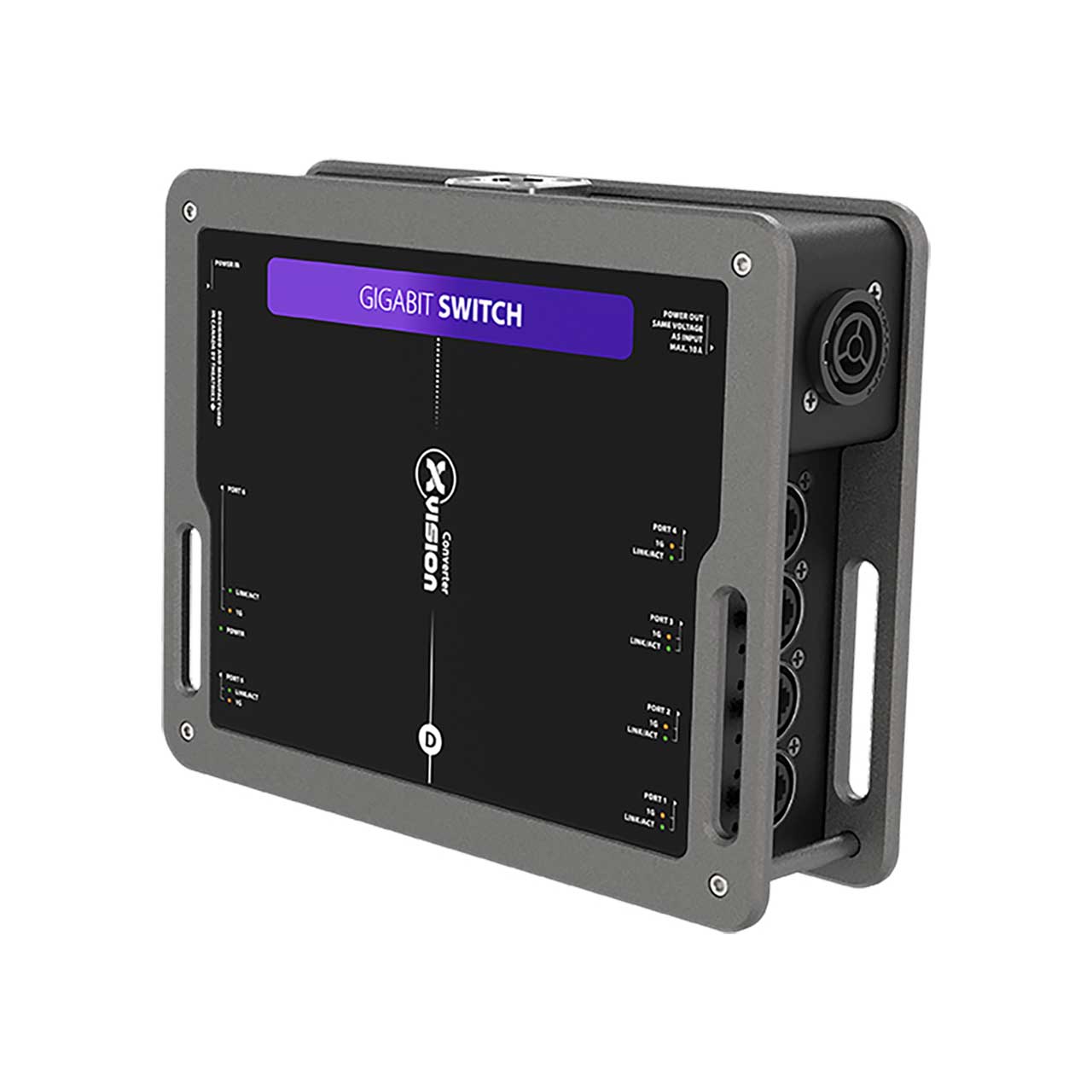

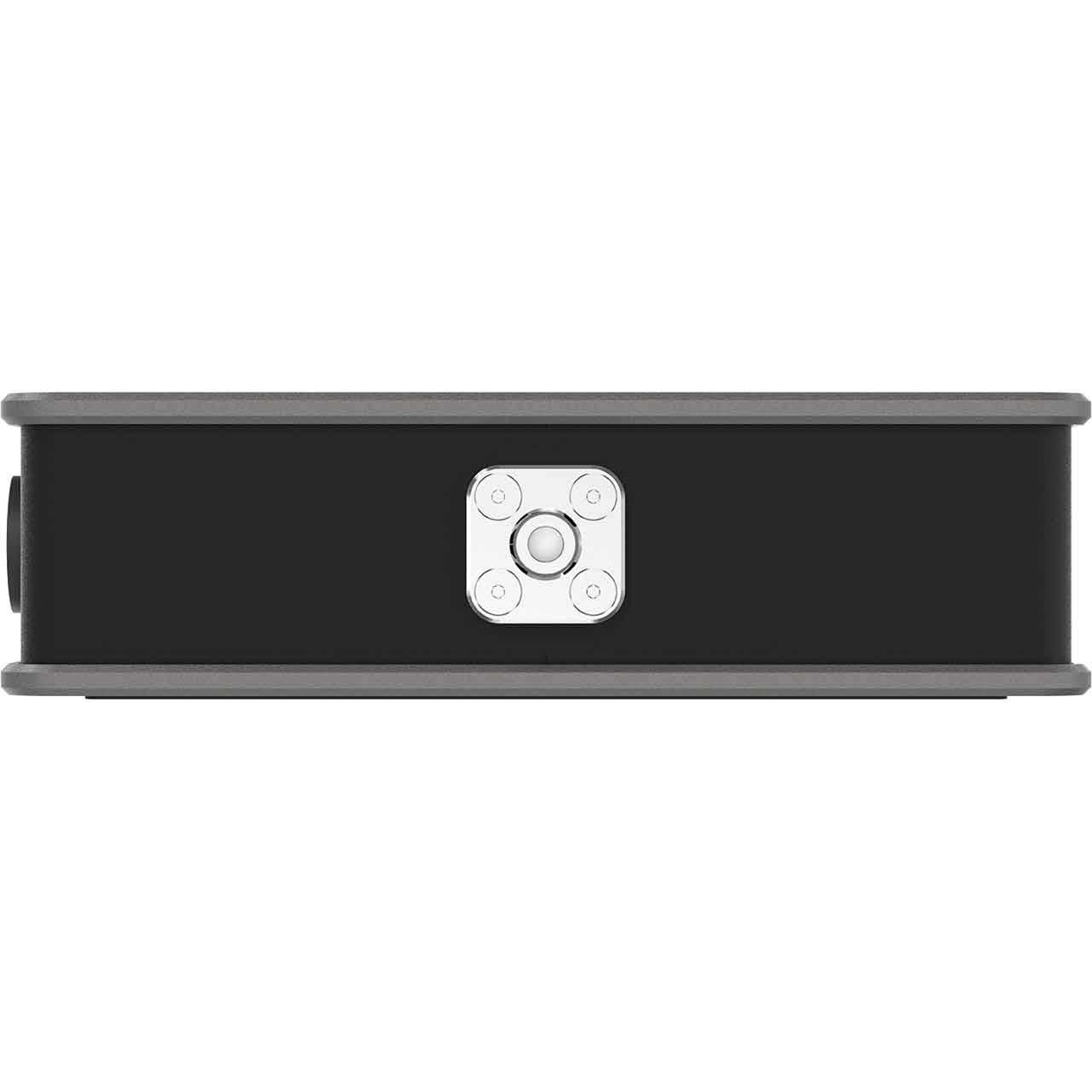

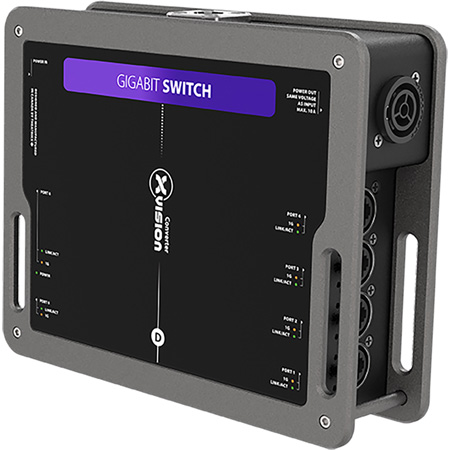

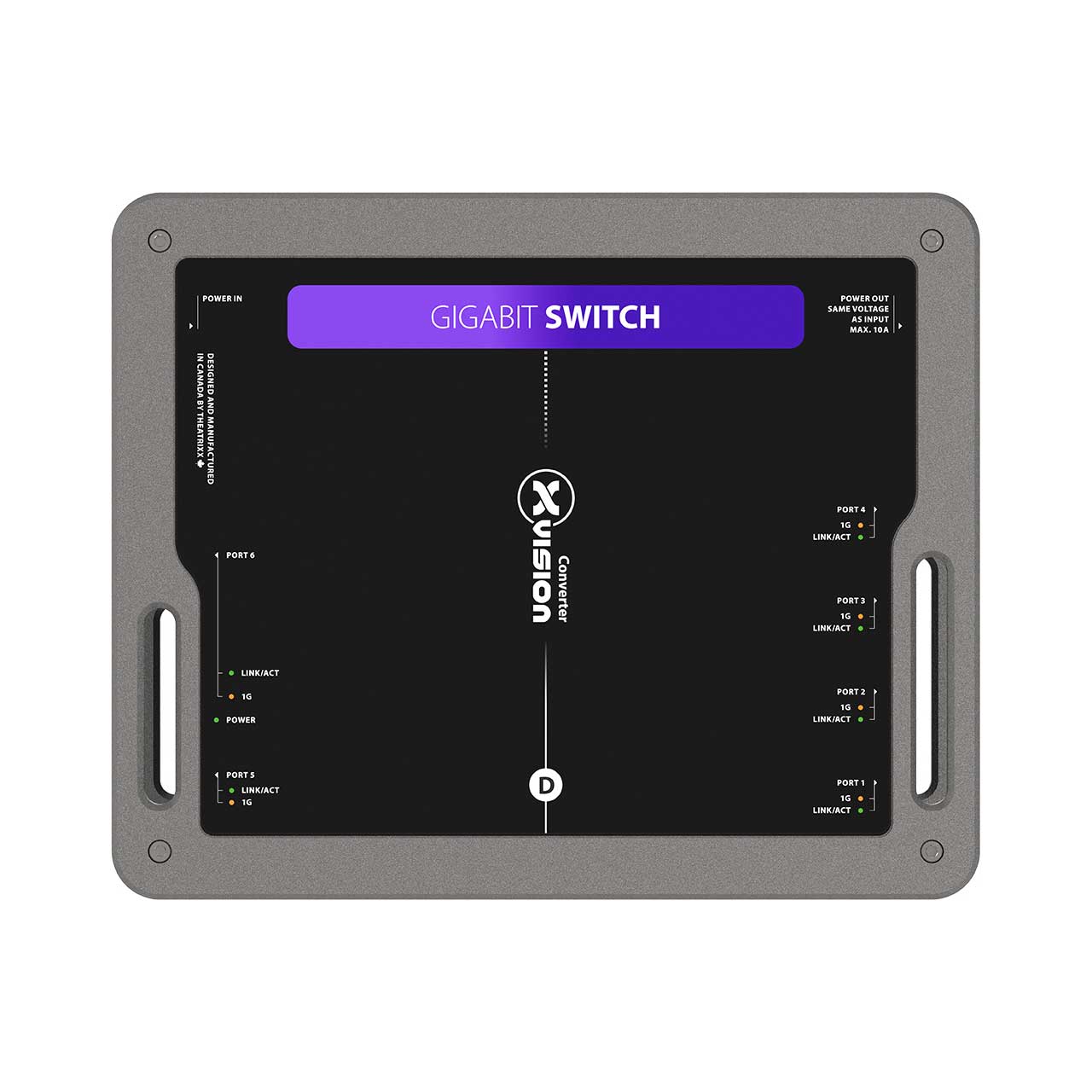

Theatrixx XVVNETSW xVision Converter - Gigabit Network Switch with 5 Copper Ports B Sized

ITEM #: TTX-XVVNETSW MFG #: XVVNETSW

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

Our Price:

$950.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


XVVNETSW - Overview

Professional equipment in mission-critical applications is all about reliability and confidence. So Theatrixx started with a clean sheet, and built what might soon become your most trustworthy piece of equipment. Introducing the world's first video converters truly designed for the road.

Video converters nowadays are used everywhere on profesional A/V events, presentations, live shows and tours and often have a critical role, yet, they are often the weakest link in the signal chain. Low quality connectors, weak enclosure, external consumer-grade power supply, and overall barebones design that all contribute to a generally unreliable piece of equipment. Theatrixx wanted to change that, so they designed the XVVNETSW xVision Video Converter.

  • Features:

    • Integrated power supply with locking PowerCON connector. Never rely on a cluster of wall-warts again.
    • Built-in convenience 120V outlet to power nearby projector, TV, laptop, small video projector. (Power bar to power both the converter and device not required anymore.)
    • Magnetic stacking system and non-skid rubber pad. Saves at least 10 gaffer tape rolls a year.
    • Multiple mounting options: C-Clamp, wall-mount adapter, LCD mount adapter and belt adapter.
    • Rugged, Tour-ready and aesthetic enclosure: The sexiest widget in your tool box, that will keep looking good for years to come.
    • Plug-n-play operation; No dipswitches, buttons or menus to fumble with: It just works.
    • Clear and ample status LED indicators for quick troubleshooting.
    • Easy on-the-field identification with unique color and alphabetic coding system.
    • Proudly designed and assembled in Canada.

  • Specifications:

    • Connections

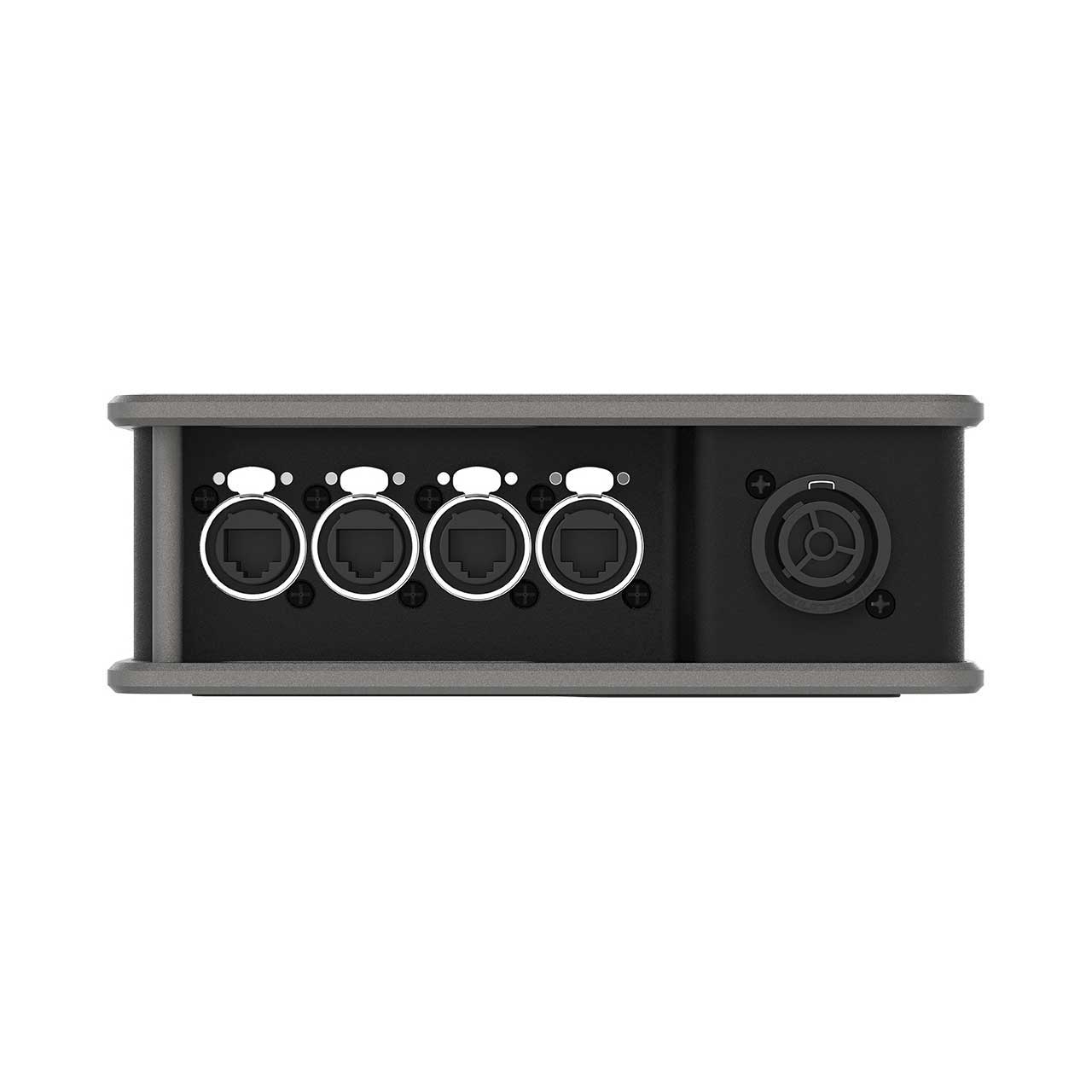

    • Ethernet Ports (Copper)
    • 5 x 1Gpbs Ethernet on Shielded Neutrik EtherCON: Automatic Crossover (MDI / MDI-X)
    • Ethernet Ports (Fiber) - optional: 1 x 1Gpbs or 2.5Gpbs Optical Ethernet, SFP-based
    • Choice of Singlemode or Multimode
    • Choice of Neutrik OpticalCON DUO or QUAD, or FiberFOX EBC connectors

      Supported Signals
    • Supported Protocols: IEEE 802.3, IEEE 802.3ab Gigabit Ethernet

      Physical Specifications
    • Height: 62 mm (2.44?)
    • Depth: 180 mm (7?)
    • Width: 221 mm (8.7?)
    • Weight: 2 kg (4.4 lbs)
    • Alternate Form Factor: Also available in rackmount module (RM) with 4 ports

      Environmental Specifications
    • Operating temperature: 0-40C
    • Operating humidity: 0-90% RH non-condensing

      Power Requirements
    • Power Supply: Built-in power supply - PowerCon True1 input / loop thru
    • Power Consumption: 45W max.
    • Operational Voltage Range: 100-240V 50-60Hz

  • Item Includes:

    • 1x xVision Gigabit Network Switch
    • 1x Power Cable
