XVVRM-HDBT2HDMI - Overview

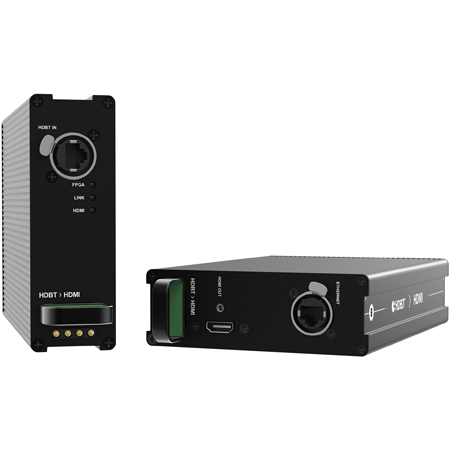

The Theatrixx XVVRM-HDBT2HDMI is an HDBaseT to HDMI Reversible Module that fits in the 8-Bay Reversible Rackmount Converter system.

The module can be inserted in the 8-Bay Frame in either direction, allowing the inputs/outputs to be positioned either at the front or the back of the unit depending on the application. There are no exposed PCBs as all modules are enclosed, and therefore protected against static shock, dust and general wear and tear. Gold-plated, redundant spring pins with magnetic retention deliver DC power to the modules, meaning no messy cabling and external power bricks are needed.

  • Specifications:

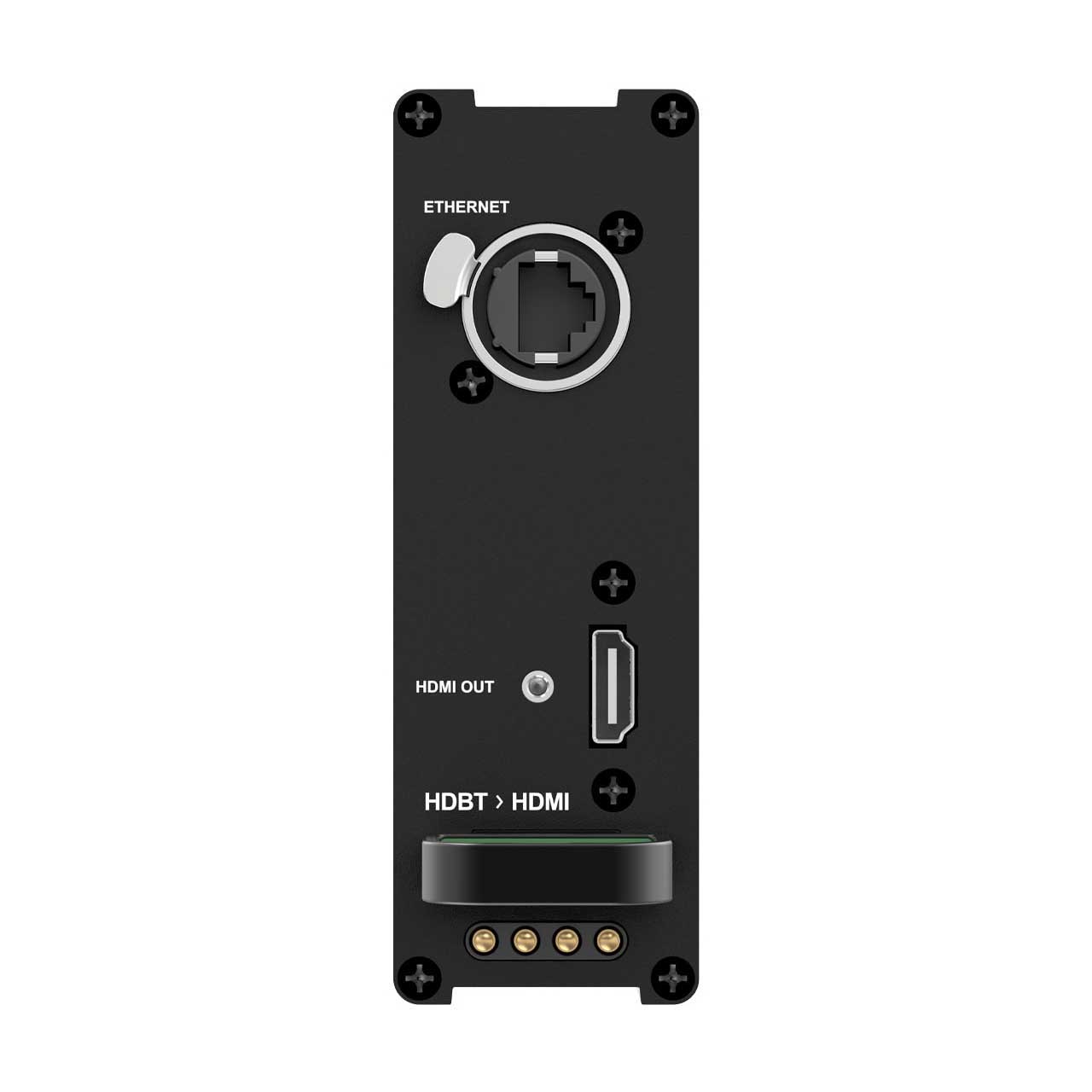

    • Connections
    • Video Input: 1x HDBaseT 1.0 on shielded EtherCON connector
    • Ethernet Port: 1x Gbps Ethernet on Neutrik EtherCON
    • Video Output: 1x HDMI 1.4 with locking system

      Supported Signals
    • Video Format Support: HDMI 1.4
    • HDCP Support: HDCP 1.4
    • Ethernet Support: 100 Mpbs

      Physical
    • Dimensions (HxDxW): 4.78 x 8.85 x 1.61" (121.5 x 225 x 41mm)
    • Weight: 1.56Lbs (710g)
    • Alternate Form Factor: Also available as a standalone converter

      Environmental
    • Relative Humidity: 0% to 90% non-condensing
    • Operating Temperature: 32° to 104°F (0° to 40°C)

      Power Requirements
    • Power Supply: Reversible redundant power fed by XVVRF8 (8-Bay Rackmount Frame)
    • Power Consumption: 20W
    • Voltage Range: 12VDC

  • Item Includes:

    • 1x Theatrixx Reversible Module HDBaseT to HDMI
