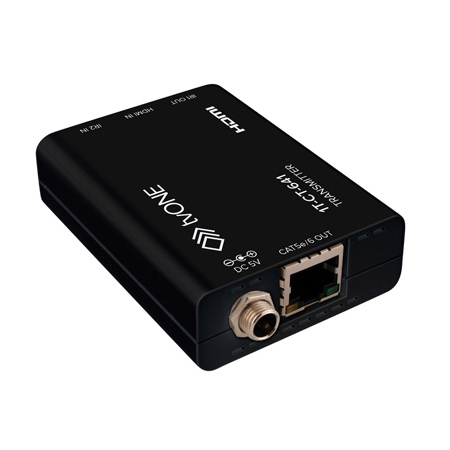

tvONE 1T-CT-641 HDMI - Cat.5e/Cat.6 Transmitter

ITEM #: TV1-1T-CT-641 MFG #: 1T-CT-641

Primary Image
Free Shipping with $49 Minimum Order

Our Price:

$295.00

Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup


1T-CT-641 - Overview

1T-CT-641/1T-CT-642 HDMI over Single Cat.5e/Cat.6 system consists of a 1T-CT-641 Transmitter coupled with a 1T-CT-642 Receiver (each purchased separately) which employs HDMI v1.4 capability and the HDBaseT-Lite technology to allow transmission of uncompressed, 1080p high definition television signals over a single Cat.5e or Cat.6 cable. (This is the type cable typically employed for Ethernet computer networks). HDMI v1.4 signals - including 3D and 4k UHD formats - are supported and the system will also allow DVI signal transmission with appropriate DVI to HDMI Cable adapters. In addition, embedded LPCM 7.1CH, Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio capability is standard. The 1T-CT-641/1T-CT-642 system can achieve signal distribution distances of up to 60 meters (197 feet) for uncompressed HDMI signals without signal degradation. A screw on power adapter cable prevents inadvertent disconnection of power.

  • Features:

    • HDMI w/3D, 4k(24hz/30Hz),
    • HDCP 1.1 & DVI 1.0
    • Uncompressed HDMI signal
    • distribution to 60m/197ft
    • Class B (HDBaseT-Lite)
    • technology
    • Supports Embedded HDMI
    • Lossless Digital Audio
    • Full HD resolution support
    • (1080p@60Hz/36bit)
    • UHD support (4k@30Hz)
    • HD 3D formats & PC
    • resolutions up to WUXGA
    • Supports HDCP Repeater
    • and CEC bypass
    • Single Cat.5e/Cat.6 Ethernet
    • cable via RJ45
    • Bi-directional infrared remote
    • control extensions
    • Supports DVI when using
    • Optional HDMI to DVI Adaptors

  • Specifications:

    • Video I/O
    • 1T-CT-641 Tx-HDMI Input 1x via HDMI Connector
    • 1T-CT-642 Rx-HDMI Output 1x via HDMI Connector
    • Cat.5e/Cat.6 Cable I/O
    • 1T-CT-641 Tx - 1x via RJ45 Connector
    • Cat.5e/Cat.6 Output
    • 1T-CT-642 Rx - 1x via RJ45 Connector
    • Cat.5e/Cat.6 Input
    • Additional I/O
    • Connectors (per unit) 2x 3.5mm mini-jack (Infrared)
    • Supported Signals & Protocols
    • Industry Standards HDMI v1.4 (3D, 4k), HDCP, DVI 1.0,
    • Infrared
    • Video Performance
    • Maximum Resolution HD up to 1080p@60Hz/36bit,
    • UHD to 4k@30Hz, PC to WUXGA
    • Audio Support
    • Formats Supported LPCM 7.1CH, Dolby TrueHD, Dolby
    • Digital Plus & DTS-HD Master
    • HDBaseT-Lite Class B Support
    • Maximum Bandwidth Uncompressed Video/Audio to
    • 10.2Gbps/300MHz
    • Maximum Range
    • 1 x 1T-CT-641/642 Tx/Rx System 60m (197 ft.) at 1080p@60Hz
    • 40m (131 ft.) at 4k@30Hz
    • Environmental
    • Operating Temperature 0° to +40° C (+32° to +104° F)
    • Operating Humidity 20% to 90%, Non-condensing
    • Storage Temperature -20° to +60° C (-4° to +140° F)
    • Storage Humidity 20% to 90%, Non-condensing
    • Warranty
    • Limited Warranty 3 Years Parts and Labor
    • Regulatory Approvals
    • Encoder/Decoder Unit FCC, CE, RoHS
    • Power Supply UL, CUL, CE, PSE, GS, RoHS
    • Cable Requirements (T/R)
    • Ethernet Cable Highest Quality Single Cat.5e or
    • Cat.6 cable (UTP or STP)
    • Mechanical (H-W-D)
    • 1T-CT-641Tx, 1T-CT-642 Rx 22.5x55x76.5mm (0.87x2.17x3.01")
    • Weight
    • 1T-CT-641 Transmitter 56g (0.12 lbs.)
    • 1T-CT-642 Receiver 64g (0.14 lbs.)
    • Power Requirement
    • External Power Supply [email protected] Locking Connector

  • Item Includes:

    • 1x Power Adapter US, UK or Euro
    • 1x User Manual
    • 1x IR Transmitter
