tvONE 1T-CT-647 Transmitter: HDMI V1.4 & IR with 7 Cat 5e/6 Outputs & 1 HDMI

ITEM #: TV1-1T-CT-647 MFG #: 1T-CT-647

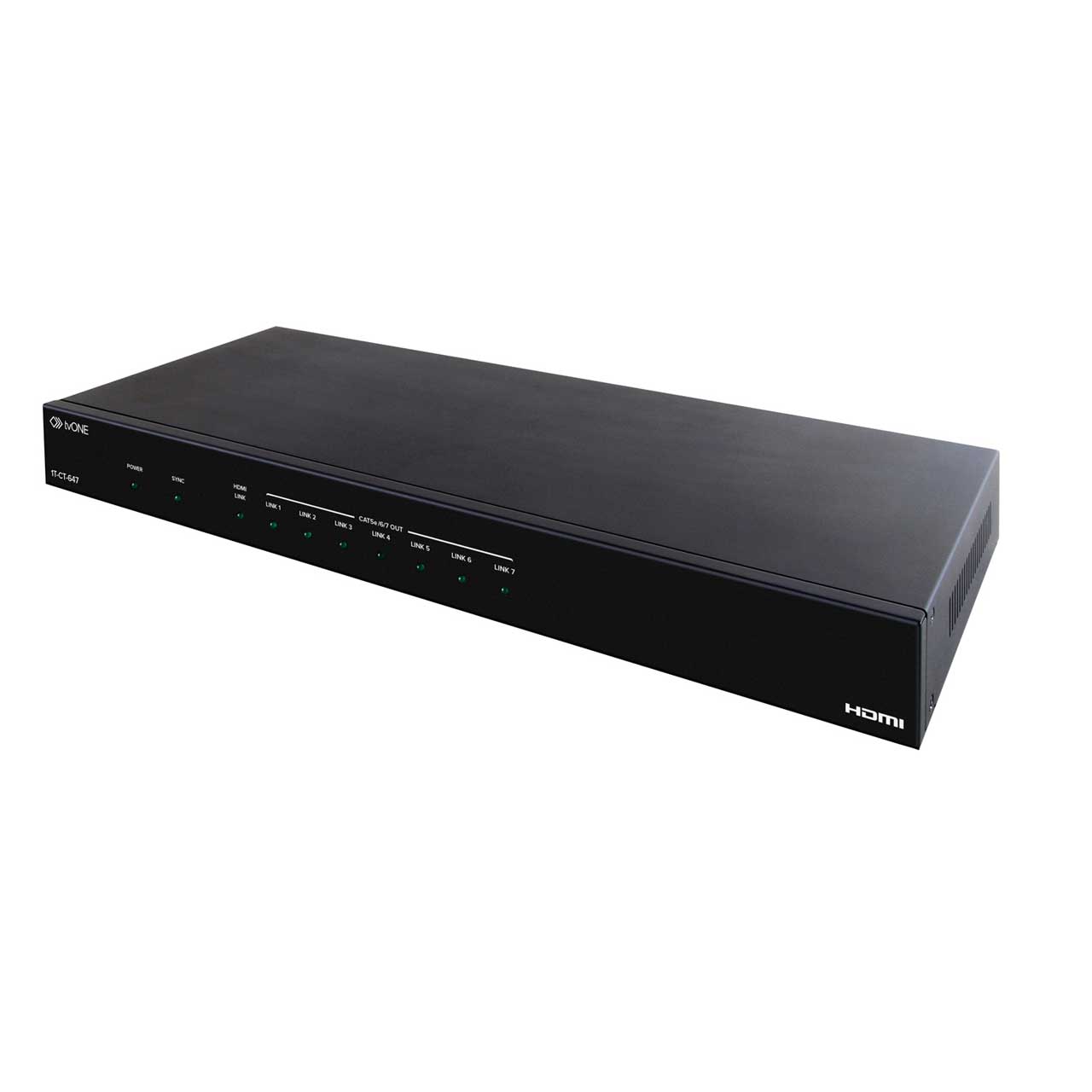

Primary Image
Free Shipping with $49 Minimum Order

Our Price:

$2,100.00

Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup


1T-CT-647 - Overview

The 1T-CT-647 over Single Cat.5e/Cat.6 system consists of a seven port transmitter for use with 1T-CT-642 Receivers (each purchased separately) which employs HDMI v1.4 capability and the HDBaseT-Lite technology to allow transmission of uncompressed, 1080p high definition television signals over a single Cat.5e or Cat.6 cable. (This is the type cable typically employed for Ethernet computer networks). HDMI v1.4 signals - including 3D and 4k UHD formats - are supported and the system will also allow DVI signal transmission with appropriate DVI to HDMI Cable adapters. In addition, embedded LPCM 7.1CH, Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio capability is standard. The 1T-CT-647 can achieve signal distribution distances of up to 60 meters (197 feet) for uncompressed HDMI signals without signal degradation. A screw on power adapter cable prevents inadvertent disconnection of power.

  • Features:

    • HDMI w/3D, 4k(24hz/30Hz), HDCP 1.1 & DVI 1.0
    • Uncompressed HDMI signal distribution to 60m/197ft
    • Class B (HDBaseT-Lite) technology
    • Supports Embedded HDMI Lossless Digital Audio
    • Full HD resolution support (1080p@60Hz/36bit)
    • UHD support (4k@30Hz)
    • HD 3D formats & PC resolutions up to WUXGA
    • Supports HDCP Repeater and CEC bypass
    • Single Cat.5e/Cat.6 Ethernet cable via RJ45
    • Bi-directional infrared remote control extensions
    • Supports DVI when using Optional HDMI to DVI Adaptors

  • Specifications:

    • HDMI Input: 1 x via HDMI Connector
    • HDMI Output: 1 x via HDMI Connector
    • CAT Cables Supported: Cat.5e/Cat.6 Output: 7 x via RJ-45 Connector
    • Connectors (Per Unit): 2 x 3.5 mm mini-jack (Infrared)
    • Industry Standards: HDMI v1.4 (3D, 4k), HDCP, DVI 1.0, Infrared
    • Maximum Resolution: HD up to 1080p at 60 Hz / 36-bit UHD to 4 k at 30 Hz, PC to WUXGA
    • Formats Supported: LPCM 7.1CH, Dolby TrueHD, Dolby Digital Plus & DTS-HD Master
    • HDBaseT-Lite Class B Support
    • Maximum Bandwidth: Uncompressed video / audio to 10.2 Gb/s / 300 MHz
    • Maximum Range1T-CT-641/642 Tx/Rx System: 197' (60 m) at 1080p at 60Hz 131' (40 m) at 4k at 30 Hz
    • Operating Temperature: 32 to 104°F (0 to 40°C)
    • Operating Humidity: 20 to 90%, non-condensing
    • Storage Temperature: -4 to 140°F (-20 to 60°C)
    • Storage Humidity: 20 to 90%, non-condensing
    • Encoder/Decoder: FCC, CE, RoHS
    • Power Supply: UL, CUL, CE, PSE, GS, RoHS
    • Ethernet Cable: Highest Quality Single CAT.5e or 6 cable (UTP or STP)
    • External Power Supply: 24 VDC at 2.7 A locking connector
    • Dimensions (H x W x D): 1.75 x 19.00 x 7.00" / 4.45 x 48.26 x 17.78cm(with rack ears)
    • Weight: 4.66lbs / 2.11kg
