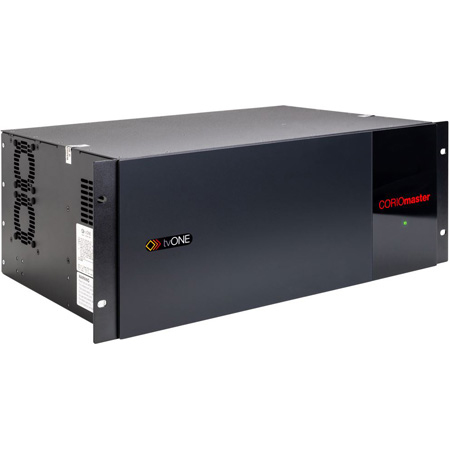

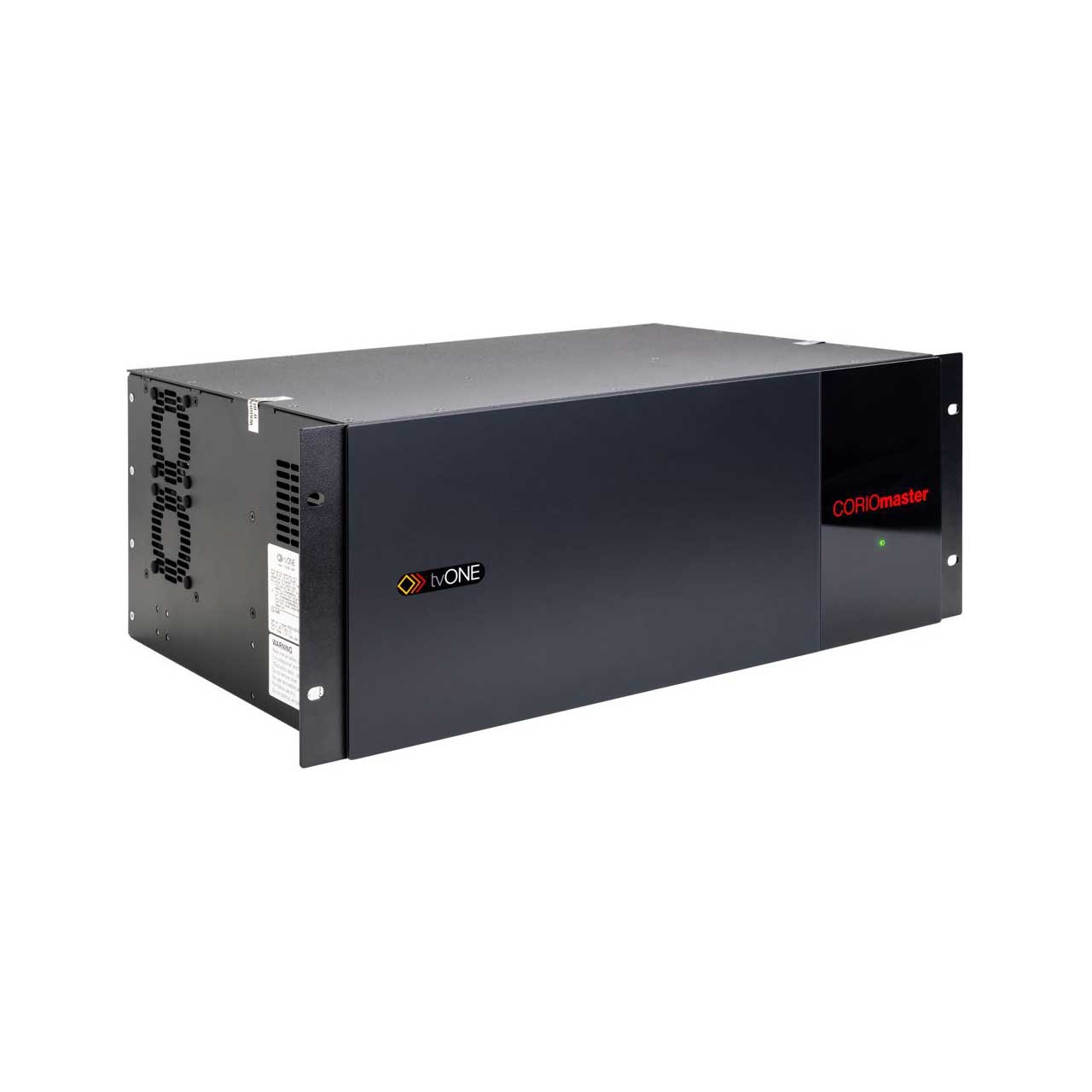

tvONE's C3-540 CORIOmaster is a powerful, efficient approach to building large video display systems. Multiple video windows can be positioned on LED, display based videowalls or projector edge blends, displaying any of the sources connected to CORIOmaster. Windows can be visually "transitioned" into position, resized or rotated to any proportion allowing designers to achieve striking visual effects. Each system can support up to 4 separate video canvasses. CORIOgrapher v2, the control software for the CORIOmaster series of processors, is a simple, easy to use design interface that enables window and source positioning and transition eff ects. This dynamic feature is easily managed through presets in CORIOgrapher or by simple commands executed by third party control systems. 50 presets can be saved permanently in the system.
Secure command interface
Secure Communication mode - The latest CORIOmaster release provides a mode to encrypt all networked based communication through AES128 encryption to provide private communication in mission critical applications where network security and authentication is essential.
REST API / WebSocket - Based on industry standard schema, CORIOmaster supports REST API providing multi-user communication to device. Integrators can now subscribe to a growing range of events to provide real time feedback from CORIOmaster (such as: HDMI.
Control
Multiple control points - Using tvONE's REST API up to four users can now control a single CORIOmaster chassis simultaneously making programming, control and fault finding a dream. In addition to control via CORIOgrapher,simultaneous control is possible using the CORIOmaster app (IOS and Android) and by a third-party control system using our real-time API interface.
Audio management
Audio can be passed through the system from source to display. Alternatively, audio can be de-embedded, cross converted and re-embedded on another source for each of your four canvasses. Input and output volume control together with audio mute gives full control.
Streaming Media & 4K Playback Module
Higher bandwidth support - A doubling of the module bandwidth to100mbs means you can de-encode two network streams up to 4k 30 @ 50mbs in to just 1 slot. Increased bandwidth is also available for media playback up to 80mbs on a single channel for increased quality content and interoperability. H.265 Support - H.265 streams offer higher quality with file sizes of around half that of a H.264 stream.

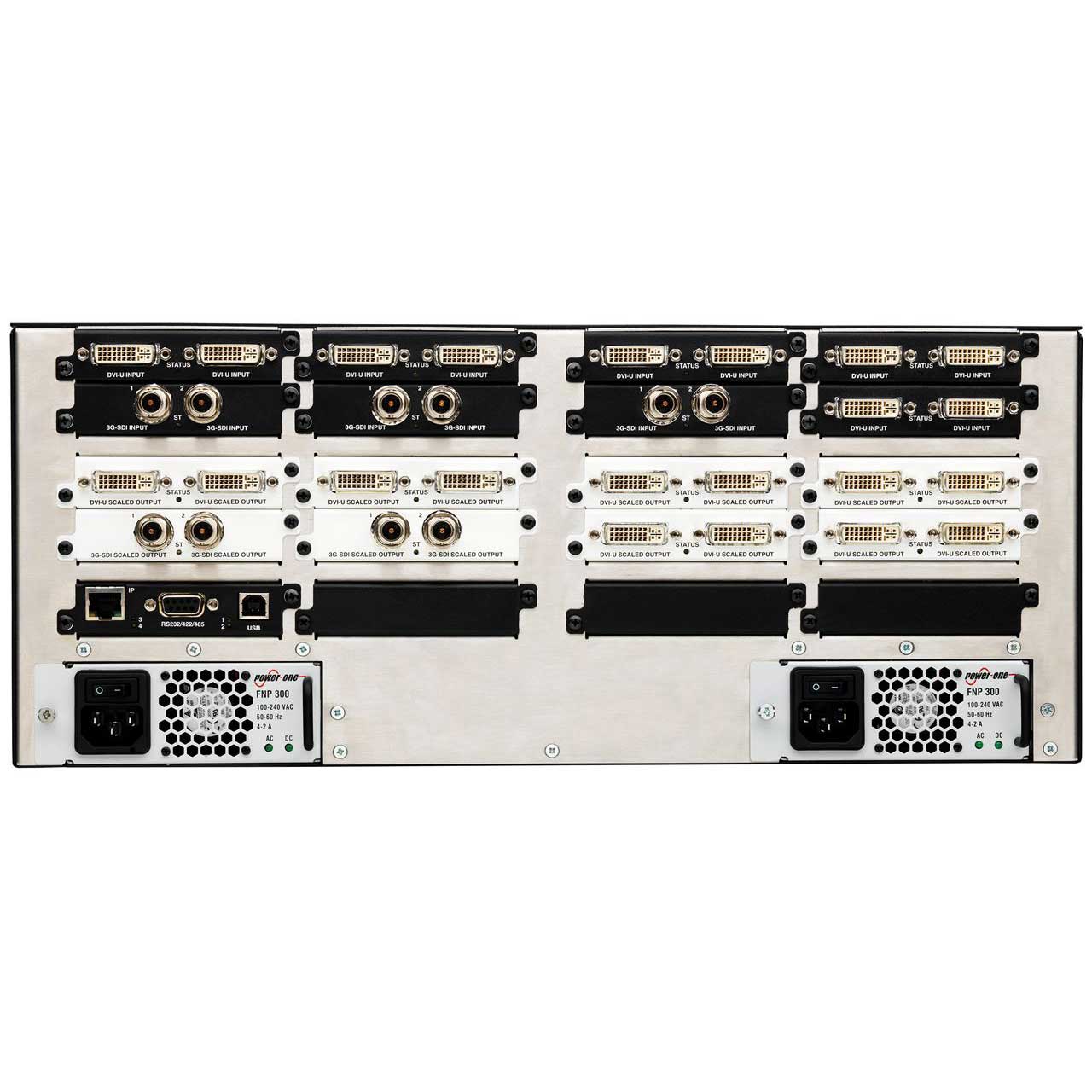

4K Input & Output Modules
The addition of 4K support consists of two modules; HDMI 2.0 4K60 input module and the HDMI 1.4 4K30 scaling output module.
