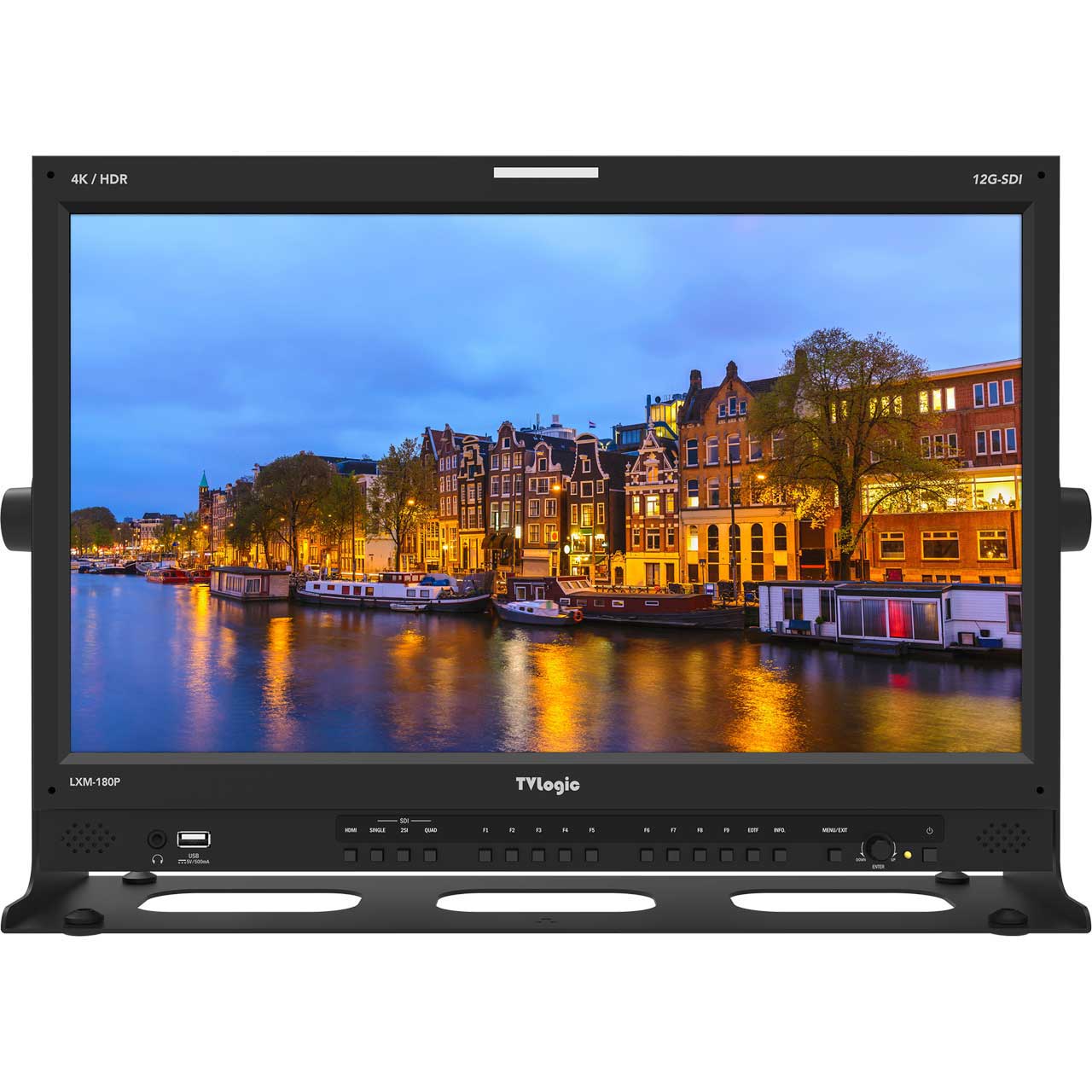

TVLogic LXM-180P LXM-Series Pro 4K/UHR BroadMonitor w/ Quad View & Dual View Display - 18.4 Inch - 3840 x 2160 Res

LXM-180P - Overview

• Features:

  • Accurate Color Reproduction with Wide Color Gamut - The LXM Series monitors offer exceptional color performance, with a DCI-P3 color space coverage of 98% and the ability to display 1.073 billion colors. TVLogic's advanced calibration software ensures accurate color reproduction, resulting in precise and consistent color output.

    Quad View & Dual View Display - The LXM Series monitors support quad view display, allowing up to four different video inputs to be shown on a single screen simultaneously. These monitors can display a variety of input combinations, including SDI, HDMI, and SFP, providing maximum flexibility and versatility.

    Custom 3D LUT Import & Processed Output - With the LXM Series monitors, users can load and apply their own 3D LUT files, generated by color grading tools. The monitors also support output of the custom 3D LUT applied image to another monitor through an independent port, providing additional flexibility in color management and monitoring.

    HDR Monitoring - The LXM Series monitors support various HDR EOTFs, including PQ and HLG, which allow the monitors to display HDR content accurately and faithfully.

    Conversion Output - The LXM monitors support various cross conversions, including SFP to SDI output and HDMI to SDI output, providing useful versatility both on location and in the studio.

    Quad Link 3G Input to Single Link 12G Output - The LXM monitors can receive a 3G-SDI Quad Link 4K video signal and loop out the signal into a single-link 12G-SDI, allowing HD monitors to check the quad-link 4K signals simultaneously on location. This function provides added convenience and efficiency.

    HDR vs SDR Comparison - The LXM Series monitors support an HDR and SDR comparison feature, which helps users to compare and adjust HDR and SDR content side by side for optimal viewing.

    Multi Analysis View - The LXM Series monitors offer the ability to display and monitor Waveform, Vector Scope, Histogram, and Audio Phase Meter on the screen simultaneously.

    Additional Features

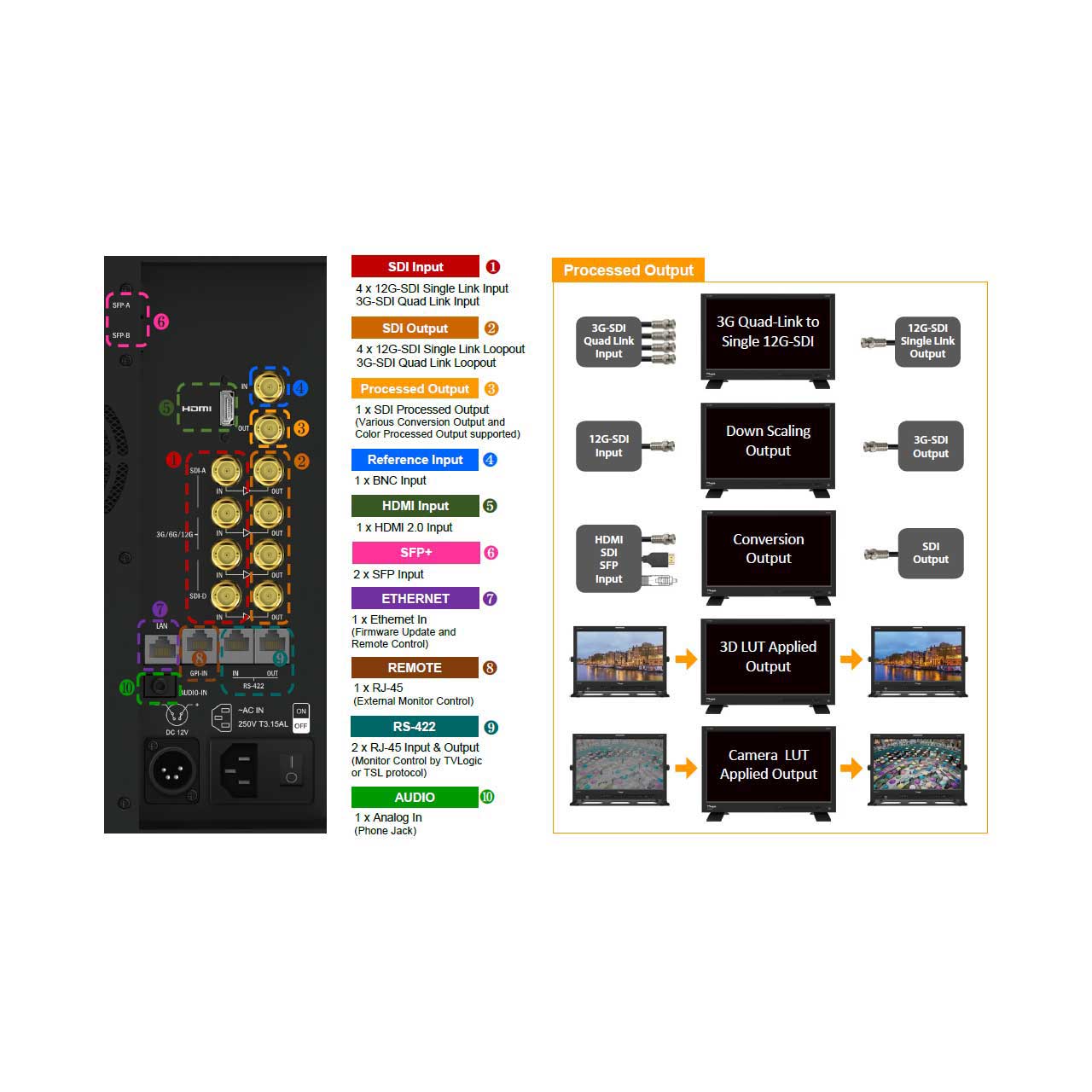

  • 4x 12G-SDI Input and Loopout
  • 3G-SDI Quad-Link Input and Loopout
  • Reference Input
  • Dual SFP Input
  • HDMI 2.0 Input
  • Quad-View & Dual-View Display
  • Processed Monitor Output
  • Various Conversion Output
  • Quad Link 12G Input to Single Link 12G Output
  • Firmware Update by Ethernet
  • HDR (PQ, HLG)
  • HDR vs SDR Comparison
  • Wide Color Gamut
  • Custom 3D LUT Import by USB Flash Drive
  • Auto Detection of SDI Payload ID
  • Fast Mode
  • Waveform, Vector Scope, Histogram
  • Audio Phase Meter
  • Closed Caption (CC-608, CC-708)


• Specifications:

  • Size: 18.4"
  • Resolution: 3840 x 2160 (16:9)
  • Pixel Pitch: 0.035(H) mm x 0.1065(v) mm
  • Color Depth 1.07B Colors (10 Bit)
  • Viewing Angle: 170°(H) / 170°(V)
  • Contrast Ratio: 1000:1
  • Display Area: 408.96(H) mm x 230.04(V) mm
  • Dimensions (Main Body): 17.42" x 12.16" x 3.61" (442.5 mm x 309 mm x 91.8 mm)
  • Dimensions (with Stand): 16.26" x 13.1" x 5.41" (489.3 mm x 332.8 mm x 137.5 mm)
  • Weight 15.65lbs (7.1kg)


• Item Includes:

  • 1x TVLogic LXM-180P LXM-Series Professional 4K/UHR BroadMonitor with Quad View and Dual View Display
