Vaddio 999-30230-000 EasyIP 20 1080p/60 Networked 20x PTZ Camera - 1 GB PoE+- Simultaneous HDMI and EasyIP - Black

ITEM #: VAD-999-30230000 MFG #: 999-30230-000

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

List Price:

$3,877.00

Our Price:

$3,489.30

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


    999-30230-000 - Overview

    The Vaddio EasyIP 20 Camera brings professional AV quality performance to the EasyIP Ecosystem, an AV-over-IP solution for lecture capture, remote learning and videoconferencing in large meeting rooms, lecture halls, and houses of worship. It delivers 1080p/60 resolution feeds to EasyIP endpoints and connects to a 1 GB PoE+ switch - eliminating the need for costly USB extensions. A local HDMI output allows for easy IMAG (image magnification).

    Vaddio Deployment Tool
    Simplify installations by viewing all your Vaddio products across a deployment on one screen with the simple click of a button. The Vaddio Deployment Tool enables you to select devices from the network, choose an action like rebooting the device, unmute the audio, or updating firmware and voila! - remote troubleshooting success. You can even conduct mass firmware updates on hundreds of devices all at once, which saves you a lot of time.

    The EasyIP 20 Camera brings professional AV quality performance to the EasyIP Ecosystem, an AV-over-IP solution for lecture capture, remote learning and videoconferencing in large meeting rooms, lecture halls, and houses of worship. It delivers 1080p/60 resolution feeds to EasyIP endpoints and connects to a 1 GB PoE+ switch - eliminating the need for costly USB extensions. A local HDMI output allows for easy IMAG (image magnification).

    • Features:

      • 20x optical zoom with 70.2° horizontal field of view
      • 1/2.5-type Exmor R CMOS sensor

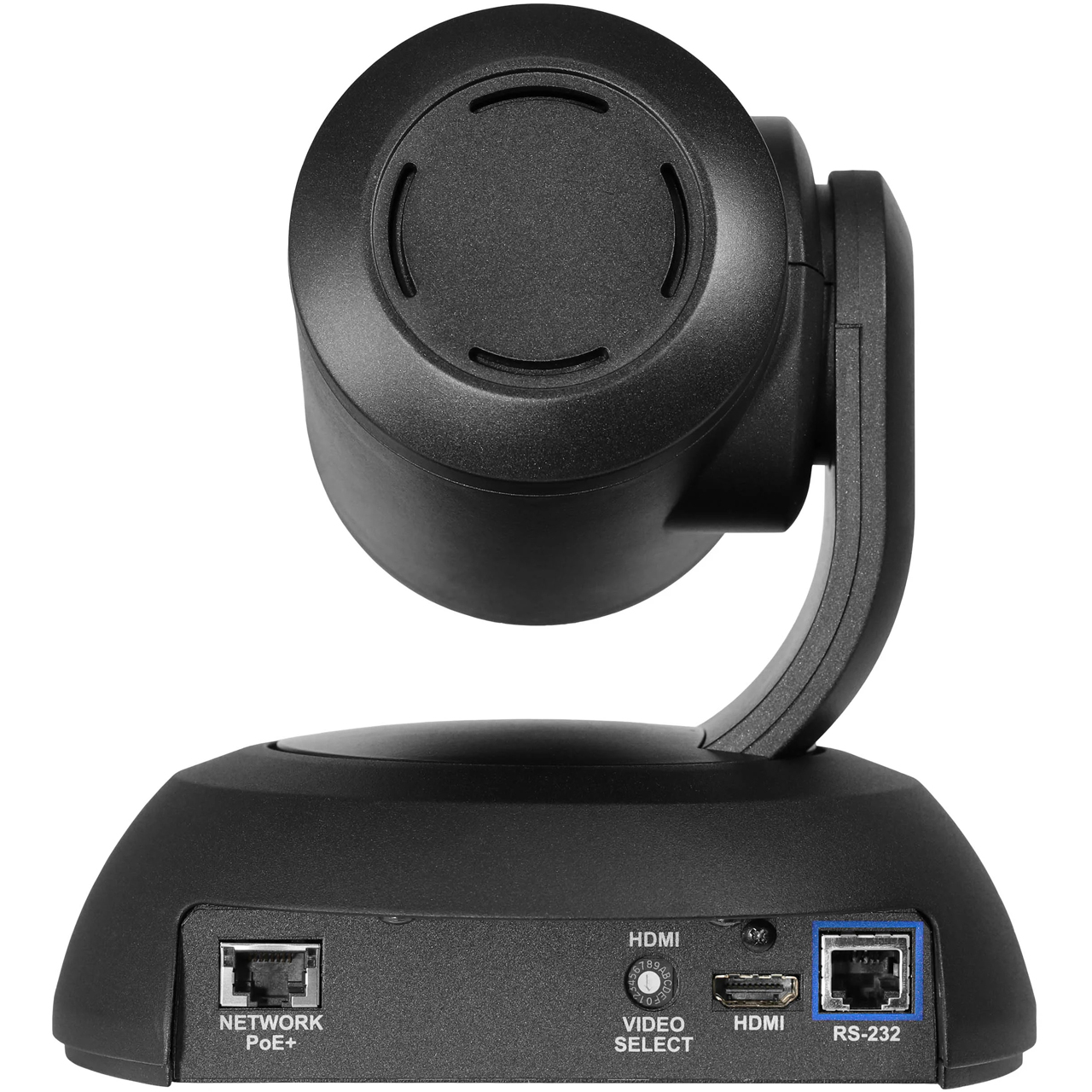

      • One EasyIP (Network PoE+) and one HDMI video output
      • Supports up to two EasyIP Mixers or Decoders simultaneously

    • Specifications:

      • Browser-based User Interface for Remote Control: Built-in
      • Camera Type: PTZ
      • Color: Black
      • Compatible With: Vaddio
      • Control Method: IR Remote, Joystick, RS232, Telnet, Web UI
      • Estimated Room Size: Large Room, Medium Room
      • Field of View: 70.2° Wide End to 4.1° Tele End
      • Field of View Wide: Greater than 70
      • Focus System: Auto, Manual
      • Gain: Auto, Manual
      • Image Sensor Type: 1/2.5-type Exmor R CMOS sensor
      • Invertible: Yes
      • Max Resolution: 1080p 60
      • Minimum Illumination: 100+ Lux Recommended
      • OneLINK Compatibility: No
      • Pan and Tilt Range: Pan - ±150°, Tilt - +90° to -30°
      • Pan and Tilt Speed: 0.35°/sec - 90°/sec
      • Power Supply: PoE+
      • Power Type: PoE+
      • Preset Positions: 16 Custom Home Position
      • PTZ Motors: Silent BLDC Direct Drive Motors
      • Quick-Connect Compatibility: No
      • Solution Type: Camera Only
      • Top Resolution: 1080p 60
      • Tri-Sync Motion: Yes
      • Zoom: 20x
      • Zoom Range: Greater than 19X
      • Certifications: CE, FCC, TAA
      • Depth: 5.5 in (14 cm)
      • Height: 6.3 in (16 cm)
      • Operating Temperature: 32° to 104°F (0° to 40°C)
      • Product Weight: 3 lbs (1.4 kg)
      • Width: 6.1 in (15.5 cm)

    • Item Includes:

      • 1x EasyIP 20 Camera

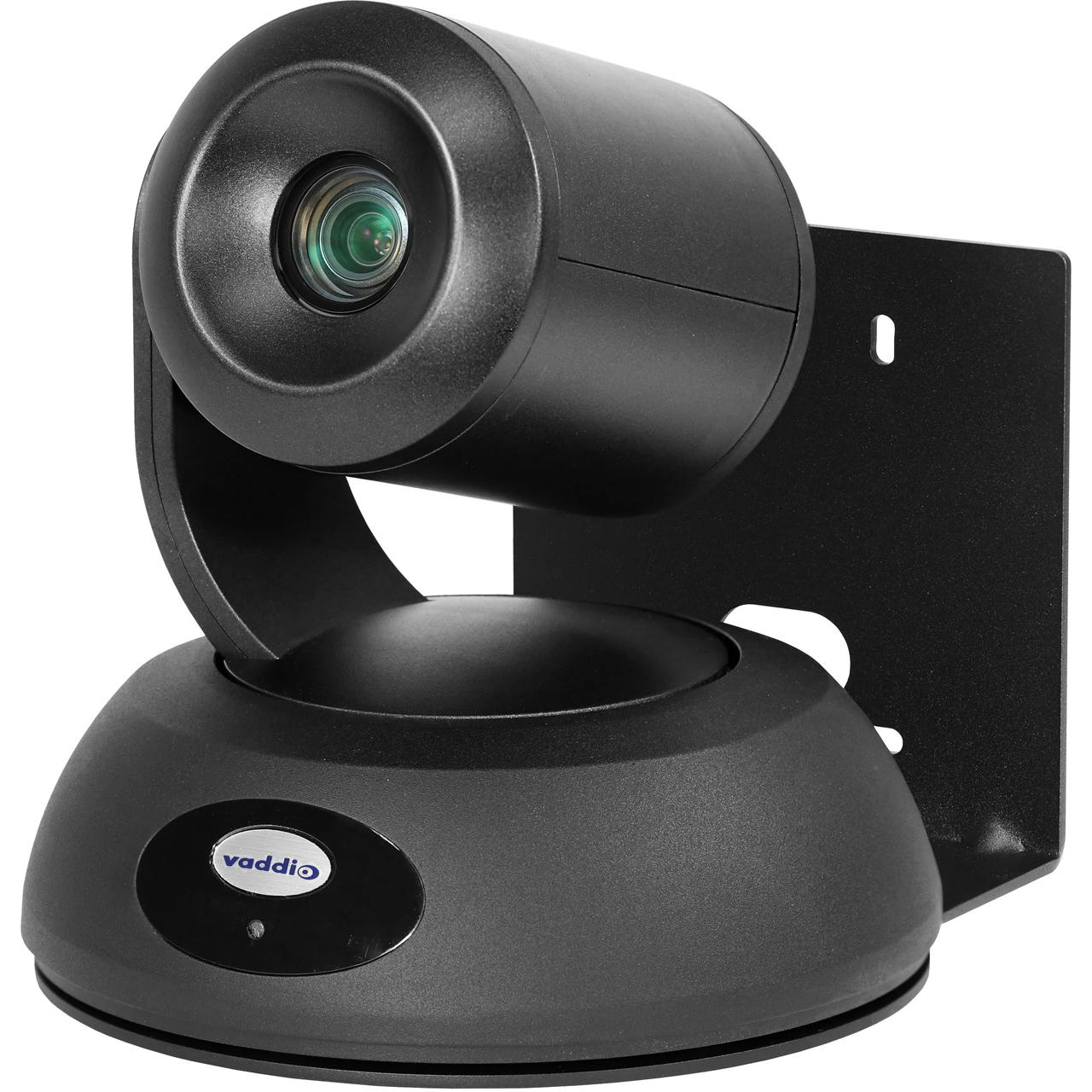

      • 1x Thin Profile Wall Mount with mounting hardware and installation guide
      • 1x Vaddio IR Remote Commander
      • 1x 10 ft (3.05m) cat-5e snagless cable, black
      • 1x Quick-start card

    • Warranty:

      • 3 year
