AMS-1208P - Overview

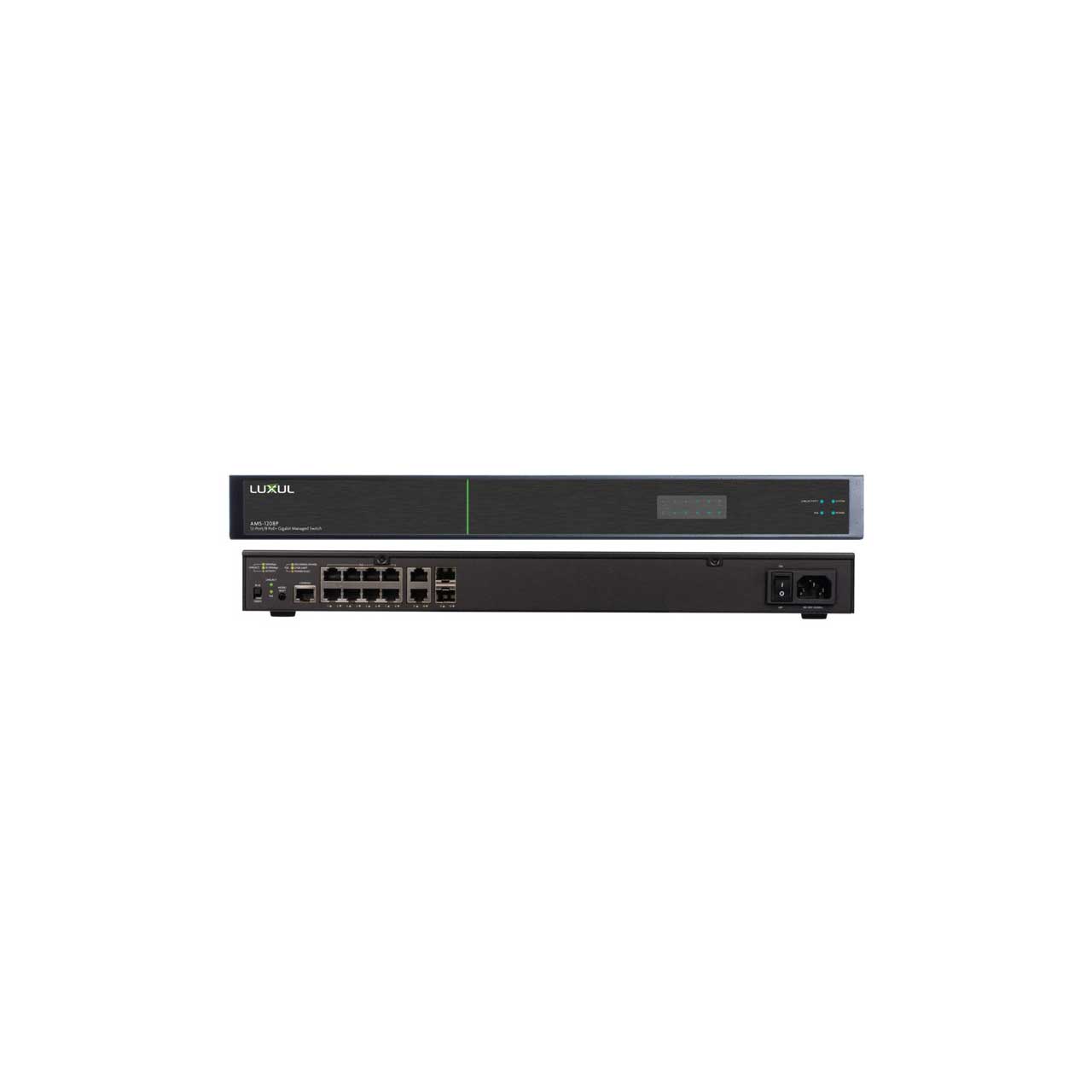

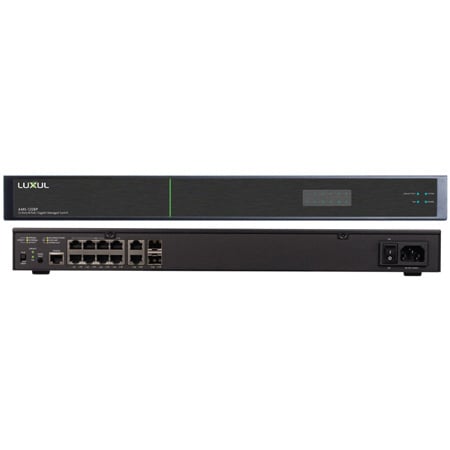

The Luxul AV-Series 12-Port/8 PoE+ Gigabit Managed Switch AMS-1208P features rear panel ports and front facing LEDs (user selectable blue/green colors) for clean integration with AV rack systems. It is an excellent choice for expanding your network when using PoE-enabled devices such as VoIP, IP cameras and Wireless Access Points. The switch includes 8 PoE+ ports, with a total power budget of 130 Watts. It also features 2 Gigabit RJ-45 and 2 Gigabit SFP ports for easy network expansion. The AMS-1208P helps optimize your network with support for Layer 3 static routing between VLANs while also featuring simple-to-use management, VLAN and security capabilities to ensure optimal benefit from your home or office network.

  • Features:

    • PoE Self-Healing with auto-recovery and power scheduling
    • 10, Gigabit RJ45 Ports
    • 2, Gigabit SFP ports
    • 8 Ports Support 802.3af/at PoE+ with 130 Watt Power Budget
    • 24Gbps Switching Capacity
    • Layer 3 Static Routing
    • 802.1Q VLAN (with Trunking) and QoS Support
    • Plug-and-Play Installation with Intuitive Management
    • Simple Power Management of PoE-Enabled Devices
    • User Selectable Green or Blue Front facing LEDs
    • Fanless for Silent Operations
    • Standard 19" Rack-Mount
    • Three Year Limited Warranty
    • The RJ45 port surge protection is tested to: ENG1000-4-5 (for RJ45 port, surge 6KV)

  • Specifications:

    • Standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.3ab, IEEE 802.3af, IEEE 802.1D, IEEE 802.3x
    • Surge Protection: The RJ45 port surge protection is tested to: EN61000-4-5 (for RJ45 Port, Surge 6KV)
    • LEDS Front: Per Unit: Power Per Port: Link/Activity Dual color, user selectable
    • LEDS Back: Per Port: Link/Activity 10/100/1000
    • Power Internal Switched Power, AC 100-240V, 50-60Hz input
    • Power Budget: 130 Watts Maximum
    • Max Power Consumption: 168W
    • AV Series: LEDs on the front, Ports on the back.
    • Layer 3: Layer 3 Static Routing
    • Operating Temperature: 32°F to 104°F (0°C to 40°C)
    • Operating Humidity: 10% to 90% (Non-condensing)
    • Dimensions LxWxH in. (mm): 17.3"(436.30) x 8.25"(209.55) x 1.75"(44.5)
    • Weight lbs (kg): 6.2 (2.8)
    • Certification: FCC, CE, RoHS

  • Item Includes:

    • 12-port/8 PoE+ Gigabit Managed Switch
    • Power Cord
    • Rack Mount Kit
    • Quick Install Guide

  • Warranty:

    • 3-year limited warranty
