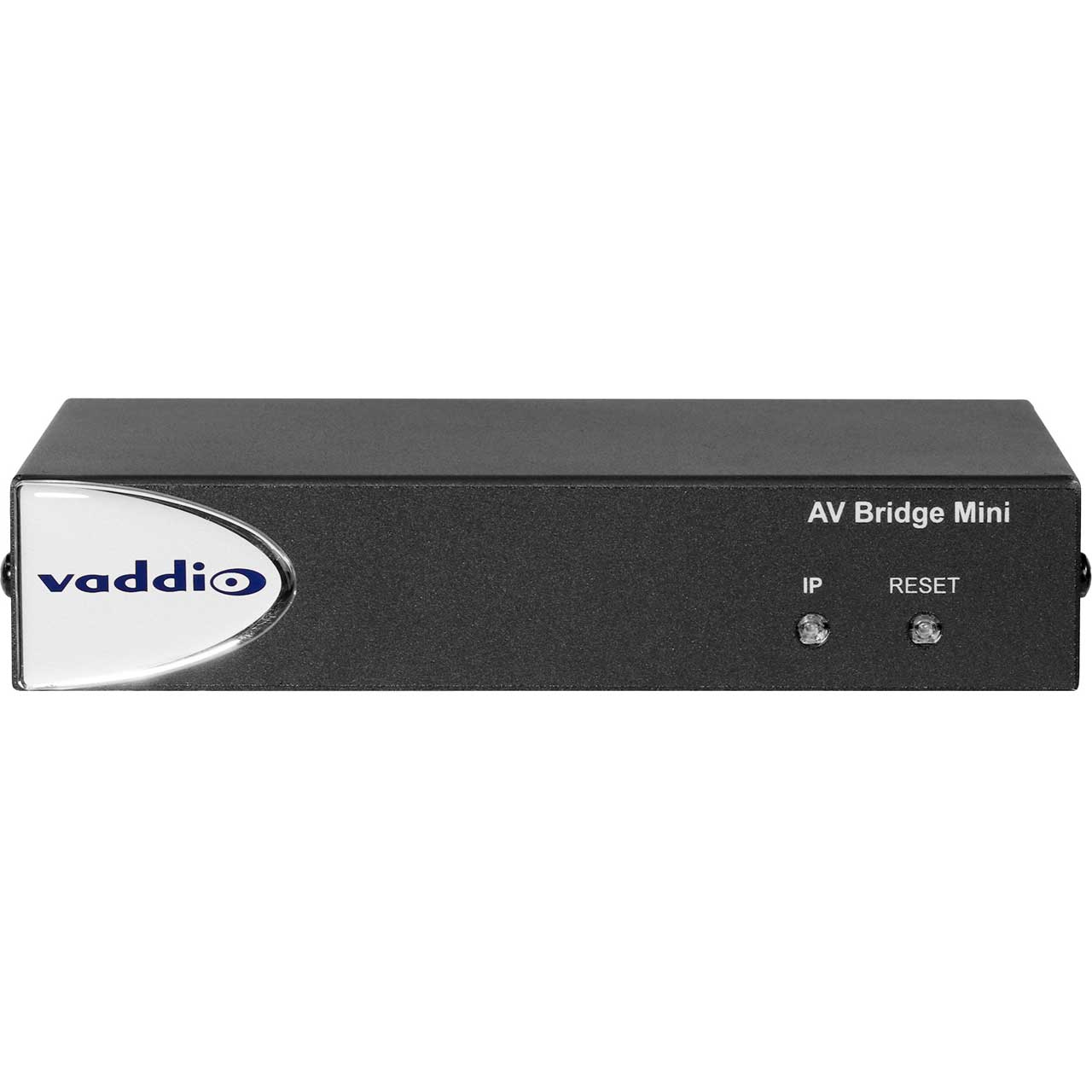

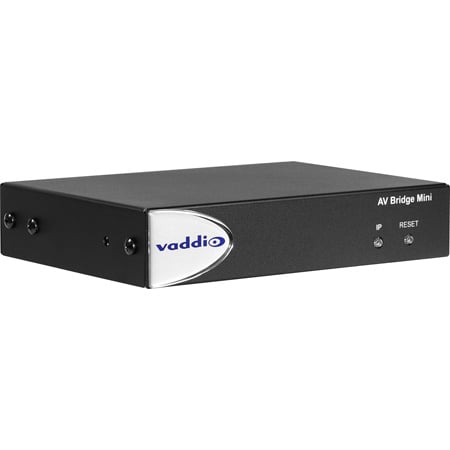

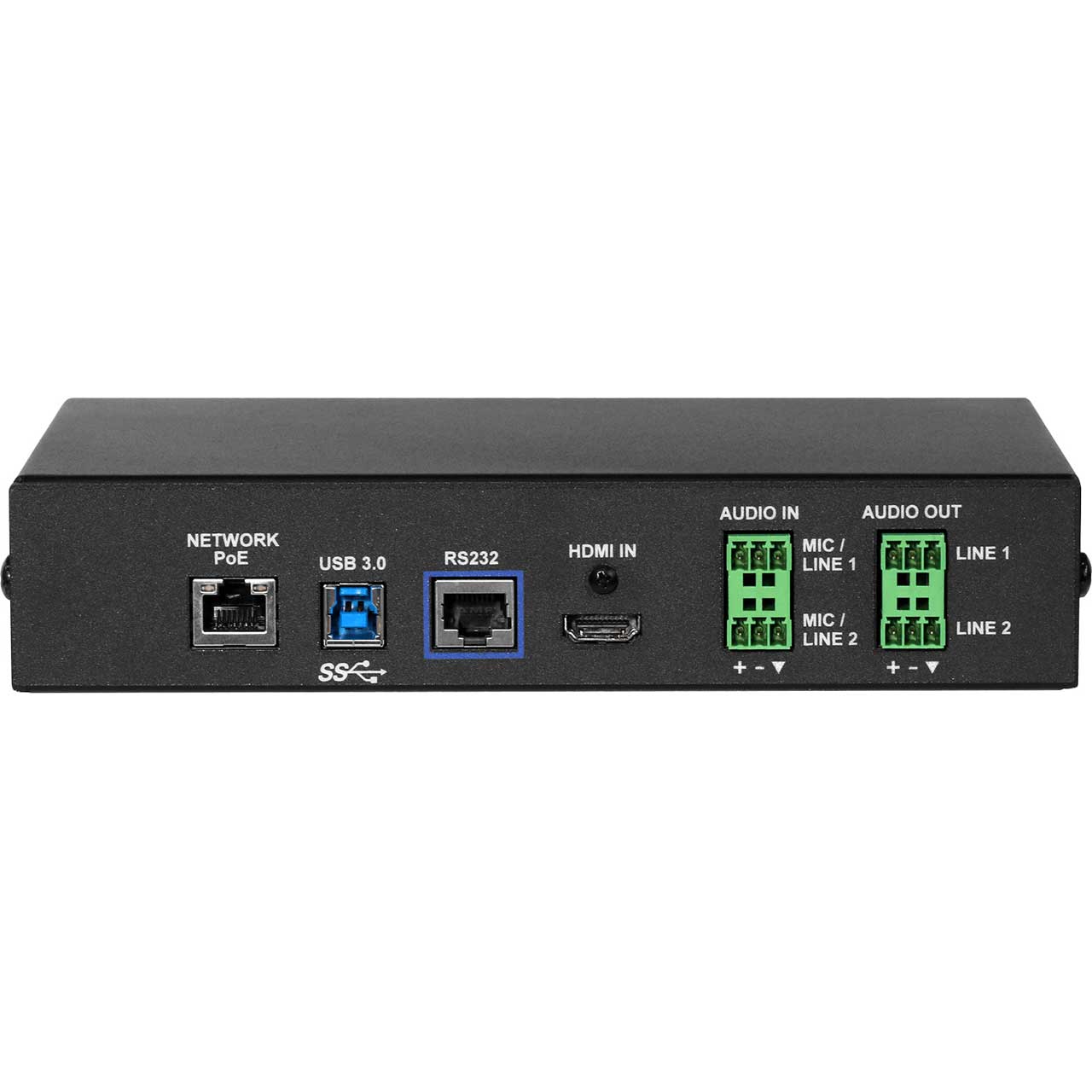

Vaddio AV Bridge Mini HD Audio/Video Encoder - USB 3.0 and IP Streaming with up to 1080p Quality

ITEM #: VAD-999-8240-000 MFG #: 999-8240-000

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
Vaddio
Free Shipping with $49 Minimum Order

List Price:

$2,388.00

Our Price:

$2,149.20

Add to Wish ListLeasing Options
Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup
Report Lower PriceLarge Quantity Quote

999-8240-000 - Overview

The Easy Way to Encode, Capture and Stream Content
Ideal for lecture capture, conference rooms and video conferencing installations, the Vaddio 999-8240-000 AV Bridge Mini makes it simple to encode, capture and stream AV content. With AV Bridge Mini, you can bridge any high-definition HDMI and audio source into soft conferencing applications such as Skype for Business, Zoom and WebEx through the standard USB 3.0 interface. Creating production-quality live streams on platforms like YouTube Live, UStream, LiveStream and Panopto has never been easier with the AV Bridge Mini's flexible RTMP capabilities.

The AV Bridge Mini includes all the features that integrators love about the AV Bridge and AV Bridge Conference, along with some important updates - all in a convenient, smaller half-rack unit size.

  • Features:

    • MADE IN THE USA!
    • Integrates pro AV sources or systems into software conferencing codec or live streaming applications
    • Outputs simultaneous USB 3.0 and IP streaming with up to 1080p quality
    • PoE powered - easily extends power and connectivity
    • Easy to install - 1/2 rack unit size fits anywhere
    • HDMI input accepts 4K (3840x2160) signals and encodes and scales appropriately
    • Simple user interface and control - set and forget
    • Mixer for controlling audio levels and outputs
    • Seamlessly interfaces with Vaddio's HD cameras, presentation systems, video mixing consoles, and other pro audio products
    • Integrates with external DSPs by providing two balanced audio line inputs and outputs
    • Minimizes interoperability problems by implementation of standards-based UVC and UAC drivers


  • Specifications:

    • USB 3.0
    • Type B Up to 1080p/60

      IP Stream
    • RTSP or RTMP up to 1080p/30

      HDMI Input
    • Audio and video up to 3840x2160

      POE
    • IEEE 802.3af-2003 Standard 15.4W Power and Network Connectivity

      RS-232
    • RS-232 RJ-45 Control Port, 38,400 Baud Rate, Vaddio ASCII Command Protocol

      Mounting Options
    • Half rack, full rack and under table mounting

      Control
    • Browser-based user interface for configuration and administration, front panel controls for IP address toggle, power reset, and factory reset, Telnet, and RS-232 for external controllers

      Operating/Storage Temperature
    • 0°C to +40°C (32°F to 104°F), 20% to 80% Humidity

      Dimensions/Weight Height
    • 1.72 in (4.4 cm); Width 8.375 in (21.3 cm); Depth 6.0 in (15.2 cm)

      Audio Inputs
    • Stereo USB, Stereo HDMI, and Two Balanced Mic/Line-Level Inputs, Impedance 10Kohm, Phantom Power Available (48 VDC, 10 mA)

      Audio Outputs
    • Stereo USB, AAC IP Audio Stream, and Two Balanced Line-Level
    • Outputs, Impedance: < 50 Ohms

      Audio I/O Matrix
    • 6x5


  • Item Includes:

    • AV Bridge Mini
    • PoE Power Injector with AC cord set(s)
    • 3' (0.9m) cat-5 cable, black
    • 6' (1.8m) USB 3.0 cable, type A to B
    • 4 qty 3-position phoenix-style connectors
    • Rack mounting kit (for mounting the AV Bridge Mini into a full rack space)
    • Quick-Start Guide


  • GTIN:

    0840077501778
