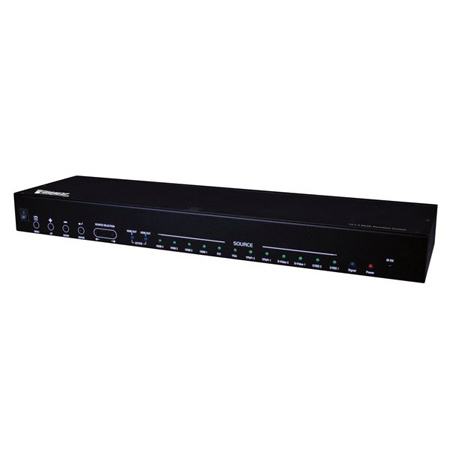

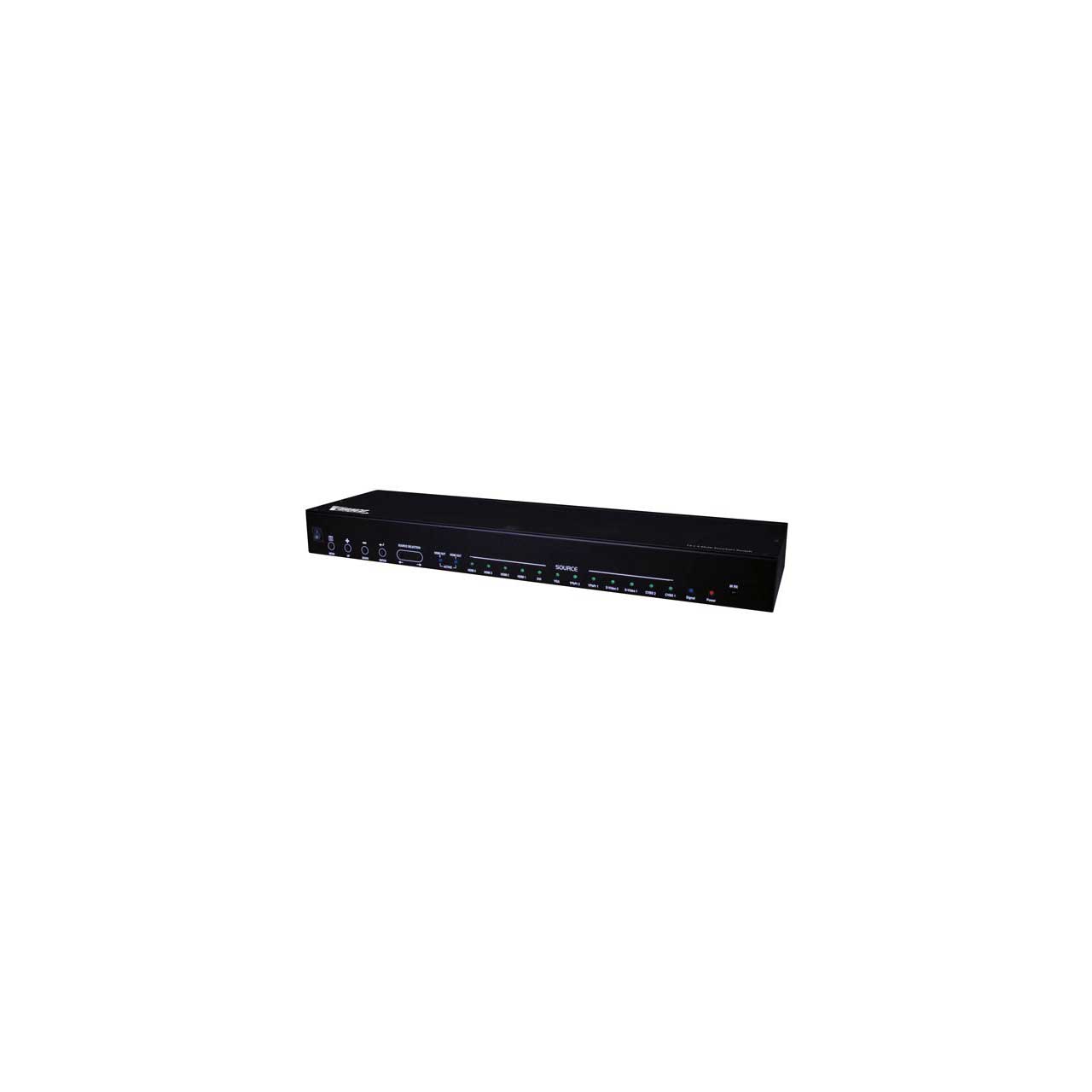

Vanco 280595 - 12x3 Multi-Function Switch/Scaler

280595 - Overview

• Features:

  • Allows the conversion of up to 12 multi-format inputs to 2 mirroring HDMI outputs and 1 Composite output
  • Upscales standard definition/high definition sources to resolutions up to 720p or 1080p, with both HDMI outputs working simultaneously along choice of composite output - some VESA formats can be bypassed by using VGA and DVI-I ports
  • Buffers, amplifies and equalizes the signal to ensure optimum transmission and reception over the length of the cable run without any loss in video/audio quality
  • HDMI Outputs feature bypass from either stereo input or S/PDIF input
  • Features noise reduction and video enhancements when upscaling to 720p/1080p
  • DVI-I supports both analog and digital formats with L/R and/or S/PDIF audio input
  • Detached audio output by L/R and optical
  • Delivers uncompressed digital video with zero signal loss
  • Supports high definition resolutions up to 1080p
  • Dual switching option: IR control with included remote and manual front panel control
  • IR receiver included for IR extension
  • Serial port for firmware update


• Specifications:

  • Input Video bandwidth: HDMI:225 MHz, DVI/VGA:165 MHz, Component: 74.25MHz
  • Output Video bandwidth: 297MHz
  • Audio support: HDMI: bypass to HDMI output/ SPDIF output/ stereo output, SPDIF: bypass to HDMI output or SPDIF output, Stereo: bypass to HDMI output or stereo output
  • ESD protection: [1] Human body model - ±19kV [air-gap discharge] & ±12kV [contact discharge], [2] Core chipset - ±2kV
  • PCB stack-up: 4-layer board [impedance control - differential 100W; single 50W]
  • Firmware update: Feasible via RS232 Port
  • CEC Channel: ByPass
  • Input TMDS signal: 1.2 Volts [peak-to-peak]
  • Input DDC signal: 5 Volts [peak-to-peak, TTL]

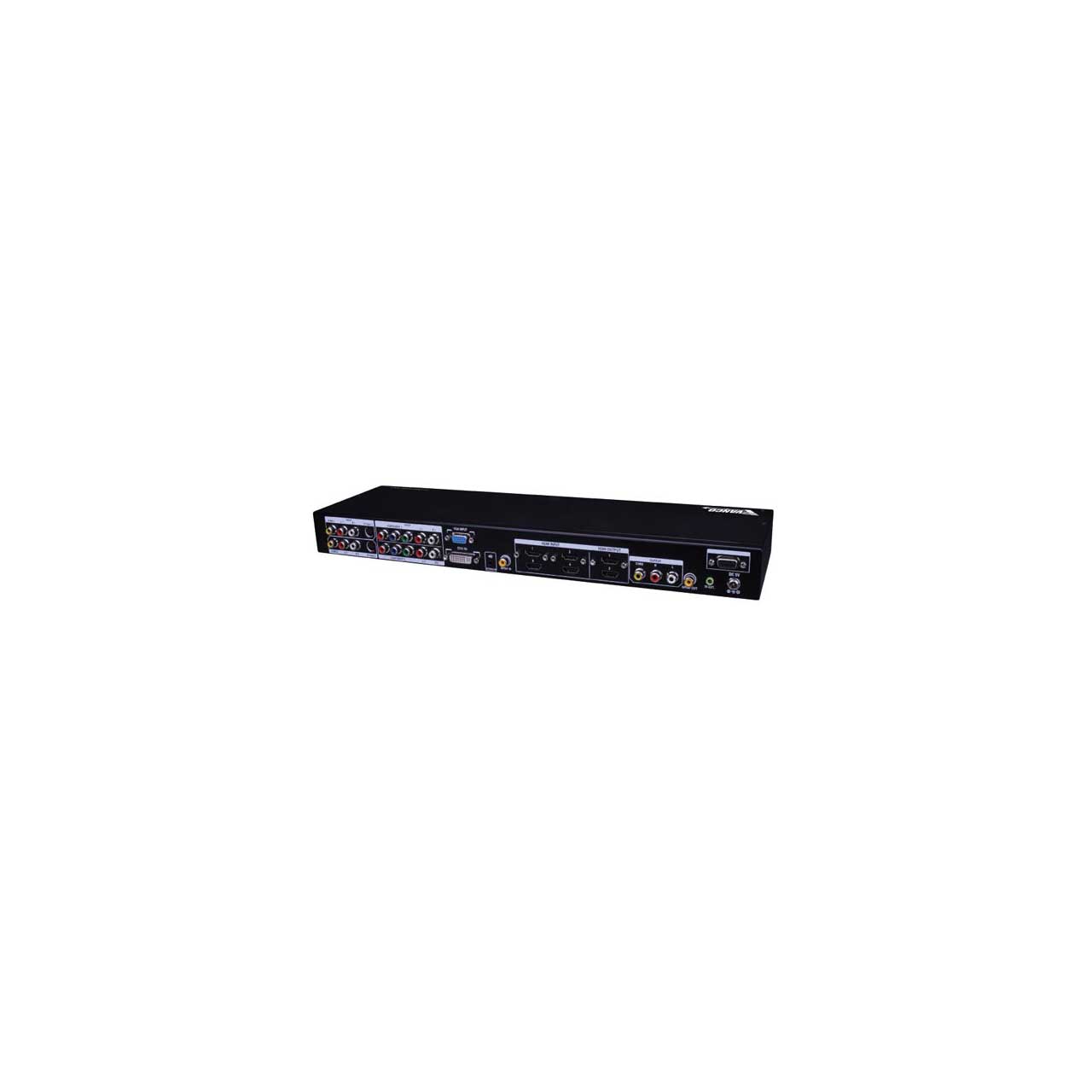

  • Output: 2x HDMI + 1xVGA(Optional) + 1xCVBS + 2xRCA
  • YPbPr: 3xRCA(Video) + 2xRCA(Audio) [female]
  • S-Video: 9 pin S-Video [female]
  • CVBS: 1xRCA(Video) + 2xRCA(Audio) [female]
  • VGA connector: HD-15 [15-pin D-sub female]
  • HDMI connector: HDMI [19-pin female]
  • RS-232 connector: 9-Pin D-sub female
  • Power supply: 5V 2A DC
  • Power consumption:10W
  • Operation temperature: 0~40°C [32~104°F]
  • Storage temperature: -20~60°C [-4~140°F]
  • Relative humidity: 20~90% RH [no condensation]

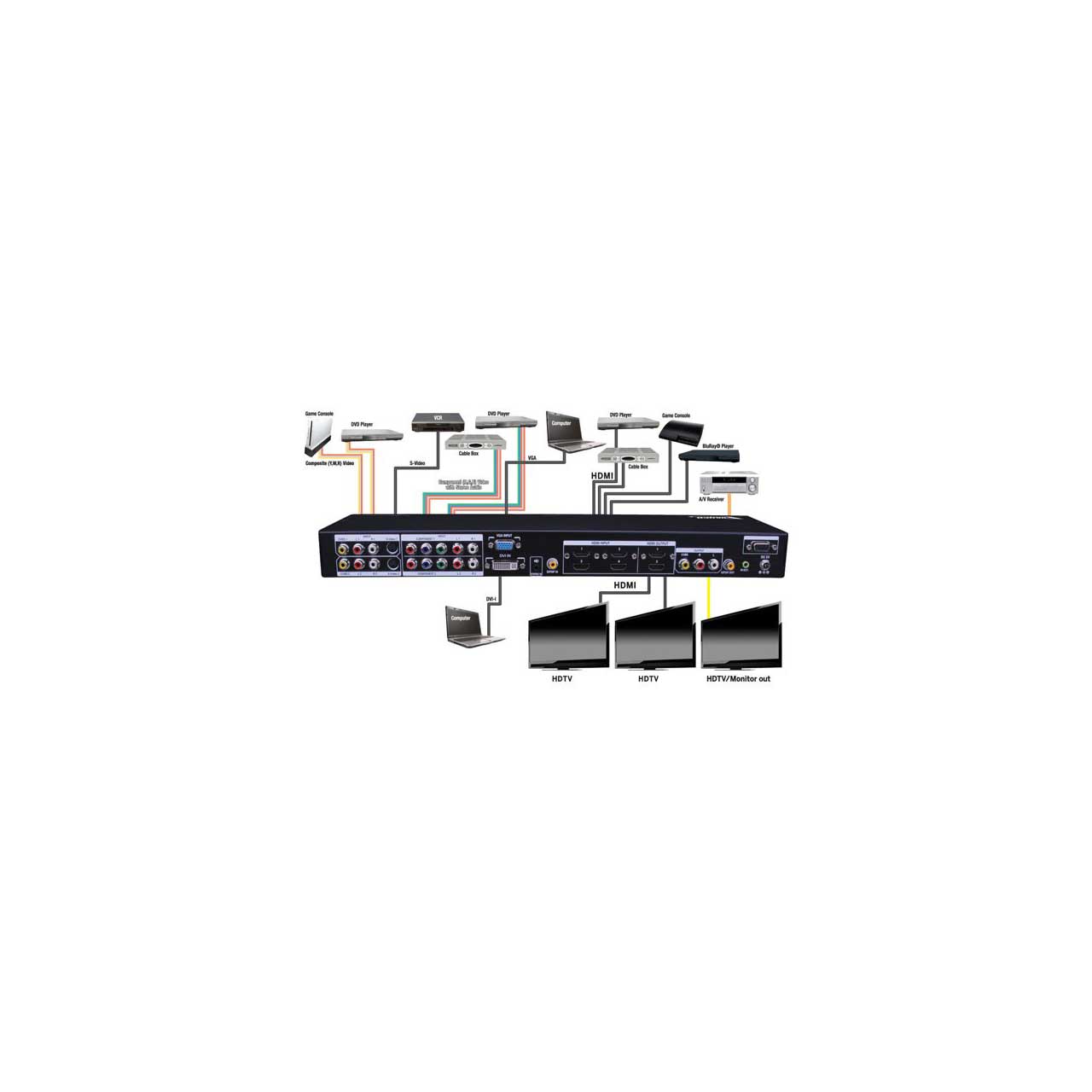

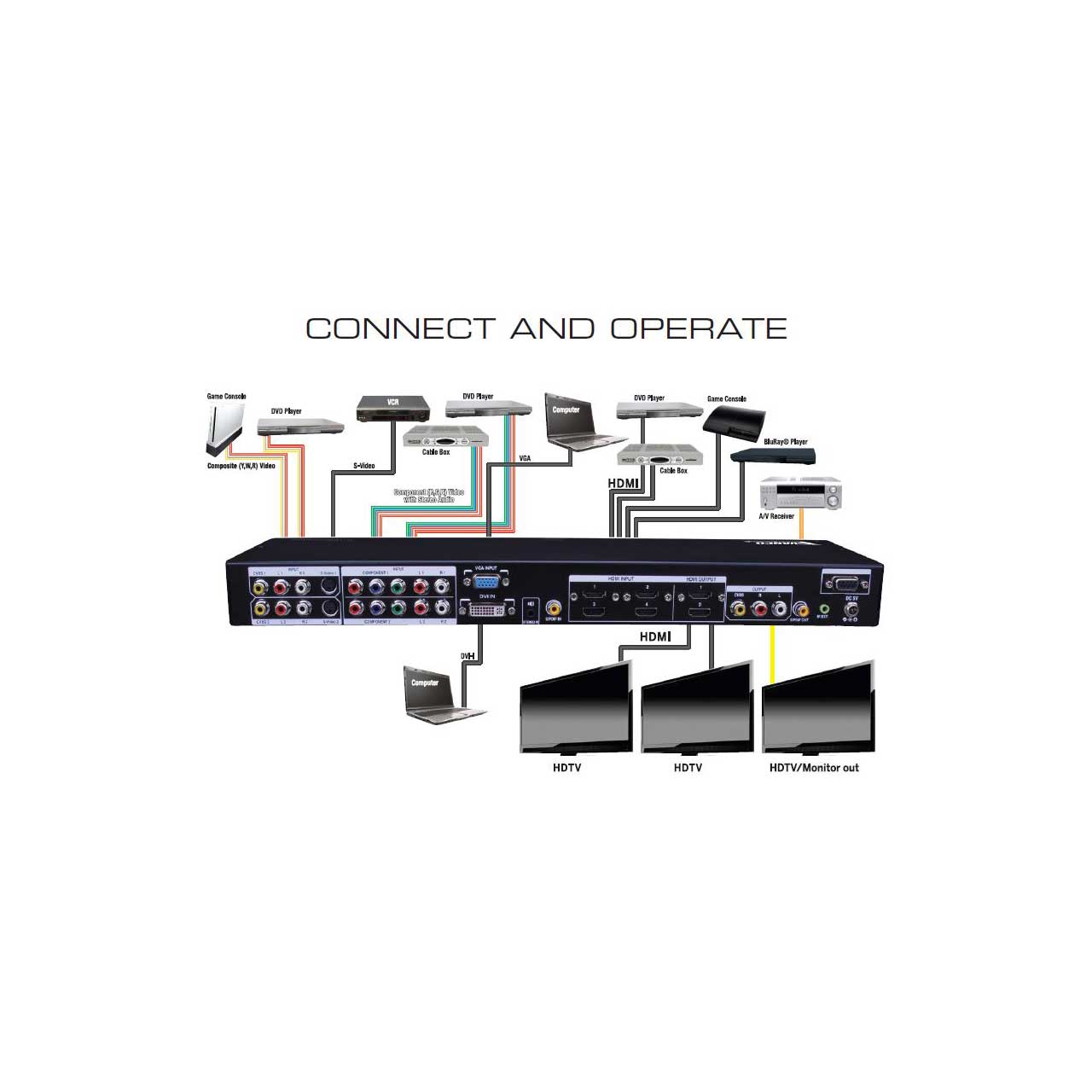

    Supported Inputs:
  • 1 x VGA source
  • 2 x S-Video source
  • 2 x Composite AV sources with LR audio
  • 2 x Component sources with LR audio
  • 4 x HDMI sources
  • 1 x DVI-I source
  • Stereo input for audio
  • S/PDIF input for digital audio


• Item Includes:

  • (1) 280595
  • (1) IR Receiver (RX)
  • (1) IR remote, 28 Key
  • (1) DC 5V, 2A power supply
  • (1) Installation software CD
  • (1) User Manual


• GTIN:

  0741835101837
