VigilLink VLDT-AP0808 1RU 8x8 Dante Digital Audio Processor with Mic/Linear Inputs and Balanced Linear Outputs

ITEM #: VGL-VLDT-AP0808 MFG #: VLDT-AP0808

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
Free Shipping with $49 Minimum Order

Our Price:

$2,100.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
  • Special Order Item: non-cancelable, non-returnable, non-refundable.


VLDT-AP0808 - Overview

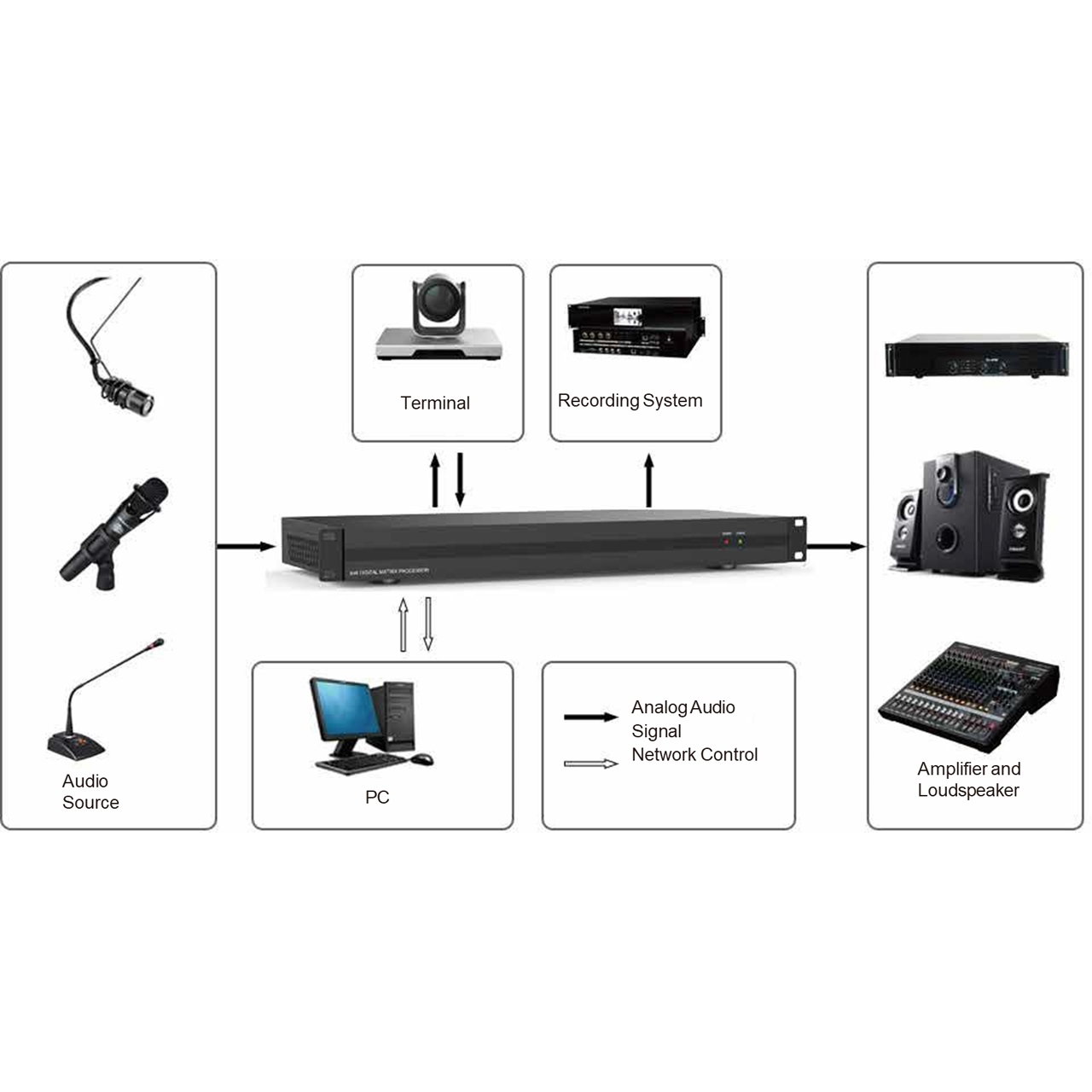

This VigilLink VLDT-AP0808 digital audio processor is tailored for video conferencing, remote learning, and telemedicine applications. Equipped with 8-channel MIC/linear inputs and 8-channel linear outputs, it employs advanced algorithms, including full-band Adaptive Echo Cancellation (AEC), Adaptive Noise Suppression (ANS), Automatic Gain Control (AGC), and Auto Mixer. The result is a crystal-clear, pristine sound with a high Signal-to-Noise ratio. With a streamlined yet intelligent design, this processor requires no additional software for debugging, ensuring ease of use after installation. It is an ideal choice for project implementation and testing.

Versatile in its applications, this product finds utility in various scenarios, ranging from smart system integration in small to medium-sized conference rooms, instructional recording, and distance teaching in education to court trial recording and virtual court trials in the judiciary. Additionally, it caters to surgery recording and video consultations in healthcare services and the establishment of command centers in governmental projects.

  • Features:

    • Provide 8 channel balanced MIC/linear inputs and 8 channel balanced linear outputs
    • Support adaptive feedback suppression function
    • Support the full-band adaptive acoustic echo cancellation technology
    • Dynamic adaptive noise reduction technology is provided to reduce noise with signal levels up to 18dB
    • Auto Mixer function is provided to set the order of priority when multiple microphones are input at one time
    • Inclusive of Digital signal processing modules such as Expander, Equalizer, Compressor, Auto Gain Control, Limiter, High Pass Filter, Low Pass Filter, and Delay
    • Capable of switching matrix routings
    • Support volume control, meter, group management, scene control, etc.
    • 48V phantom power supply for 8 channel MIC inputs
    • 48KHz sampling rate, 24-bit for A/D or D/A conversion
    • Support 8 channel programmable GPIO function
    • Compatible to run on Win 7 and Win 10, with standard RJ45 interface control
    • Support RS-232 serial command control.

  • Specifications:

      Technical
    • Amplitude-frequency (20Hz - 20kHz @ +4dBu): ±0.2dB
    • THD+N (1kHz @ +4dBu): ≤ 0.01%
    • SNR (linear input): ≥ 90dB
    • Dynamic Range: ≥ 100dB
    • Channel Level Difference: ±0.5dB
    • Channel Isolation: ≥ 80dB
    • Max Input Level: 20dBu
    • Max MIC Gain: 40dB
    • Input Impedence: 20kΩ
    • Output Impedence: 300Ω
    • Sampling Frequency: 48kHz
    • A/D and D/A Conversion: 24Bit
    • Phantom Power: +48V DC

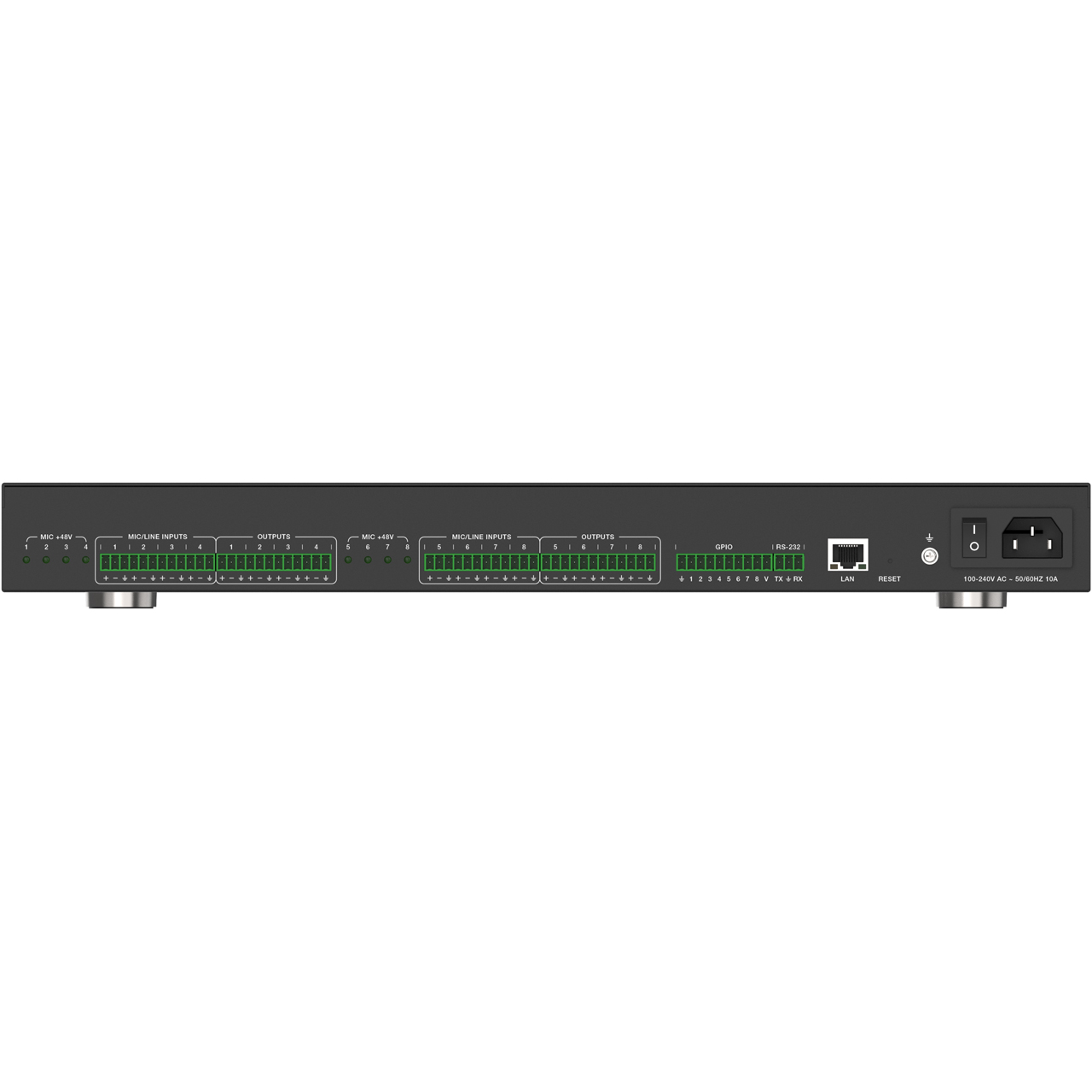

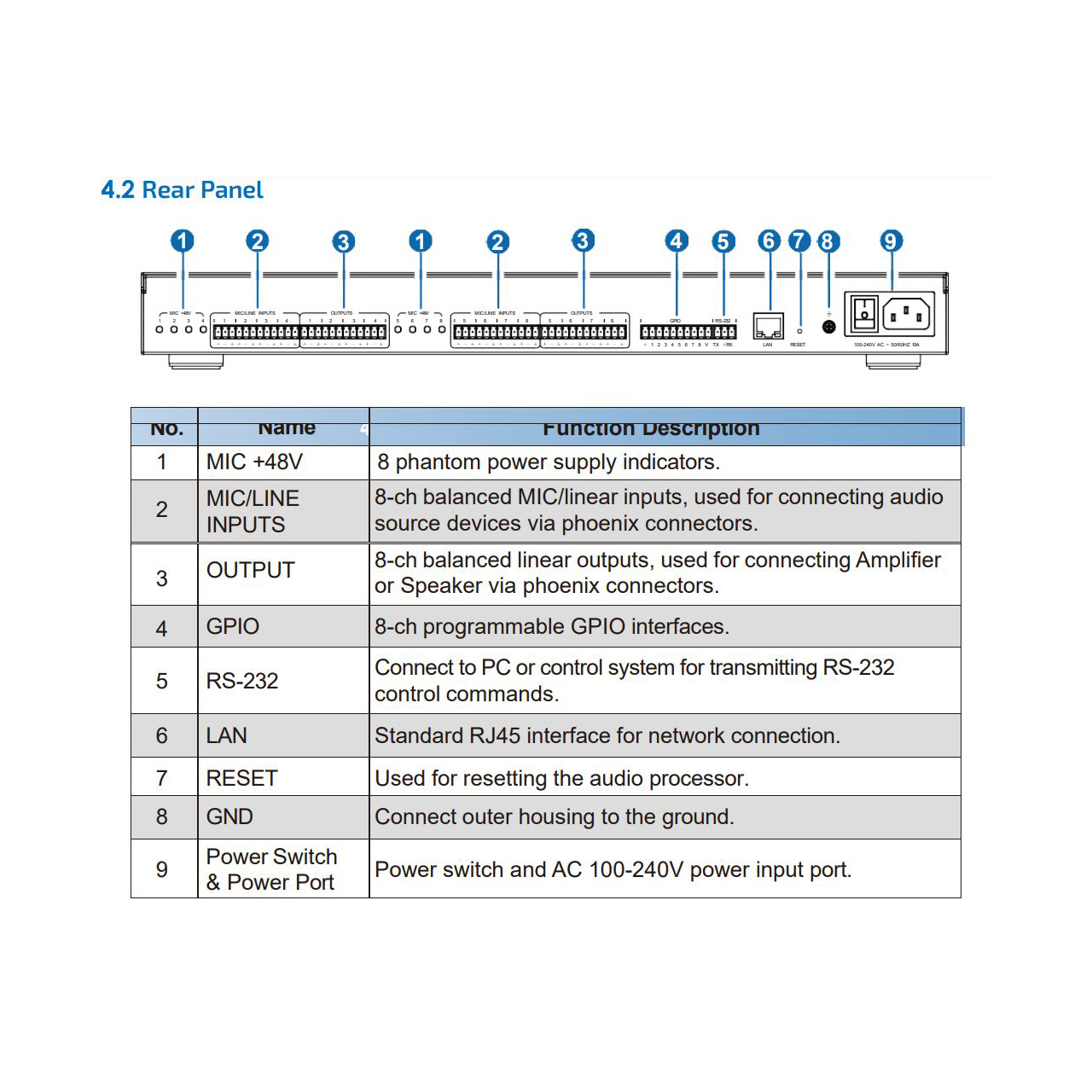

      Connections
    • Inputs:
      - 8x Balanced MIC/LINE [3-pin phoenix connector] or
      - 4x Stereo Audio [3-pin phoenix connector]
    • Outputs:
      - 8x Balanced LINE [3-pin phoenix connector]
      - 4x Stereo audio [3-pin phoenix connector]
    • Controls:
      - 1x LAN [RJ45]
      - 1x RS-232 [3-pin phoenix connector]
      - 8x GIPO [10-pin phoenix connector]

      Mechanical
    • Housing: Metal Enclosure
    • Color: Black
    • Dimensions: 17.32" x 9.84" x 1.77" (440mm x 250mm x 45mm)
    • Weight: 8.38lbs (3.3kg)
    • Power Supply: AC 100V - 240V 50/60Hz
    • Power Consumption: 9W (Max)
    • Operating Temperature: 32°F - 104°F (0°C - 40°C)
    • Storage Temperature: -4°F - 140°F (-20°C - 60°C)
    • Relative Humidity: 20% - 90% RH (Non condensation)

  • Item Includes:

    • 1x Digital Audio Processor
    • 1x AC 100~240V 50/60Hz Power Cord
    • 1x 3pin-3.81mm Phoenix Connectors (Male)
    • 1x 10pin-3.81mm Phoenix Connectors (Male)
    • 4x 12pin-3.81mm Phoenix Connectors (Male)
    • 2x Mounting Ears (Wall Mount)
    • 8x Machine Screws (KM3*4)
    • 1x User Manual
