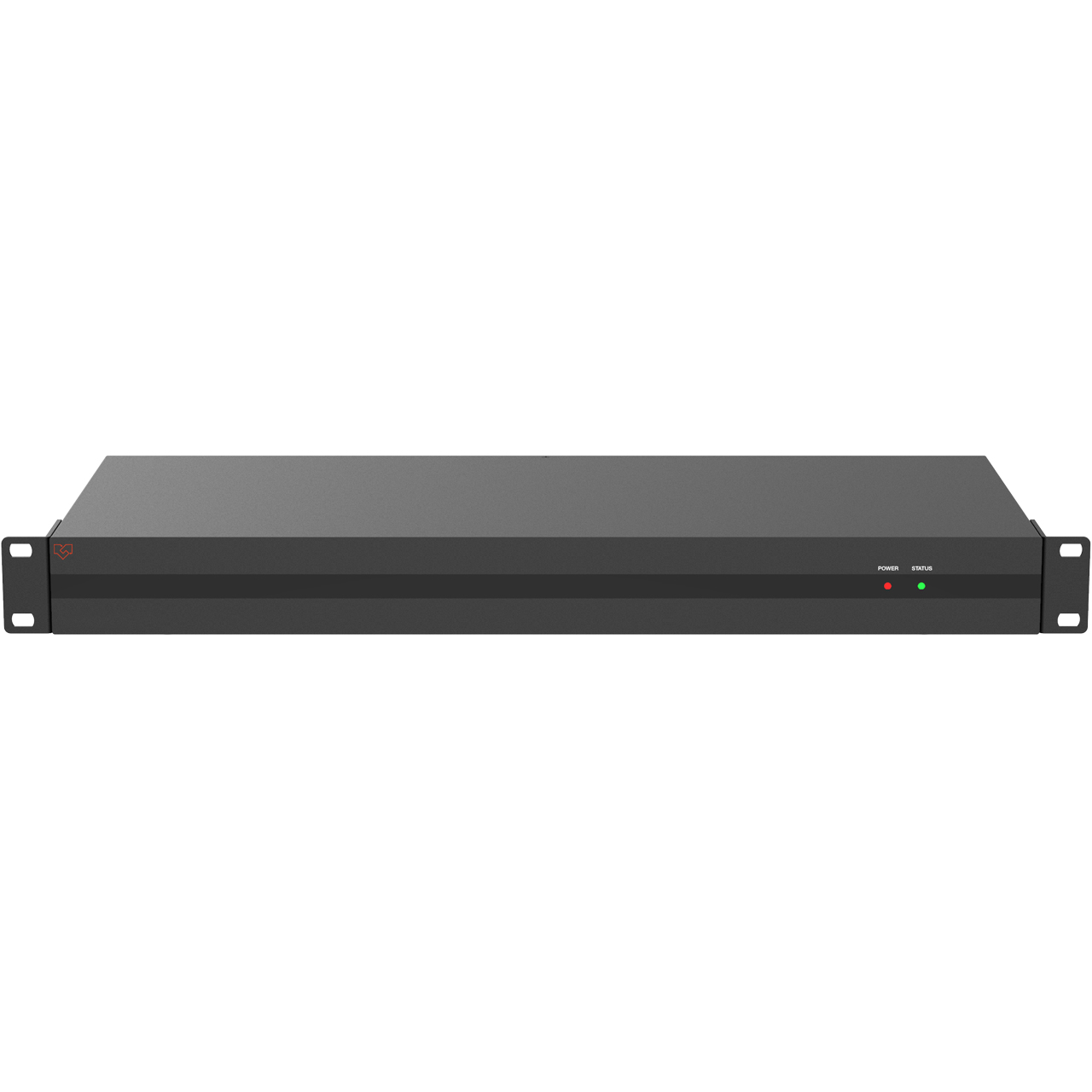

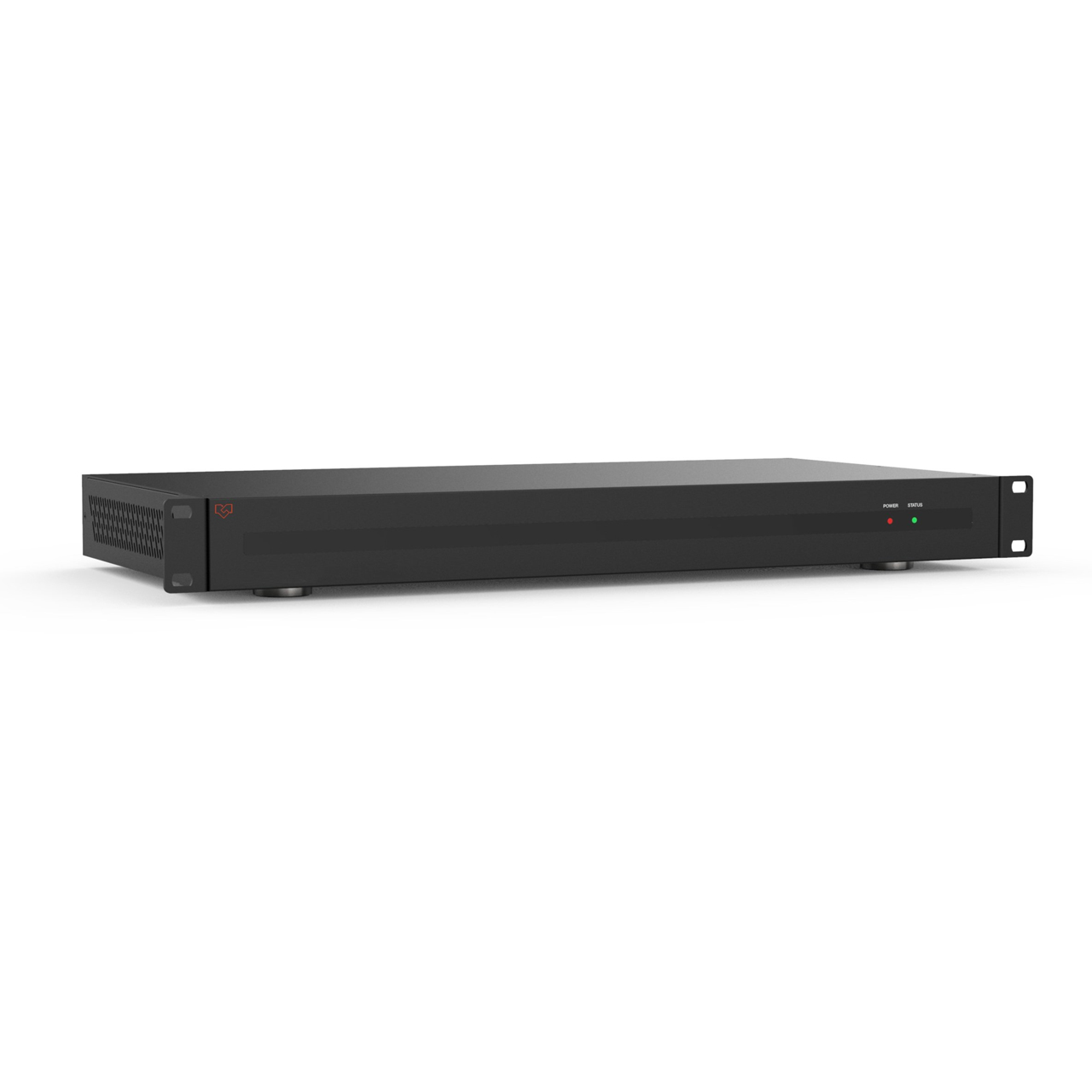

VigilLink VLDT-AP1616 1RU 16x16 Dante Digital Audio Processor with Mic/Linear Inputs and Balanced Linear Outputs

ITEM #: VGL-VLDT-AP1616 MFG #: VLDT-AP1616

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

Our Price:

$3,380.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
  • Special Order Item: non-cancelable, non-returnable, non-refundable.


VLDT-AP1616 - Overview

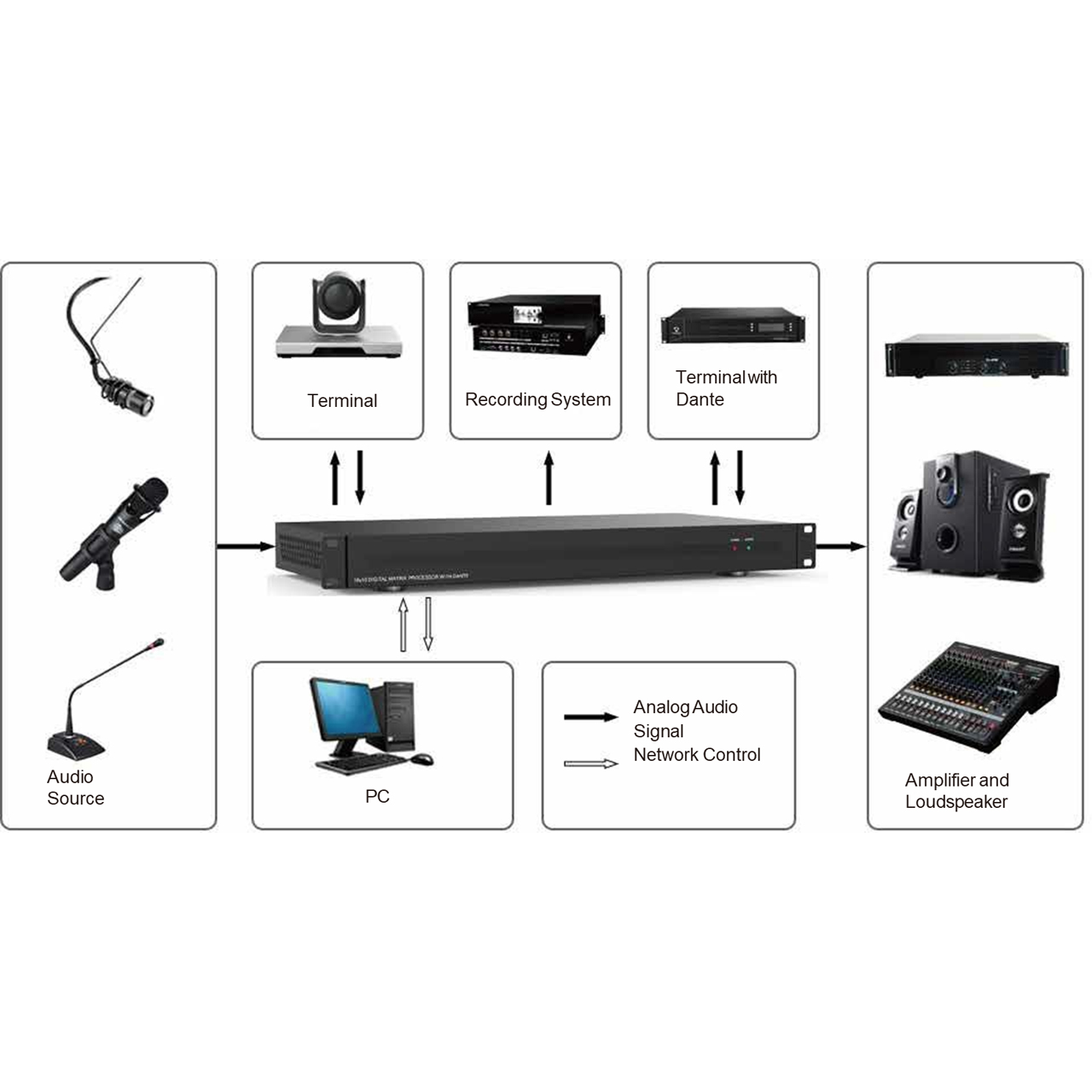

This VigilLink VLDT-AP1616 16x16 DANTE digital audio processor is typically used for video conferences, distant learning, and telemedicine. It features 12 channel MIC/linear inputs and 12 channel linear outputs. Two DANTE ports are also provided to ensure low latency in the audio processor. The product can process audio signals with algorithms, such as full-band Adaptive Echo Cancellation (AEC), Adaptive Noise Suppression (ANS), Automatic Gain Control (AGC), and Auto Mixer, to output a clear, clean, and resonant sound with high Signal-to-Noise ratio.

Concise but intelligent, the processor is designed to be applied in scenarios without additional software assistance for debugging. It is ready to use after installation and is perfect for project implementation and testing. The product can be applied in a diverse range of installations and applications across industries, such as smart system integration in small-medium sized conference rooms, instruction recording and distance teaching in education, court trial recording and virtual court trial in the judiciary, surgery recording and video consultation in healthcare service, and command center establishment in governmental projects.

  • Features:

    • Provide 12 channel balanced MIC/linear inputs and 12 channel balanced linear outputs
    • Provide two standard DANTE network audio interfaces
    • Support adaptive feedback suppression function
    • Support the full-band adaptive acoustic echo cancellation technology
    • Dynamic adaptive noise reduction technology is provided to reduce noise with signal levels up to 18dB
    • Auto Mixer function is provided to set the order of priority when multiple microphones are input at one time
    • Inclusive of Digital signal processing modules such as Expander, Equalizer, Compressor, Auto Gain Control, Limiter, High Pass Filter, Low Pass Filter, and Delay
    • Capable of switching matrix routings
    • Support volume control, meter, group management, scene control, etc.
    • 48V phantom power supply for 12 channel MIC inputs
    • 48KHz sampling rate, 24-bit for A/D or D/A conversion
    • Support 8 channel programmable GPIO function
    • Compatible to run on Win 7 and Win 10, with standard RJ45 interface control
    • Support RS-232 serial command control.

  • Specifications:

      Technical
    • Amplitude-frequency (20Hz~20KHZ@+4dBu): ±0.2dB
    • THD+N (1KHZ@+4dBu): ≤ 0.01%
    • SNR (linear input): ≥ 90dB
    • Dynamic Range: ≥ 100dB
    • Channel Level Difference: ±0.5dB
    • Channel Isolation: ≥ 80dB
    • Max Input Level: 20dBu
    • Max MIC Gain: 40dB
    • Input Impedence: 20KΩ
    • Max Input Level: 20dBu
    • Output Impedence: 300Ω
    • Sampling Frequency: 48KHZ
    • A/D and D/A Conversion: 24Bit
    • Phantom Power: +48 VDC

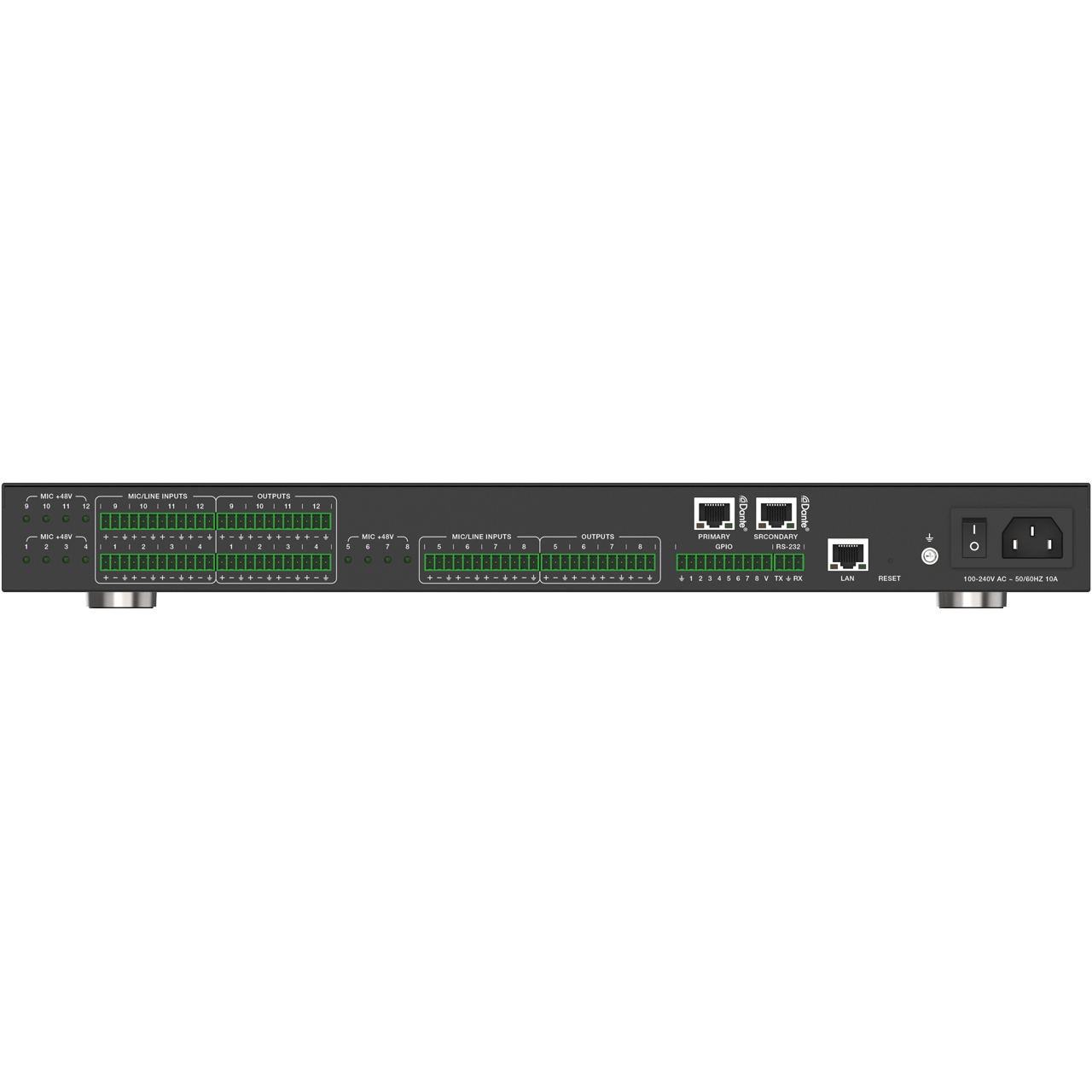

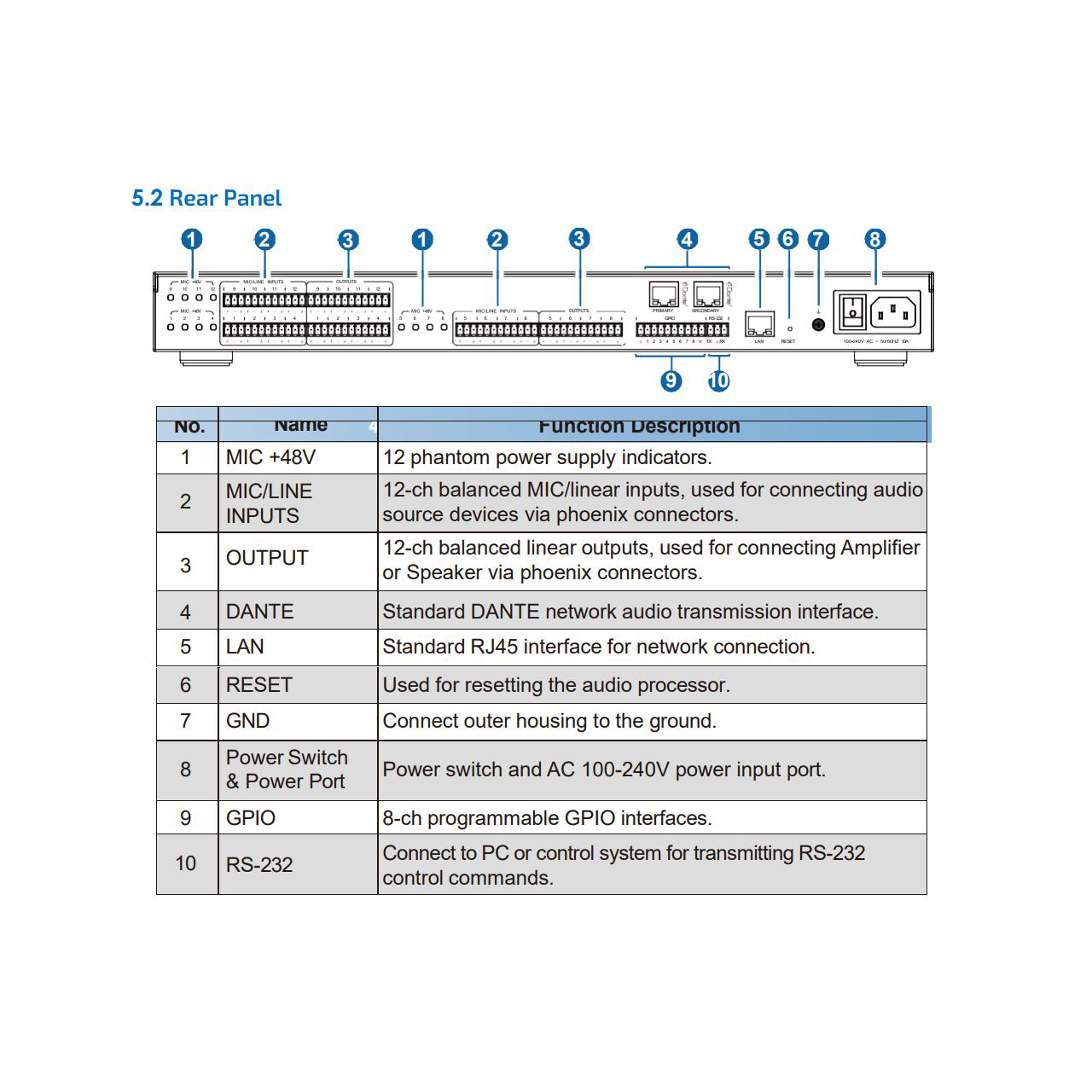

      Connection
    • Inputs:
      - 12x Balanced MIC/LINE [3-pin phoenix connector]
      - 6x Stereo Audio [3-pin phoenix connector]
    • Outputs:
      - 12x Balanced LINE [3-pin phoenix connector]
      - 6x Stereo audio [3-pin phoenix connector]
    • Controls:
      - 1x LAN [RJ45]
      - 1x RS-232 [3-pin phoenix connector]
      - 8x GIPO [10-pin phoenix connector]
    • Digital Audio Interfaces: 2x Dante [RJ45]

      Mechanical
    • Housing: Metal Enclosure
    • Color: Black
    • Dimensions: 17.32" x 9.84" x 1.77" (440mm x 250mm x 45mm)
    • Weight: 9.92lbs (3.37kg)
    • Power Supply: AC 100V - 240V 50/60Hz
    • Power Consumption: 11W (Max)
    • Operating Temperature: 32°F - 104°F (0°C - 40°C)
    • Storage Temperature: -4°F - 140°F (-20°C - 60°C)
    • Relative Humidity: 20% - 90% RH (Non condensation)

  • Item Includes:

    • 1x Digital Audio Processor with DANTE
    • 1x AC 100~240V 50/60Hz Power Cord
    • 1x 3pin-3.81mm Phoenix Connectors (Male)
    • 1x 10pin-3.81mm Phoenix Connectors (Male)
    • 6x 12pin-3.81mm Phoenix Connectors (Male)
    • 2x Mounting Ears (Wall Mount)
    • 8x Machine Screws (KM3*4)
