VigilLink VLSP-AS12H20 1x2 HDMI 2.0b Splitter with Audio De-Embedded and Downscale - 18Gps Bandwidth

VLSP-AS12H20 - Overview

• Features:

  • HDMI 2.0b, HDCP2.2/HDCP1.4 compliant.
  • Supports HDMI resolution the maximum up to 4K2K@50/60Hz (4:4:4)
  • Supports digital and analog audio extract output from HDMI source.

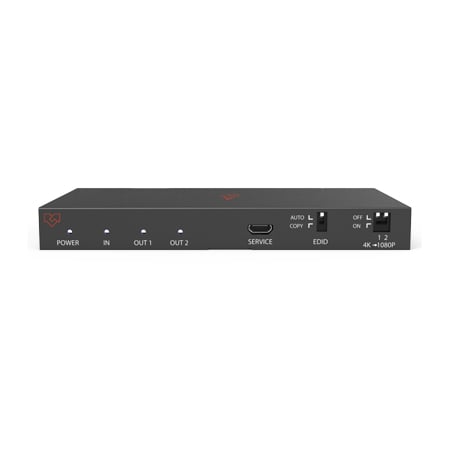

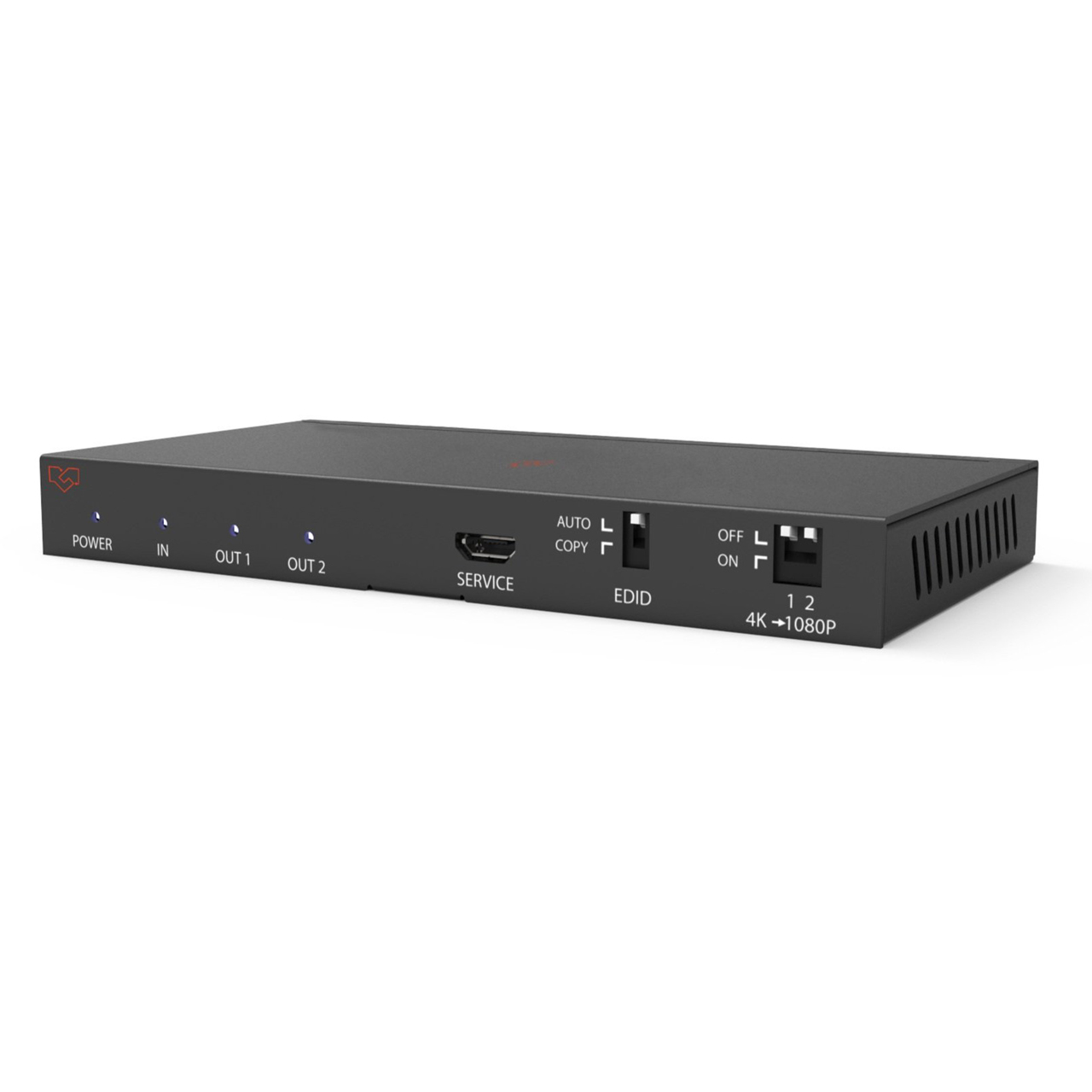

  • Supports output bypass and 4K->1080P downscale function via dial switch on the panel.
  • EDID can be selected COPY and AUTO modes via the dial switch on the panel.
  • Supports HDMI audio format LPCM, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-EX,DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD


• Specifications:

  • Technical
  • HDMI Compliance: HDMI 2.1
  • HDCP Compliance: HDCP 2.2 and HDCP 1.4
  • Video Bandwidth: 18Gbps
  • Video Resolution: 720P50/60Hz, 1080P50/60Hz, 4K2K24Hz, 4K2K30Hz, 4K2K@50/60Hz (4:4:4)
  • Color Depth: 4K60Hz 8-bit, 1080P 12-bit
  • Color Space: RGB, YCbCr 4:4:4, YCbCr 4:2:2
  • HDMI Audio Formats: LPCM, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD
  • L/R Audio Formats: PCM 2.0
  • Optical Audio Formats: LPCM [2.0/2.1]CH, Dolby 5.1, Dolby True HD, Dolby DD+, DTS 5.1, DTS-ES 6, DTS-HDMA 5.1, DTS HD-HRA 5.1
  • ESD Protection: Human-body Model: ±8kV (Air-gap discharge) , ±4kV (Contact discharge)

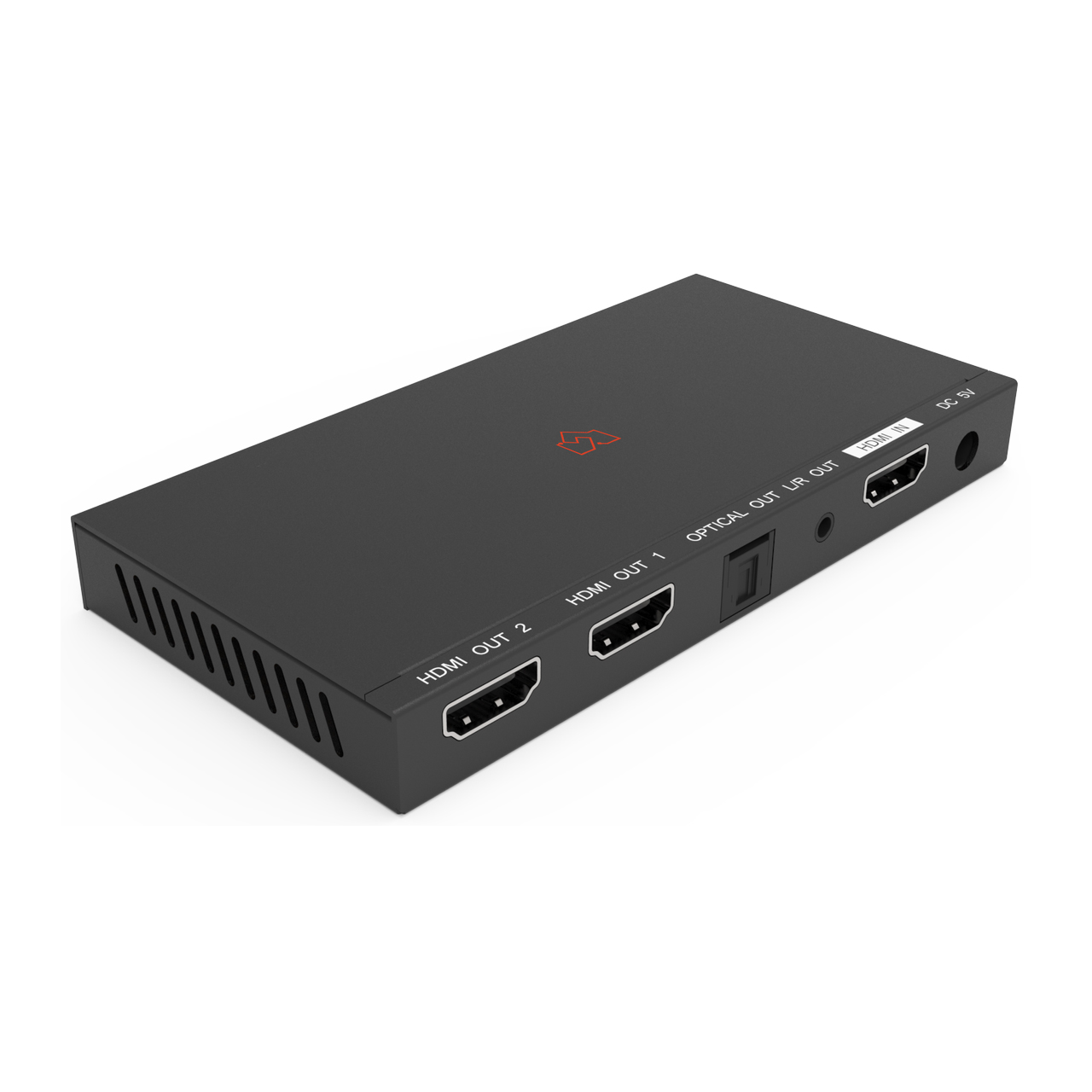

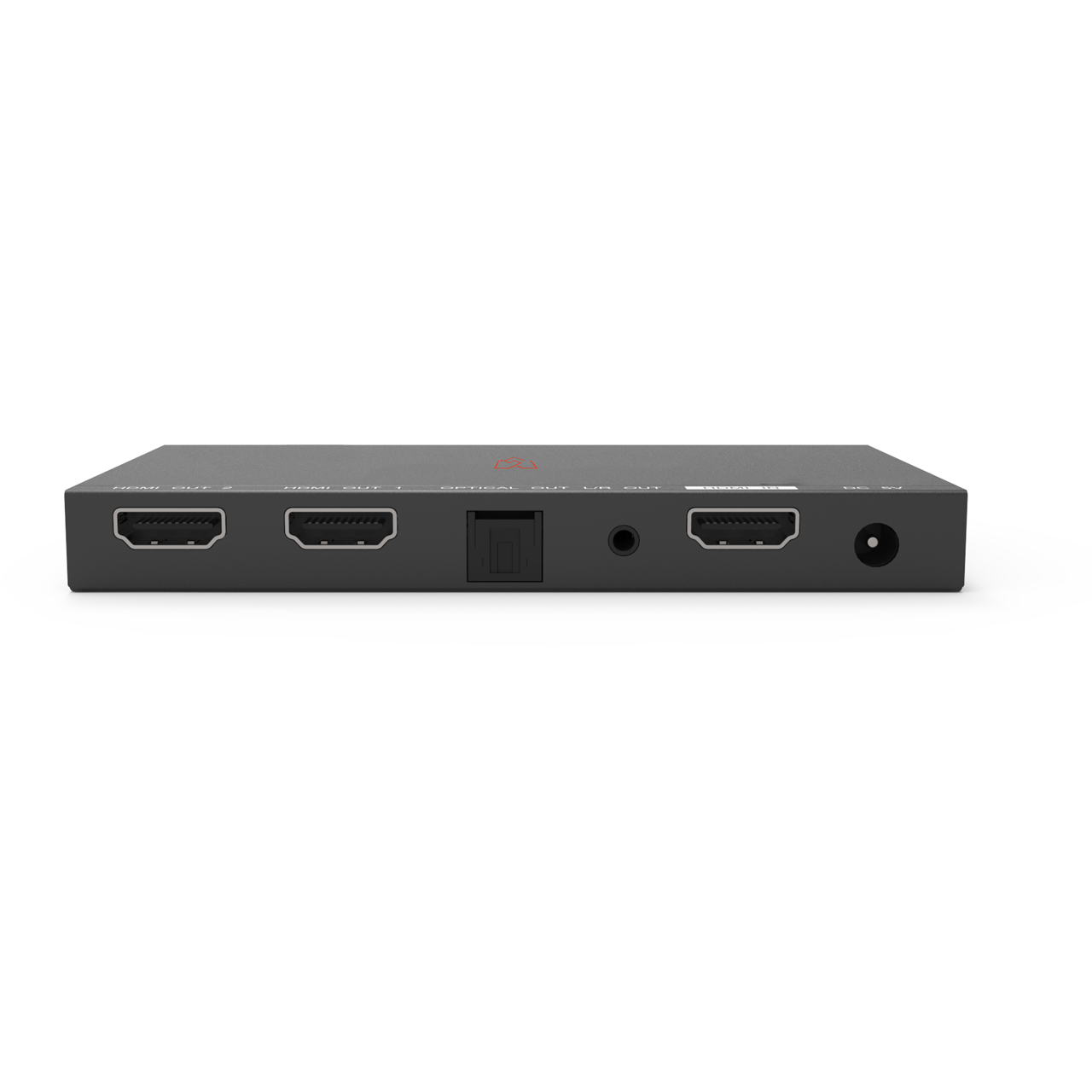

    Connection
  • Input Ports: 1x HDMI Type A [19-pin female]
  • Output Ports:
    - 2x HDMI Type A [19-pin female]
    - 1x L/R Audio out [3.5mm Stereo Mini-jack]
    - 1x Optical out [S/PDIF]

    Mechanical
  • Housing: Metal Enclosure
  • Color: Black
  • Dimensions: 4.72 In (120mm) W x 2.46 In (62.5mm) D x .55 In (14mm) H
  • Weight: .37 lbs (166g)
  • Power Supply:
    - Input: AC100 - 240V 50/60Hz,
    - Output: DC5V/1A
    US/EU standard, CE/FCC/UL certified
  • Power Consumption: 2.8W (max)
  • Operating Temperature : 0 °C ~ 40 °C / 32 °F ~ 104 °F
  • Storage Temperature: -20 °C ~ 60 °C / -4 °F ~ 140 °F
  • Relative Humidity: 20 - 90% RH (No condensation)


• Item Includes:

  • 1x 1x2 HDMI 2.0 Splitter
  • 1x 5V/1A Power Adapter
  • 1x User Manual


• Warranty:

  • 6 Year Warranty
