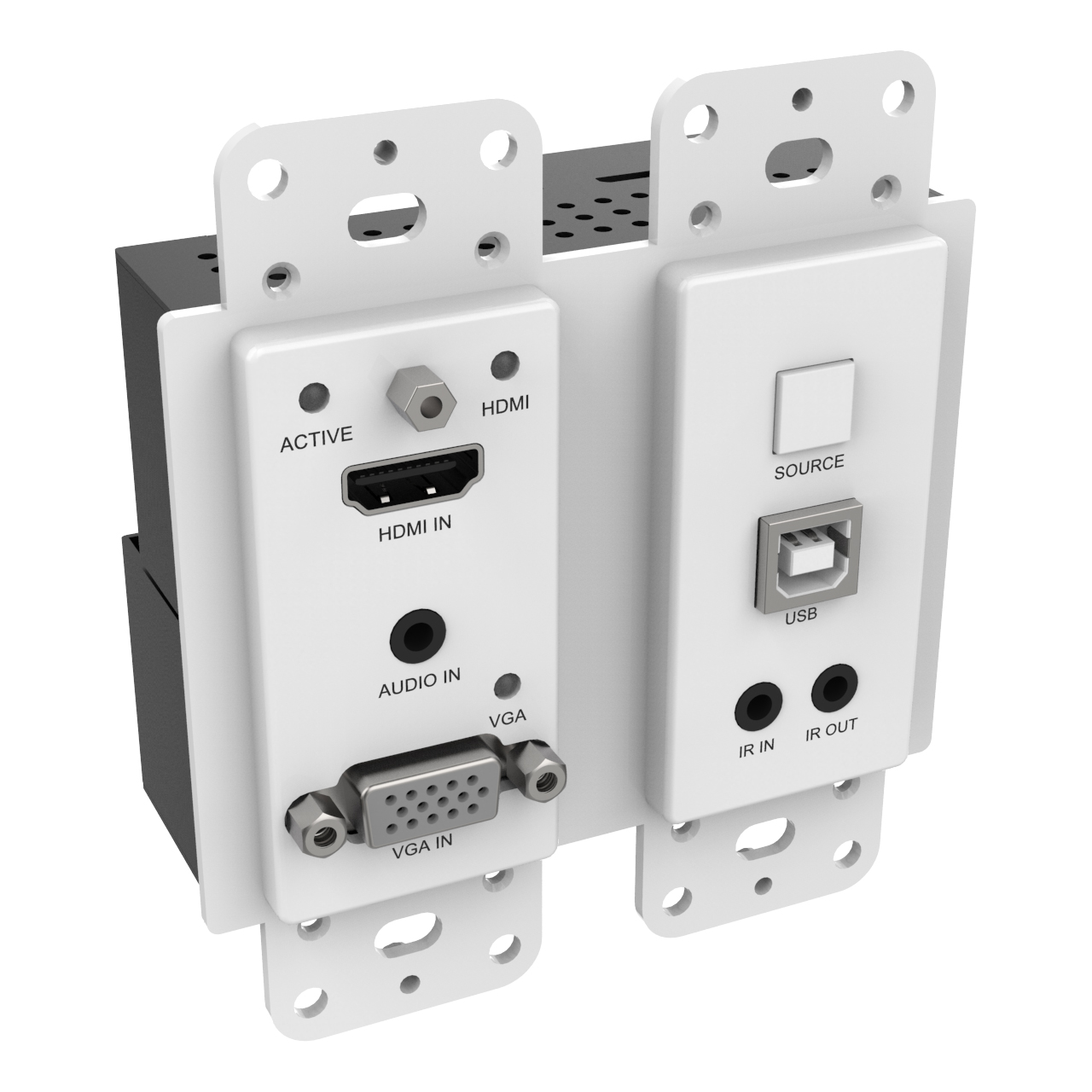

VigilLink VLWP-2HVG-TR 2x1 18Gbps 1-Gang Wall Plate with Auto-Switching HDBaseT2.0/VGA/HDMI2.0/USB2.0/POC - White

ITEM #: VGL-VLWP-2HVG-TR MFG #: VLWP-2HVG-TR

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
VigilLink
Free Shipping with $49 Minimum Order

Our Price:

$750.00

Add to Wish ListLeasing Options
Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup
  • Special Order Item: non-cancelable, non-returnable, non-refundable.
Report Lower PriceLarge Quantity Quote

VLWP-2HVG-TR - Overview

The VigilLink VLWP-2HVG-TR HDBaseT Wall-plate Transmitter supports HDMI and VGA with audio inputs within a standard 2-Gang US Decora wall box. It can transmit HDMI signal over CAT6/6a/7 to the distance up to 131ft/40m for 4K2K@60Hz (4:4:4) or 1080p60Hz up to 230ft/70m. Auto-switching allows user to plug-in and play. Built-in two-way IR, RS-232, and USB transmissions for easy device control.

  • Features:

    • HDMI 2.0b 18Gbps, HDCP 2.2 compliant
    • Up to 4K2K@60Hz (4:4:4), 4K2K@30Hz, 1080p@120Hz
    • Up to 7.1 channels of HD audio
    • HDBaseT™ over a single CAT6/6a/7 cable up to 230ft/40m distance for 4K2K@60Hz (4:4:4) or up to 230ft/70m distance for 1080p60Hz
    • Built-in scaling for VGA input
    • Automatic and manual switching modes
    • Two-way IR, RS-232 and USB supported
    • 2-Gang US Decora Wall Plate
    • 24V POC is supported


  • Specifications:

      Technical
    • HDMI Compliance: HDMI 2.0b
    • HDCP Compliance: HDCP 2.2
    • Video Bandwidth: 18 Gbps
    • Video Resolutions: 4K2K@50/60Hz 4:4:4 (max)
    • Color Space: RGB/YCbCr 4:4:4, YCbCr 4:2:2
    • Color Depth: 8/10-bit
    • HDR: 3D, HDR10 and Dolby Vision
    • HDMI Audio Formats: LPCM, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD
    • VGA Video Resolution: 1080P@50/60Hz 4:4:4 (max)
    • High Resolution Audio, 5.1; PCM 2-8Ch
    • ESD Protection: Human body model - ±8kV (Air-gap discharge) & ±4kV (Contact discharge)

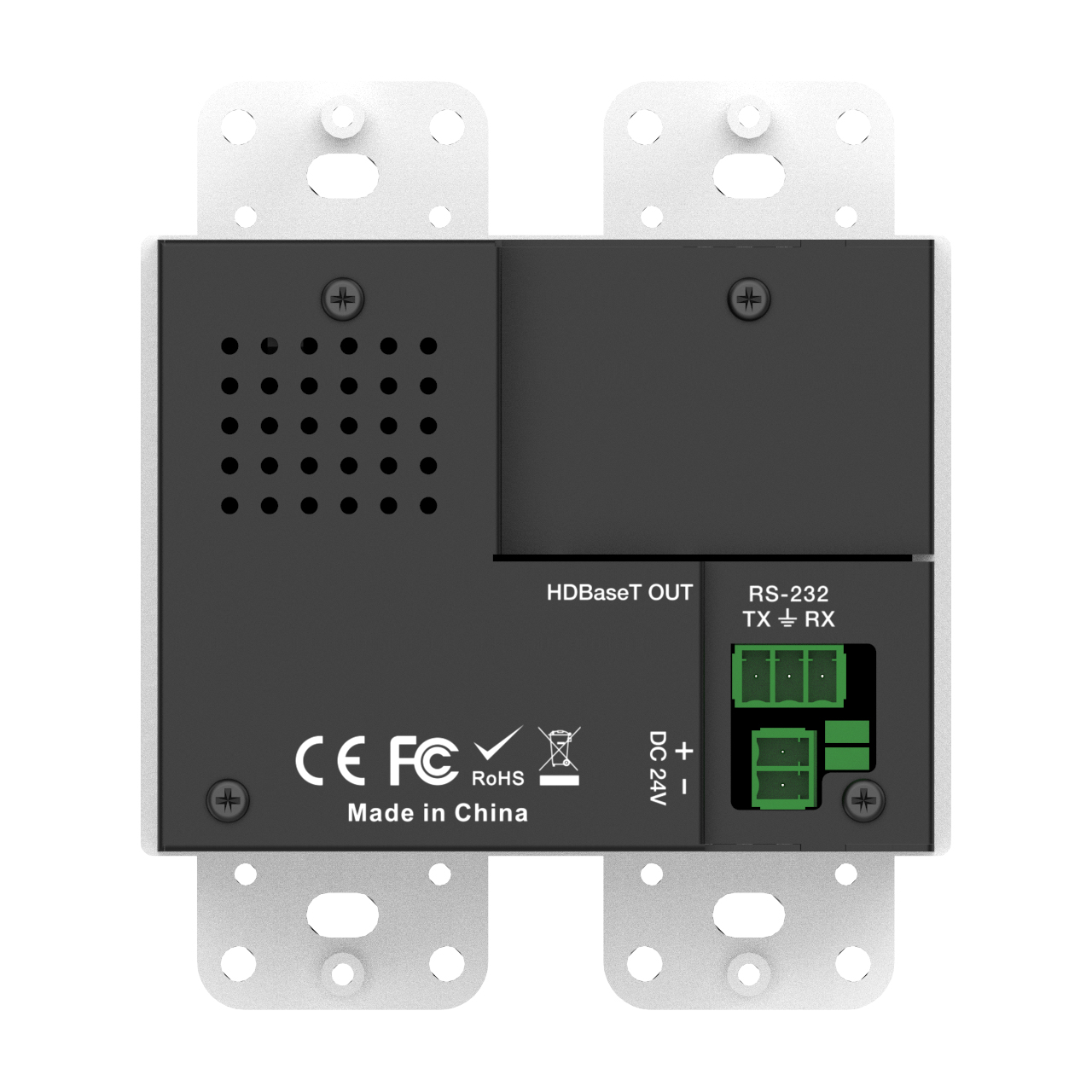

      Connections
    • Transmitter Inputs:
      - 1x HDMI Type A [19-pin female]
      - 1x VGA [15-pin female]
      - 1x USB [USB-B]
      - 1x IR IN [Phoenix jack]
      - 1x RS-232 [Phoenix jack]
      - 1x AUDIO IN [3.5mm Stereo Mini-jack]
    • Transmitter Outputs:
      - 1x HDBaseT Out [RJ45]
      - 1x IR OUT [Phoenix jack]

      Mechanical
    • Housing: Plastic Enclosure
    • Color: White
    • Dimensions: 4.13 x 3.61 x 1.69"
    • Weight: 0.66lbs
    • Power Supply: Input: AC100 - 240V 50/60Hz, Output: DC 24V/1A
    • Power Consumption: 6W (Max)
    • Operating Temperature: 0°C ~ 40°C / 32°F ~ 104°F
    • Storage Temperature: -20°C ~ 60°C / -4°F ~ 140°F
    • Relative Humidity: 20 - 90% RH (No condensation)


  • Item Includes:

    • 1x 18G HDMI Wall Plate Transmitter
    • 1x Phoenix connector (3 pins)
    • 1x Phoenix connector (2 pins)
    • 1x Wideband IR RX
    • 1x Wideband IR TX
    • 1x User Manual


  • Warranty:

    • 6 Years
