VigilLink VLWP-3HVG-TR 3x1 18Gbps 1-Gang Wall Plate with Auto-Switching HDBaseT 2.0/VGA/HDMI2.0/USB2.0/POC w/ RX - White

ITEM #: VGL-VLWP-3HVG-TR MFG #: VLWP-3HVG-TR

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
VigilLink
Free Shipping with $49 Minimum Order

Our Price:

$1,850.00

Add to Wish ListLeasing Options
Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup
  • Special Order Item: non-cancelable, non-returnable, non-refundable.
Report Lower PriceLarge Quantity Quote

VLWP-3HVG-TR - Overview

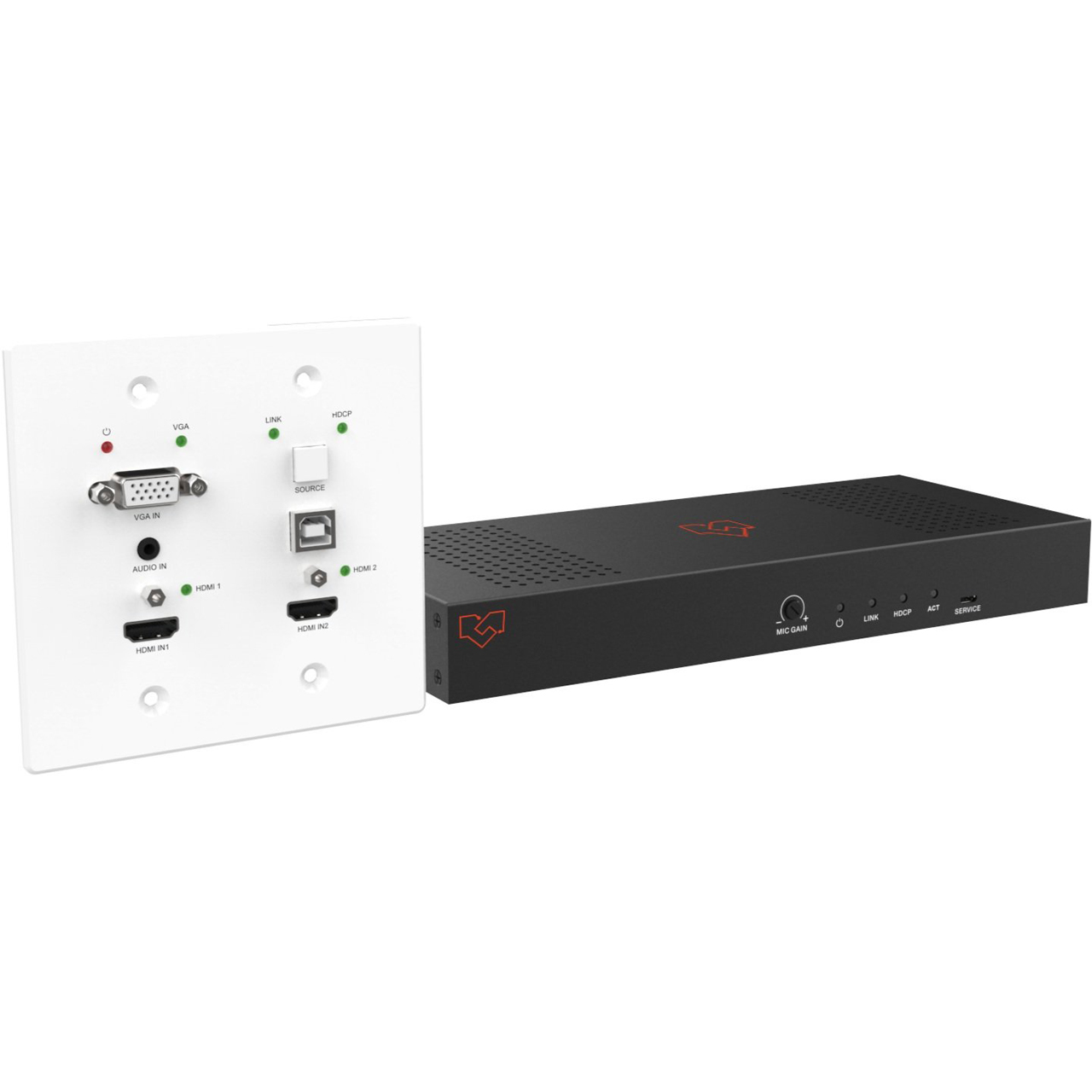

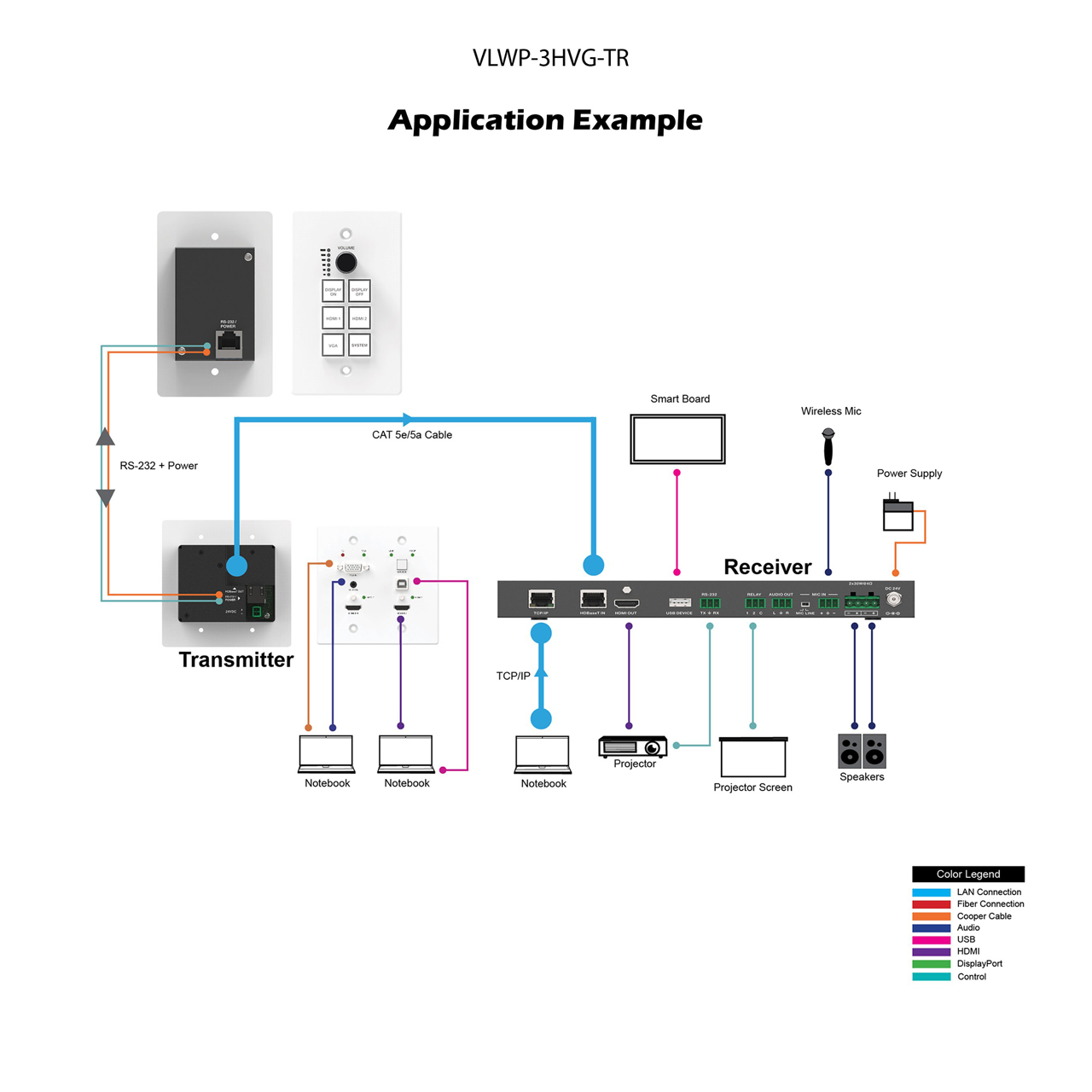

VigilLink VLWP-3HVG-TR is a multi-function AV intelligent education system. It offers 2HDMI and VGA video extension, video switching, system control, and analog audio amplification. Uncompressed video and audio can be transmitted up to 230ft/70m. This design of HDBaseT™ technology allows for full usage of HDMI and controls over CAT5e/6/6A cable. The product supports Web GUI and panel button control. The transmitter support HDCP 1.4, and HDCP2.2 and can be switched manually, auto, hybrid, or priority. And the maximum distance can be up to 70m at 1920x1200@60Hz or up to 40m at 4K @ 30 Hz.

The receiver supports a microphone input, analog audio output, 2x30 at 4 ohms speaker output, and Relay control to the projector screen rise and fall or RS-232 control to the display power on and off. A USB port on the receiver will transmit interactive display connections to the transmitter.

Control Panel supports volume control and system control. At the same time, it can support 2 HDMI and one VGA input selection.

  • Features:

    • HDMI 1.4b, HDCP 2.2, and HDCP 1.4 compliant.
    • Video resolutions up to 4K2K@30Hz, 1080p@120Hz and 1080P 3D@60Hz.
    • Audio up to 7.1 channels of High Definition audio pass-through (LPCM, Dolby TrueHD, and DTS-HD Master Audio).
    • HDBaseT™ over a single CAT5e/6/7 cable up to 230ft/70m distance.
    • Support multi-VESA Standard VGA formats input.
    • Supports MIC input.
    • 2x 30watts@4 ohms amplifier output.
    • Supports interactive display USB pass-through.
    • Supports Web GUI control.
    • Supports control panel volume control and system control.
    • Supports relay control.
    • Supports RS-232 control.


  • Specifications:

      Technical
    • HDMI Compliance: HDMI 1.4
    • HDCP Compliance: HDCP 2.2/HDCP 1.4
    • Video Bandwidth: 10.2 Gbps
    • Video Resolution: up to 4K2K@30Hz,1080P@120Hz and 1080P 3D@60Hz
    • Color Space: RGB, YCbCr 4:4:4, YCbCr 4:2:2
    • Color Depth: 8/10/12-bit
    • HDR: 3D, HDR10 and Dolby Vision
    • HDMI Audio Formats: LPCM 2/5.1/7.1CH, Dolby Digital, DTS 5.1, Dolby Digital+, Dolby TrueHD, DTS-HD Master Audio, Dolby Atmos, DTS:X
    • ESD Protection: Human body model - ±8kV (Air-gap discharge) & ±4kV (Contact discharge)

      Connections

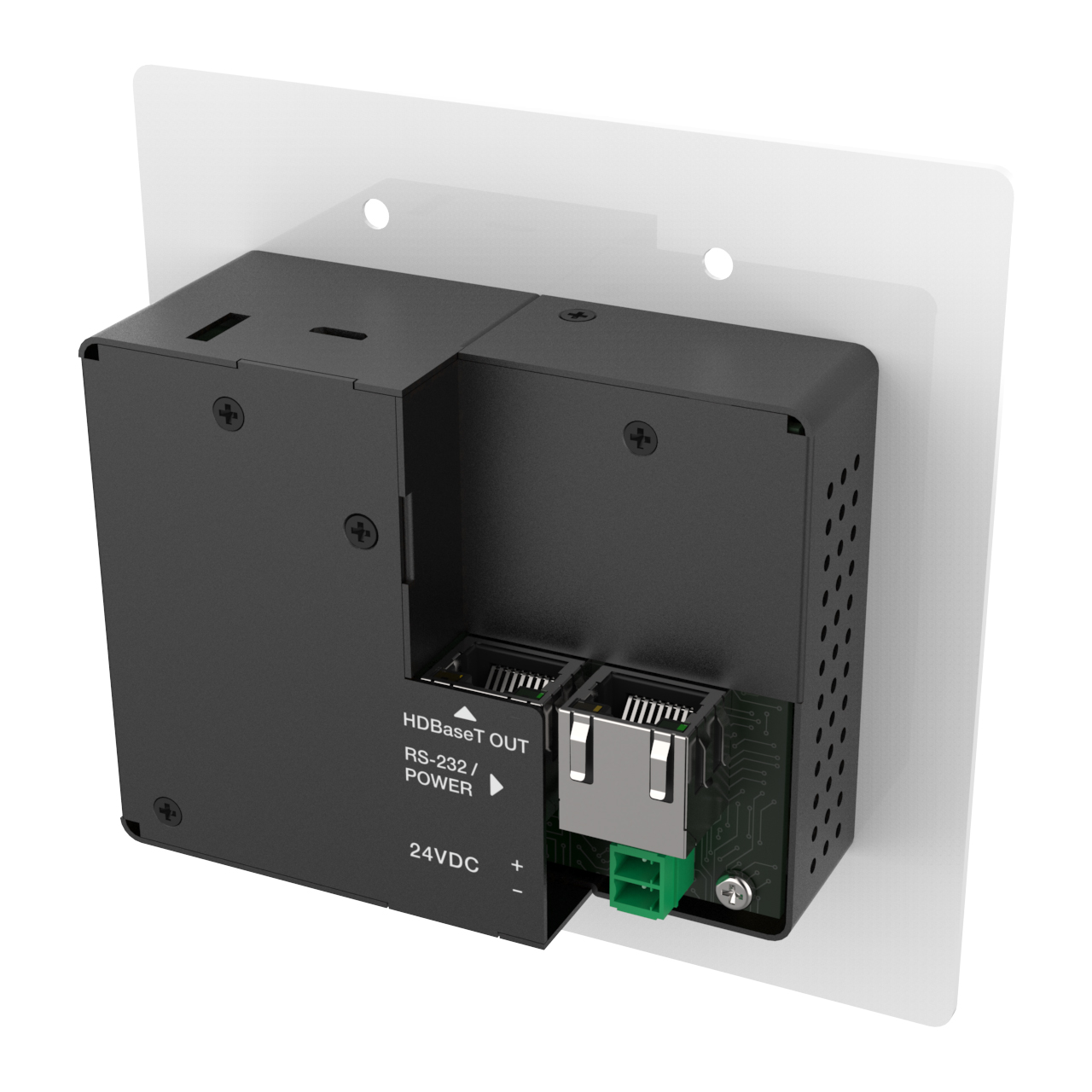

    • Transmitter Inputs:
      - 2x HDMI IN Type A [19-pin female]
      - 1x VGA [DB15 VGA female]
      - 1x AUDIO IN [3.5mm Stereo Mini-jack]
      - 1x RS-232/POWER [RJ45]
      - 1x RS-232 [Phoenix jack]
    • Transmitter Outputs:
      - 1x HDBaseT Out [RJ45]

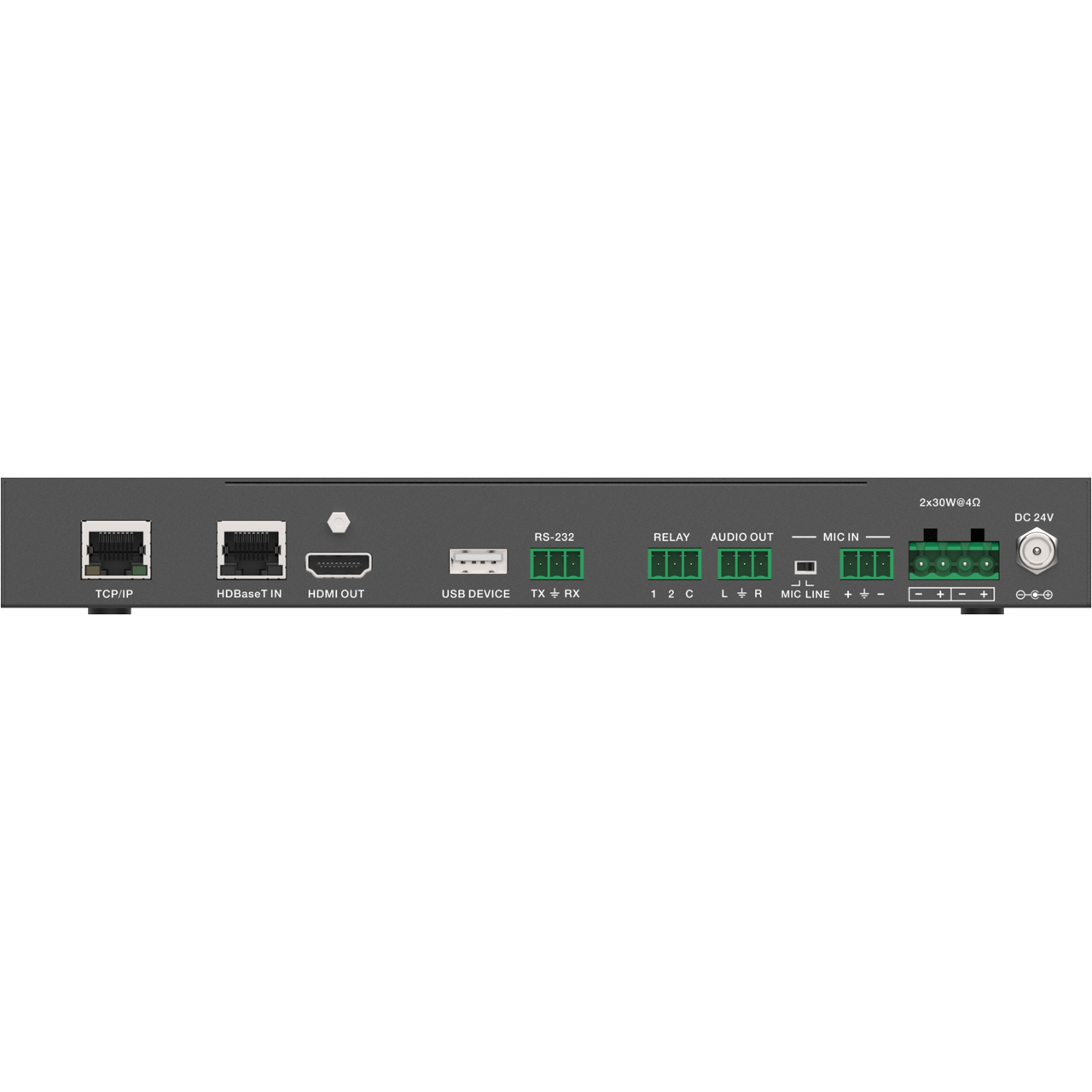

    • Receiver Inputs:
      - 1x HDBaseT in [RJ45]
      - 1x MIC IN [Screw Terminal]
      - 1x USB [USB A TYPE]
      - 1x TCP/IP [RJ45]
    • Receiver Outputs:
      - 1x RS-232 [Screw Terminal]
      - 1x RELAY [Screw Terminal]
      - 1x AUDIO OUT [Screw Terminal]
      - 1x 2x30watts@4 ohms amplifier output [Screw Terminal]

      Mechanical
    • Housing: Metal Enclosure
    • Color: Transmitter: White, Receiver: Black
    • Dimensions:
      - Transmitter: 4.5 x 4.56 x 1.52 (115.9 x 114.3 x 38.7mm)
      - Receiver: 4.09 x 9.84 x 1.18" (250 x 104 x 30mm)
    • Weight:
      - Wall plate: 0.67lb (305g)
      - Receiver: 1.12lb (511g)
    • Power Supply: Input: AC100 - 240V 50/60Hz, Output: DC 24V/3.75A
    • Power Consumption: 75W (max) (Max)
    • Operating Temperature: 0°C ~ 40°C / 32°F ~ 104°F
    • Storage Temperature: -20°C ~ 60°C / -4°F ~ 140°F
    • Relative Humidity: 20 - 90% RH (No condensation)


  • Item Includes:

    • 1x HDMI Extender Transmitter
    • 1x HDMI Extender Receiver
    • 1x 24V/3.75A DC Power Supply
    • 2x Mounting ears
    • 1x User Manual


  • Warranty:

    • 6 Years
